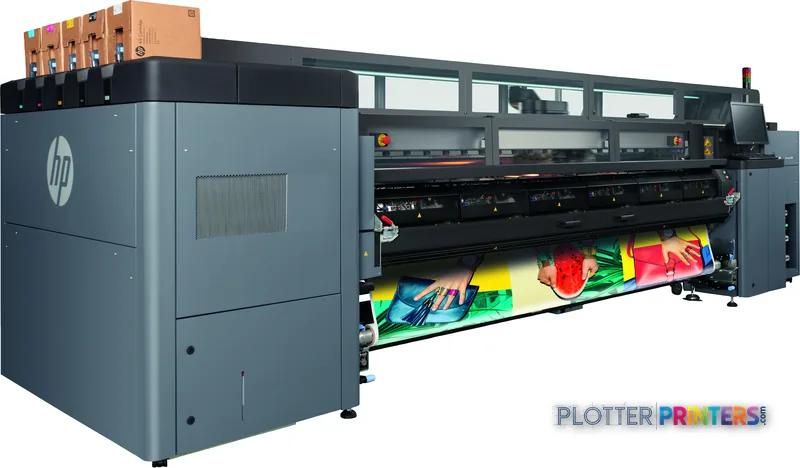

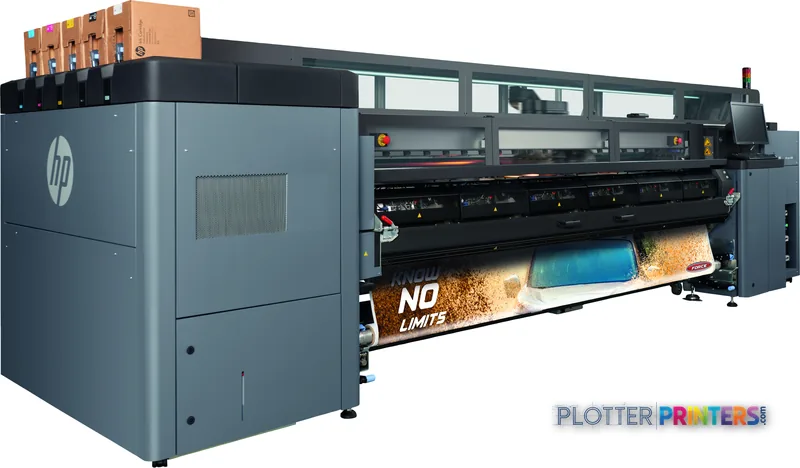

HP Latex 3200
latex signage printer
- Model3200
- Score59/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The HP 3200 is better aligned with high-volume banner, vinyl, and oversized color-graphics work than routine plan-set plotting.
- HP lists 315 m²/hr at normal quality, but productive output also depends on loading, trimming, and finished-media handling.
- Its 235-inch width and 3858.1-pound weight require a planned production location rather than an ordinary office corner.
Not sure if the 3200 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Fine detail 1200 x 1200 DPI maximum resolution for crisp line work.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 59/100 in our class-relative rating.
Overview
Built for the work
HP Latex 3200, Inkjet, 1200 x 1200 DPI, Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow, 315 m²/hr, Banner, 0.4 mm
- 3,391 ft²/hRated speed
- 7Ink channels
- 1,200 dpiMax resolution
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The HP 3200 is better aligned with high-volume banner, vinyl, and oversized color-graphics work than routine plan-set plotting.
- HP lists 315 m²/hr at normal quality, but productive output also depends on loading, trimming, and finished-media handling.
- Its 235-inch width and 3858.1-pound weight require a planned production location rather than an ordinary office corner.
- Scanning, copying, and USB printing are not listed, so separate those workflows before specifying the device.
- The listed HP 881 ink and printhead family, service coverage, electrical readiness, and media process should be confirmed in a live workflow demonstration.
The HP 3200 is not a desktop plotter with a wider roll bolted on. It is a large-format production inkjet built for shops that need to move banner and vinyl work without turning every job into a loading, drying, and handling exercise. In an AEC environment, that points less toward everyday permit sets and more toward site graphics, wayfinding, large project displays, safety messaging, color-coded construction communication, and durable visual output where scale matters.
HP lists a normal-quality print speed of 315 m²/hr. That number is useful for capacity planning, but it is not the finished-job number. Roll loading, take-up, trimming, job processing, and output handling still decide whether the printer keeps feeding work or leaves an operator waiting beside it. See how it ranks within its class.
315 m²/hrNormal-quality print speedHP-listed normal-quality specification.
235" (5980 mm)Machine widthPlan floor space, access routes, and service clearance before delivery.
0.016" (0.4 mm)Media thicknessA stated media-handling limit.
10000 WTypical power consumptionThis belongs in the facility and electrical review.
Where it earns its floor space
This machine fits AEC teams that produce large visual work alongside technical documents: construction-site banners, branded project graphics, directional signage, presentation-scale maps, coordination displays, and vinyl-based applications. Its listed vinyl support and banner media designation make that distinction important. It is a color printer with seven cartridges and seven printheads, using black, cyan, light cyan, light magenta, magenta, and yellow inks; HP lists maximum resolution at 1200 x 1200 DPI.
For the shop, the real advantage is not merely rated pace. It is keeping big-format work on a dedicated device rather than interrupting a plan-print queue. The trade-off is physical scale: at 235 inches wide, 68 inches deep, 74 inches high, and 3858.1 pounds, this needs a planned production location. A small architecture office with occasional presentation boards should be especially careful here; floor space and operator time can outweigh capacity that never gets used.
AEC workflow fit: strong for graphics, not a plan-room replacement
Use the HP 3200 where wide color graphics are part of construction communication. A GC can separate banner output from urgent drawing revisions. An infrastructure team can produce large visual notices and project displays. A central print room can keep specialty media work out of the CAD plotter lane. Ethernet LAN is provided through one RJ-45 port, with 10, 100, and 1000 Mbit/s data rates listed.
Do not buy it expecting scanning, copying, or USB walk-up printing: none is listed. It is also not the right machine to judge solely by technical-line output, because the supplied specifications do not establish fine-line behavior, dimensional consistency, CAD driver performance, or PDF processing. Those are demonstration items. For narrower AEC plotting needs, compare the workflow and footprint with the Canon GP-300 36-in or Canon imagePROGRAF 700 36-in rather than assuming a production graphics device replaces a 36-inch plan printer.
Use the estimator as a rated-speed starting point, then add the handling time your shop actually sees for loading, trimming, and taking down finished output.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 3,391 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Three questions to ask before signing
Ask three things: what feeds it, what supports it, who fixes it. First, bring your real banner and vinyl files and confirm media behavior at the thicknesses you use; HP lists support up to 0.016 inches. Second, map the electrical and environmental requirements. Typical power consumption is listed at 10000 W, with an operating range of 15–30 °C and 20–70% relative humidity. Third, ask the local service organization about response process, parts coverage, and the terms available through HP Care Pack.
Consumables are listed under the HP 881 family for both ink and printheads. Available workflow and finishing-related options include HP Large Format Onyx Thrive RIP Software, HP Latex In-Line Slitters, HP Latex Media Saver Kit, HP Latex Printing Solutions, and HP PrintOS Solution. Confirm which of those items are needed for your actual queue rather than buying accessories around a hypothetical workflow. Compare the HP 3200 with the Canon GP-300 36-in.
Compare the workflow, not just the specification sheet
Canon GP-300 36-inA narrower current catalog alternative for teams evaluating a different footprint and application range.Canon imagePROGRAF 700 36-inAnother 36-inch catalog option to consider for narrower-format AEC output.How we assess wide-format equipmentReview the operational factors behind the category analysis.
The read
The HP 3200 is a credible fit when your AEC operation has recurring banner, vinyl, and oversized color-graphics work substantial enough to justify a dedicated production machine. HP’s listed 315 m²/hr normal-quality speed, network connection, and broad physical format support point to that role. It becomes less appropriate when the daily requirement is primarily 36-inch drawing sets, scan-copy work, or occasional boards in a constrained office. There are no in-family step-up or step-down models in the supplied catalog, so the practical comparison is between this specialized production footprint and a narrower plotter workflow. Rated speed gets you a banner. Media handling gets you forty banners by Friday.
Spec analysis
How the specs grade
Overall performance
- This printer
- HP Latex 800 W
Category leaders best latex signage printers, by dimension
Verified specifications
The specs that decide it
| Print technology | Inkjet |
|---|---|
| Maximum resolution | 1200 x 1200 DPI |
| Number of print cartridges | 7 |
| Media thickness | 0.4 mm |
| Maximum roll diameter | 30 cm |
| Scanning | No |
| Ethernet | Yes |
| Power consumption | 10000 W |
Specifications
Full technical detail
Print technologyInkjet
Max resolution1200 x 1200 DPI
ConnectivityEthernet (Gigabit LAN)
Use caseGraphics / Production
Printing
| Colour | Yes |
|---|---|
| Print head | 7 |
| Print technology | Inkjet |
| Printing colours | Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow |
| Maximum resolution | 1200 x 1200 DPI |
| Number of print cartridges | 7 |
| Print speed (normal quality) | 315 m²/hr |
Performance
| Product colour | Black, Grey |
|---|
Paper handling
| Media thickness | 0.4 mm |
|---|---|
| Maximum roll diameter | 30 cm |
| Paper tray media types | Banner |
Ports & interfaces
| USB port | No |
|---|---|
| Ethernet LAN | Yes |
| RJ-45 ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Weight & dimensions
| Depth | 1720 mm |
|---|---|
| Width | 5980 mm |
| Height | 1870 mm |
| Weight | 1750 kg |
Power
| Power consumption (typical) | 10000 W |
|---|
Operational conditions
| Operating temperature (T-T) | 15 – 30 °C |
|---|---|
| Operating relative humidity (H-H) | 20 – 70% |
Other features
| Safety | IEC 60950-1+A1+A2 compliant; United States and Canada (CSA listed); EU (LVD and MD compliant, EN60950-1, EN12100-1, EN ISO13849-1, EN60204-1, and EN1010-1); Russia, Belarus and Kazakhstan (EAC); Australia, New Zealand (RCM) |
|---|---|
| Vinyl media | Yes |
| Electromagnetic compatibility | USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), Korea (KCC) |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Packaging data
| Manual | Yes |
|---|---|
| Package depth | 1930 mm |
| Package width | 5860 mm |
| Package height | 2160 mm |
| Package weight | 2510 kg |
Brand-specific features
| HP Care Pack | Yes |
|---|
Everything that fits the HP Latex 3200
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
11 ink cartridges · 4 printheads · 12 paper & media items · 5 accessories
HP Latex 3200 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP Latex 3200 — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 11
HP Latex In-Line Slitters
HP Latex 3000 Double-sided Day Night Kit
HP 881 Latex Cleaning Roll
HP Latex 3000 Day Night Edge Holder Kit
HP 881 5-liter Cyan Latex Ink Cartridge
HP 881 5-liter Magenta Latex Ink Cartridge
HP 881 5-liter Latex Optimizer Cartridge
HP 881 5-liter Light Magenta Latex Ink Cartridge
HP 881 5-liter Yellow Latex Ink Cartridge
HP 881 5-liter Black Latex Ink Cartridge
HP 881 5-liter Light Cyan Latex Ink CartridgePrintheads 4
Paper & Media 12
Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image10 Mil Solvent Printable PolycarbonateRepresentative image225gsm Solvent Satin PE PaperRepresentative image180gsm Solvent Satin PE PaperRepresentative image225gsm Gloss Solvent PE PaperRepresentative image15 Mil Polycarbonate LaminateRepresentative image15 Mil Textured Co-polymer LaminateRepresentative image200gsm Special Matte Photo PaperRepresentative image10 Mil Water-resistant Blockout Display FilmRepresentative image10 Mil Solvent Blockout Display FilmRepresentative image10 Mil White Opaque Backer
Questions
Straight answers
Is the HP 3200 a good replacement for a 36-inch CAD plotter?
Not automatically. The supplied data points to banner and vinyl production at a very large physical scale; it does not establish scanning, copying, or the technical-document workflow capabilities that matter in a conventional plan room.
What AEC jobs fit this printer best?
It is most naturally suited to large color graphics such as construction banners, wayfinding, site communication, presentation displays, and vinyl applications. Its listed banner media designation and vinyl support support that use case.
How fast is the HP 3200?
HP lists 315 m²/hr at normal quality. Treat that as an engine-rate reference, then test real jobs with the roll changes, output handling, and trimming your shop requires.
What facility requirements should be checked?
Check the 235-inch width, 68-inch depth, 74-inch height, and 3858.1-pound weight, plus access for delivery and service. Typical power consumption is listed at 10000 W, and the operating environment is 15–30 °C and 20–70% relative humidity.
Can it scan or copy marked-up drawings?
No. Scanning and copying are both listed as unavailable, so redline capture and archive workflows need a separate device or process.
What consumables and workflow options are listed?
Ink and printheads are listed in the HP 881 family. Listed options include HP Large Format Onyx Thrive RIP Software, HP Latex In-Line Slitters, HP Latex Media Saver Kit, HP Latex Printing Solutions, and HP PrintOS Solution.
