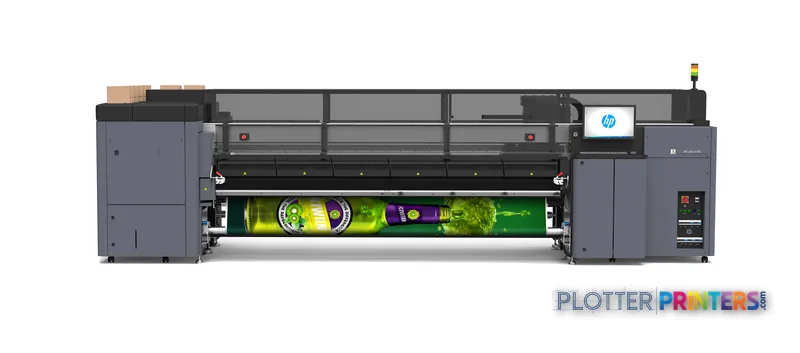

HP Latex 3100

The HP 3100 makes the strongest case where wide color output is part of construction communication, not just occasional plotting. A general contractor can use it for large site graphics and project signage. An infrastructure or civil group can keep oversized color mapping and public-information graphics closer to the project team. A central print room can use the width for jobs that would otherwise need tiling or outsourcing.

Its Ethernet LAN connection supports a wired production environment; there is no Wi-Fi and no USB port listed. That will suit organizations that prefer controlled network submission, but IT should plan the RJ-45 connection and network placement. The built-in display gives operators local machine access, while HP PrintOS Solution and HP Large Format Onyx Thrive RIP Software are listed compatible accessories for teams building a more managed production workflow.

Ask three things: what feeds it, what finishes it, who owns the network path? The machine accepts banner media, supports media up to 0.016" (0.4 mm), and has a 12" maximum roll diameter. Those limits matter more than a headline speed when the job mix changes during the day.

This is not a scan-copy-reprint hub. Copying and scanning are not listed, so marked-up drawings, legacy-plan capture, and walk-up copying require another device or workflow. It is also a substantial facility commitment: typical power consumption is listed at 10000 W, and the specified operating range is 15 – 30 °C with 20 – 70% relative humidity.

For an architecture studio whose daily work is primarily 33- or 36-inch drawing sets, a smaller device may be easier to place, support, and keep busy. The Canon GP-300 36-in and Canon imagePROGRAF 700 36-in are catalog-listed narrower alternatives worth putting beside the HP 3100 when output width is not the deciding need. They are not like-for-like 3.2 m replacements.

There is no in-family step-up or step-down model listed in this catalog set. Buyers should therefore compare workflow rather than assume a simple family ladder. Use the comparison tool to separate wide-banner production requirements from conventional AEC plotting needs.

The compatible supply list includes HP 3M 891 10-liter Black Latex Ink Cartridge, Cyan Latex Ink Cartridge, Magenta Latex Ink Cartridge, Yellow Latex Ink Cartridge, and Latex Optimizer Ink Cartridge, along with HP 881 supplies and printheads. The printer is listed with seven cartridges and seven printheads. Confirm the exact supply configuration, stocking arrangement, and service response commitments with the supplying partner before committing it to deadline-driven work.

An hour down on a large banner job is not just a paused printer. It is an operator waiting, media held on the floor, and an installation crew asking where the graphic is. Small shops should be especially candid: this machine can be useful when very wide work is recurring, but it is hard to justify as a casual overflow device.
