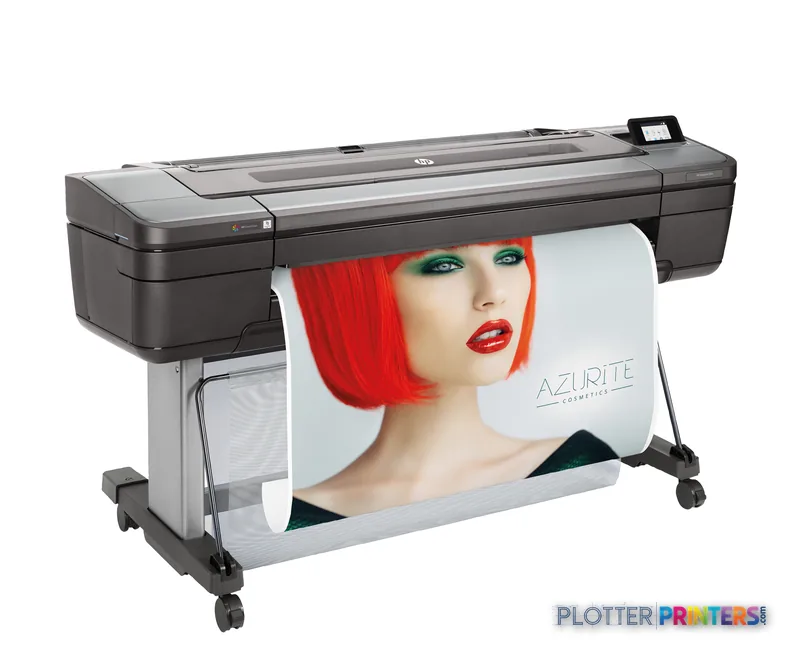

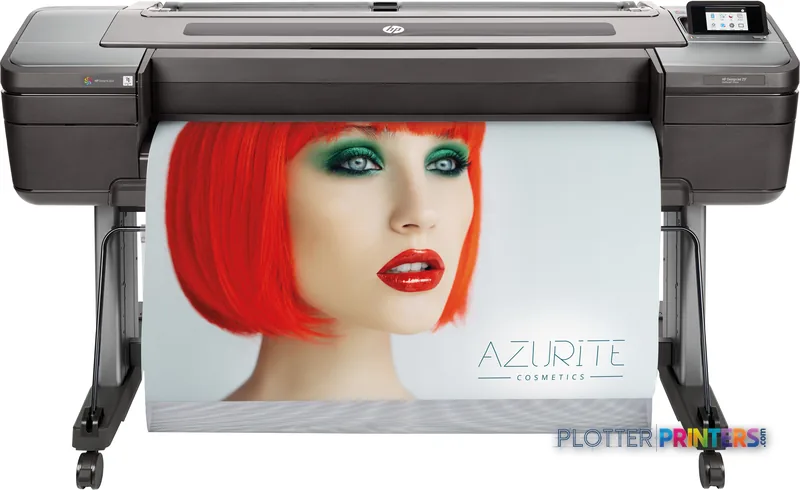

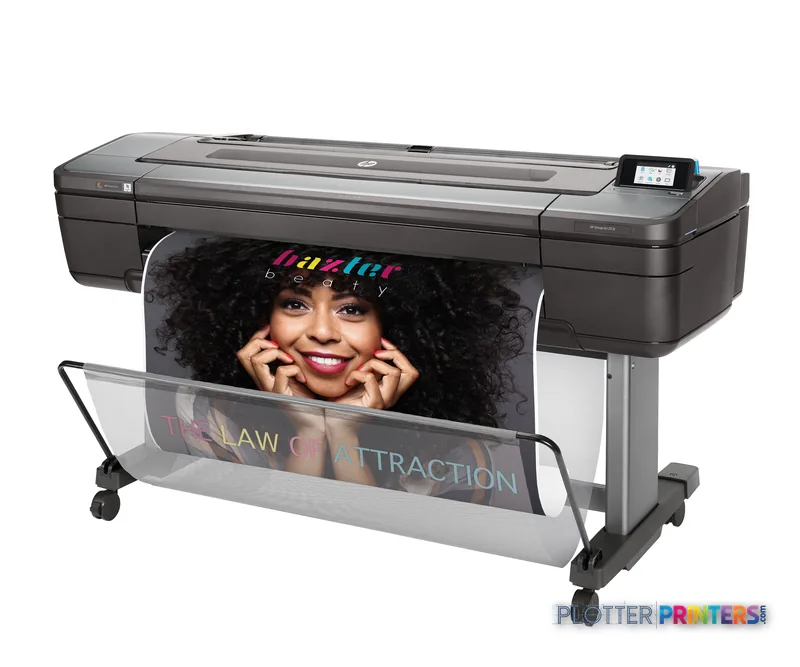

HP DesignJet Z9+dr

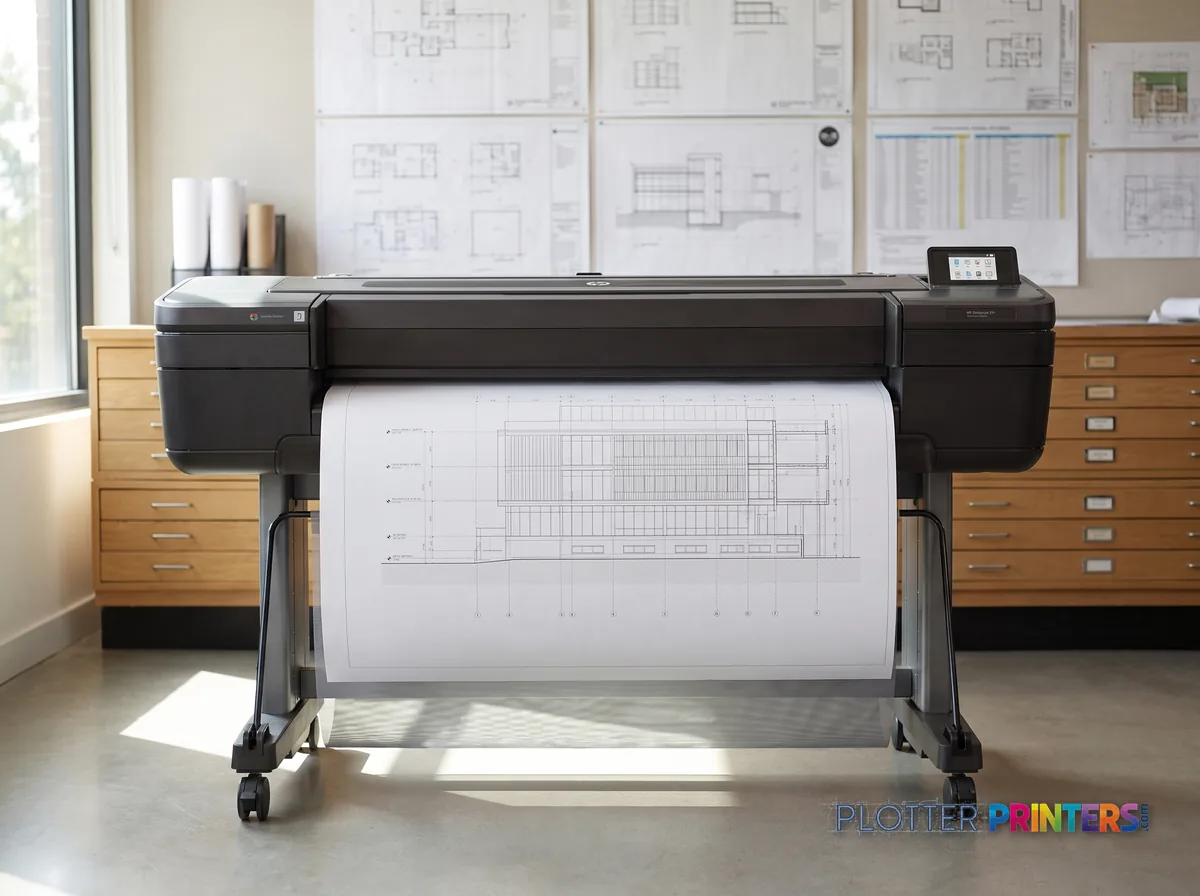

Most AEC wide-format work is monochrome line: bid sets, permit sets, redlines, as-builts. For that, the dual-black configuration — Photo black and Matte black — matters more than the chroma channels, because it lets the machine hold dense, readable line weight on both matte bond and coated stock without swapping media profiles by hand.

Where the Z9+dr separates itself is the color side. This is a five-printhead system running the HP 746 inks with the HP 746 printhead, PostScript 3 and PDF 1.7 in the RIP path. That combination is built for coordination drawings, GIS maps and rendered presentation boards where color has to read correctly, not just approximately. I’d want to measure its gamut on our reference media before making a fidelity claim — we don’t have those numbers for this unit — but the hardware intent is clearly photographic, not merely legible.

The integrated V-Trimmer is the practical differentiator for a production room: it trims output inline, which shortens the path from roll to a stack you can hand off. Paired with the 500 GB internal HDD and Gigabit Ethernet, PostScript queuing and reprints become genuinely unattended, and HP SmartStream (optional) tightens the nesting on mixed-size plan sets.

Two honest cautions. First, independent owner reports describe aggressive self-cleaning cycles — one user noted roughly 2% of total ink volume per month spent on printhead preservation. If your firm prints only once or twice a week, a meaningful share of your ink goes to maintenance rather than billable output. Second, there is no scanner or copier here; if you need wide-format capture, budget separately for the HP HD Pro 42-in Scanner.

This is particularly well suited to a mid-to-large multidisciplinary practice or a central reprographics room that mixes photographic presentation work with everyday line output and wants inline finishing. It becomes more compelling when color fidelity is billable — competition boards, renderings, coordination sets.

It may be less appropriate for firms that print mostly monochrome line at high volume, where a toner-style or simpler CMYK line machine like the HP Z5600 44-in or HP Z6600 44-in delivers cost-per-plot economics the Z9+dr’s photo ink set can’t match. If your palette is genuinely photographic and you want an even deeper channel count, the older HP DesignJet Z3200ps 44-in took a different, more chroma-heavy route worth comparing directly. On the cross-brand side, the Canon GP-4000 44-in is the obvious alternative to weigh for a line-and-color production room.
