HP · Printhead

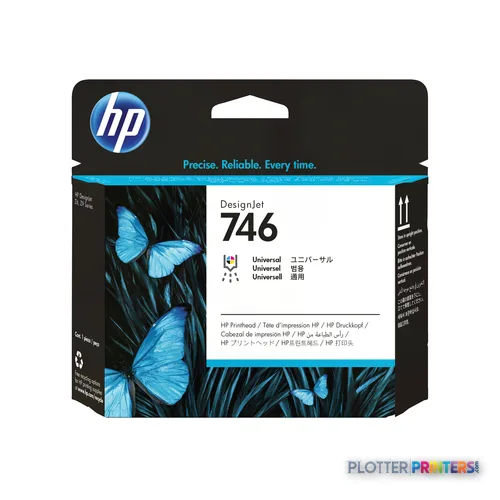

746 DesignJet Printhead
- ModelP2V25A
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Works with these printers
Compatibility resolved from manufacturer supply listings — 6 printers.
HP DesignJet Z6drIn our store
HP DesignJet Z9+In our store
HP DesignJet Z6In our store
HP DesignJet Z6In our store
HP DesignJet Z9+In our store
HP DesignJet Z9+drIn our storeOverview
Built for the work
HP 746 DesignJet Printhead, HP DesignJet Z6 Printer series, HP Designjet Z9 Printer series, Thermal inkjet, P2V25A, Singapore, 1.1" (28 mm), 5.63" (143 mm)
Specifications
Full technical detail
Print technologyThermal inkjet
Performance
| OEM code | P2V25A |
|---|---|
| Compatibility | HP DesignJet Z6 Printer series, HP Designjet Z9 Printer series |
| Print technology | Thermal inkjet |
| Country of origin | Singapore |
Technical details
| Box contents | Printhead |
|---|---|
| Number of cartons per pallet layer | 10 pc(s) |
| Total carbon footprint (kg of CO2e) | 3.9 |
Weight & dimensions
| Depth | 5.63" (143 mm) |
|---|---|
| Width | 1.1" (28 mm) |
| Height | 5.2" (132 mm) |
| Weight | 2.82 oz (80 g) |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Storage relative humidity (H-H) | 20 – 80% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| UNSPSC-code | 44103110 |
|---|
Logistics data
| Pallet weight | 563.7 lbs (255.7 kg) |
|---|---|
| Quantity per pack | 1 pc(s) |
| Quantity per pallet | 1920 pc(s) |
| Pallet weight (imperial) | 563.68 lbs |
| Master (outer) case weight | 6.5 lbs (2.95 kg) |
| Harmonized System (HS) code | 84439990 |
| Number of layers per pallet | 8 pc(s) |
| Number of cartons per pallet | 80 pc(s) |
| Pallet dimensions (W x D x H) | 40 x 48 x 51.9" (1016 x 1219 x 1318 mm) |
| Quantity per master (outer) case | 24 pc(s) |
| Pallet dimensions (W x D x H) (imperial) | 40 x 47.99 x 51.89" |
Packaging data
| Package depth | 5.63" (143 mm) |
|---|---|
| Package width | 1.1" (28 mm) |
| Package height | 5.2" (132 mm) |
| Package weight | 3.88 oz (110 g) |
