HP · Wide-Format Plotter

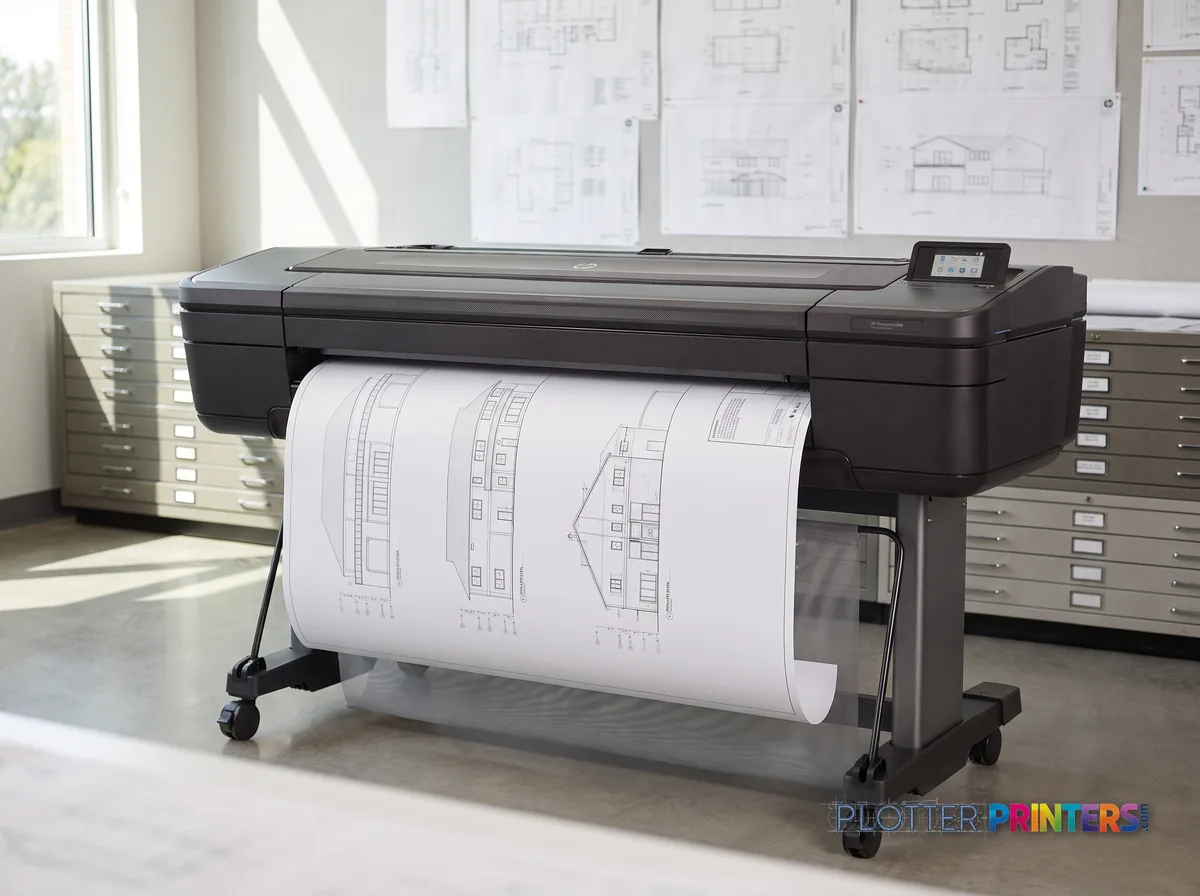

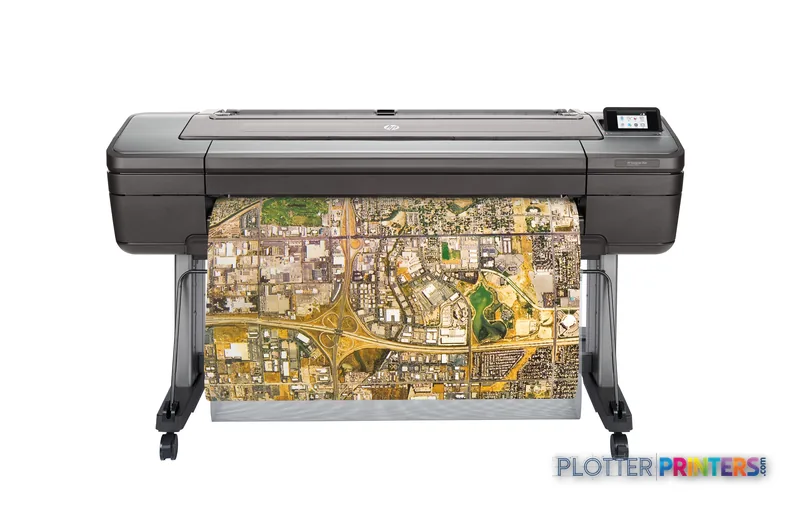

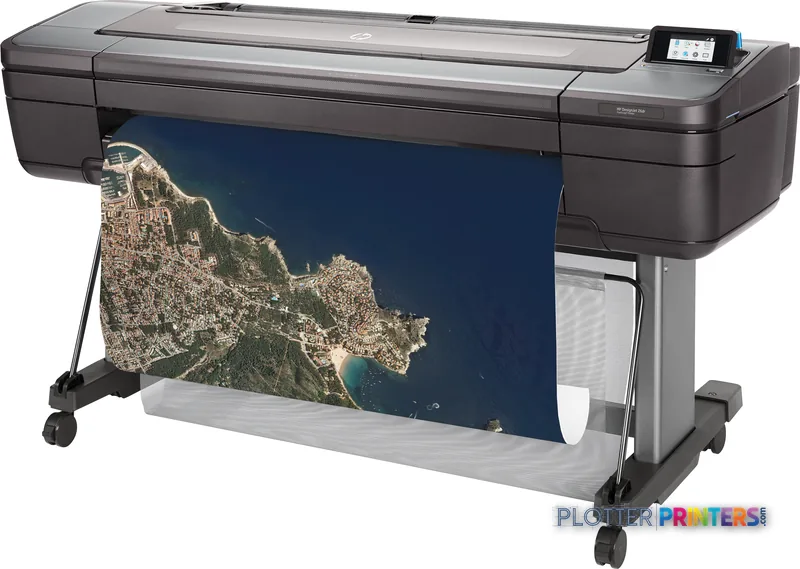

HP DesignJet Z6dr
44" color graphics & photo printer
- ModelZ6dr
- Prints44" wide
- Score73/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtendable to 3 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- Six-ink, dual-black system using HP 730 and HP 746 inks renders both technical color and presentation work on one machine.
- Dual-roll design switches automatically between two roll widths without operator intervention.
- The integrated V-Trimmer finishes prints on exit; users report it can be sensitive when swapping bond and photo media.
Not sure if the Z6dr is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 44" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Cyan, Photo black, Matte black, Magenta, Yellow.
- Connectivity Ethernet for shared team printing.
- Verified specs 10 specs checked against the manufacturer datasheet.
- Analyst score Scores 73/100 in our class-relative rating.
Overview
A dual-roll photo-color plotter for offices where maps and renderings share the queue with drawings
The Z6dr is a 44-inch thermal inkjet plotter built around two ideas AEC print rooms actually care about: a six-ink photo-color system that reproduces GIS maps and renderings with real depth, and a dual-roll feed that switches between rolls—say 24-inch bond and 36-inch coated—without an operator standing over it. The color story is where the eye notices first. On coated media, saturated site-plan fills and the cyan edge of a flood-zone overlay hold their weight rather than banding out, and HP rates output at 2400 x 1200 dpi. HP claims the six-ink set delivers high-definition results without light inks; we’d treat that as a claim and check it on your own media, but the gamut is clearly broader than a line-drawing plotter.
- Mixed queues of CAD line work and color GIS or coordination sheets
- Offices that want unattended roll switching across two widths
- PostScript 3 / PDF 1.7 workflows from Revu and CAD, plus HP-GL/2
- Renderings and presentation boards that need photographic depth
The integrated V-Trimmer promises less hand-cutting—HP rates up to 20% less post-processing—but independent users report it can be sensitive when switching between thin bond and heavy photo rolls. If you print monochrome bid sets at high volume, a production-class in-family model like the HP Z6600 44-in is a better fit; note this unit is now superseded by the Plus Edition.
- 44″Max print width
- 867 ft²/hRated speed
- 6Ink channels
- 2,400 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
At a glance
- Print width
- 44 in (max media 44" x 66")
- Technology
- Thermal inkjet, 6 ink cartridges, 3 printheads
- Ink set
- HP 730 / HP 746 inks; HP 746 printhead
- Max resolution
- 2400 x 1200 dpi
- Rated speed
- 18.8 m²/h, normal quality on coated (HP)
- Media feed
- Dual roll with automatic switching; 3-in core adapter included
- Languages
- PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4
- Connectivity & storage
- Gigabit Ethernet, USB Type-A, Wi-Fi Direct; 500 GB HDD
Ideal for: multidisciplinary offices with a real mix of color GIS/renderings and CAD line work, wanting unattended dual-width roll switching. Not the tool for: high-volume monochrome bid-set production, or teams that only ever print line drawings.
Features
What sets it apart
Swipe to explore →
Expert analysis
What you should know
Key takeaways
- Six-ink, dual-black system using HP 730 and HP 746 inks renders both technical color and presentation work on one machine.
- Dual-roll design switches automatically between two roll widths without operator intervention.
- The integrated V-Trimmer finishes prints on exit; users report it can be sensitive when swapping bond and photo media.
- HP rates it at 18.8 m²/h on coated in normal quality — a best-case figure, not real mixed-size plan-set throughput.
- Handles PostScript 3, PDF 1.7, HP-GL/2 and CALS G4 with Gigabit Ethernet and a 500 GB drive.
- Superseded in June 2026 by the Z6dr Plus Edition; still available from distributors but no longer the flagship.
Look closely at the last five percent of a saturated red on a rendering, or the fine gradient in a GIS floodplain map, and you learn something about a plotter that a bid set never reveals. The HP DesignJet Z6dr 44-in PostScript Printer with V-Trimmer is built for offices that live in both worlds at once — crisp black lines on bond in the morning, color-critical presentation work in the afternoon — with a dual-roll body and an integrated vertical trimmer that finishes prints as they come off the machine.
It is a thoughtful design, and it is also, as of this writing, a machine near the end of its primary life. Worth understanding before you commit.
44" x 66"Print widthmaximum print size
18.8 m²/hRated speedHP QuickSpecs, normal quality on coated
2400 x 1200 DPIResolution
0.1%Line accuracycritical for scaled drawings
What it actually is
This is a six-ink, three-printhead thermal inkjet plotter using HP 730 and HP 746 inks with the HP 746 printhead. The ink set — cyan, magenta, yellow, plus both photo black and matte black — is the tell: HP built this for color that matters, not just for line drawings where a monochrome engine would suffice. On coated paper it renders skin tones and long tonal ramps without the banding you learn to dread on cheaper units, and the dual black inks mean deep neutrals on both matte technical media and glossy presentation stock.

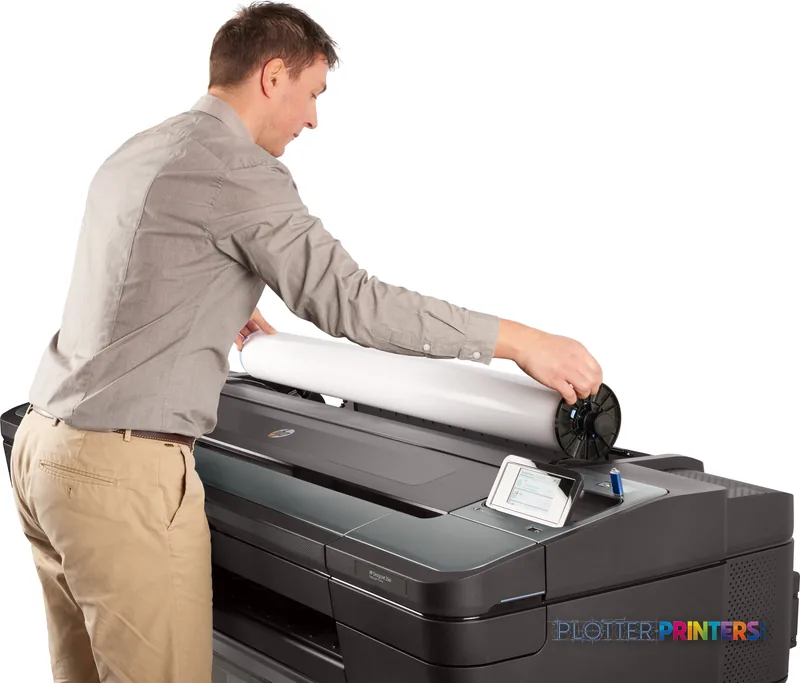

The two roles that define daily use are dual roll and the V-Trimmer. Dual roll lets the machine switch automatically between, say, a 24-in and a 36-in roll without an operator walking over — genuinely useful in a plan-set office. The vertical trimmer squares prints as they exit. HP rates it as cutting post-processing time by up to 20 percent; treat that as a claim, and know that independent users report the trimmer can be fussy when you swap between thin bond and heavy photo rolls.
Where it fits — and where it doesn't
The color capability is the reason to choose this over a plainer CAD plotter. If your work is renderings, coordination drawings with meaningful color-coding, or GIS maps where the difference between two blues carries information, this earns its keep.
- Multidisciplinary practices producing both bid sets and color presentation boards from one machine.
- Civil and survey teams running GIS and topographic maps where color fidelity is functional, not decorative.
- Offices wanting hands-off roll switching across two common sheet widths.
- Firms that value finished, trimmed output without a separate cutting step.
It is less compelling for a pure line-drawing shop. If you almost never print color and just need fast, cheap monochrome throughput, a production-oriented sibling like the HP Z5600 44-in or HP Z6600 44-in makes more sense. Need serious color but more width? Step up to the HP DesignJet Z6200 60-in. And if photo-grade gamut is the whole point, the HP DesignJet Z3200ps 44-in deserves a side-by-side look.
Estimate plot times for your own run lengths.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 867 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
For the print-room and IT desk
PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG and CALS G4 cover the AEC submission stack. Gigabit Ethernet, a 500 GB internal drive, and the option of HP JetAdvantage Security Manager and HP SmartStream address authentication and preflight for busier environments. Typical draw is modest at 100 W, and the unit is ENERGY STAR certified and EPEAT registered — reasonable footprint numbers for a machine this size. See how the class stacks up on our 44-in plotter rankings.
The read
The Z6dr is a capable hybrid: color good enough for presentation work, line accuracy tight enough for scaled drawings, and finishing built in. Its honest limitation now is timing — it has been superseded by the Z6dr Plus Edition, so weigh distributor stock, ink and printhead availability, and local service against the value of a proven design. For a color-active multidisciplinary office that also runs plan sets, it remains a sensible machine; for pure monochrome production, look to a leaner sibling instead.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 10 compared
Class best 79 — Epson SureColor T7770DR
100% spec coverage
- This printer
- Epson SureColor T7770DR
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 44 inmanufacturer-verified |
|---|---|
| Print speed (HP-rated modes) | 104 / 202 / 866 ft²/hrmanufacturer-verified |
| Maximum resolution | 2400 x 1200 optimized |
| Inks | 6 colors: cyan, magenta, yellow, matte black, photo black, chromatic red |
| Printheads | 3 universal printheads (valid for all colors) |
| Ink cartridge capacity | 300 mlmanufacturer-verified |
| Internal memory | 8 GBmanufacturer-verified |
| Internal storage | 500 GB self-encrypting |
| Page description languages | Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL |
| Control panel | 15.6 in large touchscreen |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
Max print width44"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use casePhoto / Fine Art
Printing
| Color | Yes |
|---|---|
| Print head | 3 |
| Printing colors | Cyan, Photo black, Matte black, Magenta, Yellow |
| Print technology | Thermal inkjet |
| Resolution color | 2400 x 1200 DPI |
| Maximum resolution | 2400 x 1200 DPI |
| Borderless printing | Yes |
| Number of print cartridges | 6 |
| Page description languages | PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4 |
Performance
| HP segment | Business |
|---|---|
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| Product color | Black, Silver |
| Storage media | HDD |
| Built-in display | Yes |
| Country of origin | China, Thailand |
| Internal storage capacity | 500 GB |
Paper handling
| Roll paper | Yes |
|---|---|
| Media thickness | 0.8 mm |
| Print margin roll | 0.197" (5 mm) |
| Custom media sizes | 210 x 279 to 1118 x 1676 mm |
| Maximum print size | 1118 x 1676 mm |
| Maximum roll diameter | 5.31" (13.5 cm) |
| Paper tray media types | Coated paper, Bond paper, Photo paper, Banner |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
Ports & interfaces
| Wi-Fi | No |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| USB connector | USB Type-A |
| Direct printing | Yes |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Mobile printing technologies | HP ePrint |
Technical details
| Box contents | HP DesignJet Z6 PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, 3-in core adapter, quick reference guide, setup poster, power cord |
|---|
Weight & dimensions
| Depth | 27.4" (695 mm) |
|---|---|
| Width | 70.9" (1802 mm) |
| Height | 39.3" (998 mm) |
| Weight | 211.6 lbs (96 kg) |
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (off) | 0.1 W |
| Power consumption (sleep) | 6.5 W |
| Power consumption (standby) | 32 W |
| Power consumption (typical) | 100 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| UNSPSC-code | 43212104 |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
Copying
| Copying | No |
|---|
Scanning
| Accuracy | 0.1% |
|---|---|
| Scanning | No |
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Packaging data
| Package depth | 30.2" (766 mm) |
|---|---|
| Package width | 76.8" (1950 mm) |
| Package height | 28.3" (718 mm) |
| Package weight | 291 lbs (132 kg) |
| Bundled software | HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional) |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainable technologies and materials | 30% post-consumer recycled plastic; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; Highest WIR Print Permanence Ratings in the Industry; ENERGY STAR certified; EPEAT registered |
Carbon footprint
| Total carbon footprint (kg of CO2e) | 830 |
|---|---|
| Carbon emissions, logistics (kg of CO2e) | 52 |
| Carbon emissions, end-of-life (kg of CO2e) | 1 |
| Carbon emissions, manufacturing (kg of CO2e) | 755 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 17 |
Brand-specific features
| HP dynamic security | Yes |
|---|
Everything that fits the HP DesignJet Z6dr
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
6 ink cartridges · 1 printhead · 12 paper & media items · 4 accessories · 1 coverage plan
HP DesignJet Z6dr ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet Z6dr 44-in PostScript Printer with V-Trimmer — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 6
Printheads 1
Paper & Media 12
HP Production Adhesive Vinyl, 3-in Core
Representative imageHP 4-mil Double Matte Film, 3-in CoreRepresentative imageHP Bright White Inkjet Paper, 4-packRepresentative imageHP Bright White Inkjet Paper, 2-packRepresentative imageHP 20-lb Bond with ColorPRO TechnologyRepresentative imageMagic 9mil Universal Matte Coated PP Film (PPM7)Representative imageMagic Firenze 170gsm Coated Matte Paper (Firenze170)Representative imageMagic 98gsm/26# Coated Matte Paper (DMPG98)Representative image20LB Inkjet Vellum (772)Representative image18LB Inkjet Bond Paper (Translucent) (750)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image24LB Inkjet Coated Matte Paper Economy (714)Accessories 4
Coverage & Support Plans 1
Questions
Straight answers
Is the Z6dr still a current model?
As of July 2026 it has reached the end of its primary lifecycle and is superseded by the HP DesignJet Z6dr Plus Edition, though units remain in distributor inventory. Confirm ink, printhead and service availability before committing.
What inks and printhead does it use?
It runs on HP 730 and HP 746 inks with the HP 746 printhead, in a six-ink configuration spanning cyan, magenta, yellow, photo black and matte black.
How wide can it print?
Up to a 44″ x 66″ maximum print size, at a stated line accuracy of 0.1% — appropriate for scaled architectural and engineering drawings.
Is the vertical trimmer reliable across different media?
HP rates the trimmer as reducing post-processing time by up to 20%, but independent users report it can jam or need recalibration when switching between thin technical bond and heavy photographic rolls. Many CAD-focused offices value the dual-roll switching more than the trimmer itself.
Does it handle standard AEC file formats?
Yes. It supports PostScript 3, PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG and CALS G4, covering the common bid-set and submission formats.
Should a monochrome-only office buy this?
Probably not. Its value lies in color fidelity for renderings and GIS maps; a line-focused shop is better served by a leaner production sibling such as the HP Z5600 44-in or HP Z6600 44-in.
