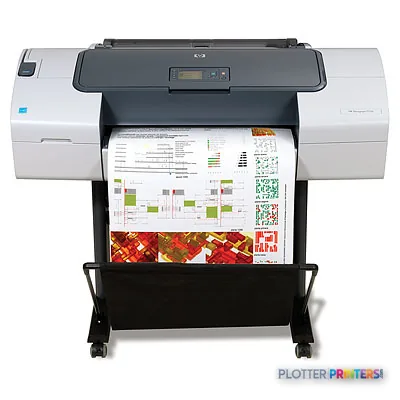

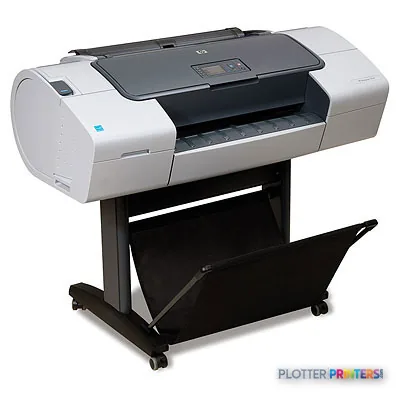

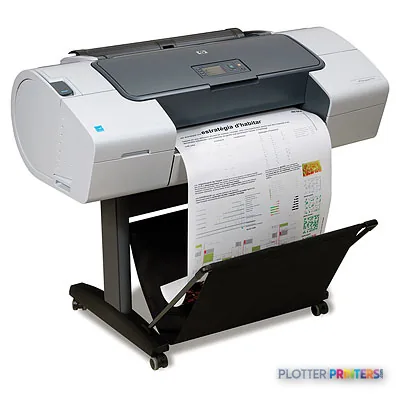

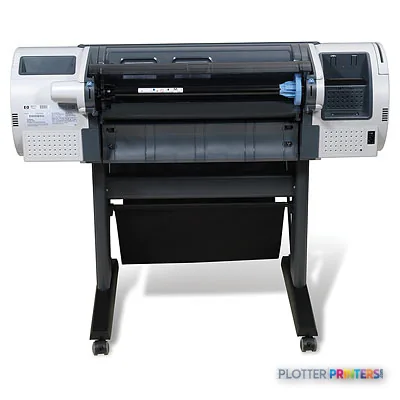

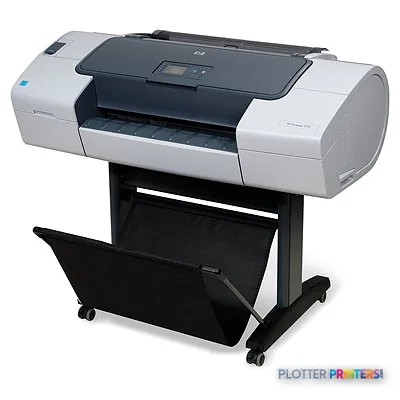

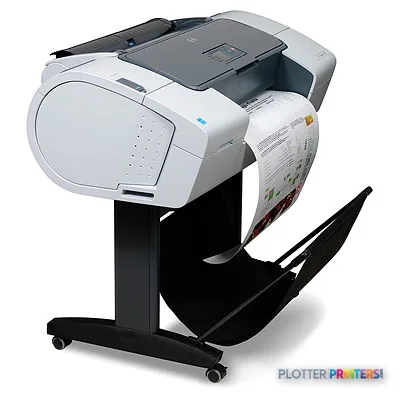

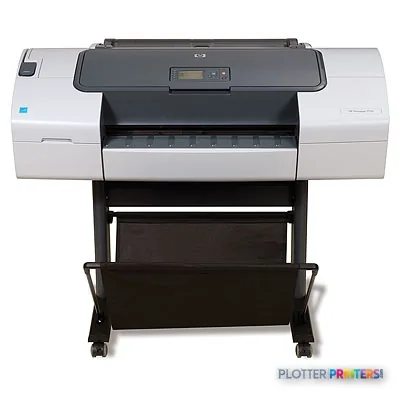

HP DesignJet T770
24" color graphics & photo printer
- ModelT770
- Prints24" wide
- Score55/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtendable to 3 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The T770 is a 24-inch, color, print-only wide-format device with cut-sheet and single-roll media handling.
- Its maximum A1 output size is 23 × 33 inches, making it suited to office-scale drawing and document work.
- HP lists a normal-quality speed of 445 ft/h, but completed set throughput depends on real workflow interruptions.
Not sure if the T770 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 24" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 55/100 in our class-relative rating.
Overview
Built for the work
HP Designjet T770 24-in Printer with Hard Disk, 2400 x 1200 DPI, 445 ft/h, 69ml/130ml, A1 (594 x 841 mm), Bond paper, Coated paper, Photo paper, Roll, A1, A2, A3, A4
- 24″Max print width
- 693 ft²/hRated speed
- 6Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The T770 is a 24-inch, color, print-only wide-format device with cut-sheet and single-roll media handling.
- Its maximum A1 output size is 23 × 33 inches, making it suited to office-scale drawing and document work.
- HP lists a normal-quality speed of 445 ft/h, but completed set throughput depends on real workflow interruptions.
- The listed operating-system support is legacy-oriented, so driver and network validation are essential before continued deployment.
- The HP DesignJet T830 24-in is the more relevant family alternative when scanning and copying are required.
- A single roll input limits its suitability for teams that frequently switch media types or sizes.
For a small project team, the familiar test is a permit set that needs one more 24-inch sheet before a meeting: clear linework, a legible revision cloud, and no detour to a reprographics counter. The HP DesignJet T770 24-in Printer with Hard Disk is a color, print-only wide-format device built around that office-scale AEC role. It accepts cut sheets and roll paper up to 24 inches wide, with a maximum A1 output size of 23 × 33 inches.
This is a discontinued machine, so the decision is usually about supporting an installed unit or judging a replacement candidate—not starting a fresh standardized fleet. Its 2400 × 1200 DPI maximum resolution, six cartridges, Ethernet, USB Type-A connection, LCD, and 160 GB internal storage describe a capable earlier-generation plotter. They do not, by themselves, settle whether it fits a current IT environment or a busy print room.
24''Maximum print width
2400 x 1200 DPIMaximum resolution
445 ft/hNormal-quality print speedManufacturer-rated specification; productive set output also depends on file processing, media changes, and operator handling.
160 GBInternal storage capacity
Where it still makes operational sense
The T770 fits an architecture studio, field-office engineering group, or contractor’s project office that primarily needs occasional-to-regular 24-inch drawings, color-coded coordination sheets, GIS maps, and presentation-oriented PDFs. It can take bond, coated, photo, and roll media, and it supports both cut sheets and a single roll. That flexibility matters when a team alternates between a plotted drawing and a smaller sheet without dedicating floor space to a larger device.
The machine is print-only. Firms that scan marked-up plans, copy legacy drawings, or need a single walk-up device for both paper-to-digital and digital-to-paper work should look instead at the HP DesignJet T830 24-in, which is listed as a scanner/MFP. The T770’s 56.7 × 30.3 × 23.6-inch footprint and 134.5 lb weight also warrant a deliberate location rather than an improvised desk-side placement.
Estimate plot time from the verified rated speed, then allow practical room for PDF processing, roll loading, trimming, and collection.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 693 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
The limitations are mostly about workflow age
Its listed operating-system compatibility centers on Windows XP through Windows 7, Windows Server 2003 and 2008, selected Mac OS X versions, Novell NetWare, and Citrix environments. That makes driver validation, network segmentation, and service planning central questions for IT—not afterthoughts. The Ethernet interface is Fast Ethernet, with one RJ-45 port, and the unit has one USB 2.0 port.
There is one roll input, so this is not the natural choice where teams continually switch between bond and presentation media or must keep multiple stock sizes ready. A wider option such as the HP DesignJet T770 44-in changes the maximum drawing width, while the HP DesignJet T1600dr 36-in is the more relevant in-family direction for dual-roll operation. Neither comparison removes the need to assess local support and current software compatibility.
Color and drawing output: keep the claim proportional
The six-cartridge system uses 6 pl drops for cyan, magenta, photo black, and gray, and 9 pl drops for yellow and matte black. That is useful technical context for mixed CAD and color-document work, but it is not a measured statement of gamut, color accuracy, or photographic rendering. No measured ICC-gamut result is available for this machine here, so firms with controlled presentation-color requirements should test their own PDFs and media rather than infer the result from resolution alone.
For straightforward 24-inch AEC plotting, the more practical question is whether the existing unit renders the firm’s line weights, screened fills, and small annotations consistently on its chosen bond. Compare the workflow fit with the HP DesignJet T650 24-in as a current smaller-format family alternative, or use the comparison tool for the T770 and Canon GP-200 24-in to frame a same-width review.
Related equipment and evaluation tools
HP DesignJet T830 24-inA 24-inch in-family option listed with scanner/MFP functionality.HP DesignJet T770 44-inThe wider version of the T770 family for teams needing larger output.HP DesignJet T1600dr 36-inAn in-family 36-inch model listed with dual-roll capability.Wide-format class rankingReview this machine’s class context alongside available alternatives.
The read
The HP DesignJet T770 24-in Printer with Hard Disk remains a sensible installed-base plotter when its job is clear: 24-inch color and monochrome AEC documents from a stable, validated legacy environment. It is less appropriate for scan/copy workflows, unattended mixed-media output, wider sheets, or organizations that cannot support its older listed operating-system ecosystem. Its successor decision should begin with workflow width, roll-switching needs, and IT support—not with resolution alone.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 8 compared
Class best 81 — Epson SureColor T3770DR
86% spec coverage
- This printer
- Epson SureColor T3770DR
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 24 in |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Maximum print size | A1 (594 x 841 mm) |
| Ethernet | Yes |
| Power consumption | 120 W |
Specifications
Full technical detail
Max resolution2400 x 1200 DPI
Max print width24"
ConnectivityEthernet (Gigabit LAN), USB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Print head nozzles | 1056 |
| Number of print cartridges | 6 |
| Print speed (normal quality) | 445 ft/h |
| Print cartridge volume (metric) | 69ml/130ml |
Performance
| Display | LCD |
|---|---|
| Certification | WEEE RoHS REACH |
| Storage media | HDD |
| Built-in display | Yes |
| Built-in processor | Intel® Pentium® M |
| Processor frequency | 800 MHz |
| Internal storage capacity | 160 GB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| Maximum print size | A1 (594 x 841 mm) |
| Maximum media width | 24'' |
| Standard media sizes | 8.26"- 24" 11"- 66" 11"- 24" |
| Paper tray media types | Bond paper, Coated paper, Photo paper, Roll |
| ISO A-series sizes (A0…A9) | A1, A2, A3, A4 |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10/100BASE-T(X) |
| Ethernet interface type | Fast Ethernet |
Weight & dimensions
| Weight | 134.5 lbs (61 kg) |
|---|---|
| Size (imperial) | 24" |
| Dimensions (WxDxH) | 56.7 x 30.3 x 23.6" (1440.1 x 769.6 x 599.4 mm) |
Power
| Power supply type | AC |
|---|---|
| Power requirements | 100-240V, 50/60Hz |
| Power consumption (standby) | 27 W |
| Power consumption (typical) | 120 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 41 – 104 °F |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| Ink drop | 6pl – C, M, PK, G; 9pl – Y, MK |
|---|---|
| Functions | |
| Roll maximum input | 1 |
| Maximum internal memory | 8 GB |
| Acoustic pressure emissions | 46 dB |
| Minimum system requirements | Intel Pentium, AMD K6/Athlon/Duron 1GHz 512MB RAM 2GB HDD |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u |
| Maximum media length (imperial) | 66" |
Packaging data
| Package weight | 154.3 lbs (70 kg) |
|---|---|
| Package dimensions (WxDxH) | 56.7 x 30.3 x 23.6" (1440 x 770 x 600 mm) |
| Package dimensions (W x D x H) | 56.7 x 30.3 x 23.6" |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
System requirements
| Mac compatibility | Yes |
|---|---|
| Compatible operating systems | Windows 7 Home Premium Windows 7 Professional Windows 7 Ultimate Windows Vista Home Premium Windows Vista Business Windows Vista Ultimate Windows XP Home (32/64-bit) Windows XP Professional (32/64-bit) Windows Server 2003 (32/64-bit) Windows Server 2008 (32/64-bit) Novell NetWare 5.x, 6.x Mac OS X v10.4, v10.5, v10.6 Citrix XenApp Citrix XenServer |
Everything that fits the HP DesignJet T770
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
10 ink cartridges · 3 printheads · 53 paper & media items · 4 accessories · 2 coverage plans
HP DesignJet T770 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T770 24-in Printer with Hard Disk — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 9
HP 72 130-ml Gray Ink Cartridge
HP 72 130-ml Yellow Ink Cartridge
HP 72 130-ml Magenta Ink Cartridge
HP 72 130-ml Cyan Ink Cartridge
HP 72 130-ml Matte Black Ink Cartridge
HP 72 130-ml Photo Black Ink Cartridge
HP 72B 130-ml Matte Black Ink Cartridge
HP 72B 130-ml Gray Ink Cartridge
HP 72B 130-ml Photo Black Ink CartridgePrintheads 3
Paper & Media 16
Representative image11 Mil Water-Resistant Synthetic BannerRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative image6 Mil Water-Resistant Self-Adhesive PolypropyleneRepresentative image20LB Inkjet Vellum (772)Representative image18LB Inkjet Bond Paper (Translucent) (750)Representative image28LB Inkjet Coated Matte Paper (748)Representative image46LB Inkjet Coated Matte Paper (747)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image24LB Inkjet Bond Paper (731)Representative image24LB Inkjet Coated Matte Paper Economy (714)
HP C3868A plotter paper 45.7 m 91.4 cm
HP C6036A printing paper Matte White
HP Q1421A photo paper Brown, White
HP CG891A large format media 45 m
Questions
Straight answers
Can the HP DesignJet T770 24-in handle typical AEC plan sizes?
It supports media up to 24 inches wide and a maximum A1 print size of 23 × 33 inches. It accepts both cut sheets and roll paper.
Is this a multifunction printer for scanning marked-up drawings?
No. Its listed function is print. The HP DesignJet T830 24-in is listed as a scanner/MFP for teams needing scan and copy capability.
How fast is the T770?
HP lists normal-quality print speed at 445 ft/h. Actual plan-set turnaround will also depend on file processing, media handling, and operator intervention.
Will it work on a current office network?
It has one Fast Ethernet RJ-45 connection and USB 2.0, but the listed supported operating systems are centered on legacy Windows, Mac OS X, server, NetWare, and Citrix environments. Confirm driver and security compatibility in your specific environment.
Does the T770 support multiple rolls at once?
No. The specification lists a maximum roll input of one. A dual-roll workflow points toward the HP DesignJet T1600dr 36-in instead.
