HP · Printhead

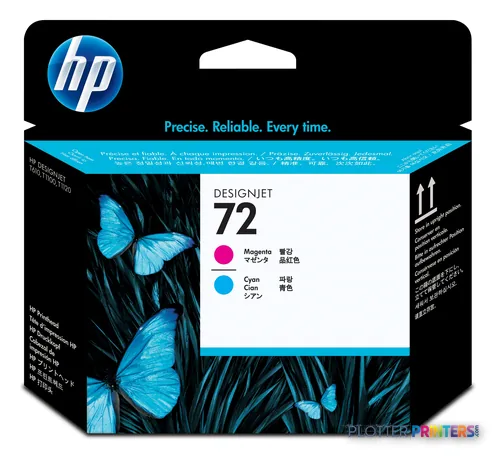

72 Magenta and Cyan Printhead
- ModelC9383A
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Works with these printers
Compatibility resolved from manufacturer supply listings — 17 printers.
HP DesignJet T1300Legacy model
HP DesignJet T790Legacy model
HP DesignJet T620
HP DesignJet T1100
HP DesignJet T770
HP DesignJet T1200
HP DesignJet T1200 HD MFP
HP DesignJet T1100
HP DesignJet T1100
HP DesignJet T1100
HP DesignJet T2300
HP DesignJet T790+ 5 more compatible models.
Overview
Built for the work
HP 72 Magenta and Cyan DesignJet Printhead, HP DesignJet T610 Printer series, T620 Printer series, T770 Printer series, T1100 Printer series,…, Thermal inkjet, Cyan, Magenta, C9383A, Business, Singapore
Specifications
Full technical detail
Print technologyThermal inkjet
Performance
| OEM code | C9383A |
|---|---|
| HP segment | Business |
| Compatibility | HP DesignJet T610 Printer series, T620 Printer series, T770 Printer series, T1100 Printer series, T1200 Printer series, HP DesignJet T1200 HD Multifunction Printer, HP DesignJet T2300 eMFP, HP DesignJet T790 ePrinter series, HP DesignJet T1300 ePrinter series |
| Printing colors | Cyan, Magenta |
| Print technology | Thermal inkjet |
| Country of origin | Singapore |
Technical details
| Box contents | Printhead |
|---|---|
| Other EU Hazard statement(s) | EUH208: Contains sensitizing substance. May produce an allergic reaction |
| Number of cartons per pallet layer | 10 pc(s) |
| Total carbon footprint (kg of CO2e) | 3.9 |
Weight & dimensions
| Depth | 5.63" (143 mm) |
|---|---|
| Width | 1.1" (28 mm) |
| Height | 5.2" (132 mm) |
| Weight | 2.33 oz (66 g) |
Operational conditions
| Storage temperature (T-T) | 15 – 35 °C |
|---|---|
| Operating temperature (T-T) | 15 – 35 °C |
| Storage relative humidity (H-H) | 20 – 80% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| UNSPSC-code | 44103110 |
|---|---|
| Quantity per box | 1 pc(s) |
Logistics data
| Pallet weight | 546.7 lbs (248 kg) |
|---|---|
| Pallet size (EU) | 48 x 40 x 52.2" (1219 x 1016 x 1325 mm) |
| Quantity per pack | 1 pc(s) |
| Quantity per pallet | 1920 pc(s) |
| Master (outer) case weight | 6.28 lbs (2.85 kg) |
| Harmonized System (HS) code | 84439990 |
| Number of layers per pallet | 8 pc(s) |
| Number of cartons per pallet | 80 pc(s) |
| Pallet dimensions (W x D x H) | 48 x 40 x 52.2" (1219 x 1016 x 1325 mm) |
| Quantity per master (outer) case | 24 pc(s) |
Packaging data
| Package depth | 5.63" (143 mm) |
|---|---|
| Package width | 1.1" (28 mm) |
| Package height | 5.2" (132 mm) |
| Package weight | 3.88 oz (110 g) |
