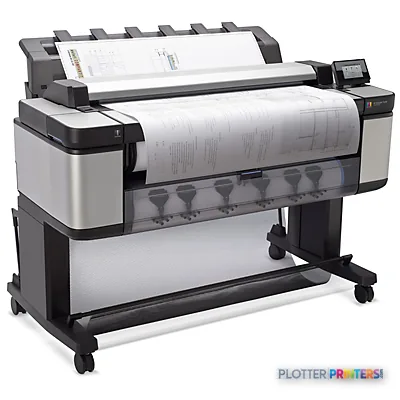

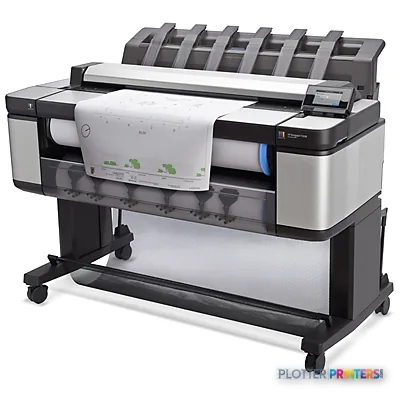

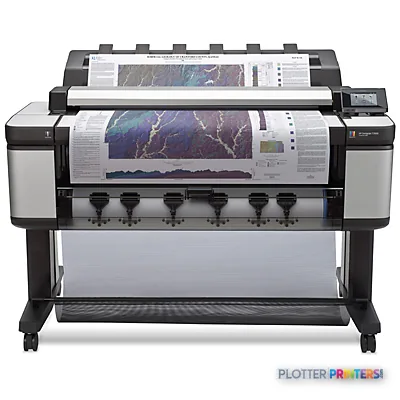

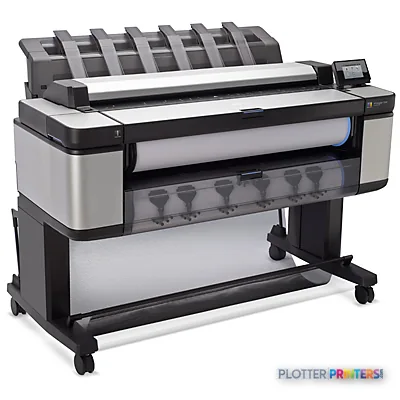

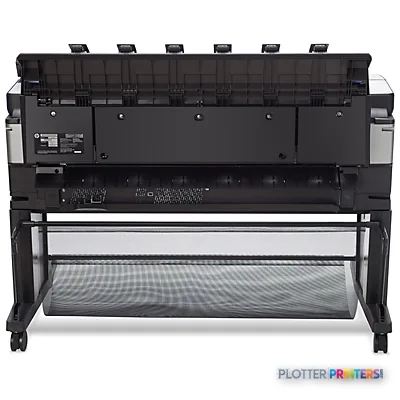

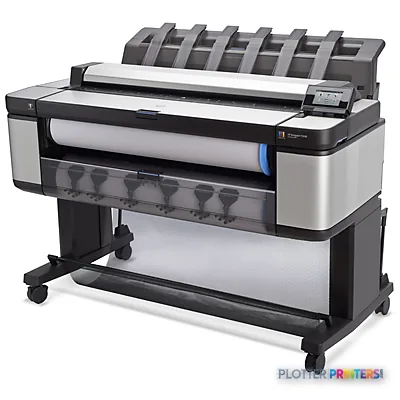

HP DesignJet T3500 MFP

The useful distinction here is not simply printer versus multifunction device. A standalone plotter can suit a studio that mostly sends final PDFs. This machine becomes more compelling where printed sheets return with field notes, approvals, or design markups that must be copied or captured again. Its CIS sheet-fed scanner supports color scanning at an optical resolution of 600 x 600 DPI, with copy resizing from 25 – 400% and up to 99 copies.

For AEC files, support for HP-GL/2, HP-RTL, and PCL 3 matters because the device sits comfortably in established CAD and plot-file workflows as well as ordinary print-driver submission. A USB Type-A connection and Ethernet LAN provide practical local and network connection options. The 500 GB HDD can help the device operate as a managed production point rather than merely an endpoint on someone’s desk.

That said, file submission still deserves testing with your actual PDFs, CAD exports, and naming conventions. A plotter that saves thirty seconds a plot buys you nothing if the file spends four minutes finding it.

The HP T3500 36-in Production eMFP prints in black, cyan, magenta, matte black, photo black, and yellow, with a maximum resolution of 2400 x 1200 DPI. That combination is well aligned with fine-line drawings, small annotations, and color layers that distinguish utilities, disciplines, phases, or revisions. It also accepts roll paper and vinyl media, broadening its role beyond ordinary bond-paper plan sets where the application calls for it.

Its physical footprint is 55.1 inches wide by 30.9 inches deep by 43.7 inches high, at 251.3 lbs. Plan its location as a production station: allow room for loading media, collecting output, feeding originals through the scanner, and giving service staff access. The scanner is free. The person standing at it is not.

For an in-family alternative, the HP DesignJet T2600 36-in is the natural comparison for teams that want a similarly sized scanner/MFP. Firms where roll changes and differing sheet formats are the operational irritation should also examine the HP DesignJet T2600dr 36-in, identified in the catalog as dual-roll. If wider output is the deciding requirement, the HP DesignJet T1700 44-in moves into a different physical and media-width conversation.

Networked wide-format equipment belongs in the same conversation as user access, driver packaging, device placement, and support ownership. The Ethernet LAN connection and internal HDD make it sensible to ask IT who manages network settings, how stored material is handled, which workstations receive supported drivers, and who owns escalation when a PDF renders unexpectedly. Those answers matter more than a feature checklist when a bid issue is due at four.

Also validate the service model locally. Ask the provider to demonstrate your longest originals, fine-line sheets, color-heavy PDFs, roll-stock changes, and repeat-copy workflow. Confirm the consumable plan for HP 764 inks and the HP 727 printhead, along with the availability of the HP DesignJet PostScript/PDF Upgrade Kit if your workflow requires it. The machine’s ENERGY STAR certification and typical power consumption of 120 W are relevant facility details, but they do not replace a workflow test.
