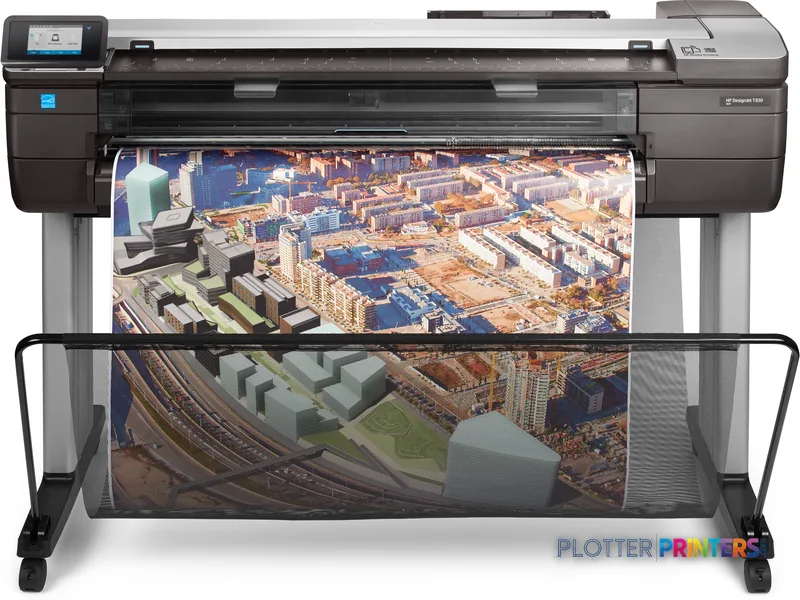

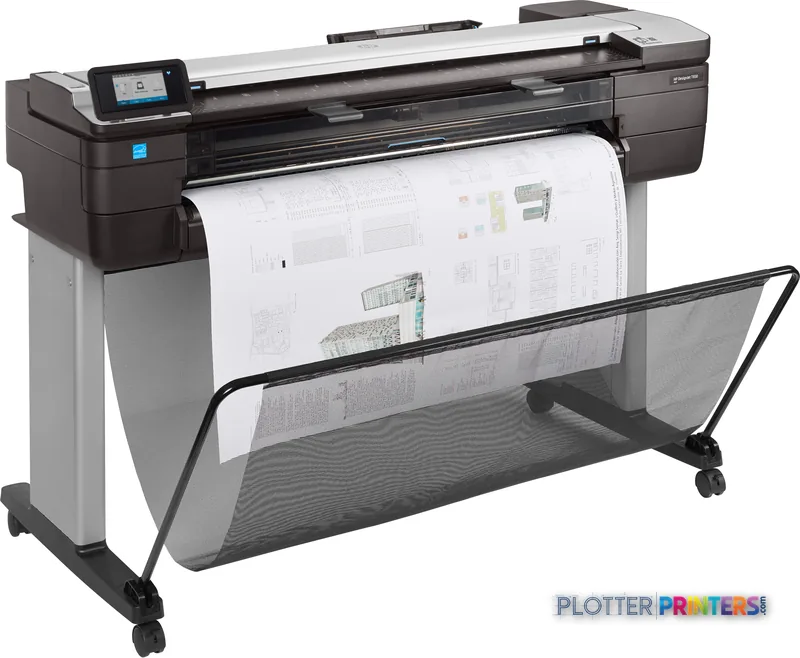

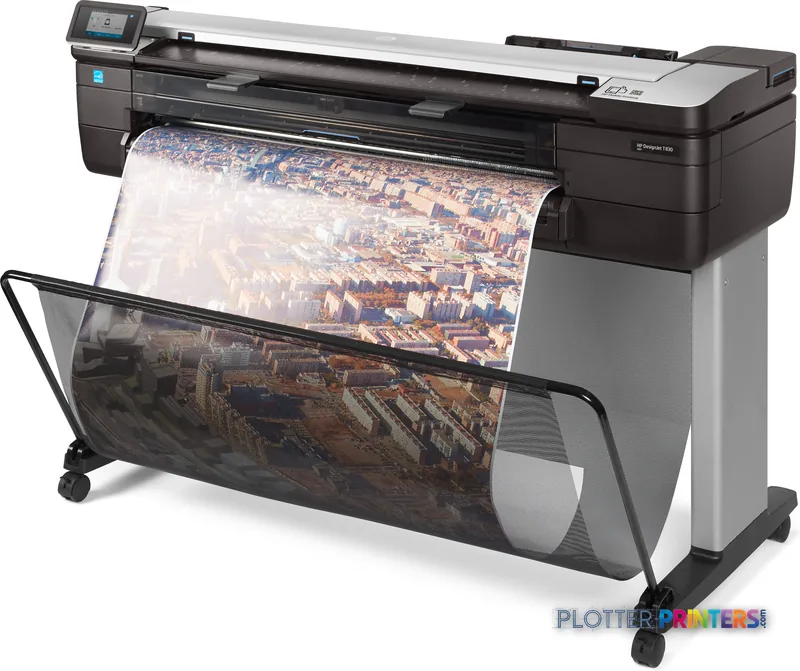

HP DesignJet T830 MFP
36" technical / CAD plotter
- ModelT830 MFP
- Prints36" wide
- Score53/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtendable to 5 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The 36-inch maximum print size fits full-width technical drawings, plans, maps, and coordination sheets.
- HP rates normal-quality A1 output at 82 pph, but mixed files and operator steps affect real deadline throughput.
- Integrated CIS scanning makes the machine useful where print, copy, and scan tasks happen at the same local point of use.
Not sure if the T830 MFP is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Black, Cyan, Magenta, Yellow.
- Connectivity Wi-Fi for shared team printing.
- Verified specs 9 specs checked against the manufacturer datasheet.
- Analyst score Scores 53/100 in our class-relative rating.
Overview
Built for the work
HP Designjet Impresora multifunción de 36 pulgadas T830, Thermal inkjet, 2400 x 1200 DPI, HP-GL/2, HP-RTL, PCL 3, TIFF, URF, Black, Cyan, Magenta, Yellow, 82 pph, CIS
- 36″Max print width
- 552 ft²/hRated speed
- 4Ink channels
- 2,400 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
Where it performs best
Connections
100
Size / Fit
92
Print Quality
76
Class best is 63. How we grade →
Features
What sets it apart
Swipe to explore →
Expert analysis
What you should know
Key takeaways
- The 36-inch maximum print size fits full-width technical drawings, plans, maps, and coordination sheets.
- HP rates normal-quality A1 output at 82 pph, but mixed files and operator steps affect real deadline throughput.
- Integrated CIS scanning makes the machine useful where print, copy, and scan tasks happen at the same local point of use.
- A maximum roll diameter of 3.94 inches makes media planning important for teams that issue frequent mixed-size sets.
- The HP DesignJet T830 24-in is the narrower in-family option, while the HP DesignJet T1600dr 36-in addresses dual-roll requirements.
It is 4:45 p.m., the permit set changed, and somebody needs a full-width color plan, a marked-up copy, or a scan back into the project folder before the office empties. The HP DesignJet T830 36-in is built for that practical corner of AEC work: a 36-inch thermal-inkjet multifunction printer that prints in color and uses CIS scan technology for copying and scanning duties at the device.
Its job is straightforward. Handle drawings, maps, coordination sheets, redlines, and site-office output without turning a small team into a print room. HP rates normal-quality A1 output at 82 pph. That figure is useful for judging production potential, but it is not a promise that a mixed batch of PDFs, scans, roll changes, and last-minute file corrections will behave like a stopwatch.
36" x 75"Maximum print sizeFull-width technical drawings and longer plan output.
82 pphRated A1 speedHP’s normal-quality A1 rating.
2400 x 1200 DPIMaximum resolutionFor detailed linework and color drawing output.
55.2"Physical footprintMachine width; allow room for loading media and collecting prints.
Where it earns its floor space
The T830 makes sense for architecture studios, engineering teams, survey crews, and construction offices that need occasional-to-regular 36-inch output plus a local scan/copy function. Its HP-GL/2, HP-RTL, PCL 3, TIFF, and URF support is relevant in mixed CAD and PDF environments. Wi-Fi, USB Type-A, and one RJ-45 port also give an office more than one practical route for job submission.
Four inks—black, cyan, magenta, and yellow—cover everyday color-coded plans, GIS maps, discipline overlays, and presentation-oriented technical sheets. The 2400 x 1200 DPI maximum resolution matters when fine linework and small annotations need to remain readable. The trade-off is that resolution is only one part of plan quality; file preparation, media, and the source PDF still get a vote. They always do.
Bottom line: This is a sensible local MFP when the people producing drawings also need to copy or scan them without a separate device.
The operating limits that matter on deadline
The machine accepts rolls up to 3.94 inches in diameter. That is a useful constraint to discuss before purchase, especially if your team moves between architectural and engineering sheet sizes or burns through media during an issue set. One roll arrangement can be perfectly workable for a small office. It becomes a bottleneck when operators repeatedly swap media in the middle of a deadline.
The chassis measures 55.2 inches wide, 24.8 inches deep, and 45.5 inches high, with a weight of 137.8 lbs. Those numbers belong in the facilities plan, not just the product tab. Leave working clearance around it. A plotter that fits only after furniture gymnastics tends to collect paper jams and bad language.
For consumables, this configuration uses HP 728 inks and the HP 729 printhead. Confirm the approved media, maintenance items, and service process with the supplying dealer before committing the device to a deadline-critical location.
Bottom line: The failure mode is not usually print quality; it is a single-roll workflow meeting a stack of mixed-media requests.
Estimate rated A1 production time, then add realistic allowance for file processing, roll handling, scans, and operator intervention.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 552 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
How it sits in the HP technical-print lineup
If 36-inch output is more capacity than the office needs, the HP DesignJet T830 24-in keeps the same multifunction idea in a narrower format. That choice is about the drawings you actually issue, not optimism about future work. A 24-inch device cannot rescue a full-width plan at 4:45 p.m.
For teams whose real problem is media switching and unattended production, the HP DesignJet T1600dr 36-in is the more relevant step-up conversation because it is listed as dual-roll. The HP DesignJet T850 36-in is another current 36-inch multifunction alternative in the same family to evaluate alongside this unit. Use the comparison tool to keep the decision tied to workflow requirements rather than brochure archaeology.
Bottom line: Choose this T830 when integrated scan/copy capability and standard 36-inch output matter more than dual-roll production handling.
Compare the practical alternatives
HP DesignJet T830 24-inFor offices whose drawing sizes do not require 36-inch output.HP DesignJet T1600dr 36-inFor teams that need a dual-roll 36-inch workflow.HP DesignJet T850 36-inA current 36-inch multifunction option in the same family.Technical printer class rankingReview the broader class with your volume and workflow in mind.
The read
The HP DesignJet T830 36-in is for an AEC office that needs full-width color plans and an integrated CIS scanner in one local machine. It fits everyday drawing, map, redline, and copy work where a small team values access over production-line automation. It is less appropriate for departments that routinely juggle media types or need long unattended runs; that is where a dual-roll alternative such as the HP DesignJet T1600dr 36-in deserves the harder look. Bottom line: Buy it for convenient 36-inch print, copy, and scan work—not because one machine is expected to behave like a central reprographics department.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T5475
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 36 in (roll 11-36 in)manufacturer-verified |
|---|---|
| Maximum print size | 914 x 1897 mm |
| Maximum resolution | 2400 x 1200 optimized dpi |
| Print speed (HP-rated) | 25 sec/page on D, 82 D prints per hourmanufacturer-verified |
| Ink cartridges / printhead | 4 cartridges (C, M, Y, mK), 1 printheadmanufacturer-verified |
| Ink platform / cartridge capacity | HP 728, 130 mlmanufacturer-verified |
| Internal memory | 1 GB |
| Connectivity | Gigabit Ethernet, Wi-Fi 802.11b/g/n, USB Type-Amanufacturer-verified |
| Page description languages | HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF (no PostScript) |
| Weight / width | 128.3 lb / 55.2 in |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
ColorColor
ConnectivityUSB, Wi-Fi
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Printing colors | Black, Cyan, Magenta, Yellow |
| Print technology | Thermal inkjet |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, HP-RTL, PCL 3, TIFF, URF |
| Print speed (normal quality, A1) | 82 pph |
Performance
| Internal memory | 1024 MB |
|---|
Paper handling
| Maximum print size | 914 x 1897 mm |
|---|---|
| Maximum roll diameter | 3.94" (10 cm) |
| ISO A-series sizes (A0…A9) | A0 |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|
| USB port | Yes |
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
Weight & dimensions
| Depth | 24.8" (629 mm) |
|---|---|
| Width | 55.2" (1403 mm) |
| Height | 45.5" (1155 mm) |
| Weight | 137.8 lbs (62.5 kg) |
Power
| Power consumption (standby) | 0.2 W |
|---|---|
| Power consumption (typical) | 35 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
Scanning
| Scan technology | CIS |
|---|
Packaging data
| Package depth | 22.4" (570 mm) |
|---|---|
| Package width | 62.1" (1578 mm) |
| Package height | 25.4" (645 mm) |
| Package weight | 187.4 lbs (85 kg) |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Brand-specific features
| HP dynamic security | Yes |
|---|
Everything that fits the HP DesignJet T830 MFP
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
12 ink cartridges · 27 paper & media items · 3 accessories · 13 coverage plans
HP DesignJet T830 MFP ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T830 MFP 36-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 12
HP 728 300-ml Yellow Ink Cartridge
HP 728 300-ml Magenta Ink Cartridge
HP 728 300-ml Cyan Ink Cartridge
HP 728 40-ml Yellow Ink Cartridge
HP 728 40-ml Magenta Ink Cartridge
HP 728 40-ml Cyan Ink Cartridge
HP 728 69-ml Matte Black Ink Cartridge
HP 728 300-ml Matte Black Ink Cartridge
HP 728 130-ml Magenta Ink Cartridge
HP 728 130-ml Yellow Ink Cartridge
HP 728 130-ml Cyan Ink Cartridge
HP 728 130-ml Matte Black Ink CartridgePaper & Media 14
Representative image8 Mil Microporous Gloss Self-Adhesive PolypropyleneRepresentative image350g Vivid Matte Poly/Cotton CanvasRepresentative image380g Premium Matte Poly/Cotton CanvasRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative imageHP Universal Gloss Photo Paper
HP Universal Coated PaperRepresentative imageHP Universal Bond Paper, 4-pack
HP Universal Bond Paper, 2-packRepresentative imageHP Bright White Inkjet Paper, 4-pack
HP Opaque ScrimRepresentative imageMagic 4mil Inkjet Clear Film w/ Side Stripe (DMCF4HPS)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)
HP C6036A printing paper Matte White
HP Q1413B printing paper Matte WhiteAccessories 2
Coverage & Support Plans 1
Questions
Straight answers
Is the HP DesignJet T830 36-in suitable for construction-document printing?
Yes. Its 36-inch maximum print size, color printing, and support for HP-GL/2 and HP-RTL make it relevant to technical drawing workflows. It is best suited to local office and site-office output rather than assuming central-print-room production duties.
Can it scan and copy drawings?
Yes. This is a multifunction device and uses CIS scan technology. Confirm scan workflow requirements with the supplier if your work involves specific archive formats, oversized originals, or high-volume scanning.
What connectivity does it provide?
It includes Wi-Fi, a USB Type-A port, and one RJ-45 port. That supports several common office connection approaches, subject to local network and security policies.
What inks and printhead does it use?
The compatible supplies listed for this model are HP 728 inks and the HP 729 printhead. Review supply availability and the dealer’s maintenance process before placing it in a deadline-critical location.
When should a buyer consider the HP DesignJet T1600dr 36-in instead?
Consider it when the workflow calls for dual-roll handling. That matters most where different media or drawing sizes must stay loaded and operators cannot afford repeated roll changes.
