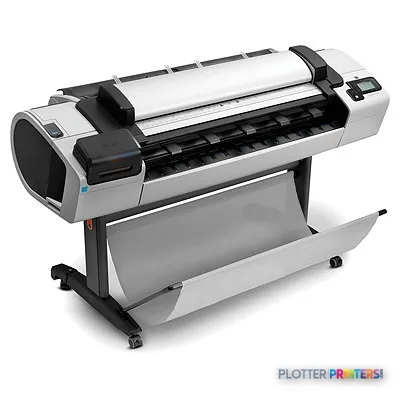

HP DesignJet T2300
42" color graphics & photo printer
- ModelT2300
- Prints42" wide
- Score57/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The T2300 combines color wide-format output, integrated scanning, copying, and two-roll input in one floor-standing device.
- It can scan originals up to 36 x 93.6 in and resize copies from 25 – 400%.
- Its +/- 0.1% line accuracy and 2400 x 1200 DPI maximum resolution are relevant to detailed AEC drawing work.
Not sure if the T2300 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 42" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Cyan, Magenta, Matte black, Photo black, Yellow.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 57/100 in our class-relative rating.
Overview
Built for the work
HP Designjet T2300, 2400 x 1200 DPI, Cyan, Magenta, Matte black, Photo black, Yellow, 51 m²/h, 25 – 400%, 99 copies, 600 x 600 DPI
- 42″Max print width
- 549 ft²/hRated speed
- 6Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The T2300 combines color wide-format output, integrated scanning, copying, and two-roll input in one floor-standing device.
- It can scan originals up to 36 x 93.6 in and resize copies from 25 – 400%.
- Its +/- 0.1% line accuracy and 2400 x 1200 DPI maximum resolution are relevant to detailed AEC drawing work.
- The stated five-color system supports color-coded plans and selected photo or coated-media output, but no measured gamut data is provided.
- It fits scan-copy-print workflows better than environments centered on automated finishing, strict PDF workflows, or unattended set production.
When a permit set needs one more corrected sheet, the useful question is not whether a plotter can make a large page; it is whether it can scan the marked original, resize it, retain the detail in fine linework, and put a revised color drawing back into the team’s hands without turning the print room into a bottleneck. The HP Designjet T2300 is a color, roll-fed wide-format system built around that practical scan-copy-print rhythm.
It handles up to A0 output and scans originals up to 36 x 93.6 in, making it relevant to architectural plans, engineering drawings, survey sheets, redline capture, and color coordination documents. Its two-roll capacity matters when plain bond and a presentation-oriented media need to remain loaded together. The 2400 x 1200 DPI maximum resolution and +/- 0.1% line accuracy are useful specifications for disciplined drawing reproduction; the resulting page still depends on source-file quality, media, and driver settings.
A0 (33" x 47" (841 x 1189 mm))Maximum print size
+/- 0.1%Line accuracy
2Roll input
36 x 93.6" (914 x 2378 mm)Maximum scan size

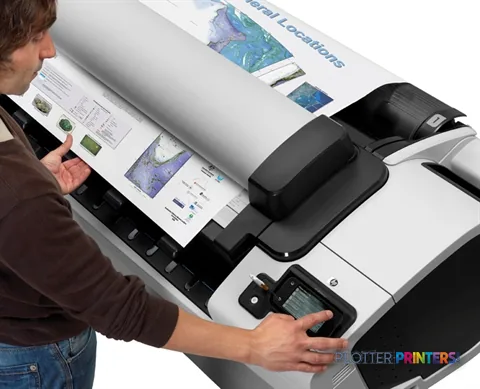

Where the integrated scanner earns its space
The scanner is the central distinction here. With 600 x 600 DPI hardware scan resolution, TIFF scan files, and copier resizing from 25 – 400%, the T2300 suits teams still moving between paper markups and digital issue sets. A superintendent’s annotated plan, an engineer’s field correction, or a legacy drawing can be scanned and copied at the machine rather than routed through a separate desktop scanner.
Its 160 GB internal storage and 32768 MB of memory support a device intended to hold work locally, while USB Type-A and Ethernet LAN provide familiar submission paths for an office or print-room environment. The trade-off is that the stated scan format is TIFF; organizations with highly prescribed PDF, cloud, authentication, or project-accounting workflows should validate the complete workflow before standardizing on it.
For firms comparing integrated scan capability within the catalog, the HP DesignJet T2600 36-in is also identified as a current scanner/MFP. A side-by-side review is more useful than assuming that shared resolution tells the whole operational story.

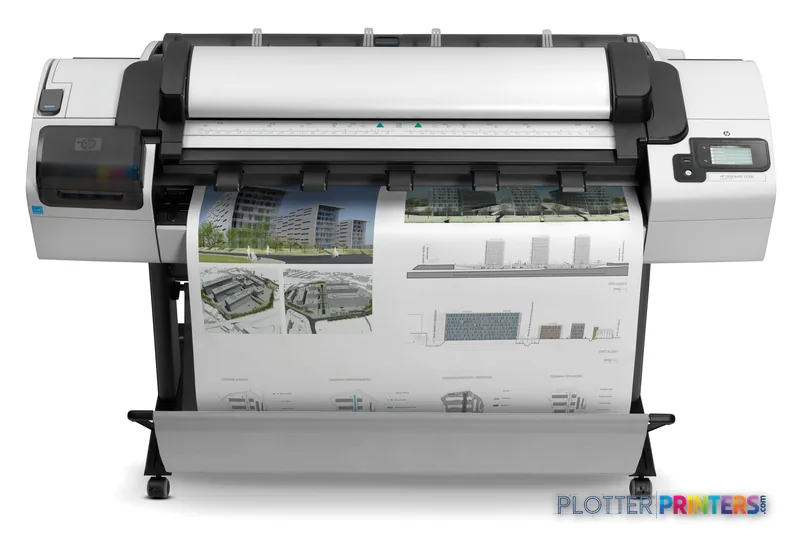

Output for CAD sheets, color markups, and selected presentation work

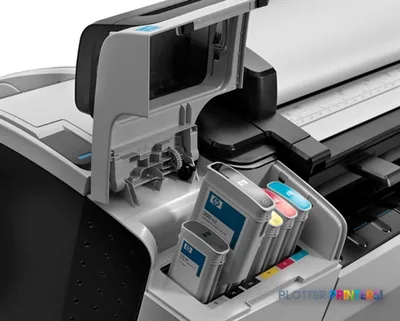

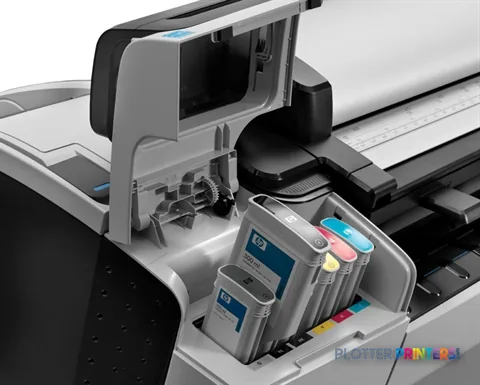

The five listed printing colors—Cyan, Magenta, Matte black, Photo black, and Yellow—give the machine a practical role beyond monochrome construction sheets. It can work with roll paper, coated paper, and photo paper, with recommended media weights from 60 – 328 g/m² and media thickness up to 0.031 in. That range supports ordinary drawing media as well as selected coated and photographic applications.
Color claims deserve context. No measured ICC gamut data is supplied for this machine, so there is no basis here for declaring a particular color-space advantage. For AEC users, the more relevant test is whether discipline colors, GIS overlays, phasing fills, and photographs reproduce acceptably on the actual media the team issues. Think of the cyan edge on a coordination overlay: it needs to remain distinct without overwhelming the black linework beneath it.

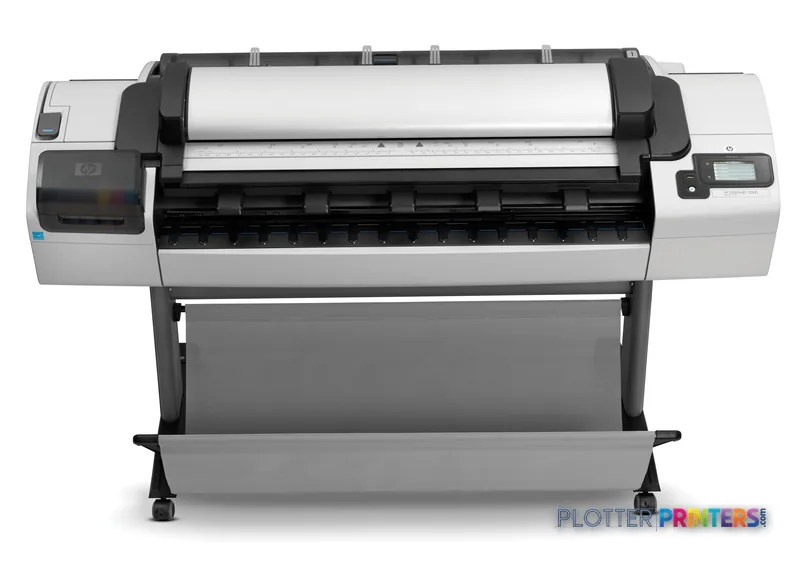

The two-roll arrangement is particularly useful where users alternate between plan sets and a second media type. It is less compelling for an operation whose main requirement is automated finishing, high-volume set collation, or a wider-format output path.
Estimate plotting time from the stated normal-quality speed, then allow additional time for file preparation, scan work, roll changes, and collecting completed sheets.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 549 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Fit, footprint, and family context
At 69.7 x 39.8 x 44.3 in and 227.1 lbs, this is a floor-standing device that needs a deliberate location rather than a spare corner. Its listed acoustic pressure emission is 43 dB, and typical power consumption is 120 W. It may fit a departmental print area or a larger studio better than a tightly packed project room.
The T2300 makes most sense where integrated scanning and two loaded rolls solve a recurring document-control task. For a current 36-in dual-roll scanner/MFP comparison, examine the HP DesignJet T2600dr 36-in. Teams that do not need integrated scanning may instead compare the HP DesignJet T1600 36-in. These are different workflow choices, not automatically better or worse ones.
Compare related wide-format workflows
HP DesignJet T2600 36-inCurrent scanner/MFP option in the same family.HP DesignJet T2600dr 36-inCurrent dual-roll scanner/MFP option for comparison.HP DesignJet T1600 36-inCurrent 36-in alternative without the catalog-listed scanner/MFP designation.Wide-format class rankingReview this machine’s class placement.
The read
The HP Designjet T2300 is a credible fit for AEC teams whose daily work still includes paper redlines, large-format copying, and mixed-media plotting. Its scanner, resize range, two-roll input, and A0 output capacity align with that job. It is not the right tool to choose on resolution alone, nor should it be treated as a substitute for validating a modern document-management workflow. Confirm media behavior, scan-file handling, service support, and the practical handoff from CAD or PDF to device before committing the machine to a production role.
Where it sits in the field: see the head-to-head against the HP T2500 36-in or the full class leaderboard.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 12 compared
Class best 82 — Epson SureColor T5770DR
74% spec coverage
- This printer
- Epson SureColor T5770DR
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 42 in |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Cyan, Magenta, Matte black, Photo black, Yellow |
| Number of print cartridges | 6 |
| Internal memory | 32768 MB |
| Maximum print size | A0 (841 x 1189 mm) |
| Media thickness | 0.8 mm |
| Maximum roll diameter | 5.31" (13.5 cm) |
| Ethernet | Yes |
| Power consumption | 120 W |
Specifications
Full technical detail
Max resolution2400 x 1200 DPI
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Printing colors | Cyan, Magenta, Matte black, Photo black, Yellow |
| Maximum resolution | 2400 x 1200 DPI |
| Print head nozzles | 1056 |
| Number of print cartridges | 6 |
| Print speed (normal quality) | 51 m²/h |
Performance
| Storage media | HDD |
|---|---|
| Internal memory | 32768 MB |
| Built-in processor | Intel® Pentium® M |
| Processor frequency | 800 MHz |
| Internal storage capacity | 160 GB |
Paper handling
| Roll paper | Yes |
|---|---|
| Media thickness | 0.8 mm |
| Maximum print size | A0 (841 x 1189 mm) |
| Maximum roll length | 91 m |
| Maximum roll diameter | 5.31" (13.5 cm) |
| Recommended media weight | 60 – 328 g/m² |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
Weight & dimensions
| Weight | 227.1 lbs (103 kg) |
|---|---|
| Dimensions (WxDxH) | 69.7 x 39.8 x 44.3" (1771 x 1010 x 1124 mm) |
Power
| Power consumption (standby) | 41 W |
|---|---|
| Power consumption (typical) | 120 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| Photo paper | Yes |
|---|---|
| Coated paper | Yes |
| Line accuracy | +/- 0.1% |
| Maximum scan size | 36 x 93.6" (914 x 2378 mm) |
| Roll maximum input | 2 |
| Acoustic pressure emissions | 43 dB |
Copying
| Copier resize | 25 – 400% |
|---|---|
| Maximum number of copies | 99 copies |
Scanning
| Scan file formats | TIFF |
|---|---|
| Hardware scan resolution | 600 x 600 DPI |
| Scan quality (color, best) | 600 DPI |
| Scan quality (color, draft) | 200 DPI |
| Scan quality (color, normal) | 300 DPI |
Packaging data
| Package weight | 4.76 oz (135 g) |
|---|---|
| Package dimensions (WxDxH) | 76 x 30.2 x 32.6" (1930 x 766 x 827 mm) |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Everything that fits the HP DesignJet T2300
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
14 ink cartridges · 3 printheads · 74 paper & media items · 2 accessories
HP DesignJet T2300 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T2300 44-in eMFP — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 14
HP Premium Plus Gloss 610 mm x 15.2 m (24 in x 50 ft) White
HP 72 130-ml Gray Ink Cartridge
HP Premium Gloss 610 mm x 15.2 m (24 in x 50 ft)
HP Premium Gloss 914 mm x 22.9 m (36 in x 75 ft)
HP Premium Gloss 1067 mm x 30.5 m (42 in x 100 ft) White
HP Premium Matte White
HP 72 130-ml Yellow Ink Cartridge
HP 72 130-ml Magenta Ink Cartridge
HP 72 130-ml Cyan Ink Cartridge
HP 72 130-ml Matte Black Ink Cartridge
HP 72 130-ml Photo Black Ink Cartridge
HP 72B 130-ml Matte Black Ink Cartridge
HP 72B 130-ml Gray Ink Cartridge
HP 72B 130-ml Photo Black Ink CartridgePrintheads 3
Paper & Media 74
Representative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image180gsm Solvent Satin PE PaperRepresentative image5 Mil Polycarbonate LaminateRepresentative image230gsm Special Matte Photo PaperRepresentative image200gsm Special Matte Photo PaperRepresentative image350g Vivid Matte Poly/Cotton CanvasRepresentative image380g Premium Matte Poly/Cotton CanvasRepresentative image10 Mil Water-resistant Blockout Display FilmRepresentative image10 Mil White Opaque BackerRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)
HP C3868A plotter paper 45.7 m 91.4 cm
HP C3869A plotter paper
HP White Matte Polyester Film
HP Q1420A photo paper Brown, White
HP Q1760A large format media 45.7 m Matte
HP Matte Film 610 mm x 38.1 m (24 in x 125 ft)Representative imageHP Bright White Inkjet Paper, 36 in x 300 ft (C6810A)
HP C6035A large format media 45.7 m
HP C6036A printing paper Matte White
HP C6567B plotter paper
HP Universal Semi-gloss Photo Paper
HP Clear Film 174 gsm-610 mm x 22.9 m (24 in x 75 ft)
HP Q1421A photo paper Brown, WhiteRepresentative imageHP Heavyweight Coated Paper, 42 in x 100 ft (C6569C)
HP Adhesive Vinyl 914 mm x 12.2 m (36 in x 40 ft)
HP Q1956A large format media 67.5 m
HP Q1961A large format media
HP Q1962A large format media
HP Q5486A photo paper Black, Blue, White
HP Q5487A photo paper Black, Blue, White
HP Q5489A photo paper
HP Q5491A photo paper
HP Q6579A photo paper Brown, White
HP Q6580A photo paper Matte
HP Q6581A photo paper
HP Q6596A large format media Matte
HP Q1441A large format media 45.7 m
HP Q1442A large format media 45.7 m
HP Q1444A printing paper Matte
HP Q1445A printing paper Matte
HP Q7897A large format media 45.7 m
HP Universal Bond Paper 841 mm x 91.4 m large format media 3598.4" (91.4 m)
HP Q8004A large format media 91.4 m
HP Q8834A printing film
HP Q8835A printing film
HP CG459A photo paper Matte
HP Premium Matte Photo Paper-914 mm x 30.5 m (36 in x 100 ft) large format media
HP Q1446A plotter paper 45 m 42 cm
HP CG892A large format media
HP CG889A large format media 45.7 m
HP CG890A plotter paper
HP CG891A large format media 45 m
HP CH025A printing film
HP CH022A printing film
HP CH023A printing film Polypropylene (PP)
HP Premium Gloss 25 sht/A3+/330 x 483 mm (13 x 19 in) White
HP Premium Gloss 20 sht/A2+/458 x 610 mm (18 x 24 in)
HP Premium Satin 610 mm x 15.2 m (24 in x 50 ft) White
HP Premium Satin 25 sht/A3+/330 x 483 mm (13 x 19 in) White
HP Premium Satin 20 sht/A2+/458 x 610 mm (18 x 24 in) White
HP Premium Satin 914 mm x 22.9 m (36 in x 75 ft) White
HP Premium Satin 1067 mm x 30.5 m (42 in x 100 ft)
HP CG459B photo paper White Matte
HP Q6626B large format media 30.5 m Matte
HP Q6627B large format media 30.5 m Matte
HP Q6628B large format media 30.5 m Matte
HP C0F08A printing film
HP 2-pack Everyday Adhesive Matte Polypropylene-610 mm x 22.9 m (24 in x 75 ft)
HP C0F19A printing film
HP C0F20A printing film
HP C0F28A printing film
HP C0F29A printing filmAccessories 2
Questions
Straight answers
What AEC work does the HP Designjet T2300 suit?
It suits teams that need to scan, copy, and plot large drawings in one location, including marked-up plans, survey sheets, engineering drawings, and color coordination documents. Its maximum print size is A0 and its maximum scan size is 36 x 93.6 in.
Can the T2300 hold more than one roll?
Yes. The listed maximum roll input is 2, which can reduce media changes where two commonly used media types remain loaded.
How suitable is it for detailed line drawings?
The specified line accuracy is +/- 0.1%, with a maximum resolution of 2400 x 1200 DPI. Actual readability also depends on the source drawing, media, and print settings.
What scan quality and file format are listed?
Hardware scan resolution is 600 x 600 DPI, with listed color scan quality of 600 DPI at best, 300 DPI at normal, and 200 DPI at draft. The listed scan file format is TIFF.
What should a buyer validate before using it in a managed AEC environment?
Confirm the required scan-file workflow, driver behavior, media choices, network configuration through Ethernet LAN, and local service arrangements. The device has USB Type-A and Ethernet LAN connectivity, but the supplied data does not specify every document-management or authentication feature.
