HP · Wide-Format Plotter

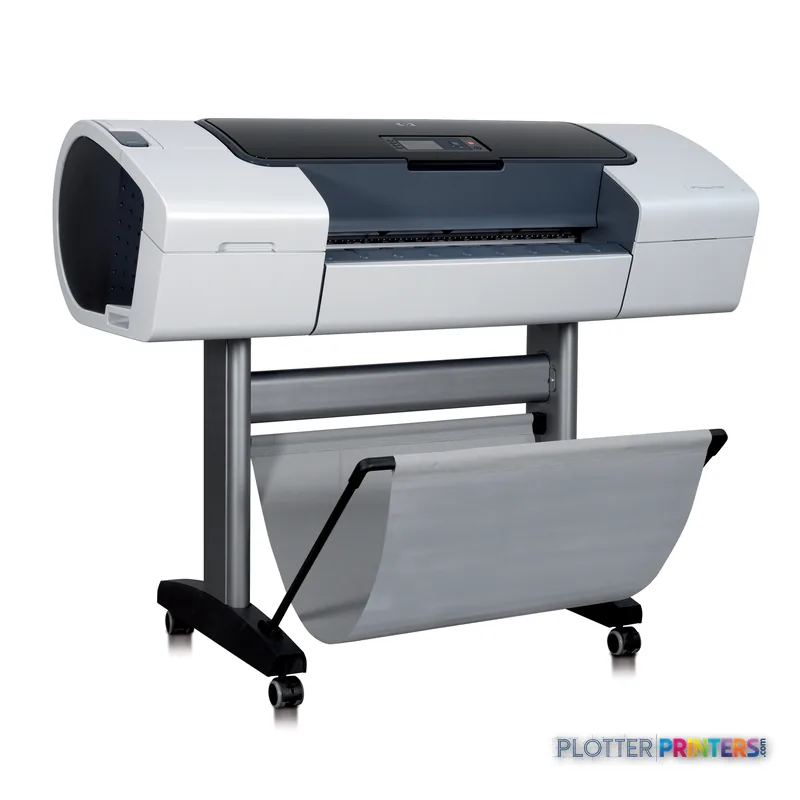

HP DesignJet T1100
24" wide-format printer
- ModelT1100
- Prints24" wide
- Score51/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The 24-inch maximum width fits D-size and smaller output but not wider-format drawing requirements.
- HP specifies +/- 0.1% line accuracy and a 0.00167-inch minimum line width for detail-oriented technical output.
- One roll input and a rear single-sheet feed make this a small-batch device rather than a mixed-media production platform.
Not sure if the T1100 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 24" wide on rolls and sheets.
- Ink platform Cyan, Magenta, Matte black, Photo black, Yellow.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 51/100 in our class-relative rating.
Overview
Built for the work
HP Designjet T1100ps 610 mm Printer, TIFF, Cyan, Magenta, Matte black, Photo black, Yellow, 3 (matte black and yellow, magenta and cyan, photo black and gray), 1 sheets, Bond and coated paper (bond, coated, heavyweight coated, super heavyweight coated), photographic…, > 0.8
- 24″Max print width
- 471 ft²/hRated speed
- 5Ink channels
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The 24-inch maximum width fits D-size and smaller output but not wider-format drawing requirements.
- HP specifies +/- 0.1% line accuracy and a 0.00167-inch minimum line width for detail-oriented technical output.
- One roll input and a rear single-sheet feed make this a small-batch device rather than a mixed-media production platform.
- The listed HP-GL/2, HP-RTL, PostScript, Citrix, Mac OS X, and Novell support can help legacy environments, but current endpoint compatibility needs testing.
- Ethernet, an embedded web server, and HP Web Jetadmin support give IT management options, though network security requirements should be reviewed separately.
- A wider or dual-roll alternative becomes more compelling when media changes and plan-set handling consume staff time.
The HP Designjet T1100ps 610 mm Printer is a 24-inch AEC plotter for teams that need dependable D-size drawing output without dedicating the floor space of a wider production device. It handles roll media and rear-fed sheets, includes an automatic cutter, and supports CAD-oriented HP-GL/2 and HP-RTL Windows drivers alongside PostScript Windows and Mac OS X drivers. For an architect issuing a small permit set, an engineer checking coordination drawings, or a survey team producing color GIS sheets, that is a sensible set of basics.
Its strengths are precision-oriented rather than production-line oriented. HP specifies line accuracy of +/- 0.1%, a minimum line width of 0.00167 inch, and draft A1 line drawings in 35 seconds. Those figures deserve context: the rate is useful for individual plots and modest batches, but real output time still includes PDF processing, media changes, retrieval, and sorting. A plotter that saves thirty seconds a plot buys you nothing if the file spends four minutes finding it.
24"Maximum print width610 mm
+/- 0.1%Line accuracy
0.00167" (0.0423 mm)Minimum line width
35 sec/pageDraft A1 line drawing
Where it earns its place in an AEC workflow
The five-ink system—cyan, magenta, yellow, matte black, photo black, and gray—is particularly well suited to teams that need readable black linework but also print shaded plans, discipline overlays, site maps, and occasional presentation sheets. HP positions its three-black arrangement and gray ink for smoother tones; in practical AEC terms, that matters most when a PDF contains both fine annotation and color-coded coordination information.
- Single-office teams printing D-size drawings, A-series sheets, and smaller check plots.
- Design and engineering groups that need both CAD/GIS linework and occasional color presentation media.
- Networked environments using Ethernet, the embedded web server, or HP Web Jetadmin.
- Users with legacy Windows, Mac OS X, Citrix MetaFrame, or Novell NetWare workflows.
The 40 GB internal storage and in-printer processing architecture are useful when several users submit large files over the network. The trade-off is media capacity: this is a one-roll device with a single rear sheet feed. It is not designed to keep two common media types loaded or to absorb a long run of mixed-size plan sets without operator attention.
Media, output, and the operator minutes around the machine
The printer accepts rolls from 11 to 24 inches wide and sheets from 8.5 to 24 inches wide, with supported media weights from 60 to 328 g/m². Bond, coated paper, technical papers, films, self-adhesive media, and vinyl are listed among supported media types. That range makes it more versatile than a bond-only drawing device, provided the office has a reason to use those materials rather than merely admire the option.
Output lands in a basket, and the printer has one roll input. For a small studio, that is often manageable. For a construction office repeatedly moving between bond drawing sets and color presentation sheets, it becomes a recurring interruption. Money is minutes: loading a different roll, confirming the media setting, and collecting an uncollated set are small events until they become the print-room job description.
Supplies listed for this model include the HP 85 ink family and HP 84 and HP 85 printhead families. Confirm supply availability and service support locally before treating an installed machine as a long-term fleet standard.
Estimate rated plot time for draft A1 line drawings, then add your own allowance for job processing, roll handling, and set assembly.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 471 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
IT fit and the sensible family comparison
For IT, the T1100ps has Ethernet, USB 2.0, an embedded web server, HP Web Jetadmin support, and a 240 x 160-pixel control-panel display. It also has explicitly listed support for operating systems and platforms that are now legacy environments. That is useful for preserving an established workflow, but it should prompt a compatibility test with the firm’s current endpoints, authentication policy, print server, and PDF submission method. Network connectivity is not the same thing as modern security governance.
Within the catalog, the HP DesignJet T1120ps 24-in is the natural same-width alternative for buyers comparing another 24-inch HP configuration. Firms needing wider sheets should examine the HP DesignJet T1100ps 44-in or move to a wider current family option such as the HP DesignJet T1600dr 36-in. The latter is explicitly listed as dual-roll, which is the operational change that matters when staff frequently switch media. Use the comparison tool to keep width, roll configuration, and workflow needs in the same conversation.
Related equipment and evaluation tools
The read
Choose the HP Designjet T1100ps 610 mm Printer if your work centers on 24-inch CAD, GIS, and color technical output, your batches are modest, and a single roll is operationally acceptable. Choose the HP DesignJet T1100ps 44-in if width is the immediate constraint; choose the HP DesignJet T1600dr 36-in if roll switching and unattended throughput are the actual problem. Buy the machine for the workflow you have, not the one the brochure imagines.
Spec analysis
How the specs grade
Overall performance
within wide-format printers
86% spec coverage
- This printer
Verified specifications
The specs that decide it
| Maximum print width | 24 in |
|---|---|
| Printing colors | Cyan, Magenta, Matte black, Photo black, Yellow |
| Page description languages | TIFF |
| Internal memory | 256 MB |
| Media thickness | > 0.8 |
| Maximum roll diameter | 5.35" (13.6 cm) |
| Ethernet | Yes |
| Power consumption | 200 W |
Specifications
Full technical detail
Max print width24"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use caseCAD / Technical
Printing
| Print head | 3 (matte black and yellow, magenta and cyan, photo black and gray) |
|---|---|
| Printing colors | Cyan, Magenta, Matte black, Photo black, Yellow |
| Color management | HP Color Center, HP Vivera inks, Closed-loop color system |
| Print head nozzles | 1056 |
| Print speed (imperial) | 70 D prints per hour |
| Page description languages | TIFF |
| Print time color line drawing (draft, A1) | 35 sec/page |
| Print speed (color image, best quality, glossy paper) | 2.4 m2/hr 26 ft2/hr |
| Print speed (color image, draft quality, coated paper) | 34 m2/hr 364 ft2/hr |
| Print speed color line drawing (draft, A1 plain paper) | 52 A1 prints per hour |
| Print speed (color image, normal quality, coated paper) | 93 ft2/hr 8.6 m2/hr |
| Print speed (color image, normal quality, glossy paper) | 61 ft2/hr 5.6 m2/hr |
| Print time black and white line drawing (draft, metric A1 plain paper) | 35 sec/page |
Performance
| Display | LCD |
|---|---|
| Certification | RoHS, WEEE |
| Storage media | HDD |
| Internal memory | 256 MB |
| Built-in display | Yes |
| Built-in processor | Intel Centrino mobile |
| Processor frequency | 600 MHz |
| Drive device, buffer size | 9 MB |
| Internal storage capacity | 40 GB |
Paper handling
| Media handling | Sheetfed, roll feed, automatic cutter |
|---|---|
| Paper handling | Roll feed, sheet feed |
| Media thickness | > 0.8 |
| Roll top margin | 0.197" (5 mm) |
| Print margin roll | 0.197" (5 mm) |
| Bottom copy margin | 16.75 mm |
| Maximum media width | 610 mm |
| Maximum paper trays | 1 |
| Maximum roll length | 3598.4" (91.4 m) |
| Maximum print length | 3582.7" (91 m) |
| Standard media sizes | A4, A3, A2, A1 |
| Maximum roll diameter | 5.35" (13.6 cm) |
| Media types supported | Bond and coated paper (bond, coated, heavyweight coated, super heavyweight coated), photographic paper (satin, gloss, semi-gloss, matte), technical paper (natural tracing, translucent bond, vellum), film (transparent, matte), self-adhesive and vinyl (polypropylene, vinyl) |
| Print margin cut-sheet | 5 x 16.75 x 5 x 5 |
| Top metric copy margin | 5 mm |
| Left metric copy margin | 5 mm |
| Recommended media weight | 60 – 328 g/m² |
| Right metric copy margin | 5 mm |
| Media weights by paper path | 60 to 328 g/m2 |
| Maximum length of sheet media | 1676.4 mm |
| Paper handling standard/input | Roll loading, single sheet rear tray |
| Paper handling standard/output | Basket |
| Media thickness (by paper path) | Tray 1: up to 31.5 mil |
| Media sizes supported (imperial) | A, B, C, D |
| Non-printable area roll media (imperial) | 0.2 x 0.2 x 0.2 x 0.2 in (borderless on photo papers) |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
Weight & dimensions
| Weight | 103.6 lbs (47 kg) |
|---|---|
| Size (imperial) | 49.7" |
| Weight (imperial) | 143 lbs |
| Dimensions (WxDxH) | 49.7 x 26 x 15.4" (1262 x 661 x 391 mm) |
| Dimension note (metric) | 1262 x 661 x 1047 mm with stand for NA, LAR |
| Dimension note (imperial) | 49.7 x 26 x 41.2 in with stand for NA, LAR |
| Pallet dimensions (W x D x H) | 57.9 x 30.7 x 29.1" (1470 x 780 x 740 mm) |
| Maximum dimensions (W x D x H) | 49.7 x 28.8 x 41.2" (1262 x 732 x 1047 mm) |
| Product dimensions when open (LxWxD) | 49.7" |
| Pallet dimensions (W x D x H) (imperial) | 57.9 x 30.7 x 29.1" |
Power
| Power requirements | Input voltage (autoranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 amp max |
|---|---|
| Power consumption (typical) | 200 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 59 – 95 °F |
| Operating altitude (imperial) | 9842 ft |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
| Recommended operating temperature range (T-T) | 15 – 35 °C |
Other features
| Safety | USA and Canada (CSA certified), EU (LVD and EN60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE) |
|---|---|
| Ink drop | 6 pl (C, M, PK, G), 9 pl (Y, MK) |
| Typefaces | Roman configuration: 139 fonts; Kanji configuration: 243 fonts |
| Driver LAN | Novell NetWare 3.x/4.x clients |
| Air pressure | 0.69 mmH2O |
| Control panel | 240 x 160 pixels grayscale graphical display with Asian fonts support, 4 direct-access buttons and 7 navigation buttons, 2 bi-colour lights (Ready, Processing, Attention, Error) |
| Line accuracy | +/- 0.1% |
| Plug and Play | Yes |
| Driver updates | Latest driver upgrade information available on http:// |
| Line width minimum | 0.002 in |
| Minimum line width | 0.00167" (0.0423 mm) |
| Printer management | HP Web Jetadmin, HP Easy Print Care/Printer Utility |
| Roll maximum input | 1 |
| Technical features | Attain exacting detail—with gray HP Vivera Ink and improved line accuracy to 0.1%, 0.067 mm minimum line width Posters, presentations make a powerful impression—create hard-to-achieve tones with the Three-black ink set. Count on consistent, professional prints with over 20 Original HP media substrates—designed with Vivera Inks. Your work is preserved with the smudge-resistant prints produced by fast-drying HP Vivera Inks. Print CAD & GIS projects quickly and accurately—up to 35 seconds/A1 page—with HP Scalable Printing Technology. Send and print large jobs reliably over the network with in-printer processing architecture. Present your professional best—HP Vivera Inks produce a wide range of colors, from vivid color to soft tones. |
| Embedded web server | Yes |
| Acoustic power emissions | 6.9 B(A) |
| Acoustic pressure emissions | 57 dB |
| Minimum system requirements | Windows 2000: Intel Pentium III (733 MHz), 256 MB RAM, 2 GB available hard disk space; Windows XP Home, Windows XP Professional: Intel Pentium IV (1 GHz), 512 MB RAM, 2 GB available hard disk space Windows 2000: Intel Pentium III (733 MHz), 512 MB RAM, 2 GB available hard disk space; Windows XP Home, Windows XP Professional: Intel Pentium IV (1 GHz), 512 MB RAM, 2 GB available hard disk space Mac OS X v10.2, Mac OS X v10.3, Mac OS X v10.4 or higher; PowerPC G4, G5, or Intel Core Processor; 1 GB RAM; 2 GB available hard disk space |
| Electromagnetic compatibility | Compliance for Class B products:EU (EMC Directive), USA (FCC Rules), Canada (DoC), Australia (ACA), New Zealand (MoC), China (CCC), Japan (VCCI); Certified as Class A product: Korea (MIC), Taiwan (BSMI) |
| JetDirect Compatible Products | Y |
| Compatible ink types, supplies | HP Vivera inks |
| Maximum media length (imperial) | 66" |
| Maximum print length (imperial) | 300 ft; Operating system and application dependent |
| Acoustic power emissions (standby) | 44 dB |
| Print quality (black, best quality) | 2400 x 1200 DPI |
| Print quality (black, draft quality) | 600 DPI |
| Media sizes standard (imperial rolls) | 8.5 to 24-in wide sheets, 11 to 24-in rolls |
| Print quality (black, normal quality) | 600 DPI |
| Non-printable area (imperial cut-sheet) | 0.2 x 0.67 x 0.2 x 0.2 in |
| Print resolution (color, normal quality) | 600 x 600 DPI |
| Minimum system requirements for Macintosh | Mac OS X v10.2, Mac OS X v10.3, Mac OS X v10.4 or higher; PowerPC G3 or Intel Core Processor; 256 MB RAM; 1 GB available hard disk space |
Logistics data
| Quantity per pallet | 1 pc(s) |
|---|---|
| Number of cartons per pallet | 12 pc(s) |
Packaging data
| Package weight | 195.1 lbs (88.5 kg) |
|---|---|
| Bundled software | HP-GL/2, HP-RTL Windows drivers, PS Windows drivers, Optimized Windows driver for AutoCAD 2000 and higher, support for Citrix MetaFrame environments, PS driver for Mac OS X, Autodesk Design Review |
| Package weight (imperial) | 224 lbs |
| Package dimensions (WxDxH) | 57.9 x 30.7 x 29.1" (1470 x 780 x 740 mm) |
| Package dimensions (W x D x H) | 57.9 x 30.7 x 29.1" |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
System requirements
| Browser supported | Microsoft Internet Explorer (5.0 or higher), Netscape (6.0.1 or higher), Safari for Mac OS (10.3 or higher), Mozilla (1.5 or higher) |
|---|---|
| Compatible operating systems | Windows 2000, Windows XP Home, Windows XP Professional, Windows XP Professional x64, Windows Server 2003, Windows Vista Ready; Novell NetWare 5.x, 6.x; Mac OS X v10.2 or higher; Citrix MetaFrame |
Input & output capacity
| Total input capacity | 1 sheets |
|---|---|
| Total number of input trays | 1 |
Everything that fits the HP DesignJet T1100
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
11 ink cartridges · 3 printheads · 96 paper & media items · 4 accessories
HP DesignJet T1100 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T1100 24-in PostScript — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 10
HP Premium Plus Gloss 610 mm x 15.2 m (24 in x 50 ft) White
HP 72 130-ml Gray Ink Cartridge
HP 72 130-ml Yellow Ink Cartridge
HP 72 130-ml Magenta Ink Cartridge
HP 72 130-ml Cyan Ink Cartridge
HP 72 130-ml Matte Black Ink Cartridge
HP 72 130-ml Photo Black Ink Cartridge
HP 72B 130-ml Matte Black Ink Cartridge
HP 72B 130-ml Gray Ink Cartridge
HP 72B 130-ml Photo Black Ink CartridgePrintheads 3
Paper & Media 84
Representative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image350g Vivid Matte Poly/Cotton CanvasRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative image6 Mil Water-Resistant Self-Adhesive PolypropyleneRepresentative image46LB Inkjet Coated Matte Paper (747)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image24LB Inkjet Bond Paper (731)Representative image24LB Inkjet Coated Matte Paper Economy (714)
HP Q1733A printing paper Matte 1 sheets White
HP Two-view Cling Film
HP Two-view Cling Film
HP C6568B large format media 45.7 m
HP Q1408A plotter paper
HP Q1430A photo paper Brown, White
HP C3868A plotter paper 45.7 m 91.4 cm
HP C3869A plotter paper
HP White Matte Polyester Film
HP Q1420A photo paper Brown, White
HP Q1760A large format media 45.7 m Matte
HP Matte Film 610 mm x 38.1 m (24 in x 125 ft)
HP C6570C large format media 30.5 mRepresentative imageHP Bright White Inkjet Paper, 36 in x 300 ft (C6810A)
HP Reverse Print Matte Backlit Film
HP C6035A large format media 45.7 m
HP C6036A printing paper Matte White
HP C6567B plotter paper
HP Universal Semi-gloss Photo Paper
HP C6777A printing film
HP Clear Film 174 gsm-610 mm x 22.9 m (24 in x 75 ft)
HP Q1421A photo paper Brown, White
HP Q1757A printing paper Matte Yellow
HP Reverse Print Matte Backlit Film
HP Reverse Print Matte Backlit Film
HP Q1416A large format media 30.5 mRepresentative imageHP Heavyweight Coated Paper, 42 in x 100 ft (C6569C)
HP Q1908A printing film
HP Universal Semi-Gloss Photo Paper
HP Adhesive Vinyl 914 mm x 12.2 m (36 in x 40 ft)
HP Q1956A large format media 67.5 m
HP Heavyweight Coated 1524 mm x 68.5 m (60 in x 225 ft) large format media Matte
HP Q1961A large format media
HP Q1962A large format media
HP Q5486A photo paper Black, Blue, White
HP Q5487A photo paper Black, Blue, White
HP Q5489A photo paper
HP Q5491A photo paper
HP Q6544A printing paper Matte Black, Blue, White
HP Q6579A photo paper Brown, White
HP Q6580A photo paper Matte
HP Q6581A photo paper
HP Q6583A photo paper Brown, White
HP Q6578A photo paper Brown, White
HP Q6588A large format media Matte
HP Q6596A large format media Matte
HP Q1441A large format media 45.7 m
HP Q1442A large format media 45.7 m
HP Q1444A printing paper Matte
HP Q1445A printing paper Matte
HP Q7897A large format media 45.7 m
HP Universal Bond Paper 841 mm x 91.4 m large format media 3598.4" (91.4 m)
HP Q8004A large format media 91.4 m
HP Q8834A printing film
HP Q8835A printing film
HP CG459A photo paper Matte
HP Premium Matte Photo Paper-914 mm x 30.5 m (36 in x 100 ft) large format media
HP Q1446A plotter paper 45 m 42 cm
HP Vivid White Glossy Polyester Film
HP Vivid White Glossy Polyester Film
HP Cockle-free Heavyweight Coated Paper-914 mm x 30.5 m (36 in x 100 ft)
HP Cockle-free Heavyweight Coated Paper-1067 mm x 30.5 m (42 in x 100 ft)
HP CG884A large format media 45.7 m Matte
HP CG885A large format media 45.7 m Matte
HP Cockle-free Heavyweight Coated Paper-610 mm x 30.5 m (24 in x 100 ft)
HP Cockle-free Coated Paper-610 mm x 45.7 m (24 in x 150 ft)
HP CG892A large format media
HP CG889A large format media 45.7 m
HP CG890A plotter paper
HP CG891A large format media 45 m
HP Self-adhesive Indoor Paper-610 mm x 22.9 m (24 in x 75 ft)
HP Self-adhesive Indoor Paper-1067 mm x 22.9 m (42 in x 75 ft)
Questions
Straight answers
Can the HP Designjet T1100ps 610 mm Printer print D-size construction drawings?
It has a maximum media width of 24 inches and supports imperial A, B, C, and D media sizes. Confirm the intended sheet orientation, margins, and application setup for each drawing template.
How fast is it for CAD line drawings?
HP rates draft A1 color and black-and-white line drawings on plain paper at 35 seconds per page, and lists 52 A1 color line drawings per hour. Those are rated print figures, not complete job turnaround times.
Does it support both technical drawings and presentation work?
Yes. Listed media types include bond and coated papers, photographic papers, technical papers, films, self-adhesive media, and vinyl. Its ink set includes matte black, photo black, and gray alongside cyan, magenta, and yellow.
Is this printer suitable for a busy plan room?
It may suit modest batches, but it has one roll input, one sheet feed, and basket output. A busy room that changes between bond and presentation media or produces frequent mixed-size sets should consider a wider or dual-roll workflow.
What connectivity and management tools are available?
The printer includes Ethernet, USB 2.0, an embedded web server, HP Web Jetadmin support, and HP Easy Print Care/Printer Utility. Its listed software support includes several legacy operating systems, so validate deployment with current IT standards.
Ready to put the HP DesignJet T1100 to work?
Configuration, media and a quote tailored to your workflow — from AEC plotter specialists.
