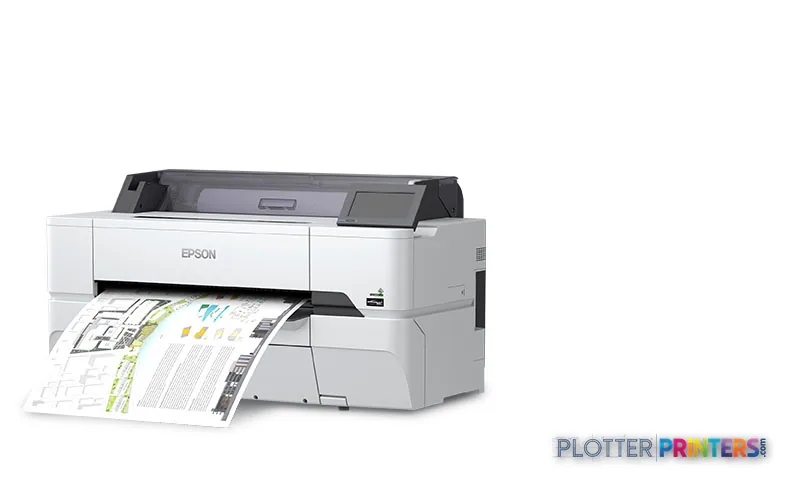

Epson SureColor SC-T3405N

The SC-T3405N is most at home in a small architecture studio, engineering team, survey office, field-support location, or GC trailer where 24-inch output covers the real work. It can handle ISO A1 through A4 and B1 through B5 sizes, with a maximum listed print size of A1, 23 by 33 inches. Roll margins are listed at 0.118 inches (3 mm), and borderless printing is supported when the job calls for edge-to-edge graphics rather than a conventional plan sheet.

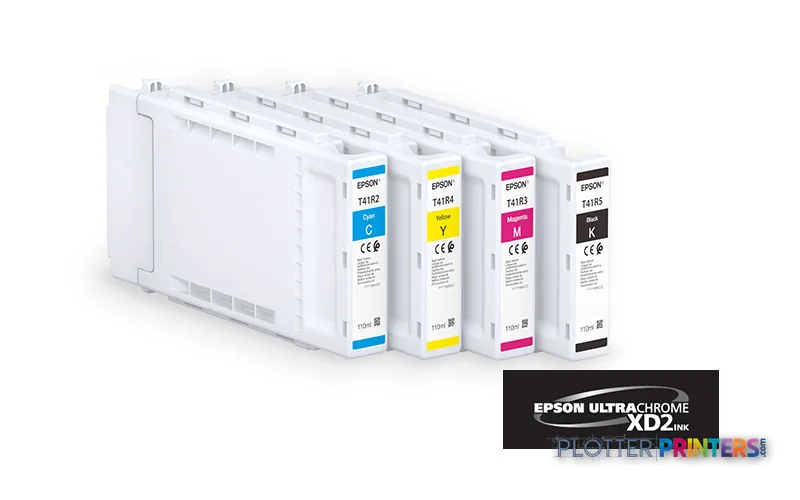

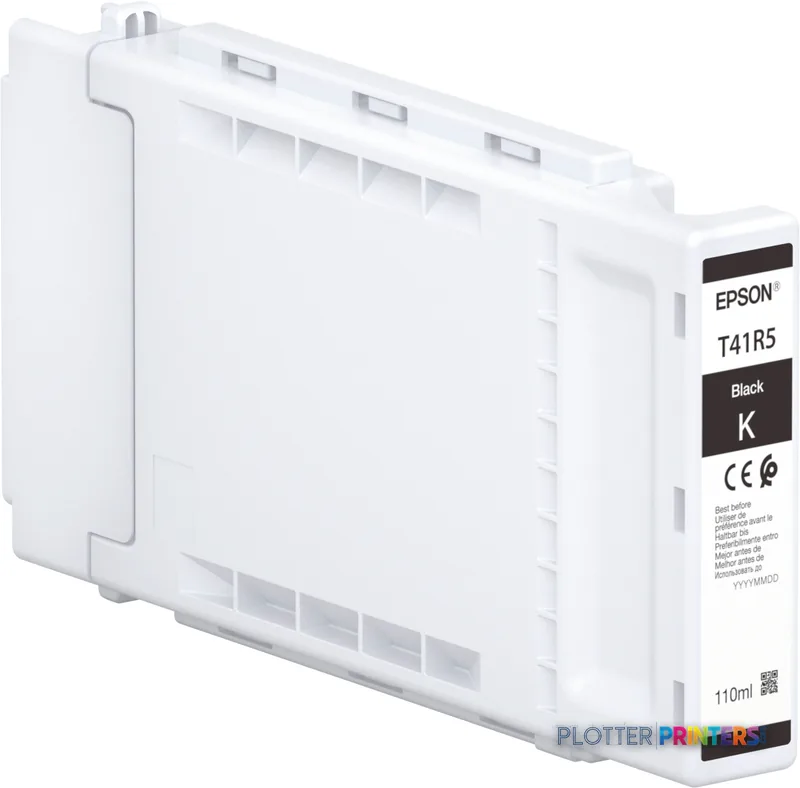

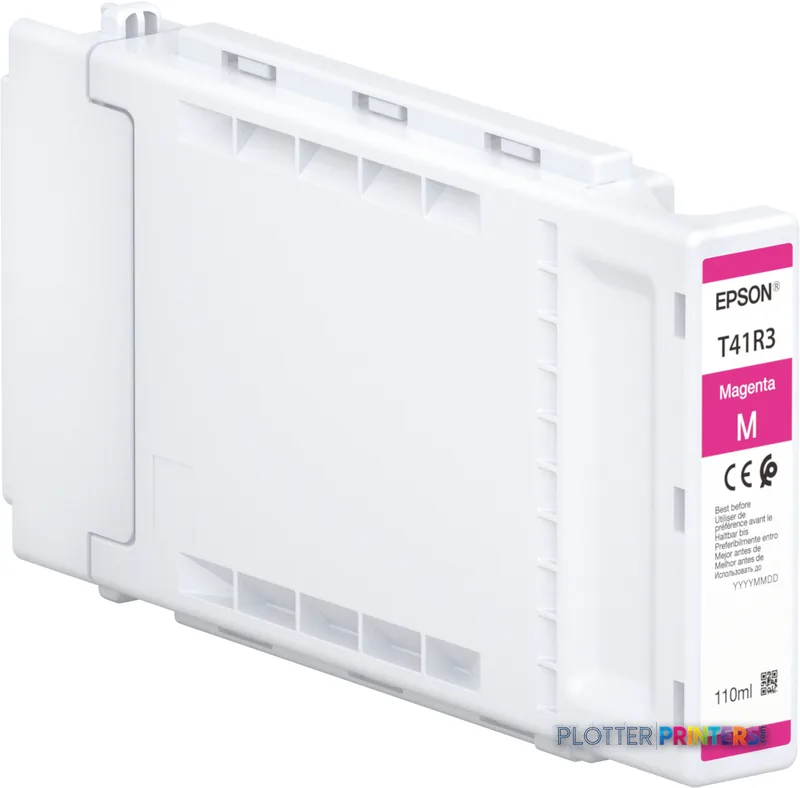

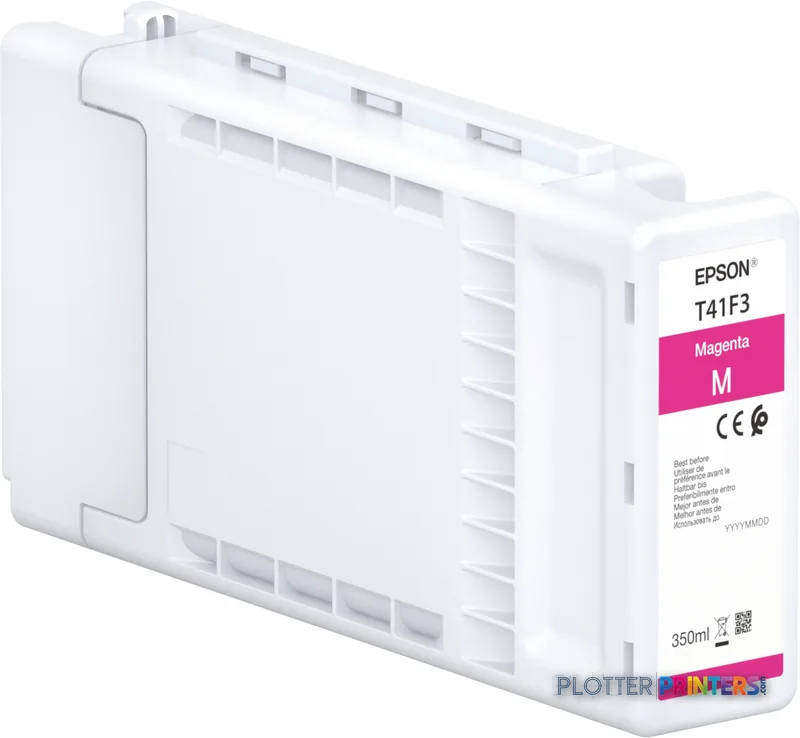

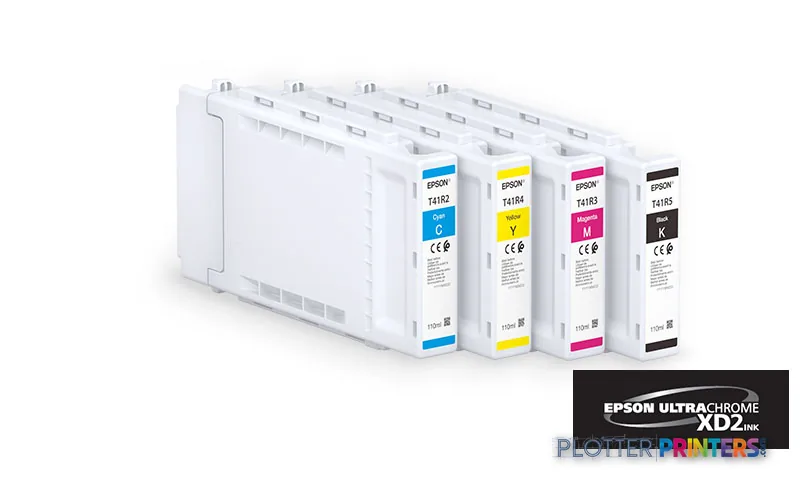

For technical documents, the useful story is not just the 2400 x 1200 DPI specification. It is the combination of a listed minimum line width of 0.0200 mm, HP-GL/2 and HP-RTL support, and a four-color ink set. Fine dimensions, layer-colored utilities, phasing plans, and redline overlays are the kinds of files this machine is positioned to process. Use compatible Epson UltraChrome XD2 inks and approved media; ordinary bond remains the practical starting point for most plan work. Bottom line: it fits the team that prints drawings throughout the week, rather than assembling large mixed-size bid sets all afternoon.

For a shared device, the connection options are credible: Gigabit-capable Ethernet, Wi-Fi, USB, and Apple AirPrint are listed. Security support includes SSL/TLS, SNMP, IPSec, and IPv6. That gives IT a workable foundation for a managed office network, but it does not remove the usual chores: confirm driver deployment, access controls, job ownership, and PDF handling before the machine becomes the last stop before a permit submission.

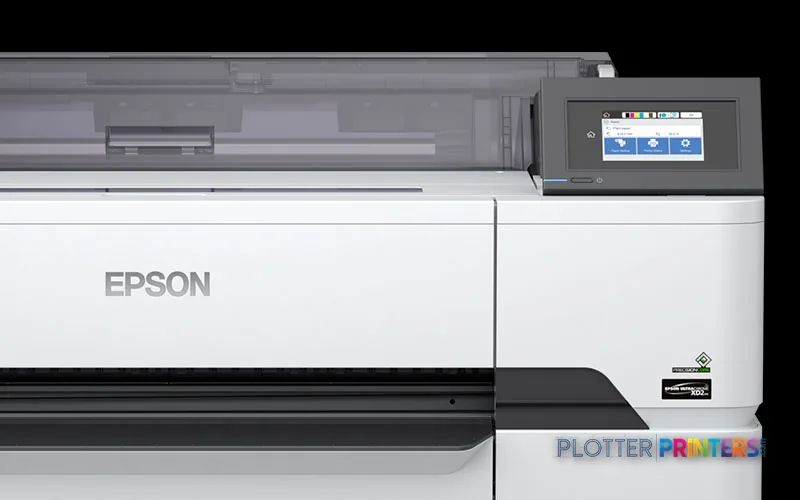

The printer has 1024 MB of internal memory and a 4.3-inch color touch display. It is not silent in use; the listed printing sound pressure level is 50 dB. Put it near the project team, not beside the person trying to finish a specifications section in peace. The listed 108 lb weight also means this is a two-person placement conversation, not an optimistic solo lift. Bottom line: it is office-suitable when placed deliberately and administered like a shared technical device.

If you want a closely related alternative, compare it with the Epson SC-T3405 24-in and Epson SC-T3400 24-in. The right choice depends on the exact configuration, workflow, and local support arrangement—not a model number that happens to end in a larger digit. For teams that routinely need different media loaded or wider output, the Epson T3770DR 24-in and Epson SureColor T3270 36-in represent more substantial workflow changes.

The trade-off is straightforward. A 24-inch single-roll-style workflow is convenient for routine drawing output, but it is less appropriate when operators repeatedly change media, collate large issue sets, or need 36-inch and wider construction documents. Ask the dealer to demonstrate your actual PDF and HP-GL/2 files, show roll loading and cut-sheet handling, and explain the local service path. Printers are polite right up until the deadline. Bottom line: buy this machine for its 24-inch office role, not in the hope that it will impersonate a central reprographics department.
