Epson SureColor SC-T3405

The SC-T3405’s job is controlled, local technical printing. Its four-color process—Black, Cyan, Yellow, and Magenta—fits ordinary construction documents as well as color-coded utilities, phasing plans, redlines, and client-facing boards. The stated line accuracy of +/- 0.1 and minimum line width specification point in the right direction for detail-heavy drawing work, though file construction, driver settings, media, and calibration still decide what lands on paper.

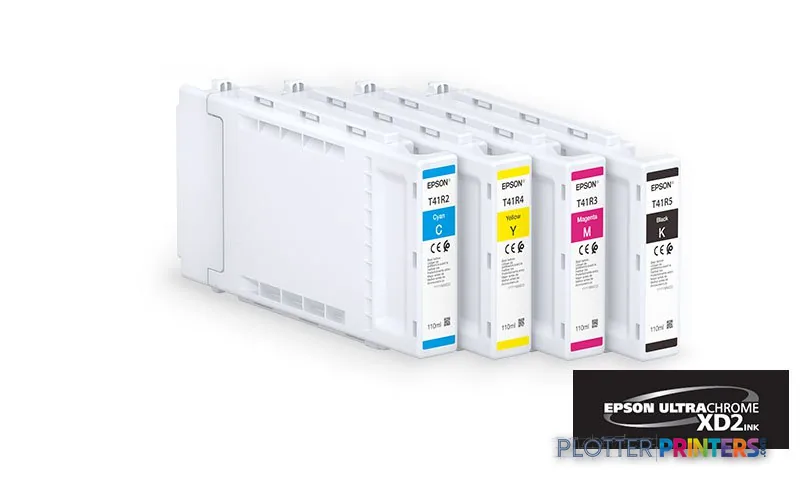

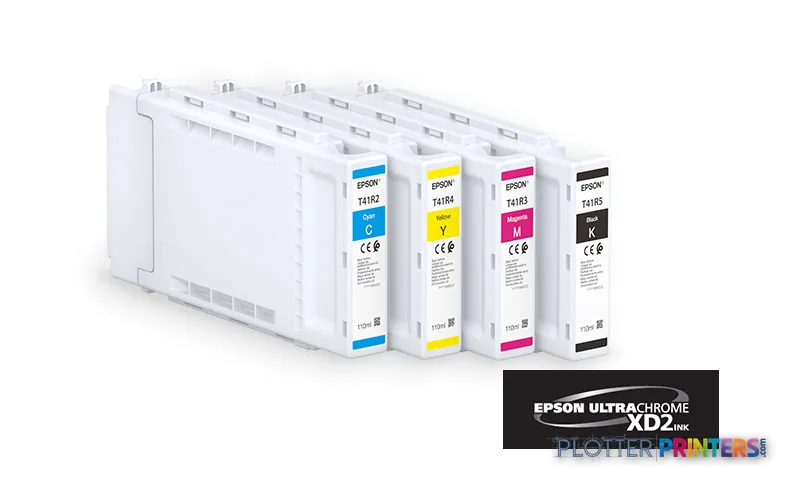

The printer accepts media from 0.002 inches to 0.012 inches thick. Borderless printing is available when a presentation sheet calls for it. For everyday plan output, compatible options include Epson Bond Paper White 80 and Epson Bond Paper Bright 90, while Epson UltraChrome XD2 is the listed ink family. No mystery cartridges in the middle of a deadline. Small mercy.

Bottom line: This is a practical 24-inch color plotter when the work is mostly drawings, maps, markups, and occasional presentation output.

The SC-T3405 speaks ESC/P-R, HP-GL/2, and HP-RTL, which matters in mixed CAD estates where not every legacy workflow has been cleaned up yet. It supports Ethernet LAN at 10, 100, and 1000 Mbit/s, plus Wi-Fi and USB. Apple AirPrint is also listed for mobile printing.

For IT, the published security and network protocol list includes SSL/TLS, SNMP, IPSec, IPv6, and TLS. That does not replace a proper network review, user policy, or print-accounting plan. It does mean the device has a more credible starting point than a printer connected to whichever guest network happened to be handy that afternoon.

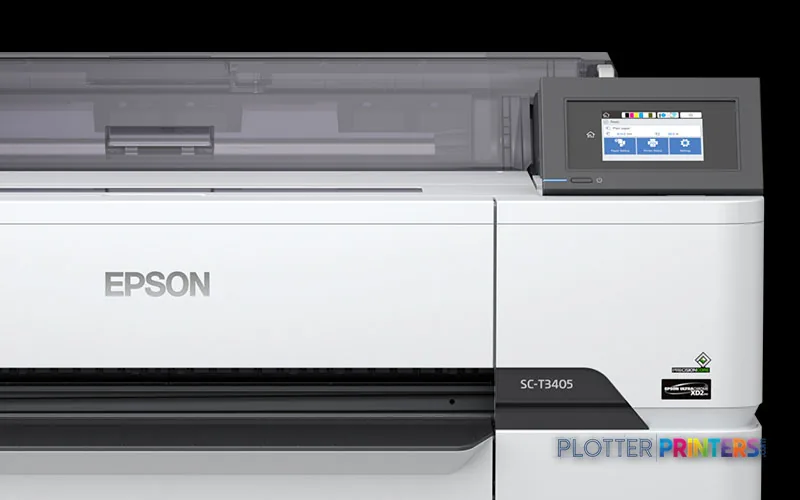

The 4.3-inch color touchscreen gives operators local control, while the 1024 MB internal memory provides working room for submitted files. Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP, and Mac OS X 10.6.8 or later are listed as compatible operating systems.

Bottom line: The connectivity is suited to a managed office network, but departmental chargeback and document controls remain a workflow decision, not a printer checkbox.

This is not the right machine for teams routinely needing 36-inch drawings, larger plan sets, or a wider output format. In that case, the Epson SureColor T3270 36-in changes the conversation because width, not resolution, is the failure mode. A 24-inch device cannot negotiate with a 36-inch civil plan.

Within the same family, the Epson T3770DR 24-in deserves a look when roll-management demands are higher, because it is identified as a dual-roll model. The SC-T3405 is the simpler fit when one compact technical printer is enough. If scanning and copying are central to the job, assess that requirement separately; the listed compatible products include the WorkForce DS-6500 and WorkForce DS-60000 scanners, but the SC-T3405 itself is specified here as a printer.

For a close same-width comparison, use the 24-inch printer comparison tool. The sensible choice will usually come down to media habits, local service support, and how often the office hits its own version of 4:45 p.m.

Bottom line: Buy this for disciplined 24-inch output, not for a workload that already needs wider sheets or higher unattended roll capacity.
