Home / Wide-Format Printers / Epson SureColor
Epson · Wide-Format Plotter

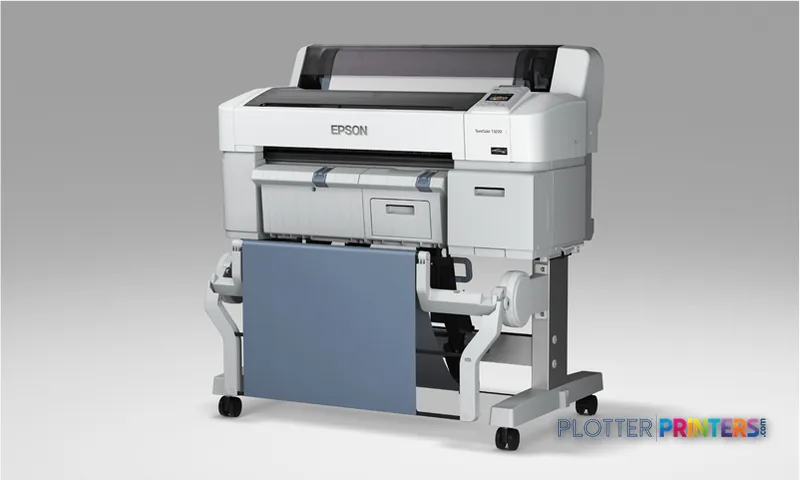

Epson SureColor T3270
36" technical / CAD plotter
- ModelT3270
- Prints36" wide
- Score57/100
Authorized Epson dealerGenuine hardware & ink
1-year warranty includedExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Epson SureColor T3270 is aimed at color technical printing for everyday AEC drawings, maps, and coordination documents.
- It accepts roll paper and cut sheets, which suits offices with a changing mix of plan and special-format output.
- HP-GL/2 and HP-RTL support is relevant for established CAD plotting workflows.
Not sure if the T3270 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2880 x 1440 DPI maximum resolution for crisp line work.
- Verified specs 4 specs checked against the manufacturer datasheet.
- Analyst score Scores 57/100 in our class-relative rating.
Overview
Built for the work
Epson SureColor T3270, Inkjet, 2880 x 1440 DPI, HP-GL/2, HP-RTL, 105 ft2/hr, 660 ft2/hr, A1 (594 x 841 mm)
- 36″Max print width
- 660 ft²/hRated speed
- 5Ink channels
- 2,880 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
Where it performs best
Print Cost
73
Print Quality
72
Size / Fit
67
Class best is 63. How we grade →
Expert analysis
What you should know
Key takeaways
- The Epson SureColor T3270 is aimed at color technical printing for everyday AEC drawings, maps, and coordination documents.
- It accepts roll paper and cut sheets, which suits offices with a changing mix of plan and special-format output.
- HP-GL/2 and HP-RTL support is relevant for established CAD plotting workflows.
- The Epson SC-T3100 24-in is the narrower in-family alternative for smaller-format needs.
- The Epson T7770DR 44-in is the wider dual-roll step-up for teams with more demanding media workflow.
- Confirm network setup, driver behavior, service coverage, and performance on real project files before deployment.
At 4:45 p.m., the architect wants a clean A1 permit sheet, the engineer wants the same revision in color, and nobody wants a printer that turns a simple PDF into a small evening project. The Epson SureColor T3270 is a color inkjet wide-format printer for that everyday AEC work: drawings, coordination sheets, marked-up plans, GIS maps, and presentation output.
Its job is straightforward. Handle roll paper or cut sheets, interpret HP-GL/2 and HP-RTL files, and produce up to A1-size output without making the print room the busiest department in the office. It is a practical fit where plans need to move, but the workflow does not demand the widest sheets or dual-roll production.
660 ft2/hrRated normal-quality speedEpson’s rated figure indicates a machine aimed at regular plan output rather than occasional plotting.
105 ft2/hrRated best-quality speedUseful context when presentation-oriented work takes priority over getting the bid set out first.
2880 x 1440 DPIMaximum resolutionEnough resolution headroom for fine drawing detail and small annotation when the source file is prepared properly.
30" (762 mm)Operating footprint depthMeasure the room around it as well as the machine; roll loading and output handling need elbow room.
Where it earns its floor space
The T3270 makes sense for architects, consultants, survey teams, and construction offices producing a steady mix of color and monochrome technical documents. HP-GL/2 and HP-RTL support matters in CAD-heavy environments because those languages remain part of many established plotting workflows. A built-in LCD and USB Type-A connection also give local operators a direct path when the deadline is louder than the help desk.
Roll-paper support is the everyday convenience. Cut-sheet support is useful for the odd smaller-format sheet or special output. The trade-off is that the supplied data does not identify dual-roll handling, integrated scanning, copying, stacking, or finishing. Firms that need those functions should treat them as requirements to verify, not assumptions made from a wide-format badge.
Bottom line: This is for producing technical color output in an office, not for building a central reprographics line around it.
Estimate rated print time for your typical sheet area, then allow real-world time for file processing, roll handling, and collecting the set.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 660 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
The family decision: width and workflow first
If your work is mostly smaller sheets, the Epson SC-T3100 24-in is the sensible step down in width. It may fit a smaller studio or field office better, but it gives up the broader format capability available here. If A1 output is part of the normal workload, that limitation gets old quickly.
At the other end, the Epson T7770DR 44-in is the step-up conversation for teams that need a wider format and dual-roll operation. That second roll matters when a deadline includes different media or repeated sheet sizes. It is less compelling when the office simply needs dependable A1 plans and has limited space.
For a direct family comparison, use the T3270 and SC-T3100 comparison. Do not choose on resolution alone. The T3270 is rated at 2880 x 1440 DPI, but width, media workflow, operator intervention, and local service support will decide whether the machine helps at 4:45 p.m.
Bottom line: Buy the width and paper-handling workflow you actually use, not the one that looks impressive in a conference room.
IT and print-room checks before installation
The T3270 supports USB 2.0 and lists Ethernet as optional connectivity. IT should confirm the required network configuration, driver deployment method, authentication expectations, and job-accounting needs before the printer arrives. HP-GL/2 and HP-RTL compatibility is helpful, but it does not replace testing the actual CAD and PDF files that create trouble: dense civil base maps, shaded BIM exports, and color-coded MEP overlays.

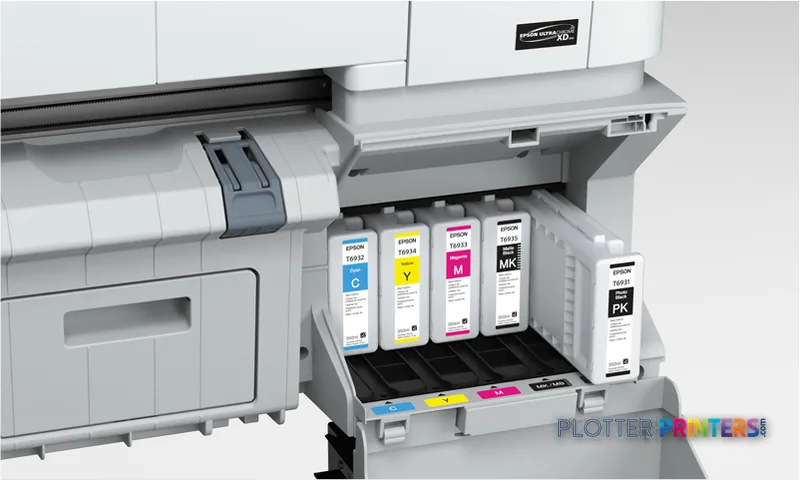

The machine uses five print cartridges. Consumable planning should be based on the firm’s real mix of color markup, maps, and line drawings, not a generic coverage estimate. It is ENERGY STAR certified, with listed typical power consumption of 52 W and standby consumption of 3 W. Printing sound pressure is listed at 50 dB, which is reasonable to consider if it will sit beside designers rather than in a separate print room.
Bottom line: Run your nastiest files and confirm service coverage before calling any plotter “office friendly.”
Compare the practical alternatives
Epson SC-T3100 24-inA narrower in-family option for smaller-format technical output.Epson T7770DR 44-inA wider in-family model with dual-roll capability.Compare T3270 with T7770DRPut width and paper-handling priorities side by side.Technical printer class rankingSee this machine in its category context.
The read
The Epson SureColor T3270 is a credible AEC choice for teams that need color technical output up to A1, use CAD-oriented file workflows, and want both roll and cut-sheet flexibility. It becomes less appropriate when the workload requires wider sheets, dual-roll operation, scanning, copying, finishing, or sustained centralized production. In that case, move up the workflow rather than asking one office plotter to become a print department. Printers have feelings too. Mostly error messages.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T5475
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 36 in |
|---|---|
| Print technology | On-demand ink jetmanufacturer-verified |
| Maximum resolution | 2880 x 1440manufacturer-verified |
| Number of print cartridges | 5 |
| Page description languages | ESC/P raster (undisclosed command); HP-GL/2; HP RTLmanufacturer-verified |
| Maximum print size | A1 (594 x 841 mm) |
| Sound level (printing) | 50 dB |
| Power consumption | 52manufacturer-verified |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyInkjet
Max resolution2880 x 1440 DPI
ConnectivityUSB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print technology | Inkjet |
| Maximum resolution | 2880 x 1440 DPI |
| Number of print cartridges | 5 |
| Page description languages | HP-GL/2, HP-RTL |
| Print speed (best quality) | 105 ft2/hr |
| Print speed (normal quality) | 660 ft2/hr |
Performance

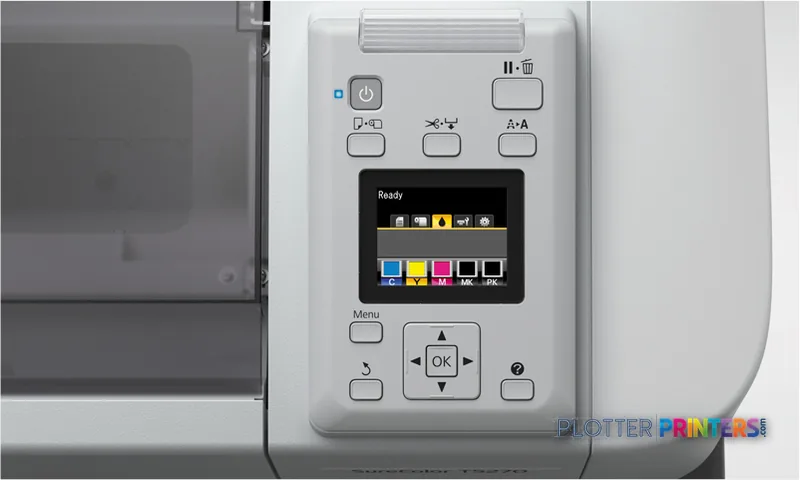

| Display | LCD |
|---|---|
| Certification | UL (MET), FCC (Class A), CSA, TCSA, CE, EMC |
| Product color | White |
| Built-in display | Yes |
| Sound pressure level (printing) | 50 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| Maximum print size | A1 (594 x 841 mm) |
Ports & interfaces
| USB port | Yes |
|---|---|
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
Weight & dimensions
| Depth | 30" (762 mm) |
|---|---|
| Width | 42" (1067 mm) |
| Height | 44" (1118 mm) |
| Weight | 147.9 lbs (67.1 kg) |
Power
| Power consumption (off) | 0.5 W |
|---|---|
| Power consumption (standby) | 3 W |
| Power consumption (typical) | 52 W |
Operational conditions
| Storage temperature (T-T) | -20 – 40 °C |
|---|---|
| Operating temperature (T-T) | 10 – 35 °C |
| Storage relative humidity (H-H) | 5 – 85% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| Optional connectivity | Ethernet |
|---|
Packaging data
| Drivers included | Yes |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Everything that fits the Epson SureColor T3270
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
12 ink cartridges · 4 paper & media items · 2 accessories · 3 coverage plans
Epson SureColor T3270 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureColor T3270 36-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 12
Epson T9131 Photo Black Ink Cartridge (200ml)
Epson T9132 Cyan Ink Cartridge (200ml)
Epson T9133 Vivid Magenta Ink Cartridge (200ml)
Epson T9134 Yellow Ink Cartridge (200ml)
Epson T9135 Light Cyan Ink Cartridge (200ml)
Epson T9136 Vivid Light Magenta Ink Cartridge (200ml)
Epson T9137 Light Black Ink Cartridge (200ml)
Epson T9138 Matte Black Ink Cartridge (200ml)
Epson T9139 Light Light Black Ink Cartridge (200ml)
Epson T913A Orange Ink Cartridge (200ml)
Epson T913B Green Ink Cartridge (200ml)
Epson T913D Violet Ink Cartridge (200ml)Paper & Media 4
Coverage & Support Plans 3
Questions
Straight answers
What AEC work fits the Epson SureColor T3270?
It fits color and monochrome technical output such as drawings, coordination sheets, GIS maps, marked-up plans, and presentation documents up to A1 size. It is most appropriate for office-based teams with regular wide-format needs.
Does the T3270 support CAD plotting languages?
Yes. The supplied data lists HP-GL/2 and HP-RTL page-description languages, which are relevant in CAD-oriented plotting workflows.
Can it print from rolls and cut sheets?
Yes. The supplied data lists support for both roll paper and cut sheets. Verify the media types and workflow details needed for your specific jobs.
How fast is the Epson SureColor T3270?
Epson lists 660 ft2/hr at normal quality and 105 ft2/hr at best quality. Actual set turnaround also depends on file processing, paper changes, and operator handling.
Is Ethernet included?
Ethernet is listed as optional connectivity. The printer also has one USB 2.0 port and a USB Type-A connector, so confirm the required configuration with the supplier and IT team.
When should we consider the Epson T7770DR 44-in instead?
Consider it when wider-format output and dual-roll operation are central to the workflow. The T3270 is the more focused choice when A1 output and a simpler office print role are sufficient.
