Epson SureColor SC-T3100N

The SC-T3100N makes sense when technical staff need local access to drawings rather than a walk to a central reprographics room. The 24-inch maximum roll width suits many day-to-day CAD, GIS, and color-coded coordination outputs. Cut sheets add flexibility for smaller drawing packages and presentation pages.

Line work is the real test here, not a glossy poster in a demo room. Epson specifies minimum line width of 0.00276″ (0.0700 mm), line accuracy of +/- 0.1, and maximum resolution of 2400 x 1200 DPI. Those figures point to a machine intended for detailed technical documents, where small annotations and layered discipline colors need to remain readable.

Its 4.3″ color touchscreen, direct printing, Ethernet LAN, Wi-Fi, and Wi-Fi Direct support practical office placement. Gigabit Ethernet is the sensible connection for a shared AEC device; Wi-Fi can be useful where cabling is awkward, but print-room IT will still want to manage access properly. SSL/TLS, SNMP, and IPSec are listed security support.

Bottom line: This is a sensible local plotter when drawings need to move faster than people.

The trade-off for a 59.5 lbs (27 kg) unit measuring 38.2″ wide by 27.4″ deep and 9.06″ high is production capacity around the machine, not just inside it. The rear roll limit is 9.26 lbs (4.2 kg), with a maximum roll diameter of 4.69″ (11.9 cm). That suits routine local output, but it is not the setup for a print room feeding long, mixed-size runs with nobody nearby.

There is no copying or scanning. If paper drawings, marked-up as-builts, or archive conversion are part of the daily workload, plan a separate scan path. Epson lists compatibility with the WorkForce DS-6500 and WorkForce DS-60000, but they are separate devices, not built-in functions.

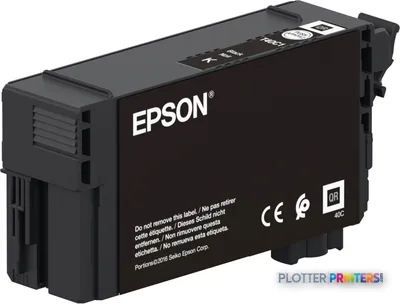

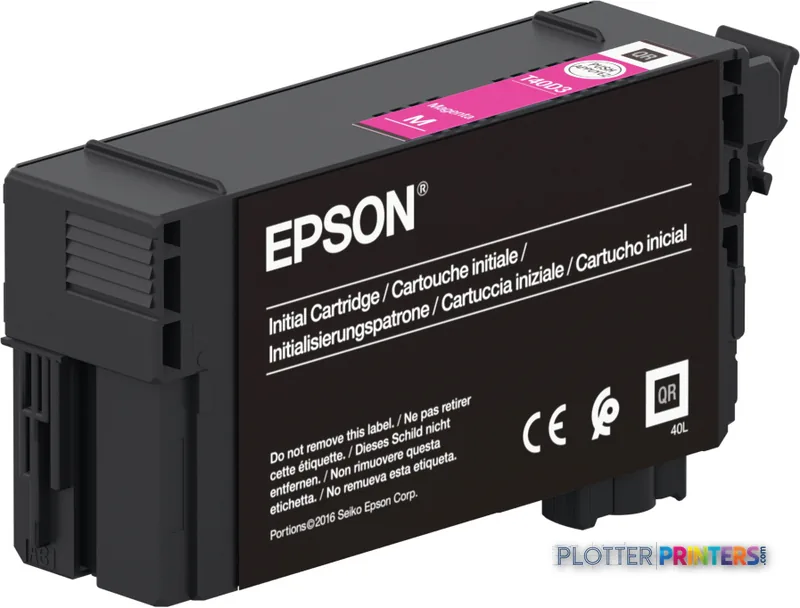

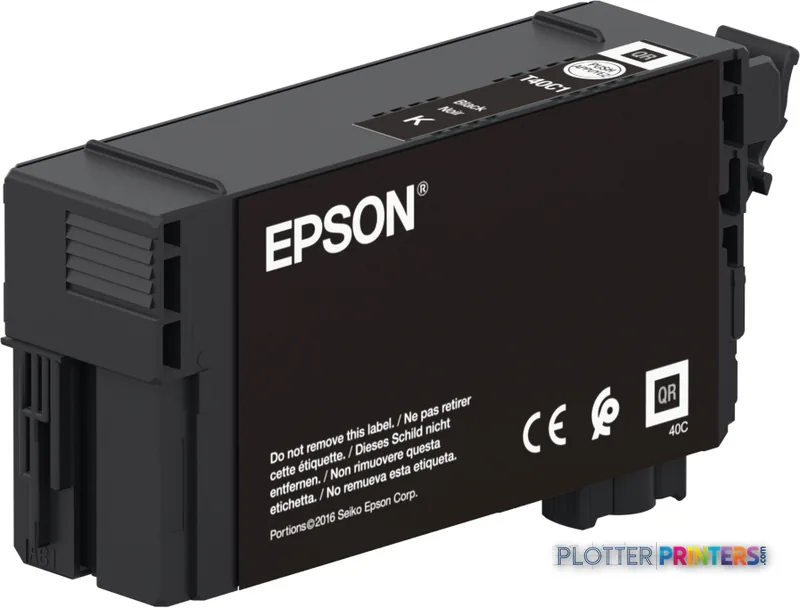

For routine plan printing, use supported roll and sheet media such as Epson Bond Paper White 80, Epson Bond Paper Bright 90, Epson Bond Paper Satin 90, Epson Coated Paper 95, or Epson Presentation Paper HiRes 120. Keep Epson UltraChrome XD2 inks and the Epson SureColor Maintenance box :LFP desktop in the support plan. Nobody enjoys discovering the maintenance box situation during a permit issue.

Bottom line: It handles local technical printing well, but it does not replace a scan-and-copy station or a higher-output reprographics workflow.

The closest family comparison is the Epson SC-T3100 24-in. Both are current 24-inch, 2400 x 1200 DPI inkjet models in the catalog. The right choice comes down to the exact configuration, placement, and workflow support your team needs, rather than assuming similar names mean identical day-to-day use.

If the operation is growing into sustained output with more demanding media management, compare it with the Epson T3770DR 24-in. The catalog identifies that model as a current dual-roll 24-inch machine. Dual-roll capability matters most when staff repeatedly switch between media types or sizes and cannot afford to stop production to reload a roll.

For a quick side-by-side, use the SC-T3100N and T3770DR comparison. For broader context, check the technical wide-format ranking. Do not choose on resolution alone. Ask who loads media, who clears exceptions, whether scan/copy is required, and what happens when several people submit drawings at once.

Bottom line: Buy the SC-T3100N for compact, shared technical output—not for unattended production or document capture.
