Home / Wide-Format Printers / Epson SureColor

Epson · Wide-Format Plotter

Epson SureColor SC-T3100M-MFP (Optional stand) 240V

24" wide-format MFPs

ModelC11CJ36301A1
Prints24" wide
Score57/100

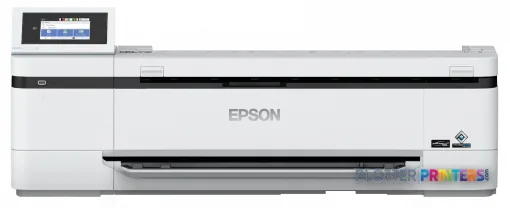

Epson SureColor SC-T3100M-MFP large-format printer product image showing white device with touchscreen display

Authorized Epson dealerGenuine hardware & ink

Manufacturer warrantyExtendable to 4 years

Free shippingContinental U.S.

Plotter specialistsAEC experts, not just sellers

Analyst take

A 24-inch four-color inkjet plotter with an integrated color scanner and copier in a single office-sized chassis.
Scans up to 24 inches wide and 106.3 inches long, with scan-to e-mail, FTP, network folder and USB.
Single 24-inch roll — no automatic dual-roll size switching for mixed plan sets.

Not sure if the C11CJ36301A1 is right for you?

Compare key specs and an AI analyst read-out against similar models.

Compare printers →

Wide-format reach Prints up to 24" wide on rolls and sheets.
Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
Ink platform Black, Cyan, Yellow, Magenta.
Scan & copy Integrated scanner for digitizing and sharing sets.
Connectivity Wi-Fi + Ethernet for shared team printing.
Analyst score Scores 57/100 in our class-relative rating.

Overview

Built for the work

Epson SureColor SC-T3100M-MFP, Inkjet, 2400 x 1200 DPI, PDF, TIFF, JPEG, Black, Cyan, Yellow, Magenta, 25 – 400%, 99 copies

Spec Analysis
overall

Where it performs best

Connections 100

Size / Fit 98

Print Quality 83

How we grade →

Expert analysis

What you should know

By Marcus EllisonWorkflow & Fleet Editor

Key takeaways

A 24-inch four-color inkjet plotter with an integrated color scanner and copier in a single office-sized chassis.
Scans up to 24 inches wide and 106.3 inches long, with scan-to e-mail, FTP, network folder and USB.
Single 24-inch roll — no automatic dual-roll size switching for mixed plan sets.
Epson rates dimensional accuracy at 0.2 percent, adequate for scaled drawing reproduction.
Security-capable for its class: IPSec, SSL/TLS, WPA3 and IEEE802 support for scan-to-network paths.
Best for small studios and site offices; step up to the T3770DR or SC-T5200 36-in for higher volume or wider media.

Every small AEC office eventually hits the same wall: the plotter prints, but nothing scans, so the old as-built markups still ride to the copy shop across town. The SureColor SC-T3100M-MFP is Epson’s answer to that specific friction — a 24-inch inkjet plotter with an integrated color scanner and copier, built to occupy one footprint instead of two.

It is a desk-adjacent machine, not a print-room workhorse. At 38.2 inches wide and 73.6 pounds, it fits where a large office copier would, and it wants to be treated the same way: shared, networked, and left alone to do routine plan-and-scan work without an operator hovering over it.

A1 (23" x 33" (594 x 841 mm))Max print size24-inch roll class

2400 x 1200 DPIMax resolution

24" (61 cm)Scan width / lengthup to 106.3" (2.7 m) long

0.2%Distance accuracyEpson-rated dimensional consistency

What it actually is

Strip away the marketing and you have three functions in one chassis: a four-color (Black, Cyan, Yellow, Magenta) roll-fed plotter, a 600 x 600 DPI CIS color scanner, and a walk-up copier with a 4-inch touch LCD. The scanner handles a full 24-inch width and long documents up to 106.3 inches — enough for a rolled-up site plan or a long profile drawing that a flatbed office scanner would refuse outright.

Scan-to destinations cover the workflow that matters: e-mail, FTP, network folder, and USB. Copies resize from 25 to 400 percent, up to 99 at a time. For a survey crew or a small structural shop that spends real minutes walking markups to a shared machine, folding that scan step into the plotter is the whole point. The scanner is free. The person standing at it is not.

Where it fits — and where it doesn't

This machine earns its place in the small office that produces a modest number of plots and needs the scan-and-copy loop closed on-site. Think a two-to-six-person architecture studio, a solo civil engineer, a surveyor, or a satellite construction trailer that mails a permit set once a week and archives redlines daily.

What it is not: a dual-roll production machine. There is one roll, 24 inches wide, so mixed-size plan sets and unattended long runs mean roll swaps and operator attention. If you never scan, the non-MFP siblings do the printing for less complexity — the SC-T3100 24-in or the network-oriented SC-T3100N 24-in. If you need two rolls loaded for automatic size switching, step to the Epson T3770DR 24-in. And if 24 inches won’t hold your D- and E-size work, the 36-inch SC-T5200 36-in MFP is the wider path. Cross-shop it against the Canon GP-200 24-in if a print-only Canon is on your list; the side-by-side with the SC-T3100M clarifies what the MFP adds over the plain M.

IT and the network story

For the people who have to support it, the SC-T3100M-MFP is more manageable than most desk-class devices. It speaks Gigabit Ethernet, Wi-Fi, and Wi-Fi Direct, and the security list is unusually complete for its size: IPSec, SSL/TLS, WPA3, SNMP and IEEE802 support. That matters when scan-to-network-folder means the machine is now writing files onto your server — you want that path authenticated and encrypted, not wide open. It handles PDF, TIFF and JPEG directly and supports AirPrint for the tablet crowd on site. Consumables are the Epson UltraChrome cartridges in the C13T49H family; two cartridges, straightforward to swap.

Compare and step up

Epson SC-T3100M 24-inThe MFP without the extended feature gap — see what changes.Epson T3770DR 24-inDual-roll, when automatic size switching matters more than scanning.Epson SC-T5200 36-inThe 36-inch MFP path for D- and E-size work.24-inch class rankingWhere this machine sits among its peers.

The read

Choose the SC-T3100M-MFP if you are a small AEC office that plots at low-to-moderate volume and genuinely needs to scan, copy and archive wide drawings without a second machine or a trip to the copy shop. Choose a plain SC-T3100N if you will never scan; choose the T3770DR if unattended dual-roll production beats built-in scanning for you; choose the SC-T5200 36-in if your sheets outgrow 24 inches. Buy the machine for the workflow you have, not the one the brochure imagines — and if that workflow ends with someone hand-carrying markups anywhere, this one pays for itself in recovered minutes.

Spec analysis

How the specs grade

Overall performance

within wide-format MFPs

64% spec coverage

This printer

How it scores

Media Handling48

Print Quality83

Print CostNot enough spec data

Color27

SpeedNot enough spec data

Connections100

Workflow30

Size / Fit98

WarrantyNot enough spec data

Graded on a curve against the best published spec among the wide-format printers we track — 100 = the catalog’s gold standard for that metric (the finest droplet, the longest warranty, the fastest rated speed actually on the market). Every input is a manufacturer-published spec; rated speeds are shown as listed, not timed throughput. Ticks mark the class best. How we grade →

Verified specifications

The specs that decide it

Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Printing colors	Black, Cyan, Yellow, Magenta
Number of print cartridges	2
Page description languages	PDF, TIFF, JPEG
Maximum print size	A1 (594 x 841 mm)
Media thickness	0.5 mm
Maximum roll diameter	4.69" (11.9 cm)
Scanning	Color scanning
Wi-Fi	Yes
Ethernet	Yes
Power consumption	24 W

Specifications

Full technical detail

Print technologyInkjet

Max resolution2400 x 1200 DPI

Max print width24"

ColorColor

ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi

Use caseCAD / Technical

Printing

Color	Yes
Printing colors	Black, Cyan, Yellow, Magenta
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	2
Page description languages	PDF, TIFF, JPEG

Performance

Display	LCD
Control type	Touch
Color display	Yes
Product color	White
Built-in display	Yes

Paper handling

Cut sheets	Yes
Media thickness	0.5 mm
Maximum print size	A1 (594 x 841 mm)
Maximum roll width	24" (61 cm)
Maximum roll diameter	4.69" (11.9 cm)
Paper tray media types	Roll
Roll weight (rear roll)	9.26 lbs (4.2 kg)
ISO A-series sizes (A0…A9)	A1, A2, A3, A4, A5

Ports & interfaces

Wi-Fi	Yes
USB port	Yes
Ethernet LAN	Yes
Wi-Fi Direct	Yes
Direct printing	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Supported network protocols	SNMP, IPSec, POPS, FTP, WPA3, IEEE802, SSL/TLS
Mobile printing technologies	Apple AirPrint

Weight & dimensions

Depth	19.9" (505 mm)
Width	38.2" (970 mm)
Height	11.5" (292 mm)
Weight	73.6 lbs (33.4 kg)

Power

Power consumption (off)	0.2 W
Power consumption (standby)	2 W
Power consumption (typical)	24 W

Copying

Copier resize	25 – 400%
Maximum number of copies	99 copies

Scanning

Scan to	E-mail, FTP, Network folder, USB
Accuracy	0.2%
Scanning	Color scanning
Scan technology	CIS
Maximum scan width	24" (61 cm)
Maximum scan length	106.3" (2.7 m)
Optical scanning resolution	600 x 600 DPI

Packaging data

Cartridge(s) included	Yes

System requirements

Mac operating systems supported	Mac OS X 10.6 Snow Leopard
Windows operating systems supported	Windows 10, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64, Windows XP

Input & output capacity

Total input capacity	50 sheets

Everything that fits the Epson SureColor SC-T3100M

The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.

17 ink cartridges · 46 paper & media items · 6 accessories · 6 coverage plans

Epson SureColor SC-T3100M ink and paper →

Supplies

Compatible ink, printheads & media

Genuine consumables that fit the Epson SureColor SC-T3100M-MFP (Optional stand) 240V — only the cartridges, printheads and media compatible with this model.

Questions

Straight answers

How wide can it print and scan?

It prints up to A1 (23 x 33 inches) on a 24-inch roll and scans up to 24 inches wide. Scan length runs to 106.3 inches, so long profile and site drawings are handled.

Does it have a dual-roll for mixed-size plan sets?

No. It uses a single 24-inch roll plus cut-sheet input. For automatic dual-roll size switching in the same family, look at the Epson T3770DR 24-in.

Where can scans go?

Scan-to e-mail, FTP, network folder and USB, in color at 600 x 600 DPI optical resolution. Copies resize from 25 to 400 percent, up to 99 at a time.

How does it differ from the non-MFP SC-T3100 models?

The MFP adds the integrated scanner and copier. If you only print and never need to scan or copy, the SC-T3100, SC-T3100N or SC-T3100x cover the printing without the scanner.

Is it manageable and secure on a firm's network?

Yes for its class. It supports Gigabit Ethernet, Wi-Fi and Wi-Fi Direct, plus IPSec, SSL/TLS, WPA3, SNMP and IEEE802 — worth configuring since scan-to-folder writes files onto your server.

What inks does it use?

It uses two Epson UltraChrome cartridges in the C13T49H family, printing Black, Cyan, Yellow and Magenta at up to 2400 x 1200 DPI.
