Canon imagePROGRAF GP-200
24" color graphics & photo printer
- ModelGP-200
- Prints24" wide
Genuine OEM hardwareAuthorized U.S. distribution
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Canon GP-200 24-in supports roll and cut-sheet media but has a stated maximum print size of A1, 23" x 33".
- It fits color PDFs, GIS maps, coordination graphics, permit exhibits, and A1 technical sheets more naturally than full U.S. Arch D plan sets.
- Its 2400 x 1200 DPI specification offers resolution capacity for detailed drawings, but actual fine-line results should be tested with representative files and media.
Not sure if the GP-200 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 24" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Black, Cyan, Magenta, Matte black, Yellow.
- Connectivity Wi-Fi + Ethernet for shared team printing.
- Verified specs 10 specs checked against the manufacturer datasheet.
Overview
Built for the work
Canon imagePROGRAF GP-200, Bubblejet, 2400 x 1200 DPI, JPEG, PDF, Black, Cyan, Magenta, Matte black, Yellow, PF-07, A1 (594 x 841 mm)
Expert analysis
What you should know
Key takeaways
- The Canon GP-200 24-in supports roll and cut-sheet media but has a stated maximum print size of A1, 23" x 33".
- It fits color PDFs, GIS maps, coordination graphics, permit exhibits, and A1 technical sheets more naturally than full U.S. Arch D plan sets.
- Its 2400 x 1200 DPI specification offers resolution capacity for detailed drawings, but actual fine-line results should be tested with representative files and media.
- The device has Ethernet LAN, Wi-Fi, USB connectivity, 500 GB of internal storage, and PDF/JPEG support.
- It does not scan or copy, so it is not a self-contained replacement for a multifunction plan-room device.
- The Canon GP-300 36-in is the more relevant in-family option when wider output is a routine requirement.
At first glance, the Canon GP-200 24-in looks like a compact color plotter for a project room: black case, modest 38.7″ width, and a 24″ roll path. The more important detail is less visible. Its maximum print size is A1, 23″ x 33″, so this is suited to A1 and smaller technical sheets rather than the 24″ x 36″ Arch D sets that still anchor much U.S. construction documentation.
For an architecture studio, survey team, or construction office that needs color PDFs, coordination diagrams, GIS maps, and presentation-oriented sheets up to A1, it is a sensible fit. The five listed ink colors—Black, Cyan, Magenta, Matte black, and Yellow—give it a practical color-document role, while 2400 x 1200 DPI provides useful resolution headroom for dense annotations and fine graphic detail. Resolution is not, by itself, a guarantee of line quality; media, files, and driver settings still decide whether the faint gray utility line survives.
24" (61 cm)Maximum roll widthA compact width class for A1 and smaller output.
A1 (23" x 33" (594 x 841 mm))Maximum print sizeImportant for U.S. users who rely on Arch D sheets.
2400 x 1200 DPIMaximum resolutionUseful resolution capacity for detailed drawings and color graphics.
500 GBInternal storageProvides onboard capacity for submitted work.
Where it fits in an AEC workflow
The Canon GP-200 24-in is strongest where color carries information but sheet size remains controlled. Think permit exhibits, marked-up PDFs, MEP coordination sheets, small-format plan extracts, survey graphics, and client-facing boards within its A1 limit. It accepts roll media and cut sheets, supports PDF and JPEG page-description languages, and connects through Ethernet LAN, Wi-Fi, or USB. That makes it practical for teams sending standard PDF issue sheets from a shared network rather than maintaining a dedicated reprographics workflow.
Borderless output is supported for A1 and B2 media. That matters for presentation graphics and map sheets where a clean edge is part of the document, but it should not be confused with a substitute for a larger-format construction-set printer. The specified roll margin is 0.787″ (2 cm), so users should confirm their required image area and title-block placement during a media trial.
The size limit is the deciding trade-off
The 24″ roll width can sound compatible with standard U.S. plan work, yet the stated maximum print size is A1 at 23″ x 33″. Firms routinely issuing full 24″ x 36″ Arch D drawings should treat that as a hard workflow constraint, not a minor specification. A construction manager may use this machine effectively for color logistics plans and drawing excerpts, while still sending full sets to a larger device or external reprographics provider.
Within Canon’s own listed range, the Canon GP-300 36-in is the natural step up when wider sheets are central to the work. Conversely, the Canon GP-2000 24-in remains a same-width comparison for buyers who need to evaluate another 24-in Canon option. Compare the actual media sizes, document mix, and support arrangements—not merely maximum resolution—using the side-by-side comparison.
IT, support, and day-to-day ownership
For IT teams, gigabit-capable Ethernet LAN is specified alongside Wi-Fi and USB Type-A / USB Type-B connectivity. The supported Windows list includes Windows 7 through Windows 10, while the listed Mac support runs through Mac OS X 11.0 Big Sur. Organizations using later operating systems should validate current driver support and deployment tools with their supplier before standardizing the device.
This is a print-only device: it has no scanning or copying capability. That is a clean limitation for offices that already scan redlines elsewhere, but it makes the machine less appropriate for a self-contained plan-room counter where walk-up copy-and-scan work is routine. At 49 dB while printing and 35 dB in standby, it is plausibly office-sited, though acoustic comfort depends on room layout and job pattern. The compatible service items listed include the Canon MC-31 maintenance cartridge, Canon CT-08 accessory, and Canon RH2-28 Roll holder 1 pc(s); confirm local service response, consumable availability, and operator responsibilities before commitment.
Compare related Canon wide-format options
Canon GP-300 36-inA wider in-family option for workflows that require larger sheets.Canon GP-2000 24-inA same-width Canon comparison for 24-in buyers.Canon GP-2600S 24-inAnother current 24-in option in the listed Canon range.Wide-format class rankingReview the broader class context before selecting on format alone.
The read
The Canon GP-200 24-in is a credible color-document printer for A1 and smaller AEC output, especially where project graphics, maps, marked-up PDFs, and technical sheets share space with everyday office work. Its 24″ roll capability should not obscure the stated A1 maximum: it is not the right primary machine for firms producing regular 24″ x 36″ Arch D sets, high-volume collated drawing packages, or walk-up scan-and-copy work. It becomes more compelling when color documents are important, output stays below full Arch D, and the organization has a clear route for larger sets. Before buying, run representative PDFs on the intended media and verify driver support, service coverage, and the handling of your lightest line weights.
Verified specifications
The specs that decide it
| Maximum print width / size | 24 in (610 mm) roll · A1 (594 x 841 mm) |
|---|---|
| Maximum resolution | 2400 x 1200 dpi |
| Droplet size | 5 plmanufacturer-verified |

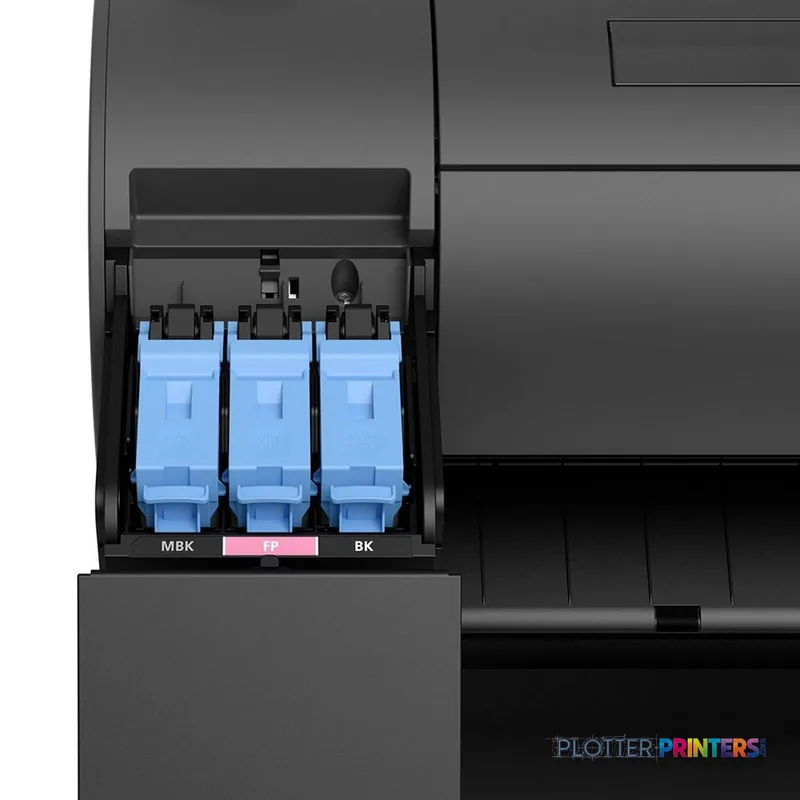

| Ink platform / colors | LUCIA TD 6-color pigment (MBK, BK, C, M, Y, FP) |
| Print technology | Canon Bubblejet on Demand |
| Media handling | Roll paper and cut sheet; 0.07–0.8 mm thickness |
| Page description languages | PDF (Ver.1.7), JPEG |
| Connectivity | Gigabit Ethernet, USB, Wi-Fi (802.11b/g/n) |
| Memory / internal storage | 2 GB / 500 GB |
| Footprint / weight / noise | 38.7 x 34.3 x 41.7 in; 110.2 lb (50 kg); 49 dB(A) |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyBubblejet
Max resolution2400 x 1200 DPI
Max print width24"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use casePhoto / Fine Art
Printing
| Color | Yes |
|---|---|
| Print head | PF-07 |
| Printing colors | Black, Cyan, Magenta, Matte black, Yellow |
| Print technology | Bubblejet |
| Maximum resolution | 2400 x 1200 DPI |
| Borderless printing | Yes |
| Number of print cartridges | 6 |
| Page description languages | JPEG, PDF |
Performance
| Control type | Buttons |
|---|---|
| Certification | TUV, CB |

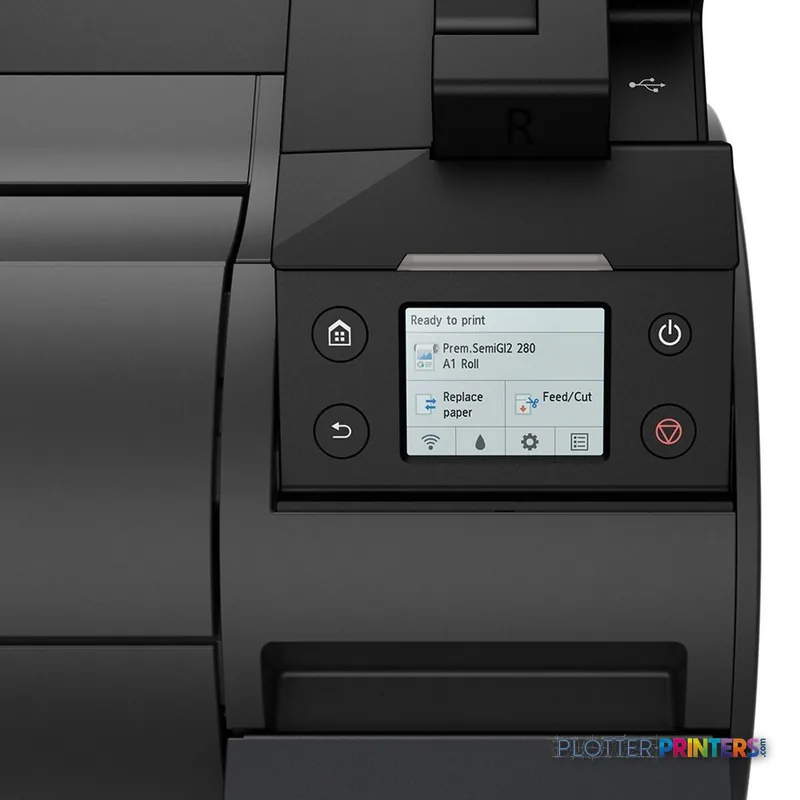

| Color display | Yes |
| Product color | Black |
| Internal memory | 2048 MB |
| Built-in display | Yes |
| Internal storage capacity | 500 GB |
| Sound pressure level (standby) | 35 dB |
| Sound pressure level (printing) | 49 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Media thickness | 0.031" (0.8 mm) |
| Print margin roll | 0.787" (2 cm) |
| Maximum print size | A1 (23" x 33" (594 x 841 mm)) |
| Maximum roll width | 24" (61 cm) |
| Maximum roll diameter | 5.91" (15 cm) |
| Paper tray media types | Cut sheet, Glossy paper, Heavy paper, Plain paper, Roll |
| Print margin cut-sheet | 20, 20, 0.12" (3 mm) |
| ISO A-series sizes (A0…A9) | A1, A2, A3, A3+ |
| ISO B-series sizes (B0…B9) | B2, B4 |
| Borderless printing media sizes | B2, A1 |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|

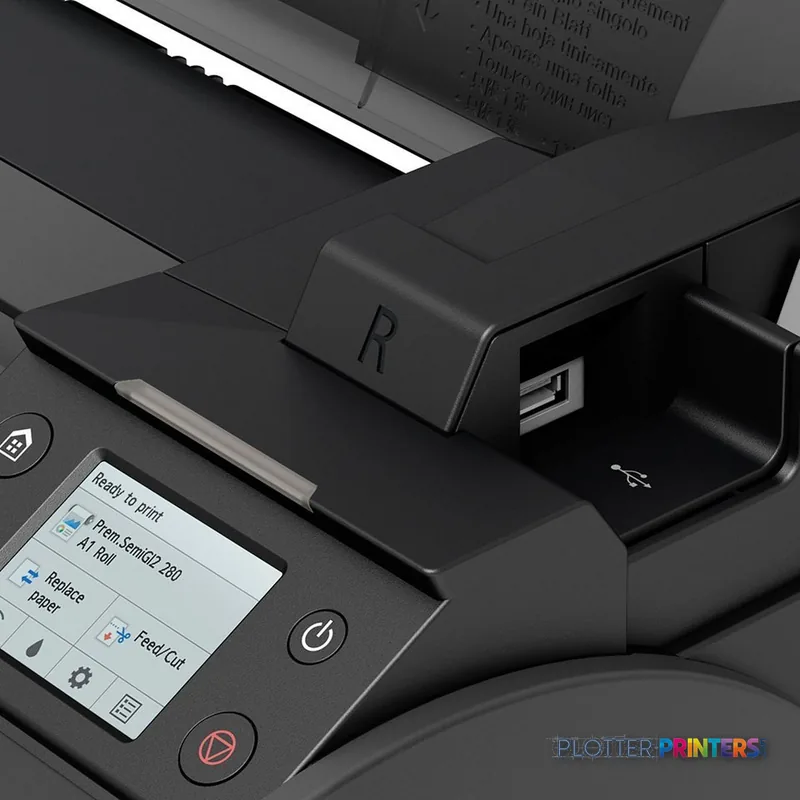

| USB port | Yes |
| Ethernet LAN | Yes |
| USB connector | USB Type-A / USB Type-B |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Technical details
| Compliance certificates | CE |
|---|
Weight & dimensions
| Depth | 34.3" (870 mm) |
|---|---|
| Width | 38.7" (982 mm) |
| Height | 41.7" (1060 mm) |
| Weight | 110.2 lbs (50 kg) |
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50 – 60 Hz |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 71 W |
Operational conditions
| Operating temperature (T-T) | 15 – 30 °C |
|---|---|
| Operating relative humidity (H-H) | 10 – 80% |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Packaging data
| Package depth | 35.9" (913 mm) |
|---|---|
| Package width | 45.4" (1152 mm) |
| Package height | 27.8" (705 mm) |
| Package weight | 152.1 lbs (69 kg) |
Sustainability
| Sustainability compliance | Yes |
|---|
System requirements
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Canon imagePROGRAF GP-200 large format printer Wi-Fi Bubblejet Colour 2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 8
Canon PFI-120C Cyan Ink Cartridge, 130 ml (2886C001)
Canon PFI-320MBK Matte Black Ink Cartridge, 300 ml (2889C001)
Canon PFI-120MBK Matte Black Ink Cartridge, 130 ml (2884C001)
Canon PFI-320C Cyan Ink Cartridge, 300 ml (2891C001)
Canon PFI-120BK Black Ink Cartridge, 130 ml (2885C001)
Canon PFI-120Y Yellow Ink Cartridge, 130 ml (2888C001)
Canon PFI-320BK Black Ink Cartridge, 300 ml (2890C001)
Canon PFI-320Y Yellow Ink Cartridge, 300 ml (2893C001)Paper & Media 12
Representative imageMagic 98gsm/26# Coated Matte Paper (DMPG98)Representative image20LB Inkjet Vellum (772)Representative image18LB Inkjet Bond Paper (Translucent) (750)Representative image28LB Inkjet Coated Matte Paper (748)Representative image46LB Inkjet Coated Matte Paper (747)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Representative image20LB Engineering Vellum (471)Representative imageWSL 28LB Simple Inkjet Coated Matte Paper (C2S) (448)Accessories 2
Questions
Straight answers
Can the Canon GP-200 24-in print full 24" x 36" Arch D drawings?
Its stated maximum print size is A1, 23″ x 33″ (594 x 841 mm). Firms that routinely issue full 24″ x 36″ sets should validate their workflow against that limit and consider a wider-format alternative.
What AEC work is this printer best suited to?
It is well suited to A1 and smaller color technical documents, including marked-up PDFs, coordination drawings, GIS maps, permit graphics, and presentation-oriented sheets. Its color capability is useful where diagrams and discipline overlays need to remain distinct.
Does this model scan or copy existing plans?
No. The Canon GP-200 24-in is specified with no scanning and no copying capability, so separate equipment is needed for redline capture, archive scanning, or walk-up copying.
How can users connect to the printer?
The listed connections are Ethernet LAN, Wi-Fi, and USB, with USB Type-A and USB Type-B connectors. Ethernet LAN supports 10, 100, and 1000 Mbit/s data rates.
What file types are listed for the printer?
PDF and JPEG are listed as page-description languages. Teams with CAD-originated workflows should test their normal PDF export settings, line weights, transparencies, and page sizes before deployment.
What should a buyer compare against if larger sheets are needed?
Within the listed Canon family, the Canon GP-300 36-in is the direct wider-format step up. The key question is whether larger sheets are occasional exceptions or a routine part of the document issue process.
