Home / Wide-Format Printers / Epson SureColor
Epson · Wide-Format Plotter

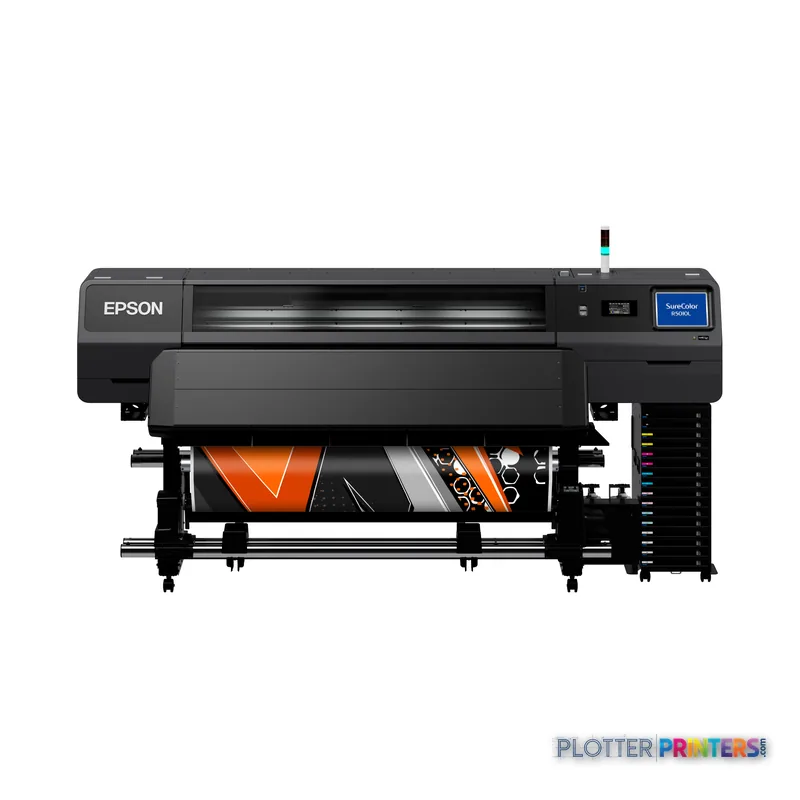

Epson SureColor SC-R5010L
64" color graphics & photo printer
- ModelSC-R5010L
- Prints64" wide
- Score42/100
Authorized Epson dealerGenuine hardware & ink
1-year warranty includedExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The SC-R5010L is a discontinued 64-inch color roll-fed inkjet printer, most relevant to installed-base and replacement decisions.
- Its six-color ink configuration supports AEC work where color conveys coordination, GIS, logistics, or presentation information.
- It accepts roll media only and does not provide scanning, copying, or cut-sheet handling.
Not sure if the SC-R5010L is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 64" wide on rolls and sheets.
- Fine detail 1200 x 2400 DPI maximum resolution for crisp line work.
- Ink platform Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow.
- Connectivity Ethernet for shared team printing.
- Verified specs 7 specs checked against the manufacturer datasheet.
- Analyst score Scores 42/100 in our class-relative rating.
Overview
Built for the work
Epson SureColor SC-R5010L, Inkjet, 1200 x 2400 DPI, ESC/P-R, Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow, 1500 ml, PrecisionCore Micro TFP
- 64″Max print width
- 6Ink channels
- 2,400 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
Where it performs best
Connections
67
Media Handling
64
Size / Fit
49
Class best is 71. How we grade →
Expert analysis
What you should know
Key takeaways
- The SC-R5010L is a discontinued 64-inch color roll-fed inkjet printer, most relevant to installed-base and replacement decisions.
- Its six-color ink configuration supports AEC work where color conveys coordination, GIS, logistics, or presentation information.
- It accepts roll media only and does not provide scanning, copying, or cut-sheet handling.
- A wired Ethernet workflow is indicated because Wi-Fi is not listed.
- The Epson SC-R5000 64-in and Epson SC-R5000L 64-in are current catalog alternatives to examine for new-equipment continuity.
When a coordination drawing depends on a cyan utility route staying distinct from a magenta revision cloud, the eye notices quickly if the hierarchy begins to collapse. The Epson SC-R5010L is a 64-inch color roll-fed inkjet printer for AEC teams that need large-format output beyond monochrome plans: presentation graphics, GIS maps, color-coded markups, site logistics sheets, and plan sets where color carries operational meaning.
It is listed as discontinued, so this is principally an installed-base or replacement evaluation rather than a current-new-equipment choice. Its six-color configuration, PrecisionCore Micro TFP printhead, and 1200 x 2400 DPI maximum resolution describe a capable color-output platform on paper; the practical decision should still rest on media trials, file behavior, service support, and the actual mix of plan work versus graphic work.
64" (162.6 cm)Maximum roll widthRoll-fed media only
1200 x 2400 DPIMaximum resolutionManufacturer specification
Black, Cyan, Light Cyan, Light magenta, Magenta, YellowInk configurationSix printing colors
1500 mlInk capacityPer print cartridge
Where it fits in an AEC environment
The SC-R5010L makes the most sense where wide color output is a routine working document, not an occasional presentation requirement. A civil team issuing GIS exhibits, a contractor posting color logistics plans, or a design group reviewing rendered boards can use the 64-inch roll width to keep broad-format work in house. The 5 mm roll-print margin may also matter to teams trying to preserve usable drawing area at the edge of a layout.
Its 2 GB of internal memory, Ethernet connection, USB Type-B port, touchscreen control, and bundled Epson Edge Print software provide the basic production infrastructure expected around a shared device. There is no Wi-Fi listed, so network planning should begin with wired Ethernet rather than an assumption of wireless placement. Epson Cloud Solution PORT is listed among the mobile-printing technologies, but IT should validate its role against the firm’s authentication, project-data, and network policies.
What the specification does—and does not—settle
The printer accepts roll media up to 0.039 inches thick, with a maximum roll diameter of 9.84 inches and a rear-roll weight limit of 99.2 lbs. Those are useful boundaries for qualifying a media program, especially for heavier graphic substrates, but they do not by themselves establish image quality on a particular bond, film, or board. There is no desk-measured ICC gamut data supplied for this model; that absence matters more than a broad color claim. For color-critical work, ask for output from the actual files and media your team uses, then inspect fine annotation, pale fills, and saturated safety colors under normal office light.
It is not a multifunction plan-room device: scanning and copying are not listed, and it does not accept cut sheets. Firms digitizing legacy drawings or routinely copying marked-up plans will need a separate workflow. Likewise, the listed operating-system support is centered on Windows 7, Windows 8, Windows 10, and specified Mac OS versions; a current desktop estate deserves a driver and submission test before deployment.
Installed-base decision and current catalog alternatives
For an existing SC-R5010L, the defensible question is usually whether it remains dependable for its assigned work—not whether every newer feature is necessary. Confirm the availability of Epson UltraChrome RS ink, maintenance components, and optimizer through the intended service channel, and assess technician coverage before committing to an extended life cycle.
For a current catalog alternative within the family, review the Epson SC-R5000 64-in and Epson SC-R5000L 64-in against the precise workflow and commercial terms offered locally. The discontinued Epson SC-R5010 64-in is also relevant when comparing like-for-like installed-base configurations. A side-by-side comparison with the Epson SC-R5000L 64-in is a sensible starting point, but it cannot substitute for testing the files and media that drive your AEC output.
Compare and evaluate
Epson SC-R5000 64-inCurrent in-family catalog alternative.Epson SC-R5000L 64-inCurrent in-family catalog alternative for a direct workflow review.HP DesignJet Z6 64-inA same-width cross-brand option to include in a structured evaluation.Wide-format class rankingSee the machine’s class context alongside the available data.
The read
The Epson SC-R5010L remains a credible fit for an AEC site or print room whose work is predominantly roll-fed color output and whose service and consumable path is already proven. Its trade-off is operational breadth: no scanning, copying, cut-sheet handling, or Wi-Fi is listed, so it is less appropriate as the sole device for a mixed plan-room workflow. Treat it as a specialized large-format color resource, verify its condition and support locally, and use a current in-family alternative when new-equipment continuity is the priority.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 3 compared
Class best 71 — Epson SureColor P20570
72% spec coverage
- This printer
- Epson SureColor P20570
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 64 in |
|---|---|
| Print technology | Inkjet |
| Maximum resolution | 1.200 x 2.400manufacturer-verified |
| Printing colors | Black [Resin], Cyan [Resin], Light Cyan [Resin], Yellow [Resin], Magenta [Resin], Light Magenta [Resin], Maintenance Liquid [Resin], Optimiser [Resin]manufacturer-verified |
| Number of print cartridges | 6manufacturer-verified |
| Page description languages | ESC/P-Rmanufacturer-verified |
| Internal memory | 2manufacturer-verified |
| Media thickness | 1manufacturer-verified |
| Maximum roll diameter | 9.84" (25 cm) |
| Scanning | No |
| Wi-Fi | No |
| Ethernet | 1000 Base-T / 100-Base TX / 10-Base-Tmanufacturer-verified |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyInkjet
Max resolution1200 x 2400 DPI
Max print width64"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use caseGraphics / Production
Printing
| Color | Yes |
|---|---|
| Print head | PrecisionCore Micro TFP |
| Printing colors | Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow |
| Print technology | Inkjet |
| Maximum resolution | 1200 x 2400 DPI |
| Number of print cartridges | 6 |
| Page description languages | ESC/P-R |
| Print cartridge volume (metric) | 1500 ml |
Performance
| Display | LCD |
|---|---|
| Control type | Touch |
| Color display | Yes |
| Product color | Black |
| Internal memory | 2048 MB |
| Built-in display | Yes |
| Display diagonal | 4.3" |
| Country of origin | China |
Paper handling
| Cut sheets | No |
|---|---|
| Media thickness | 1 mm |
| Print margin roll | 0.197" (5 mm) |
| Maximum roll width | 64" (162.6 cm) |
| Maximum roll diameter | 9.84" (25 cm) |
| Paper tray media types | Roll |
| Roll weight (rear roll) | 99.2 lbs (45 kg) |
Ports & interfaces
| Wi-Fi | No |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| USB connector | USB Type-B |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Mobile printing technologies | Epson Cloud Solution PORT |
Weight & dimensions
| Depth | 41.1" (1045 mm) |
|---|---|
| Width | 116.1" (2949 mm) |
| Height | 69.8" (1774 mm) |
| Weight | 989.9 lbs (449 kg) |
Power
| AC input voltage | 200 – 240 V |
|---|
Other features
| Ink drop | 4.9 pl |
|---|
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Packaging data
| Manual | Yes |
|---|---|
| Bundled software | Epson Edge Print |
| Cartridge(s) included | Yes |
System requirements
| Compatible operating systems | Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X 10.11.x or later, Windows 10, Windows 7, Windows 8 |
|---|
Everything that fits the Epson SureColor SC-R5010L
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
8 ink cartridges
Epson SureColor SC-R5010L ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureColor SC-R5010L 64-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 8
Epson UltraChrome RS Cyan T45U200 (1.5ltx2)
Epson UltraChrome RS Light Magenta T45U600 (1.5ltx2)
Epson UltraChrome RS Light Cyan T45U500 (1.5ltx2)
Epson UltraChrome RS Maintenance Liquid T45U800 (1.5ltx2)
Epson UltraChrome RS Yellow T45U400 (1.5ltx2)
Epson UltraChrome RS Black T45U100 (1.5ltx2)
Epson UltraChrome RS Magenta T45U300 (1.5ltx2)
Epson UltraChrome RS Optimizer T45U700 (1.5ltx2)Questions
Straight answers
Is the Epson SC-R5010L suitable for standard AEC plan printing?
It can fit roll-fed wide-format color plan work, particularly where color-coded information is useful. Validate fine text, line treatment, and the media your office uses with representative CAD and PDF files.
Can it scan marked-up drawings or copy plans?
No. Scanning and copying are not listed for this model, so those tasks require a separate device or workflow.
What media formats does it accept?
It uses roll media, with a maximum roll width of 64 inches. Cut-sheet support is not listed, and the stated maximum media thickness is 0.039 inches.
How should IT connect and support it?
The listed connections include Ethernet LAN and USB Type-B, with no Wi-Fi listed. Check the stated operating-system compatibility and test driver submission within the firm’s current managed environment.
What consumables should an owner confirm before keeping one in service?
Confirm local availability and service support for Epson UltraChrome RS ink, maintenance components, and optimizer. Because the product is discontinued, the local service arrangement can materially affect the ownership decision.
