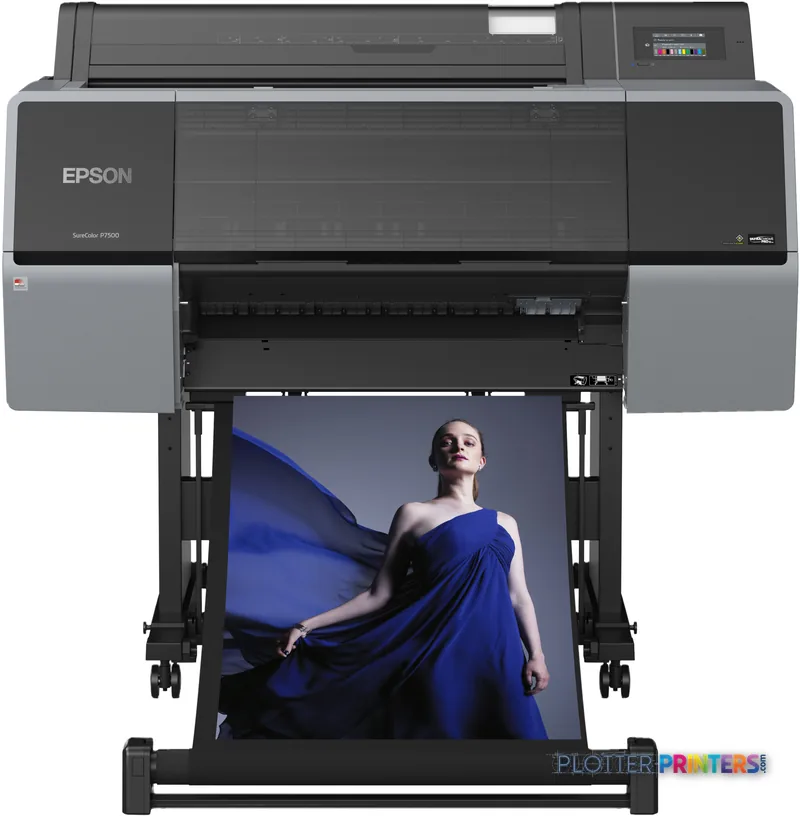

Epson SureColor SC-P7500

This model makes most sense for architecture, engineering, surveying, and construction teams whose output stays within a 24-inch roll workflow but cannot be treated as monochrome plans alone. Think permit exhibits with coded overlays, GIS mapping, client-facing presentation sheets, design-review PDFs, and coordination sets in which color conveys discipline, status, or sequence.

It accepts cut sheets as well as roll media and supports borderless printing at listed widths up to 24.02 inches. That flexibility is useful when a print room alternates between routine technical documents and more considered graphic sheets. The maximum listed print size is A1, and the media-thickness range reaches 0.059 inches; confirm the exact sheet, roll, and finished-document requirements during a live test.

Connectivity is practical for a managed office: Gigabit Ethernet, USB Type-A, USB 3.2 Gen 1, ESC/P-R, and PostScript are listed. The 4.3-inch color touchscreen provides local control, while the absence of Wi-Fi may actually simplify deployment for firms that prefer fixed network connections and documented access paths.

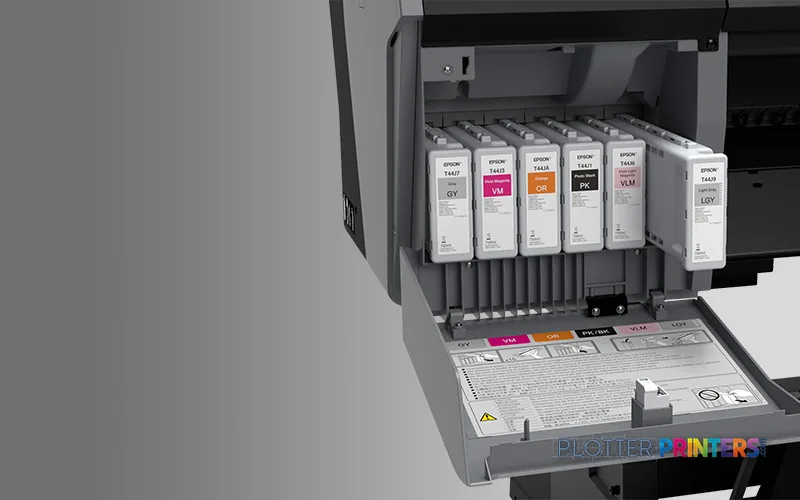

The listed ink set includes black, matte black, photo black, gray, light grey, cyan, light cyan, magenta, vivid magenta, vivid light magenta, yellow, orange, green, and violet. That is meaningful for documents where hue separation is functional, not decorative: a utility map, a phasing exhibit, or a consultant’s layered coordination graphic. The difference shows up where color information lives—in the narrow gap between two adjacent overlays.

Still, there is no measured ICC gamut or ΔE data in the supplied record, so it would be hand-waving to promise a particular color match. Ask for output on the bond, coated sheet, or board stock your team actually specifies, using the PDFs and application settings you send every week. For brand-sensitive presentations or controlled approval color, evaluate profiles and proofing practice as a workflow, not a printer checkbox.

The printer uses Epson UltraChrome PRO inks, with a listed cartridge volume of 700 ml. Consumable planning should include the color mix of your files, not merely page count: dense aerial imagery and heavily shaded renderings behave differently from line-led construction documents.

The SC-P7500 Spectro is less appropriate when the core requirement is wider plan output, dual-roll operation, or integrated scan-and-copy work. It has no scanning or copying function, and its maximum roll width is 24 inches. A team regularly issuing larger civil sheets, full-width construction plans, or multiple roll types should look toward the wider, dual-roll Epson P8570DR 44-in rather than forcing a 24-inch device into a 44-inch workflow.

Within the 24-inch family, the Epson P7570 24-in is the closer catalog comparison. Compare the two against your media, file formats, color expectations, and support arrangement rather than assuming that resolution alone predicts the more suitable machine. You can also open a side-by-side comparison before arranging a demonstration.

Physical placement matters. The unit measures 55.2 inches wide, 26.3 inches deep, and 48 inches high, weighs 296.5 lbs, and has a listed printing sound pressure level of 49.5 dB. It belongs in a planned work area with room for loading media and collecting output.
