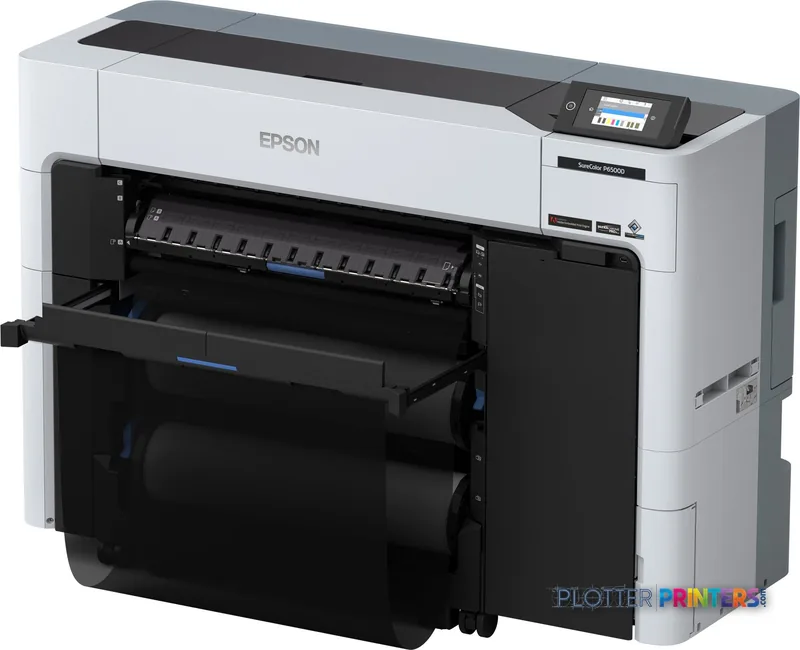

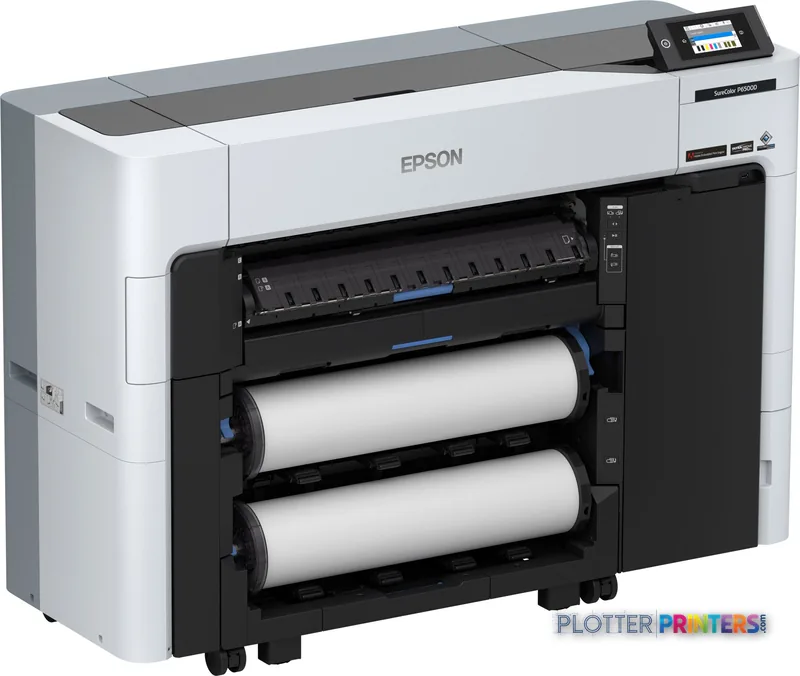

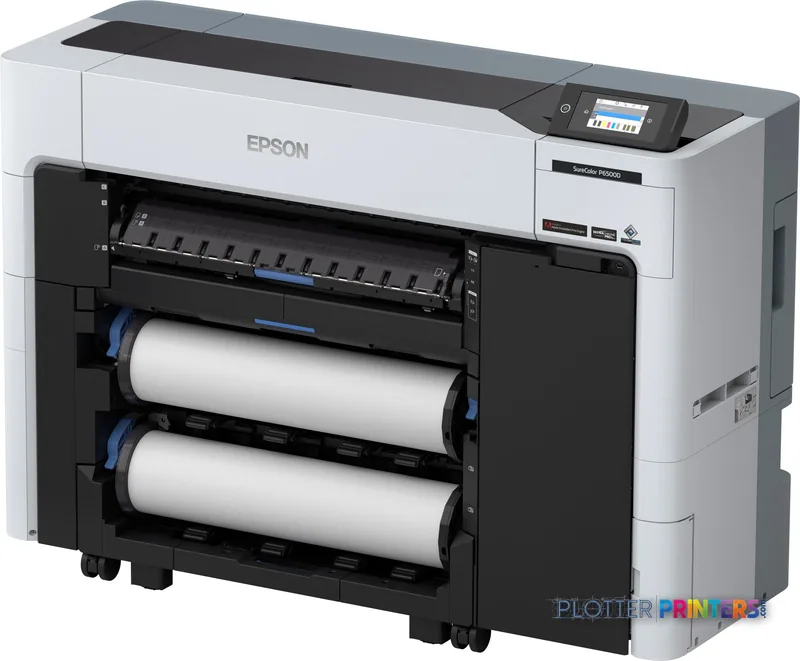

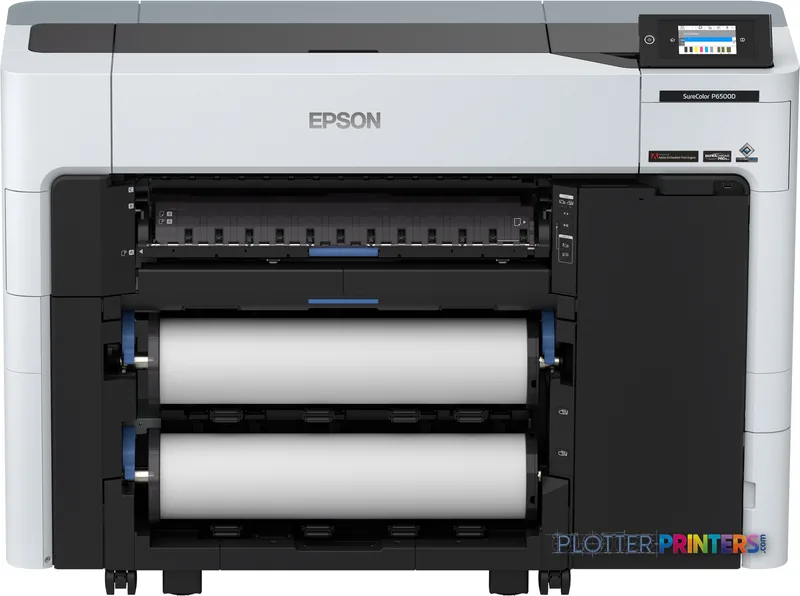

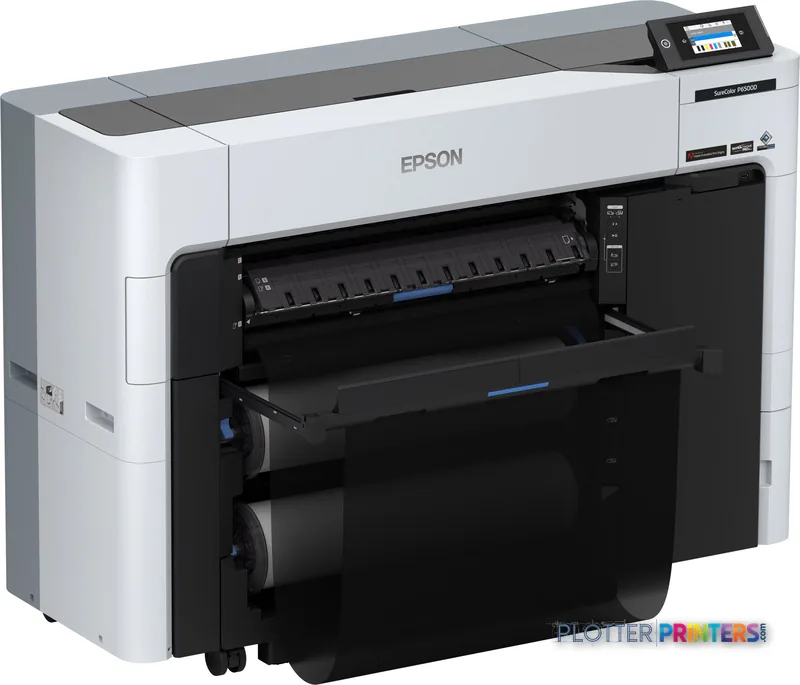

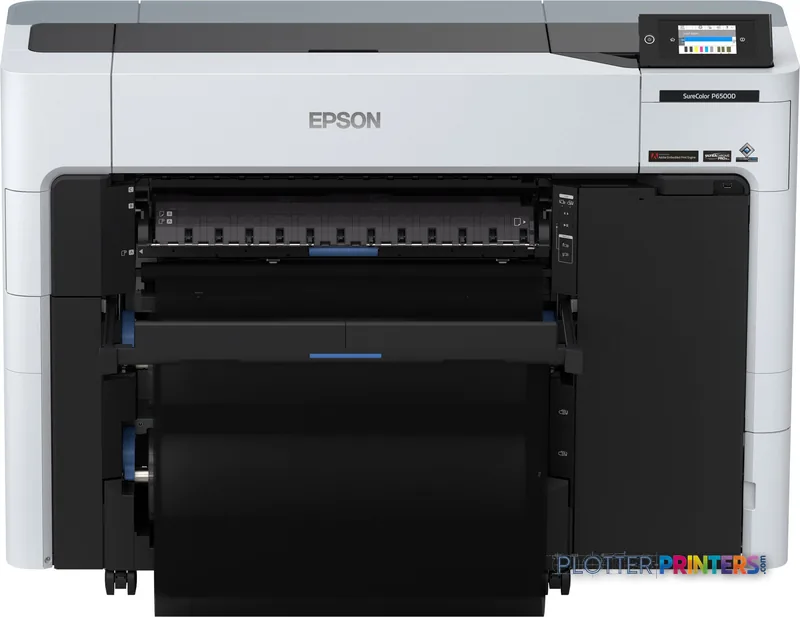

Epson SureColor SC-P6500D

This machine is particularly well suited to an architecture studio, engineering department, survey group, or site office that needs color documents alongside ordinary plan output but does not require scanning or copying at the device. Cut sheets are supported, and the auto take-up reel adds practical value when long rolls or unattended output are part of the routine.

For IT and print-room staff, the connectivity is appropriately conventional: Ethernet LAN supports 10,100,1000 Mbit/s, while Wi-Fi and one USB 2.0 port provide additional connection paths. Windows 10 and Windows 11 are supported, as are macOS Big Sur, Monterey, and Ventura. Apple AirPrint and Epson Cloud Solution PORT are listed mobile-printing technologies.

The 4 GB internal memory deserves operational context. It can help a shared device receive jobs, but it is not a guarantee of trouble-free output from every complex PDF or heavily layered drawing. A representative test file remains the right way to validate job processing in your own workflow.

The six-color ink configuration uses Epson UltraChrome Pro inks, including both matte black and photo black. That is relevant when one device must render fine monochrome linework, colored markups, and graphics-rich deliverables. It does not, by itself, establish color accuracy for a particular substrate: no measured ICC gamut data is supplied here, so a proof on the intended bond or presentation media is the responsible check.

Borderless printing is supported, and the specified media-thickness range reaches from 0.004″ to 0.059″. Those facts broaden the media conversation beyond ordinary drawings, but they should not be read as a blanket approval for every board, film, or specialty stock. Confirm the exact media and finishing path before standardizing a client-facing application.

The SC-P6500D occupies a practical middle ground for color wide-format work, rather than a replacement for a full document-reproduction station. It has no scanning or copying capability. Firms routinely converting legacy drawings, capturing marked-up originals, or making walk-up copies should plan for a separate scanning workflow.

Within the listed Epson range, the Epson P8570DR 44-in is the clearer alternative when a wider 44-inch platform and dual-roll configuration are required. The Epson P9570 44-in is another wider 44-inch option. Conversely, the Epson SC-P6500DE 24-in and Epson SC-P6500E 24-in are catalogued 24-inch variants worth reviewing when comparing configuration needs. Use the comparison tool to keep the decision tied to the actual requirements rather than a family name.
