Epson Stylus Pro 9900 Spectro Proofer

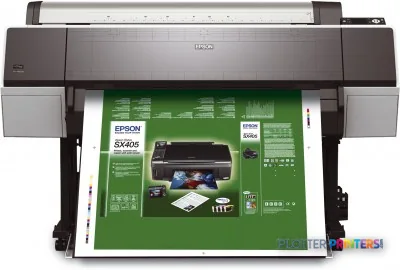

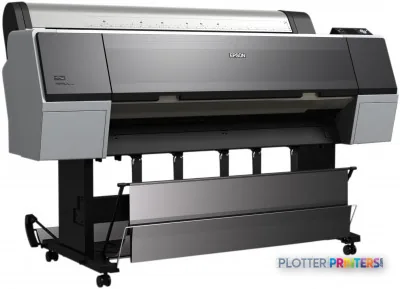

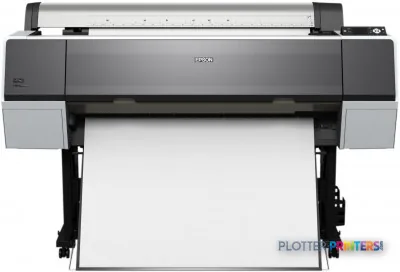

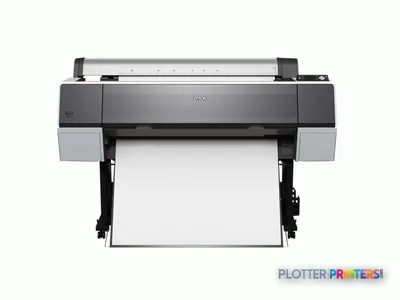

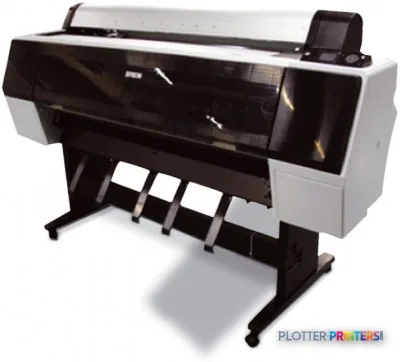

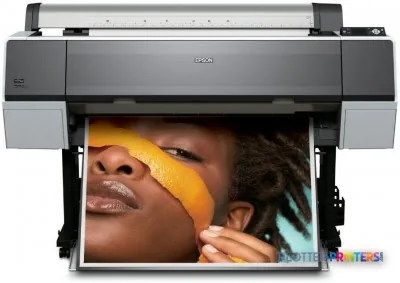

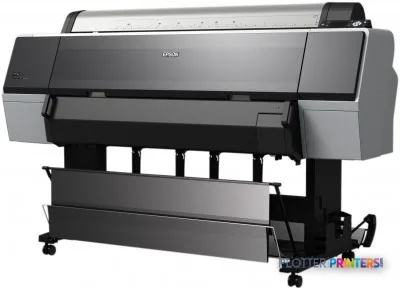

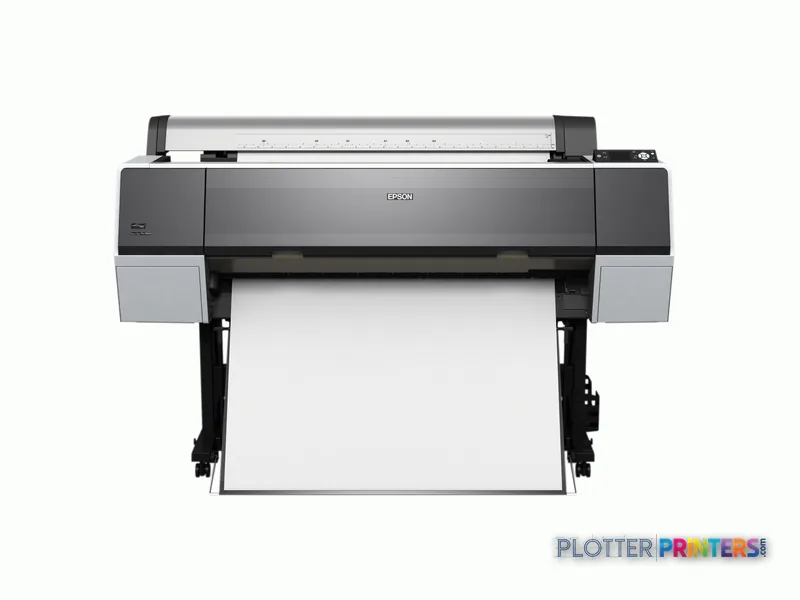

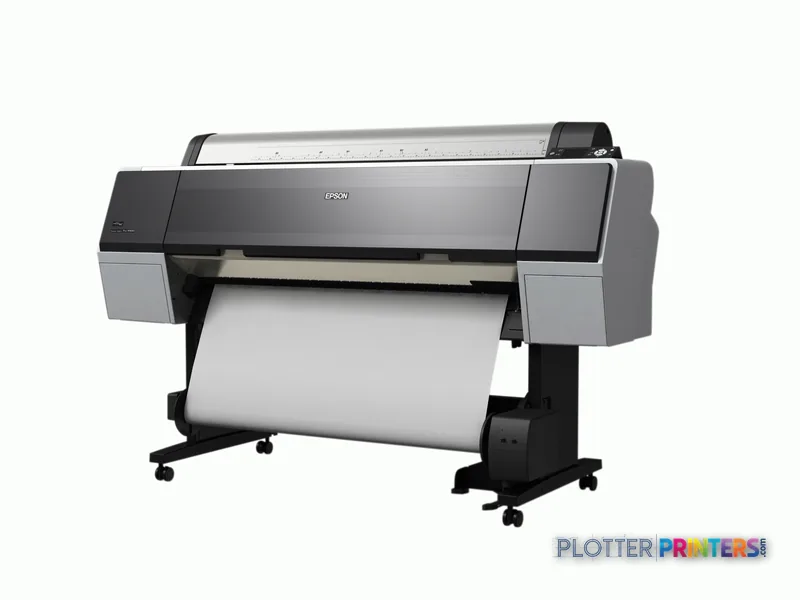

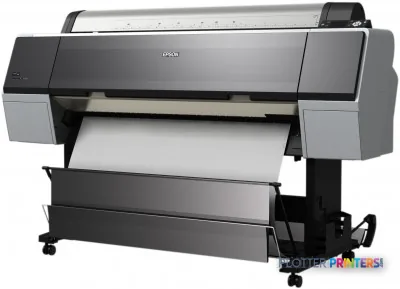

When a coordination drawing carries a pale utility overlay, a dense structural grid, and a photo-rendered site context, the question is not simply whether it will fit on the page. It is whether the sheet remains intelligible at arm’s length and credible under a project-room light. The Epson Stylus Pro 9900 SpectroProofer UV is a 44-inch color wide-format printer for teams that need A0 output, cut sheets, and roll media from one device.

Its 2880 x 1440 DPI maximum resolution and Epson Micro Piezo print head make it a plausible fit for presentation boards, GIS maps, color-coded coordination drawings, and proof-oriented work where visual nuance matters alongside linework. The specification deserves context: resolution is capability, not a guarantee of CAD line quality on every PDF, driver setting, or media type.

Where it fits in an AEC workflow

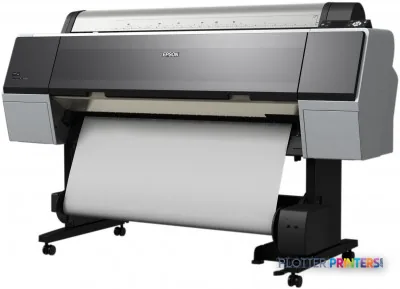

This printer is most naturally placed beside a design or project team that needs occasional-to-regular large-format color output rather than a dedicated plan-production engine. Roll-paper support suits wide maps and board work, while cut-sheet capability is useful when a particular presentation stock or proof sheet is required. The supported media-thickness range also gives a broader physical-media envelope than ordinary office paper alone.

For architects, that can mean design-review boards and color elevations; for civil and survey teams, it can mean GIS exhibits and field-reference maps; for contractors, it can mean marked-up logistics plans. In each case, test the actual PDF workflow, especially small text, screened fills, and light-colored annotations. A cyan edge that looks distinct on screen must remain distinct after rasterization and on the chosen paper.

The machine has Fast Ethernet through one RJ-45 port and USB 2.0 connectivity, with an LCD display. Its listed operating-system compatibility is Microsoft Windows 2000, XP, XP 64-bit, Vista, and Mac OSX 10.x.x. That makes driver validation with a modern managed desktop environment an essential pre-purchase or installed-base check, rather than an afterthought.

Color and media: capability needs a controlled test

The listed compatible ink family is Epson UltraChrome HDR, with an Epson Maintenance Tank identified for routine maintenance. The catalog also identifies a UV spectrophotometer accessory, but the supplied information does not establish a complete color-management workflow or an AEC-specific calibration result. There is no measured ICC gamut data in this record, so it would be hand-waving to claim a particular color advantage.

Instead, ask for a demonstration on the media you will actually use. Bring a representative Revit export, a Civil 3D or GIS map, a Bluebeam-marked PDF, and a board with photographic material. Inspect neutral grays, fine black linework, and the last five percent of a saturated red. Those are the places where a display profile, PDF processing path, and paper choice reveal themselves.

For a same-width comparison, the [[product:93878095|Canon GP-4000 44-in]] and [[product:118625072|Canon GP-4600S 44-in]] are catalog-listed alternatives. Compare actual output, media behavior, local service terms, and workflow compatibility—not resolution figures alone. You can also [[compare:1769376,93878095|compare this Epson with the Canon GP-4000 44-in]] in the catalog tool.

Space, support, and operational limits

At 67 x 26.7 x 47.1 inches and 198.4 lbs, this is not a desk-side peripheral. Allow room for loading a 44-inch roll, unloading finished work, and accessing the machine without turning a busy print area into a bottleneck. Its active power consumption is listed as 80 W, with 1 W in standby, and it operates at 5 – 35 °C and 20 – 80% relative humidity.

The trade-off is that the supplied record does not document high-volume production features such as dual-roll operation, scanning, copying, integrated finishing, authentication, or job accounting. Firms that require rapid mixed-size bid-set production, walk-up scan/copy, departmental chargeback, or unattended output should verify those needs separately and may be better served by a production-oriented workflow. There is no in-family step-up or step-down model listed in this catalog set, so selection should turn on the actual application and service environment rather than an assumed family ladder.

The Epson Stylus Pro 9900 SpectroProofer UV suits AEC teams whose large-format output includes visually demanding color work up to A0 and 44-inch roll width, and who can validate its listed legacy operating-system support against their environment. It is less appropriate when the core requirement is documented high-volume set production, scan/copy, finishing, or managed-print controls. Treat the 2880 x 1440 DPI figure as an invitation to test—not a substitute for testing—with your own drawings, PDFs, media, and support provider.
