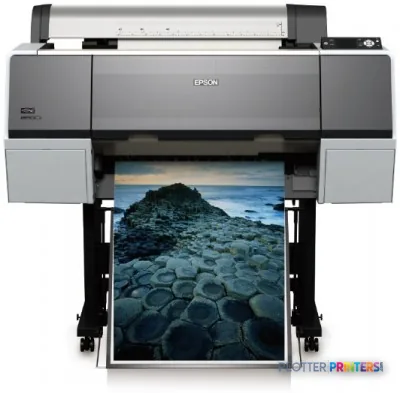

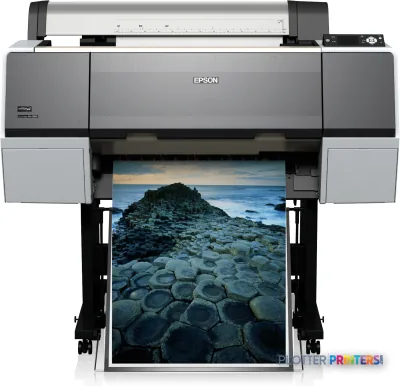

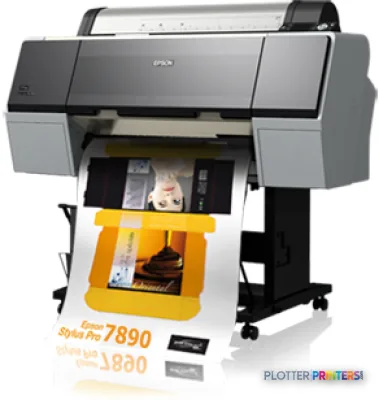

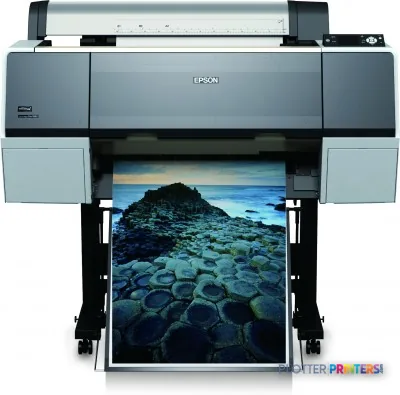

Epson Stylus Pro 7890

The Stylus Pro 7890 suits a small architecture studio, specialist engineering group, or project office where A1 sheets are the practical ceiling and color matters in everyday deliverables. Roll-paper capability supports recurring drawing output, while cut-sheet support is useful for smaller presentation sheets and controlled proofing tasks. Its 0.118″ roll top margin can be relevant when a sheet’s usable image area is closely planned.

For shared use, the RJ-45 Ethernet interface is the appropriate connection path; there is no USB port listed. The supplied operating-system support is rooted in Windows XP through Windows 7 and Mac OS 10.4+, so IT teams should validate driver behavior, security expectations, and application workflow before attaching it to a modern managed network. The 256 MB internal memory also deserves context: complex, layered PDFs and dense BIM-derived sheets can place demands on the sending workstation and the job path, not just the printer.

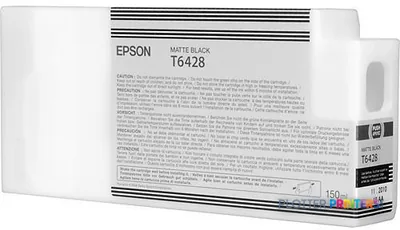

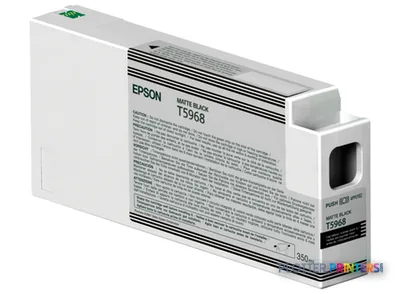

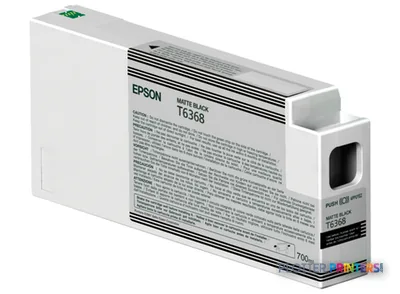

Color-capable output is valuable for phasing plans, discipline overlays, renderings, and survey maps, where the cyan edge between adjacent layers can decide whether a field team reads the sheet correctly. The catalog lists Epson UltraChrome HDR consumables and an optional 24-inch SpectroProofer M1 accessory, alongside calibration and spectrophotometer accessories. Those tools indicate a route to more controlled color work, but they are not evidence of a particular color result on their own.

There is no desk-measured ICC gamut result in the supplied record, so no responsible conclusion can be drawn here about gamut volume, ΔE, or consistency on a specific substrate. Teams producing client presentation boards should test their actual PDF files and media, then establish profiles and approval expectations around the paper they use. The listed compatible media range includes presentation paper, canvas, and fine-art sheets, extending the machine beyond ordinary plan paper when the application calls for it.

At 53.4 x 26.3 x 48 inches and 186.3 lbs, this is a dedicated production-area device rather than a desktop peripheral. Its stated 50 dB printing sound-pressure level and 70 W typical power consumption are useful planning inputs for an office print corner; ENERGY STAR certification may also matter to facilities teams.

The listed 40m²/hour normal-quality speed is a manufacturer specification, not a promise of set-ready throughput. A permit package with mixed sheet sizes, repeated revisions, or complex PDFs will involve more than engine speed. The catalog does not provide an in-family step-up or step-down model, nor does it establish a current lifecycle status or replacement path. For a narrower 17-inch comparison, review the Canon iPF500 17-in or use the side-by-side comparison tool. Neither should be treated as a direct A1-width substitute without checking the required sheet size first.

Ask the service provider which support arrangements, parts access, and consumable availability apply in your location. Confirm the real application path from CAD, BIM, PDF, and bluebeam-style review files, especially where users submit dense vector sheets. Finally, run representative A1 drawings, color coordination plans, and presentation files through the intended media workflow before standardizing output.

That validation matters more than a headline resolution figure. A clean line is only useful when the revision cloud, discipline color, and scale note all survive the route from workstation to sheet.
