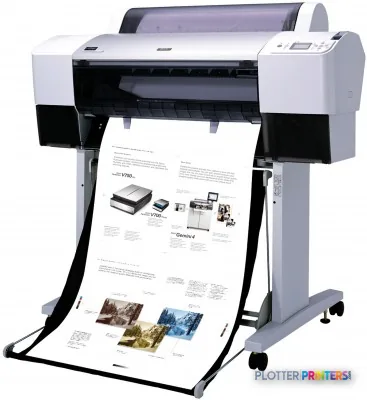

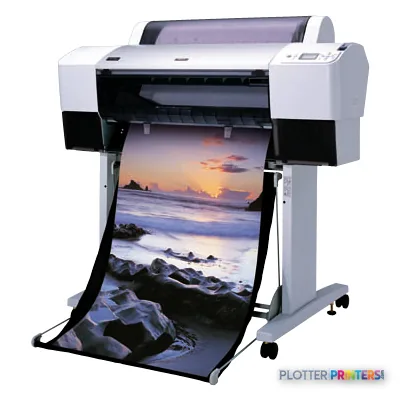

Epson Stylus Pro 7880

For a small architecture studio, engineering satellite office, survey team, or contractor’s project office, the Epson Stylus Pro 7880 is most credible as a color-capable plotting and presentation device. Roll paper and cut-sheet support allow teams to move between plan output and smaller graphic work without making every job a media change. Ethernet LAN provides a straightforward shared-printer connection, while USB 2.0 gives a local submission option.

The machine is especially relevant where color carries information: utility markups, phasing plans, GIS layers, discipline overlays, and client-facing renderings. There is no measured ICC gamut data in the supplied record, so it would be careless to make broad claims about gamut volume or color accuracy. The usable evidence is its nine-cartridge configuration and 2880 x 1440 DPI maximum resolution; assess a sample on the actual bond or presentation media your office uses. The cyan edge of a utility layer is only useful if it remains distinct from the adjacent annotation.

This is not a substitute for a high-volume central reprographics workflow. The supplied data confirms a 24-inch maximum roll width, a maximum roll diameter of 5.91 inches, and A1 as the maximum print size. That profile is well suited to periodic sets and graphics, but less appropriate when a team routinely needs larger sheets, extended unattended output, or frequent mixed-size, collated construction-document packages.

At 46.4 x 19.7 x 22 inches and 107.8 lbs, it is a substantial desktop-area device rather than a casual office peripheral. Its listed printing sound pressure level is 50 dB, and typical power consumption is 55 W. ENERGY STAR certification and a listed 1 W PowerSave mode are relevant for an office printer that spends time waiting between issue cycles. The compatible operating-system list is limited to Windows 2000, XP, XP 64-bit, Vista, and MAC OSX 10.x.x; IT teams should validate current driver, security, and submission arrangements before committing it to a modern managed network.

There is no in-family step-up or step-down model in the supplied catalog, so a direct family ladder cannot be drawn here. Within the available cross-brand set, the Canon GP-200 24-in and Canon iPF600 24-in are both 24-inch alternatives worth placing beside this printer in a requirements review. The Canon GP-200 24-in is listed at 2400 x 1200 DPI; the Canon iPF600 is listed at 1200 x 1200 DPI. Resolution is only one part of a buying decision, however: media behavior, drivers, service support, security fit, and the quality of the output on ordinary office bond deserve a live test.

Use the side-by-side comparison to establish the documented differences, then ask for the exact workflow demonstration your team will repeat: a multi-page PDF plan set, a CAD drawing with fine screening, and a color coordination sheet. The wide-format class ranking can add useful context, but it should not replace an application-specific trial.
