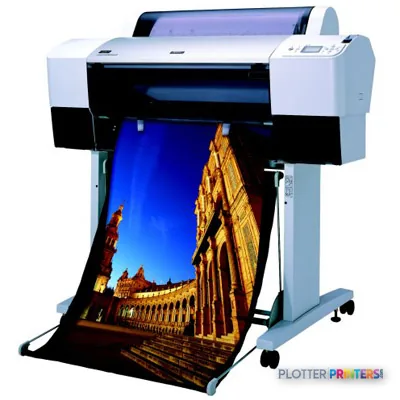

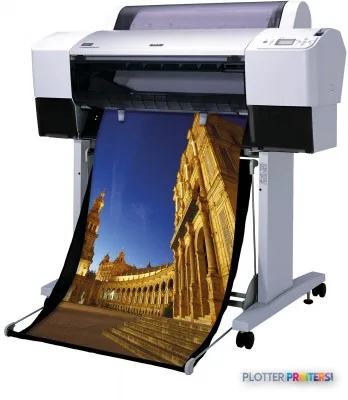

Epson Stylus Pro 7450
24" technical / CAD plotter
- Model7450
- Prints24" wide
- Score50/100
Authorized Epson dealerGenuine hardware & ink
2-year warranty includedExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Epson Stylus Pro 7450 is limited to 24-inch-wide roll media and A1 maximum print size.
- Roll and cut-sheet support suits recurring CAD output as well as occasional exhibit and presentation sheets.
- The rated normal-quality speed is useful for planning, but mixed files and media changes determine the real deadline experience.
Not sure if the 7450 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 24" wide on rolls and sheets.
- Fine detail 1440 x 720 DPI maximum resolution for crisp line work.
- Verified specs 7 specs checked against the manufacturer datasheet.
- Analyst score Scores 50/100 in our class-relative rating.
Overview
Built for the work
Epson Stylus Pro 7450, 1440 x 720 DPI, 23.3 m²/Hr, A1 (594 x 841 mm), 0.08-0.50 mm, 10984.3" (279 m), 24" (61 cm)
- 24″Max print width
- 251 ft²/hRated speed
- 4Ink channels
- 1,440 dpiMax resolution
- 24 moIncluded warranty
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The Epson Stylus Pro 7450 is limited to 24-inch-wide roll media and A1 maximum print size.
- Roll and cut-sheet support suits recurring CAD output as well as occasional exhibit and presentation sheets.
- The rated normal-quality speed is useful for planning, but mixed files and media changes determine the real deadline experience.
- Listed operating-system support should be checked against the firm’s current workstation and network environment.
- Teams regularly producing wider drawings or complex mixed-size sets should evaluate a different workflow class.
At 4:45 p.m., the person at the output tray does not care about a brochure. They need an A1 drawing, a marked-up site plan, or a color coordination sheet that can leave the office before the deadline closes. The Epson Stylus Pro 7450 is a 24-inch color wide-format printer for that sort of desk-side technical output: roll media when the drawing set keeps coming, cut sheets when a single presentation print is the job.
It is a compact-format choice for AEC teams whose work tops out at 24 inches wide. That covers many plan details, field exhibits, GIS maps, permit sheets and color-coded PDFs. It does not cover the larger-format plotting that can turn a bid afternoon into a paper-handling marathon.
A1 (23" x 33" (594 x 841 mm))Maximum print sizeUseful context for teams working primarily in 24-inch technical formats.
24" (61 cm)Maximum roll widthSets the practical ceiling for roll-fed CAD and PDF output.
23.3 m²/HrNormal-quality print speedA rated figure, not a promise for every mixed-document queue.
46.4 x 19.7 x 22" (1178 x 501 x 560 mm)Printer dimensionsSmall enough to warrant a real placement check, not an optimistic tape-measure job.
Where it earns its floor space
The useful part of this machine is straightforward. It accepts both roll paper and cut sheets, supports media from 0.003″–0.02″ thick, and prints in color with four cartridges. That makes it credible for everyday CAD PDFs, engineering markups, color utility overlays, survey exhibits and smaller presentation boards where color carries information rather than decoration.
Epson lists a maximum resolution of 1440 x 720 DPI. For AEC, the consequence is not a number to admire. It is whether fine annotation, revision clouds and color discipline lines remain readable when somebody is holding the sheet under bad site-office lighting. File preparation and the chosen media still matter. They always do.
Networked placement is possible through Fast Ethernet, with USB also available. The listed operating-system support is Microsoft Windows 2000 / XP, Vista, and Mac OS X 10.x.x. That deserves an IT check before installation in a modern managed environment. Old drivers have a way of appearing at precisely the wrong moment. Bottom line: it fits contained 24-inch technical output, provided the workstation and network plan are verified first.
Capacity matters more than a resolution headline
The maximum roll length is 10984.3″ (279 m), with a maximum roll diameter of 5.91″ (15 cm). That can reduce reload interruptions on recurring drawing work, but it is not the same thing as unattended production. A mixed queue of cut sheets, revised PDFs and different media types still needs someone nearby.
The printer weighs 107.8 lbs (48.9 kg) and produces 50 dB while printing. It is suitable for an office or small print area only when there is room to load media, collect output and service it without blocking a corridor. Printers do not respect fire exits, even when the deadline does.
For comparison shopping, the Canon GP-200 24-in and Canon iPF600 24-in are catalog alternatives in the same 24-inch class. Compare the actual media workflow, software support, service arrangement and output requirements rather than treating matching width as matching suitability. Use the side-by-side comparison to keep that conversation factual.
Bottom line: roll capacity helps routine work, but it will not substitute for a production workflow when several people are feeding deadline sets into one device.
Estimate plot time from the verified rated speed, then allow practical time for job processing, loading and collecting output.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 251 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Where the fit stops
This is not the right tool for teams that routinely need drawings wider than 24 inches, need extensive mixed-size set production, or require a current operating-system and security workflow without validation. Nor is there an in-family step-up or step-down listed in this catalog, so buyers should not assume an easy same-family migration path.
Its listed ENERGY STAR certification and low stated standby and PowerSave consumption are useful office considerations. They should not become the deciding factor. Reliability of the submission path, available support, and the practical cost of a missed issue set matter more when the superintendent is waiting.
Review the 24-inch class ranking for broader context, then test representative CAD, BIM-exported PDF and color-plan files before committing. Bottom line: buy it for its defined 24-inch role, not because a wider or more automated workflow is being wished into existence.
The read
The Epson Stylus Pro 7450 makes sense for an AEC office with steady, bounded 24-inch color and monochrome technical output on rolls or cut sheets. It becomes less convincing as sizes grow, queues become mixed, or IT requirements become more current and tightly managed. Treat the rated speed as a planning input, test the real files, and make the network check part of the purchase decision. Bottom line: a focused technical printer for a focused workload.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T3475
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Maximum roll / media width | 24" (61 cm) |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Maximum print length | 47.2 inmanufacturer-verified |
| Maximum resolution | 1440 x 720 DPI |
| Droplet size | 3.3 picolitersmanufacturer-verified |
| Ink configuration | 4 cartridges, CMYKmanufacturer-verified |
| Ink cartridge capacity | 127 mL / 70 mLmanufacturer-verified |
| Connectivity | 10/100 Mbps Ethernet, Hi-Speed USB, 802.11 b/g/n Wi-Fi |
| Control panel | 2.4" color touchscreenmanufacturer-verified |
| Warranty | 2-year limited (U.S. and Canada)manufacturer-verified |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Max resolution1440 x 720 DPI
Max print width24"
ConnectivityUSB
Use casePhoto / Fine Art
Printing
| Color | Yes |
|---|---|
| Maximum resolution | 1440 x 720 DPI |
| Number of print cartridges | 4 |
| Print speed (normal quality) | 23.3 m²/Hr |
Performance
| Internal memory | 64 MB |
|---|---|
| Country of origin | Japan |
| Sound pressure level (printing) | 50 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| Media thickness | 0.08-0.50 mm |
| Maximum print size | A1 (594 x 841 mm) |
| Maximum roll width | 24" (61 cm) |
| Maximum media width | 203.2 – 610 |
| Maximum roll length | 10984.3" (279 m) |
| Maximum roll diameter | 5.91" (15 cm) |
Ports & interfaces
| USB port | Yes |
|---|---|
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | Ethernet I/F |
Weight & dimensions
| Weight | 107.8 lbs (48.9 kg) |
|---|---|
| Dimensions (WxDxH) | 46.4 x 19.7 x 22" (1178 x 501 x 560 mm) |
Power
| Power supply | 55 W |
|---|---|
| Power supply type | 100–120V / 220–240V |
| Power consumption (standby) | 6 W |
| Power consumption (PowerSave) | 1 W |
Logistics data
| Pallet width | 47.2" (120 cm) |
|---|---|
| Pallet height | 39.4" (100 cm) |
| Quantity per pack | 1 pc(s) |
| Pallet length (UK) | 48.8" (124 cm) |
| Quantity per pallet | 1 pc(s) |
| Quantity per pallet (UK) | 1 pc(s) |
| Quantity per pallet layer | 1 pc(s) |
| Quantity per pallet layer (UK) | 1 pc(s) |
Packaging data
| Package depth | 52.8" (1340 mm) |
|---|---|
| Package width | 28" (710 mm) |
| Package height | 37" (940 mm) |
| Package weight | 196.2 lbs (89 kg) |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
System requirements
| Mac compatibility | Yes |
|---|---|
| Compatible operating systems | Microsoft Windows 2000 / XP, Vista, Mac OS X 10.x.x |
Everything that fits the Epson Stylus Pro 7450
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
10 ink cartridges · 46 paper & media items · 6 accessories
Epson Stylus Pro 7450 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson Stylus Pro 7450 — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 10
Epson Premium Ink Jet Plain Paper, DIN A4, 80g/m², 250 Sheets
Epson Singlepack Magenta T611300
Epson Singlepack Yellow T611400
Epson Singlepack Yellow T612400 220 ml
Epson Singlepack Cyan T611200
Epson Singlepack Matte Black T611800
Epson Singlepack Cyan T612200 220 ml
Epson Singlepack Magenta T612300 220 ml
Epson Singlepack Matte Black T612800 220 ml
Epson Singlepack Photo Black T612100 220 mlPaper & Media 46
Representative imageMagic 98gsm/26# Coated Matte Paper (DMPG98)Representative image20LB Inkjet Vellum (772)Representative image18LB Inkjet Bond Paper (Translucent) (750)Representative image28LB Inkjet Coated Matte Paper (748)Representative image46LB Inkjet Coated Matte Paper (747)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Representative image20LB Engineering Vellum (471)Representative imageWSL 28LB Simple Inkjet Coated Matte Paper (C2S) (448)
Epson Glossy Photo Paper Roll, 24" x 20,7 m, 190g/m²
Epson Semigloss Photo Paper Roll, 24" x 25 m, 180g/m²
Epson Water Color Paper – Radiant White Roll, 24" x 18 m, 190g/m²
Epson Smooth Fine Art Paper, 24" x 30", 425g/m²
Epson Textured Fine Art Paper Roll, 24" x 15,2 m, 255g/m²
Epson Textured Fine Art Paper, 24" x 30", 425g/m²
Epson Smooth Fine Art Paper Roll, 24" x 15,2 m, 255g/m²
Epson Photo Grade Glossy Paper Roll, 24" x 30,5 m, 160g/m²
Epson Photo Grade Semiglossy Paper Roll, 24" x 30,5 m, 172g/m²
Epson Manual paper cutter
Epson Somerset Velvet Fine Art Paper, 24" x 30", 505g/m²
Epson Somerset Velvet Fine Art Paper Roll, 24" x 15 m, 255g/m²
Epson Smooth Fine Art Paper Roll, 17" x 15,2 m, 255g/m²
Epson Photo Grade Glossy Paper Roll
Epson Ultrasmooth Fine Art Paper Roll, 24" x 15,2 m, 250g/m²
Epson Enhanced Matte Paper, 17" x 22", 189g/m², 50 Sheets
Epson Singleweight Matte Paper, 17" x 22", 120g/m², 100 Sheets
Epson Singleweight Matte Paper, DIN A2, 120g/m², 100 Sheets
Epson Ultrasmooth Fine Art Paper, 17" x 22", 325g/m², 25 Sheets
Epson Glossy Photo Paper, DIN A4, 225g/m², 20 Sheets
Epson Proofing Paper White Semimatte, 24" x 30,5 m, 250g/m²
Epson Proofing Paper Publication, 24" x 30,5 m, 250g/m²
Epson Proofing Paper Publication, 17" x 30,5 m, 250g/m²
Epson Proofing Paper Publication, 13" x 30,5 m, 250g/m²
Epson Photo Grade Semiglossy Paper Roll
Epson Glossy Photo Paper BOGOF, DIN A4, 225g/m², 40 Sheets
Epson Glossy Photo Paper, DIN A4, 225g/m², 100 Sheets
Epson Glossy Photo Paper, DIN A4, 225g/m², 50 Sheets
Epson Singleweight Matte Paper, DIN A3+, 120g/m², 100 Sheets
Epson Singleweight Matte Paper Roll, 44" x 40 m, 120g/m²
Epson Singleweight Matte Paper Roll, 36" x 40 m, 120g/m²
Epson Standard Proofing Paper, DIN A3+, 205g/m², 100 Sheets
Epson Standard Proofing Paper, 24" x 50m, 205g/m²
Epson Japanese Kozo Paper Thin 13" x 10m
Questions
Straight answers
What AEC work fits the Epson Stylus Pro 7450?
It fits 24-inch-wide CAD PDFs, plan details, engineering markups, GIS maps, survey exhibits and color-coded coordination drawings. Roll and cut-sheet support gives a small office flexibility for routine and occasional output.
Can it print full-size construction drawings?
Its maximum roll width is 24″ (61 cm) and its maximum print size is A1 (23″ x 33″ (594 x 841 mm)). It is therefore not suited to drawing sizes that exceed those limits.
Can the printer be shared on a network?
The listed interfaces include Fast Ethernet and USB. IT should validate driver, authentication and network compatibility against the firm’s present environment before deployment.
What operating systems are listed as compatible?
The listed compatible operating systems are Microsoft Windows 2000 / XP, Vista, and Mac OS X 10.x.x. That is a practical reason to confirm the intended submission workflow before purchase or redeployment.
Is it a quiet office printer?
The listed sound pressure level while printing is 50 dB. Placement should also account for roll loading, output handling and service access, not just operating noise.
