Dietzgen · Paper & Media

40 lb Engineering Bond Paper

Model440

Representative product photograph of a roll of wide-format media beside a PlotterPrinters shipping carton. Generic image, not a photograph of this product.

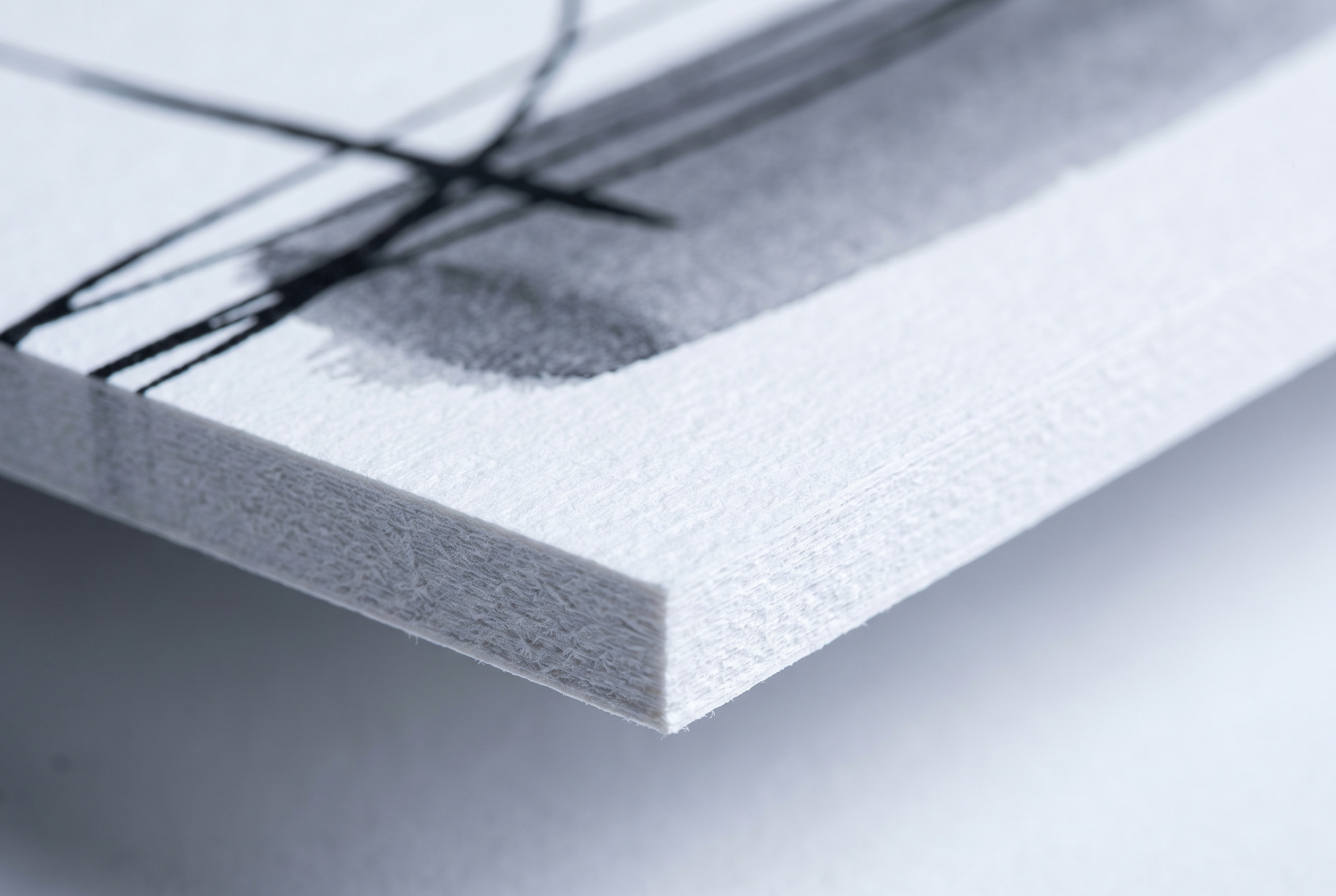

40LB Engineering Bond Paper print closeup

Representative imageA generic photograph of wide-format roll media and our shipping carton. It is not a photograph of this product, and it does not show the pack quantity, roll length, width or colour you are ordering — those are in the title and the size options below.

Genuine OEM hardwareAuthorized U.S. distribution

Manufacturer warrantyExtension plans available

Free shippingContinental U.S.

Plotter specialistsAEC experts, not just sellers

Price range: $115.95 through $271.95

In stock

Clear

Request a Quote

Datasheet (PDF)

Specifications

Dye· GOODPigment· GOODLatex· GOODUV· GOODPageWide· BESTToner LED· BEST3″ core

A 7.5-mil, 40 lb (150 gsm) uncoated bond — the heaviest in Dietzgen's engineering-bond range — at 96 brightness, 145 whiteness and 97% opacity. Heavy enough to pin up or carry without creasing. Rated BEST for toner and HP PageWide inks. Rolls 17 to 42 inches, plus 12-inch sheets.

Media type	Bond & Uncoated › Engineering Bond
Finish	Matte
Thickness	7.5 mil
Weight	150 gsm (40 lb bond)
Core size	3" core

Available sizes

12" x 47.25" sheets, 100/pack
17" x 200' (3" core)
24" x 200' (3" core)
30" x 200' (3" core)
36" x 200' (3" core)
40" x 200' (3" core)
42" x 200' (3" core)

Manufacturer datasheet (PDF)

Overview

Built for the work

Expert analysis

What you should know

Dietzgen 440 is the heaviest sheet in Dietzgen’s uncoated engineering-bond range: 40 lb (150 gsm), 7.5 mil thick, matte, with a smooth bright-white surface. It measures 96 brightness, 145 whiteness and 97% opacity — effectively an opaque sheet, and roughly twice the caliper of the 20 lb bond that everyday plotting runs on.

What Dietzgen 40LB Engineering Bond Paper (440) is used for

Everyday production engineering and CAD plotting
High-volume reprographics runs
Check prints and hand-marked redlines
Stapled or bound plan sets

At this weight the paper stops behaving like a plot and starts behaving like a board. It stands up on its own when pinned or held, it resists creasing in transit, and at 97% opacity it shows nothing through from the sheet behind. Those are display and presentation properties, which is why a 40 lb bond usually gets specified for the copy that leaves the office rather than the ten that stay in it. It still takes pen and pencil for markup and still runs through common stapling and binding equipment.

Ink compatibility

Toner and HP PageWide are both rated BEST; aqueous dye, aqueous pigment, latex and UV inks are each rated GOOD. It is an uncoated bond, so the ceiling on photographic colour is set by the surface rather than by the weight — for image-led work Dietzgen’s coated matte papers are the range to look at.

Working with it

Check the feed path before committing to a 40 lb roll: 7.5 mil is a lot of caliper for a plotter designed around 4-mil bond, and tight media paths do not always take it. Overlamination is not required, though pressure-sensitive, heat-assist and thermal overlaminates are compatible where a print needs protection from dirt, abrasion and moisture. Rolls run 17 to 42 inches wide on 3-inch cores, and 12-inch cut sheets are available.

Specifications

Full technical detail

Printers this media fits

Checked against every wide-format printer we track: 235 can run it — HP 99 · Epson 77 · Canon 59. Compatibility is resolved from the printer’s published media handling (roll width, core size and the roll diameter the spindle holds), not from a marketing list.

The list starts from the maker’s own ink ratings for this media — rated BEST for PageWide, Toner LED; GOOD for Dye, Pigment, Latex, UV ink. A printer only appears here if its ink chemistry is one of those.
