Home / Wide-Format Printers / Canon imagePROGRAF
Canon · Wide-Format Plotter

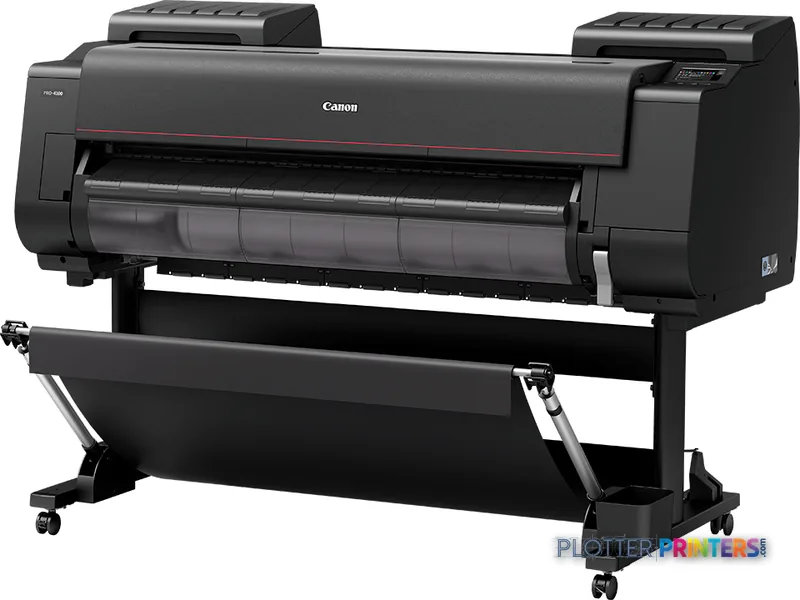

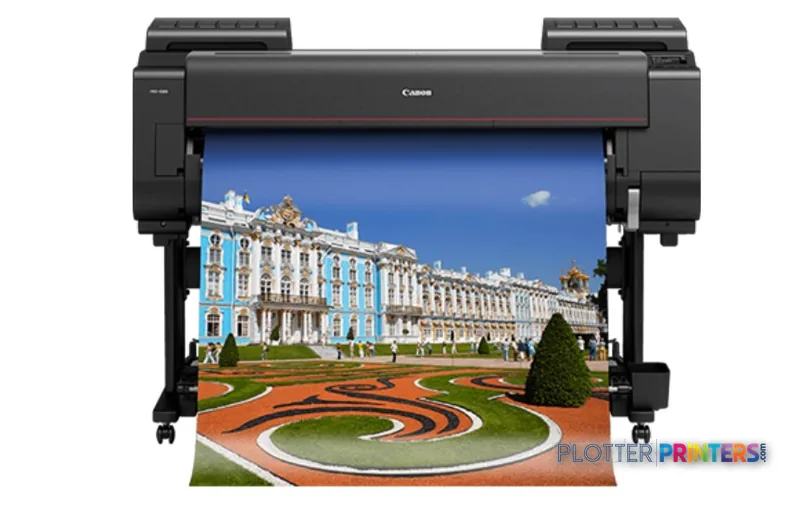

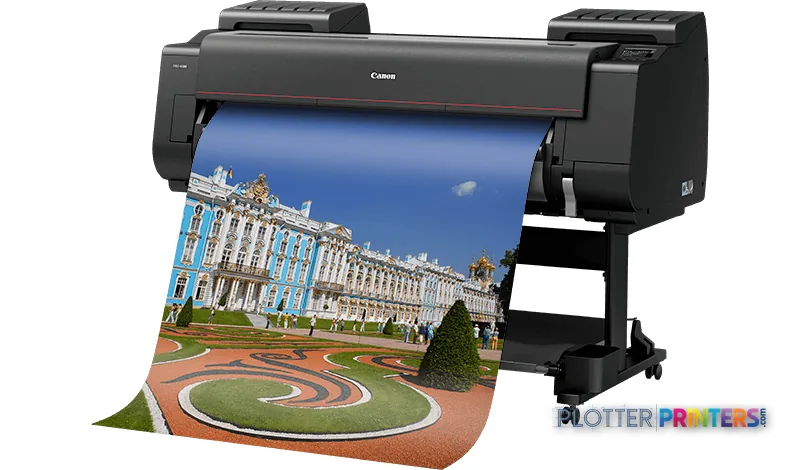

Canon imagePROGRAF PRO-4100
44" color graphics & photo printer
- ModelPRO-4100
- Prints44" wide
Genuine OEM hardwareAuthorized U.S. distribution
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Canon PRO-4100 is a 44-inch color inkjet intended for roll and cut-sheet output, not scanning or copying.
- Its stated 2400 x 1200 DPI maximum resolution supports a detailed output target for CAD lines, annotation, maps, and presentation documents.
- No measured gamut data is provided, so firms should proof their own color PDFs on their intended media before making color-fidelity assumptions.
Not sure if the PRO-4100 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 44" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Connectivity Wi-Fi + Ethernet for shared team printing.
- Verified specs 10 specs checked against the manufacturer datasheet.
Overview
Built for the work
Canon imagePROGRAF PRO-4100, Inkjet, 2400 x 1200 DPI, PF-10, A0 (841 x 1189 mm), A0, A1, A2, A3, A3+, B0, B1, B2, B4
Expert analysis
What you should know
Key takeaways
- The Canon PRO-4100 is a 44-inch color inkjet intended for roll and cut-sheet output, not scanning or copying.
- Its stated 2400 x 1200 DPI maximum resolution supports a detailed output target for CAD lines, annotation, maps, and presentation documents.
- No measured gamut data is provided, so firms should proof their own color PDFs on their intended media before making color-fidelity assumptions.
- Ethernet, Wi-Fi, USB Type-A, 3 GB RAM, and a 500 GB HDD support shared-office deployment, subject to local workflow validation.
- Choose the Canon PRO-4100S 60-in when wider media is a real requirement; consider the Canon PRO-2600 24-in where the work is primarily smaller format.
A coordination drawing can look perfectly adequate on screen yet lose its hierarchy when pale utilities, hatch patterns, and revision clouds reach bond paper. The Canon PRO-4100 is a 44-inch color inkjet for teams that need wide-format output for presentation-oriented plans, GIS mapping, boards, and color-coded construction documents—not scanning or walk-up copying.
Its 2400 x 1200 DPI maximum resolution gives fine CAD geometry and small annotation an appropriately detailed rendering target. There is no measured ICC-gamut data in the supplied record, so color fidelity should be judged with the firm’s own PDFs, paper, and profile workflow rather than a broad color claim. For the deep teatime shadows in an aerial image or the faint cyan edge of a coordination layer, a proof on the intended media remains the useful test.
6"–44" (152,4 – 1118 mm)Media width
2400 x 1200 DPIMaximum resolution
708.7" (18 m)Maximum roll length
500 GBInternal storage
Where it fits in an AEC document room
The PRO-4100 suits architecture, engineering, survey, and contractor teams that regularly render color plan sheets and graphics up to 44 inches wide from roll or cut-sheet media. Borderless output can be useful for presentation graphics and boards; ordinary technical output will more often be governed by the project’s required margins and title-block conventions. It accepts media from 0.003″–0.031″ (0.07 – 0.8 mm), allowing a meaningful range of paper weights within the stated specification.
Connectivity is practical for a shared office device: Ethernet LAN supports 10,100,1000 Mbit/s, Wi-Fi is included, and a USB Type-A connector is available. The 3 GB RAM and 500 GB HDD provide local processing and storage resources, while the bundled imagePROGRAF Printer Driver, Professional Print & Layout, Free Layout Plus, and PosterArtist Lite cover driver-led submission, layout work, and posters. Teams should still validate their own PDF, CAD, and network-authentication workflow before standardizing on any plotter.
What the specification does—and does not—promise
This is a print-only device. It has no scanning or copying capability, so it is not the right central machine for marked-up plan capture, legacy drawing conversion, or walk-up copy workflows. A separate wide-format scanner or multifunction workflow is needed where those tasks are routine. Its listed operating range is 15 – 30 °C and 10 – 80% relative humidity, useful considerations for a print room near loading areas or field-office conditions.
The quoted 48 dB printing sound-pressure level, or 35 dB in quiet mode, suggests an office-aware operating profile, but it should not be treated as a guarantee of unobtrusive production during active roll handling. Equally, the record supplies no rated print speed. Productive plan-set throughput depends on file processing, media changes, nesting, drying expectations, and who is standing nearby to unload work—not merely the movement of the carriage.
Family choices and buying context
The Canon PRO-4100S 60-in is the natural step-up when the work genuinely requires a wider 60-inch format. If the office’s work is principally smaller sheets, the Canon PRO-2600 24-in is the more compact in-family direction. For a same-width current alternative, assess the Canon PRO-4600 44-in against the files, media, service terms, and workflow controls that matter locally.
Do not select on resolution alone: the Canon PRO-4100 and Canon PRO-4600 44-in are both listed at 2400 x 1200 DPI, but that figure does not establish identical output behavior on a particular bond, coated paper, or PDF. Use the side-by-side comparison as a checklist, and ask the local provider to demonstrate fine text, screened fills, line overlays, and the actual sheet sizes your teams issue.
Continue evaluating
Canon PRO-4100S 60-inThe wider in-family option for work that extends beyond 44-inch media.Canon PRO-4600 44-inA current same-width Canon alternative to review against the same files and media.Wide-format class rankingSee how this model is positioned within its category.How we evaluate wide-format devicesThe criteria behind our workflow and output analysis.
The read
The Canon PRO-4100 is a considered fit for an AEC office that needs 44-inch color output from rolls and cut sheets, has room for a 390.2 lbs floor device, and already has a separate route for scanning and copying. It becomes less appropriate when the print room must digitize redlines, copy drawings, or consistently deliver work wider than its 44-inch media limit. Its strongest case is a disciplined color-document workflow where test files—not spec-sheet assumptions—confirm the detail, media behavior, and operating rhythm the team needs.
Verified specifications
The specs that decide it
| Print width | 44 in |
|---|---|
| Maximum resolution | 2400 x 1200 dpi |
| Ink set | 12 colors incl. Chroma Optimiser (pigment)manufacturer-verified |
| Print head / nozzles | PF-10, 18,432 nozzles, 4 pl min dropletmanufacturer-verified |
| Roll media width | 6 in to 44 in (152.4–1118 mm)manufacturer-verified |
| Max roll length | 59.1 ft (18 m) |
| Cartridge capacities | 160 ml / 330 ml / 700 mlmanufacturer-verified |
| Connectivity | Gigabit Ethernet, Wi-Fi 802.11b/g/n, USB 2.0 |
| Memory / storage | 3 GB RAM, 500 GB drive |
| Weight / footprint | 319.7 lb (145 kg); 62.7 in W |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyInkjet
Max resolution2400 x 1200 DPI
Max print width44"
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use casePhoto / Fine Art
Printing
| Color | Yes |
|---|---|
| Print head | PF-10 |
| Print technology | Inkjet |
| Maximum resolution | 2400 x 1200 DPI |
| Borderless printing | Yes |
| Number of print cartridges | 1 |
Performance
| RAM capacity | 3 GB |
|---|---|
| Certification | TUV, CB, CE, EAC |
| Storage media | HDD |
| Internal storage capacity | 500 GB |
| Sound pressure level (printing) | 48 dB |
| Sound pressure level (quiet mode) | 35 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| Media thickness | 0.003"–0.031" (0.07 – 0.8 mm) |
| Roll top margin | 0.118" (3 mm) |
| Maximum print size | A0 (33" x 47" (841 x 1189 mm)) |
| Maximum roll length | 708.7" (18 m) |
| Media width (rolls) | 6"–44" (152,4 – 1118 mm) |
| Media width (sheets) | 6"–44" (152,4 – 1118 mm) |
| Maximum roll diameter | 6.69" (17 cm) |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A3+ |
| ISO B-series sizes (B0…B9) | B0, B1, B2, B4 |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Weight & dimensions
| Depth | 36" (915 mm) |
|---|---|
| Width | 71.7" (1820 mm) |
| Height | 41" (1042 mm) |
| Weight | 390.2 lbs (177 kg) |
Power
| Power consumption (off) | 0.3 W |
|---|---|
| Power consumption (standby) | 2 W |
| Power consumption (typical) | 107 W |
Operational conditions
| Operating temperature (T-T) | 15 – 30 °C |
|---|---|
| Operating relative humidity (H-H) | 10 – 80% |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Packaging data
| Package depth | 38.7" (984 mm) |
|---|---|
| Package width | 62.7" (1593 mm) |
| Package height | 46" (1168 mm) |
| Package weight | 319.7 lbs (145 kg) |
| Bundled software | imagePROGRAF Printer Driver, Professional Print & Layout,† Free Layout Plus, PosterArtist Lite |
| Drivers included | Yes |
System requirements
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Canon imagePROGRAF PRO-4100 large format printer Wi-Fi Inkjet Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN — only the cartridges, printheads and media compatible with this model.
Paper & Media 12
Representative image18LB Inkjet Bond Paper (Translucent) (750)Representative image28LB Inkjet Coated Matte Paper (748)Representative image46LB Inkjet Coated Matte Paper (747)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Representative image20LB Engineering Vellum (471)Representative imageWSL 28LB Simple Inkjet Coated Matte Paper (C2S) (448)Representative imageWSL 24LB Simple Inkjet Coated Matte Paper (C2S) (446)Questions
Straight answers
Can the Canon PRO-4100 scan marked-up drawings or make wide-format copies?
No. The supplied specification lists neither scanning nor copying, so firms handling routine redline capture or archival conversion need a separate scanning workflow.
What is the widest media the Canon PRO-4100 accepts?
It accepts roll and sheet media from 6″–44″ (152,4 – 1118 mm). The supplied record states a maximum print size of A0 (33″ x 47″ (841 x 1189 mm)).
Is this suitable for shared AEC office use?
It includes Ethernet LAN, Wi-Fi, and USB Type-A connectivity, with 3 GB RAM and a 500 GB HDD. IT should still test the organization’s drivers, PDF submission process, access controls, and network policies.
Does 2400 x 1200 DPI prove that color plans and renderings will match expectations?
No. Resolution describes the stated maximum addressability, not measured gamut or color match on a particular paper. There is no supplied measured ICC-gamut result for this model, so proofing the firm’s own files is the sound approach.
When should we consider the Canon PRO-4100S 60-in instead?
Consider the Canon PRO-4100S 60-in when the work regularly requires a 60-inch format. If 44-inch media covers the issued drawing and presentation work, the PRO-4100 remains the more directly sized option.
