HP DesignJet XL 3600dr MFP
36" wide-format MFPs
- ModelXL 3600dr MFP
- Prints36" wide
- Score75/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The XL 3600dr combines 36-inch color printing with color scanning and copying for document-heavy AEC environments.
- HP rates normal-quality output at 3 A1/min; actual set turnaround also includes processing, collection and operator time.
- Its scan-to-email, network-folder and USB options suit redline capture and project-document distribution.
Not sure if the XL 3600dr MFP is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Dye-based (C, G, M, pK, Y); pigment-based (mK) — 6 cartridges, 1 printhead.
- Scan & copy Integrated scanner for digitizing and sharing sets.
- Connectivity Ethernet for shared team printing.
- Verified specs 9 specs checked against the manufacturer datasheet.
Overview
Built for the work
HP DesignJet XL 3600dr 36-in Multifunction Printer, Thermal inkjet, 2400 x 1200 DPI, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, Cyan, Photo black, Matte black, Magenta, Yellow, 2400 x 1200 DPI, 19,3 s/A1, 3 A1/min
- 36″Max print width
- 1,211 ft²/hRated speed
- 6Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Where it performs best
Workflow
100
Size / Fit
89
Speed
88
Best overall in its class right now. How we grade →
Features
What sets it apart
Swipe to explore →
Expert analysis
What you should know
Key takeaways
- The XL 3600dr combines 36-inch color printing with color scanning and copying for document-heavy AEC environments.
- HP rates normal-quality output at 3 A1/min; actual set turnaround also includes processing, collection and operator time.
- Its scan-to-email, network-folder and USB options suit redline capture and project-document distribution.
- Gigabit Ethernet, HP Web Jetadmin and supported enterprise security protocols make IT planning part of the purchase decision.

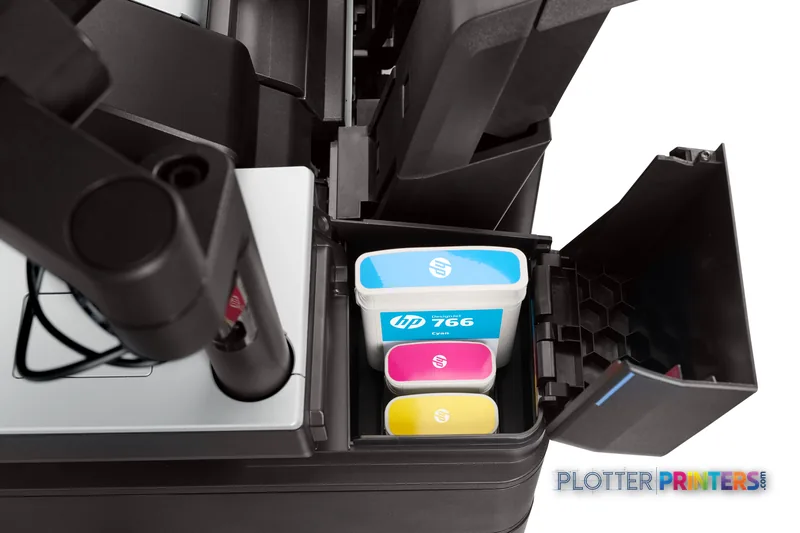

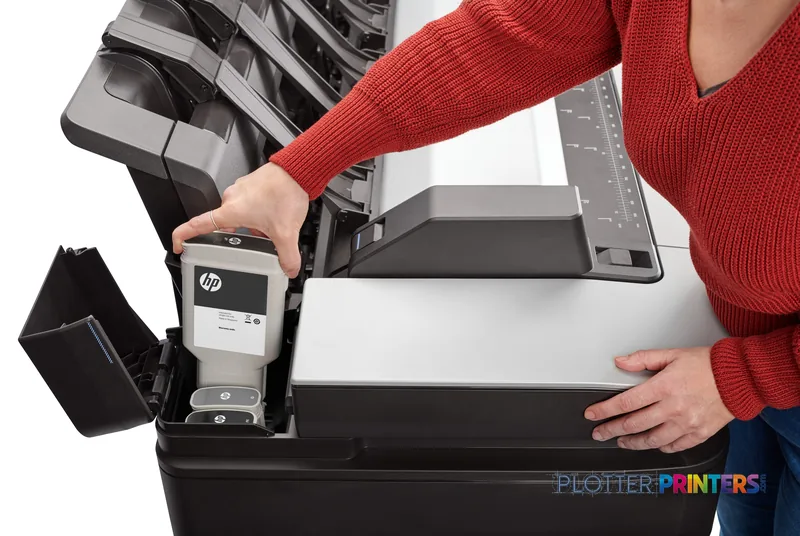

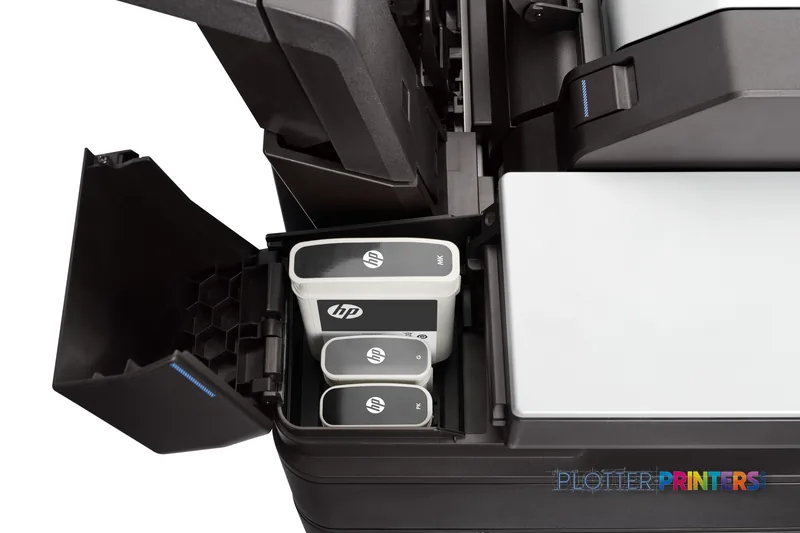

- It uses HP 766 inks and the HP 727 printhead.
- The HP DesignJet T918 36-in is the discontinued in-family catalog reference for replacement discussions.
Construction documents do not wait politely for a plotter queue to clear. The HP DesignJet XL 3600dr 36-in Multifunction Printer is built for the AEC office that needs to print, scan and copy color plans from one networked device: permit revisions, coordination drawings, marked-up bid sets, GIS maps and the inevitable last-minute PDF.
Its case is workflow consolidation rather than decorative color output. HP rates normal-quality output at 3 A1/min, while the integrated color scanner supports scan-to-email, network folder and USB destinations. That makes it particularly relevant where the print room also handles redlines, legacy sheets and field-returned markups. A plotter that saves time at the engine buys little if scans still spend four minutes finding the right folder.
3 A1/minRated normal-quality speedManufacturer rating
0.1%Print accuracy
600 x 600 DPIOptical scan resolution
500 GBInternal storage
Where it fits in an AEC document workflow
The 36-inch maximum roll width covers the common architectural and engineering sheet sizes used in U.S. practice, while custom media support extends to 36 x 48 inches. Thermal inkjet output at up to 2400 x 1200 DPI and stated 0.1% accuracy give the machine a credible role for linework, annotations and color-coded coordination information on ordinary bond and supported coated media.
The machine accepts HP-GL/2, HP-RTL, TIFF, JPEG and CALS G4, so it belongs comfortably in CAD, GIS and PDF-led environments that still generate a mix of vector drawings and scanned reference files. Direct printing is supported, and the supplied software ecosystem includes HP Click App and HP Click Driver for Windows 11. For teams comparing equipment rather than brochures, use the comparison with the Canon GP-300 36-in to keep width and intended use in view.
Estimate the rated print portion of a plan-set run, then add realistic time for PDFs to process, sheets to be collected and the next job to be released.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 1,211 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Scanning, copying and the work after printing
This is a true multifunction device, not a plotter with scanning bolted on as an afterthought. It provides color scanning and copying, copier enlargement or reduction from 25 – 400%, and a maximum scan length of 8 m. That is useful for capturing annotated drawings into a project folder, reproducing a field markup, or converting a long engineering document without sending staff to another device.
There is a practical boundary. Firms whose workload is primarily presentation graphics should assess media and color expectations carefully rather than treating resolution alone as a verdict. Conversely, a small studio with occasional plotting but little scan-back work may not need this level of multifunction capability. The scanner is free only in the same sense that a conference room is free: someone still has to operate it.
IT control is part of the specification
The XL 3600dr is designed for a managed network: Gigabit Ethernet, HP Web Jetadmin, HP JetAdvantage Security Manager and a 500 GB internal storage capacity are all relevant to the IT team as well as the print-room operator. Supported protocols include HTTPS, IPsec, SNMPv3, SMBv3, SSL/TLS and 802.1X authentication. It has no Wi-Fi connection, although Wi-Fi Direct is listed.
That distinction matters in organizations that segment printer traffic, control user access and require predictable support practices. Before deployment, IT should establish driver ownership, scan-to-network-folder permissions, retention rules for device storage and who receives service alerts. Consumables are the HP 766 ink family and the HP 727 printhead; confirm service coverage and supply arrangements locally, because uptime is an operational calculation, not a box-checking exercise.
For an installed-base comparison, the HP DesignJet T918 36-in is the relevant in-family catalog reference. It is a discontinued scanner/MFP, so buyers considering that route should weigh its existing workflow familiarity against support planning and current security requirements.
Compare the workflow, not just the chassis
Canon GP-300 36-inA same-width catalog alternative for buyers comparing 36-inch color wide-format devices.HP DesignJet T918 36-inThe discontinued in-family scanner/MFP reference for installed-base replacement discussions.36-inch wide-format class rankingReview the broader class context before assigning the device to a production role.How we assess wide-format workflowsOur methodology for considering output, workflow and operational fit.
The read
Choose the HP DesignJet XL 3600dr 36-in Multifunction Printer if your AEC team needs 36-inch color plan output plus regular scan-to-file and copy work under network management. Choose a simpler plot-only arrangement if scanning is occasional and the added multifunction workflow will sit idle; choose a different production approach if your real bottleneck is finishing, collation or unattended mixed-set handling rather than printing itself. Buy the machine for the workflow you have, not the one the brochure imagines.
Spec analysis
How the specs grade
Overall performance
- This printer
- HP DesignJet T2600dr MFP
Verified specifications
The specs that decide it
| Print technology | HP Thermal Inkjet |
|---|---|
| Maximum resolution | up to 2400 x 1200 optimized dpi |
| Print speed (normal, A1) | 19.3 s/A1, 3 A1/min |
| Media width / max print length | 36 in wide; up to 315 in per plotmanufacturer-verified |
| Ink platform | Dye-based (C, G, M, pK, Y); pigment-based (mK) — 6 cartridges, 1 printheadmanufacturer-verified |
| Maximum media thickness | Up to 19.7 mil (0.5 mm) |
| Internal memory / storage | 128 GB memory; 500 GB internal storage |
| Connectivity | Gigabit Ethernet (1000Base-T), USB direct printing, Wi-Fi Direct |
| Page description languages | Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4 |
| Weight | 375 lb |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
Max print width36"
ConnectivityEthernet (Gigabit LAN)
Use caseCAD / Technical
Printing
| Colour | Yes |
|---|---|
| Print head | 1 |
| Print technology | Thermal inkjet |
| Printing colours | Cyan, Photo black, Matte black, Magenta, Yellow |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4 |
| Print speed (normal quality) | 19,3 s/A1, 3 A1/min |
| Print speed (normal quality, A1) | 180 pph |
Performance
| HP segment | Business |
|---|---|
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC) |
| Product colour | Black, White |
| Built-in display | Yes |
| Country of origin | China |
| Internal storage capacity | 500 GB |
| Sound pressure level (printing) | 42 dB |
Paper handling
| Media thickness | 0.5 mm |
|---|---|
| Custom media sizes | 210 x 279 to 914 x 1219 mm |
| Maximum roll width | 91.4 cm |
| Maximum roll length | 200 m |
| Maximum roll diameter | 18 cm |
| Paper tray media types | Coated paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Banner, Heavy paper, Satin paper |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
Ports & interfaces
| Wi-Fi | No |
|---|---|
| USB port | No |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| Direct printing | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols | TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS |
| Mobile printing technologies | HP ePrint |
Technical details
| Box contents | HP DesignJet XL 3600 Multifunction Printer, printhead, introductory ink cartridges, scanner calibration sheet, 2-in hub right adapter kit, quick reference guide, setup poster, power cord |
|---|
Weight & dimensions
| Depth | 660 mm |
|---|---|
| Width | 1500 mm |
| Height | 1310 mm |
| Weight | 170 kg |
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (off) | 0.3 W |
| Power consumption (sleep) | 14 W |
| Power consumption (typical) | 120 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 35 °C |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| UNSPSC-code | 43212107 |
|---|---|
| All-In-One-multitasking | Yes |
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC) |
Copying
| Copying | Colour copying |
|---|---|
| Copier resize | 25 – 400% |
Scanning
| Scan to | E-mail, Network folder, USB |
|---|---|
| Accuracy | 0.1% |
| Scanning | Colour scanning |
| Maximum scan length | 8 m |
| Maximum media thickness | 91.4 cm |
| Optical scanning resolution | 600 x 600 DPI |
Packaging data
| Package depth | 770 mm |
|---|---|
| Package width | 1625 mm |
| Package height | 1260 mm |
| Package weight | 220 kg |
| Bundled software | HP Click App , HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartStream (optional), HP SmartTracker(optional), HP Click Driver for Windows 11 |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR |
Carbon footprint
| Total carbon footprint (kg of CO2e) | 3940 |
|---|---|
| Carbon emissions, logistics (kg of CO2e) | 764 |
| Carbon emissions, end-of-life (kg of CO2e) | 15 |
| Carbon emissions, manufacturing (kg of CO2e) | 3149 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 10 |
Brand-specific features
| HP Web Jetadmin | Yes |
|---|---|
| HP Dynamic security | Yes |
Everything that fits the HP DesignJet XL 3600dr MFP
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
6 ink cartridges · 12 paper & media items
HP DesignJet XL 3600dr MFP ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet XL 3600dr 36-in Multifunction Printer — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 6
Paper & Media 12
Representative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image230gsm Special Matte Photo PaperRepresentative image200gsm Special Matte Photo PaperRepresentative image350g Vivid Matte Poly/Cotton CanvasRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative image6 Mil Water-Resistant Self-Adhesive PolypropyleneRepresentative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Representative image20LB Engineering Vellum (471)Representative imageWSL 28LB Simple Inkjet Coated Matte Paper (C2S) (448)Questions
Straight answers
What AEC work is this multifunction printer suited to?
It fits teams producing color plans, coordination drawings, GIS maps and PDFs while also scanning or copying marked-up documents. Its 36-inch roll width and color scan/copy functions are relevant to shared architecture, engineering and construction document rooms.
Can it scan drawings into a project folder?
Yes. Scan destinations include e-mail, network folder and USB. The maximum scan length is 8 m, and optical scanning resolution is 600 x 600 DPI.
How fast is the HP DesignJet XL 3600dr?
HP rates normal-quality printing at 3 A1/min and 180 pph. That is an engine rating, so real plan-set completion also depends on file processing, media handling and operator workflow.
Is it appropriate for a managed corporate network?
It has Gigabit Ethernet, HP Web Jetadmin and HP JetAdvantage Security Manager in the bundled software list. Supported protocols include HTTPS, IPsec, SNMPv3, SMBv3, SSL/TLS and 802.1X authentication.
Does it have Wi-Fi?
No Wi-Fi connection is listed. Wi-Fi Direct is listed, while Ethernet LAN is available for network deployment.
Which consumables does it use?
The resolved compatible consumables are HP 766 inks and the HP 727 printhead. Confirm local service and supply terms before standardizing the device into a fleet.
