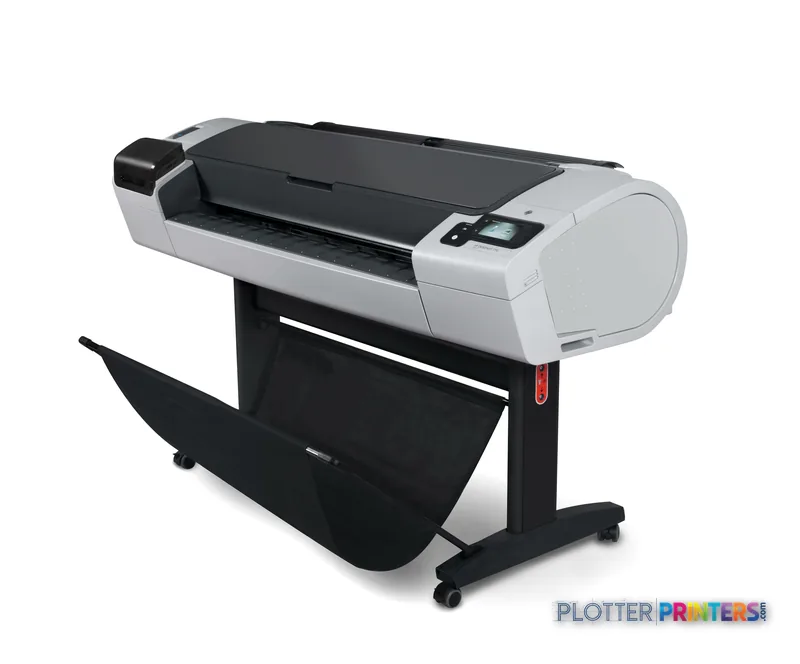

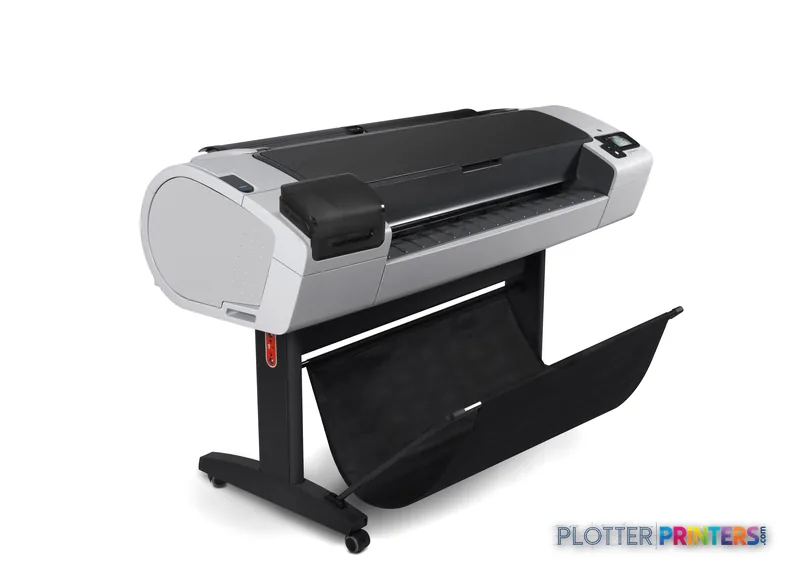

HP DesignJet T795

The T795 makes the most sense where teams regularly need color plans without moving every job to an outside reprographics provider. Civil alignments, utility overlays, life-safety plans, phasing sheets and survey exhibits all benefit when color remains distinct on ordinary technical output. The machine accepts roll paper and supports bond, coated, heavy and photo paper in its paper-tray media list; it also supports vinyl media. Maximum specified media thickness is 0.031″.

Its language support matters in established drawing environments. HP-GL/2, HP-RTL, PCL 3 and TIFF are listed, alongside Windows, Mac OS X, Linux and Citrix compatibility. That does not remove the need to test actual CAD and PDF files, especially dense transparency layers and mixed-size bid sets, but it gives IT staff conventional paths for deployment. For a smaller office that needs scanning and copying at the device, the HP DesignJet T830 24-in is the more relevant in-family alternative because it is identified as a scanner/MFP.

The T795’s stated 2400 x 1200 DPI and +/- 0.1% line accuracy point toward technical-document work, where small annotations, hatch patterns and dimension strings must remain composed rather than merely dark. As with any plotter, evaluate the drawings your teams actually issue: fine screened fills, pale discipline colors and embedded raster aerials are more revealing than a simple black-line test sheet.

There is no measured ICC gamut data in the supplied record, so it would be inappropriate to make a color-volume claim. What can be said is that the six-color ink configuration includes both gray and two blacks, useful ingredients for drawings that combine neutral line work with color overlays. The difference shows up where maps live—in the cyan edge between adjacent utility zones. For consumables planning, this model uses the HP 727 inks and HP 727 printhead family. Confirm local availability, service terms and media qualification before treating an older fleet standard as a long-term operating assumption.

The T795 is a large shared-device proposition: it measures 69.7″ wide, 27.6″ deep and 41.3″ high, and weighs 179.9 lbs. It has Fast Ethernet through one RJ-45 port and one USB 2.0 port, making it straightforward to place on a conventional office network. Its listed typical power consumption is 120 W, with ENERGY STAR certification.

It may be less appropriate where operators need two rolls ready for frequent switches between half-size check plots and full-size issue sets. The HP DesignJet T1600dr 36-in is the in-family option specifically identified with dual-roll capability, although its 36-inch format is a different physical class. Where a 44-inch-format comparison is more useful, compare the T795 with the HP T790 44-in around the workflows, drivers and service coverage available to your office—not resolution alone. Neither is a substitute for an MFP when scan-copy-redline work is a daily requirement.
