Home / Wide-Format Printers / HP DesignJet
HP · Wide-Format Plotter

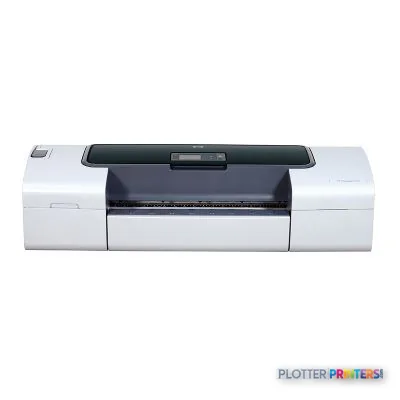

HP DesignJet T1120
24" technical / CAD plotter
- ModelT1120
- Prints24" wide
- Score55/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The T1120 is a 24-inch color technical printer aimed at D-size AEC drawings and project graphics.
- HP rates draft A1 color line drawings at 35 sec/page, but mixed sets take longer once processing and handling are included.
- Its +/- 0.1% line accuracy and 0.002-inch minimum line width suit detailed CAD and GIS-style output.
Not sure if the T1120 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 24" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Cyan, Magenta, Matte black, Photo black, Yellow.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 55/100 in our class-relative rating.
Overview
Built for the work
HP Designjet T1120 24-in Printer, 2400 x 1200 DPI, HP-GL/2, HP-RTL, Cyan, Magenta, Matte black, Photo black, Yellow, HP 72 Ink Cartridge: cyan, gray, magenta, matte black, photo black, yellow (130 ml); cyan, gray,…, 3 (matte black and yellow, magenta and cyan, photo black and gray), 1 sheets
- 24″Max print width
- 485 ft²/hRated speed
- 5Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The T1120 is a 24-inch color technical printer aimed at D-size AEC drawings and project graphics.
- HP rates draft A1 color line drawings at 35 sec/page, but mixed sets take longer once processing and handling are included.
- Its +/- 0.1% line accuracy and 0.002-inch minimum line width suit detailed CAD and GIS-style output.
- One roll, rear single-sheet feed, automatic cutting, and basket output fit a focused office workflow.
- The lack of duplexing, scanning, and second-roll capacity limits its fit for busy central print rooms.
- The HP DesignJet T1600dr 36-in is the stronger in-family option when wider output and dual-roll operation matter.
At 4:45 p.m., somebody wants a revised D-size coordination set, a color utility map, and maybe one clean board for tomorrow’s meeting. The HP Designjet T1120 24-in Printer is built for that kind of office-side production: 24-inch roll output, occasional sheets, and CAD/PDF work that cannot wait for a central print room.
It is a color inkjet technical printer with HP-GL/2 and HP-RTL support, Ethernet and USB connectivity, an embedded web server, and an 80 GB hard drive. For architects, engineers, surveyors, and contractors working mainly through D-size, it covers the practical middle ground between desktop printing and a wider production device.
24"Maximum print widthD-size output and smaller sheets or rolls.
35 sec/pageDraft A1 color line drawingManufacturer-rated draft figure on plain paper.
+/- 0.1%Line accuracyRelevant when drawing scale and geometry need to hold together.
2400 x 1200 DPIMaximum print resolutionFor detailed linework and presentation-oriented output.
Where it earns its floor space
The T1120’s job is straightforward: produce technical drawings without sending every plan set downstairs, across town, or into a queue that has developed opinions. HP rates draft A1 color line drawings at 35 seconds per page and 56 A1 prints per hour on plain paper. Those are rated figures, not a promise that a mixed PDF set will land at the basket at that pace. File processing, roll changes, sheet loading, and the person who notices the wrong revision all get a vote.
Its 0.002-inch minimum line width and +/- 0.1% line accuracy are the specifications that matter more than a glossy brochure image. They suit CAD linework, civil exhibits, MEP coordination drawings, survey maps, and marked-up construction documents. The five-color ink system includes cyan, magenta, yellow, matte black, photo black, and gray, so color-coded layers and presentation sheets are within its lane as well.
Bottom line: This is a credible office plotter when D-size technical output is the daily job.
Media, workflow, and the one-roll reality
The printer accepts one roll up to 24 inches wide, plus rear single-sheet feeding, and includes an automatic cutter and output basket. It supports bond, coated papers, technical papers, films, photographic media, backlit material, and selected self-adhesive media. That gives a small AEC team useful range: ordinary bond for issue sets, coated stock for color plans, and specialty media for a project-room graphic. It does not give you a second roll waiting in the wings.
That matters when one team wants plain bond and another wants coated color output. A one-roll device means a media swap. Media swaps are not dramatic, but neither is staying late to finish a permit set. The T1120 supports custom media from 216 x 279 mm to 24 x 66 inches and can print up to 300 feet, subject to operating system and application limits.
Network administration is reasonably practical for its generation. Gigabit Ethernet, HP Web Jetadmin, HP Printer Utility, an embedded web server, and the 80 GB drive support shared-office management. Its listed operating-system support is legacy-oriented, so IT should validate driver and submission workflow before placing it on a modern managed network.
Bottom line: One roll is fine for a focused workflow; it is the bottleneck when media switching becomes routine.
Estimate rated plot time for a run of draft line drawings, then allow working time for file preparation, media handling, and set assembly.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 485 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Where it sits in the family
The closest same-width alternative is the HP DesignJet T1120ps 24-in. Both are 24-inch models with 2400 x 1200 DPI listed in the catalog. For teams that routinely need wider sheets, larger plan formats, or a scanner/MFP configuration, the HP DesignJet T1120 44-in changes the conversation by moving to 44-inch output and adding scanner/MFP capability.
For a more current wider technical-print workflow, the HP DesignJet T1600dr 36-in is the relevant step-up in this catalog because it is a 36-inch dual-roll model. That second roll changes daily behavior more than it changes a spec sheet: plain bond can remain loaded while coated media stays ready. Compare the T1120 directly with the T1600dr 36-in if roll switching and wider documents are part of the weekly workload.
The T1120 is less appropriate for frequent wide-format scanning, unattended mixed-media production, or teams whose work regularly exceeds D-size. It also has no duplex option. That is normal for this kind of plotter, but it should not be discovered during a deadline.
Bottom line: Choose the T1120 for concentrated 24-inch plotting, not as a substitute for a wider, dual-roll, scan-heavy department device.
Related tools and comparisons
The read
The HP Designjet T1120 24-in Printer fits a small architecture, engineering, survey, or construction office that needs dependable D-size color and monochrome plotting from roll or sheet media. Its strengths are technical line output, broad media support, shared-network management, and a compact 24-inch format. The trade-off is capacity flexibility: one roll, no duplexing, and no scanner/MFP function. If the workflow is mostly CAD/PDF plans on one primary stock, it makes sense. If every day involves switching rolls, scanning legacy drawings, or printing beyond D-size, move up rather than asking this machine to become a print room.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T3475
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 24 in |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Cyan, Magenta, Matte black, Photo black, Yellow |
| Page description languages | HP-GL/2, HP-RTL |
| Maximum print size | A1 (594 x 841 mm) |
| Media thickness | > 0.8 |
| Maximum roll diameter | 5.31" (13.5 cm) |
| Ethernet | Yes |
| Power consumption | 200 W |
Specifications
Full technical detail
Max resolution2400 x 1200 DPI
Max print width24"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print head | 3 (matte black and yellow, magenta and cyan, photo black and gray) |
| Printing colors | Cyan, Magenta, Matte black, Photo black, Yellow |
| Color management | HP Color Center, HP Vivera inks, Closed-loop color system |
| Maximum resolution | 2400 x 1200 DPI |
| Print head nozzles | 2112 |
| Print speed (imperial) | 72 D prints per hour |
| Color printing technology | HP Colour Layering technology |
| Page description languages | HP-GL/2, HP-RTL |
| Print cartridge volume (metric) | HP 72 Ink Cartridge: cyan, gray, magenta, matte black, photo black, yellow (130 ml); cyan, gray, magenta, photo black, yellow (69 ml) |
| Print time color line drawing (draft, A1) | 35 sec/page |
| Print speed (color image, best quality, glossy paper) | 2.4 m²/hr 26 ft²/hr |
| Print speed (color image, draft quality, coated paper) | 34 m²/hr 364 ft²/hr |
| Print speed color line drawing (draft, A1 plain paper) | 56 A1 prints per hour |
| Print speed (color image, normal quality, coated paper) | 93 ft²/hr 8.6 m²/hr |
| Print speed (color image, normal quality, glossy paper) | 61 ft²/hr 5.6 m²/hr |
| Print time black and white line drawing (draft, metric A1 plain paper) | 35 sec/page |
Performance
| Display | LCD |
|---|---|
| Certification | WEEE; EU RoHS; China RoHS; REACH; EuP |
| Storage media | HDD |
| Built-in display | Yes |
| Built-in processor | Intel® Pentium® M |
| Storage drive type | Standard, 80 GB |
| Processor frequency | 800 MHz |
| Internal storage capacity | 80 GB |
Paper handling
| Roll paper | Yes |
|---|---|
| Media handling | Sheet feed, roll feed, automatic cutter |
| Paper handling | Sheet feed, roll feed, output basket |
| Media thickness | > 0.8 |
| Roll top margin | 0.197" (5 mm) |
| Print margin roll | 0.197" (5 mm) |
| Custom media sizes | 216 x 279 to 610 x 1676 mm |
| Maximum print size | A1 (594 x 841 mm) |
| Maximum media width | 610 mm |
| Maximum paper trays | 1 |
| Maximum roll length | 3598.4" (91.4 m) |
| Duplex print options | None (not supported) |
| Standard media sizes | A4, A3, A2, A1 |
| Maximum roll diameter | 5.31" (13.5 cm) |
| Media types supported | Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, coloured), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl) |
| Print margin cut-sheet | 5 x 16.75 x 5 x 5 mm |
| Recommended media weight | 60 – 328 g/m² |
| Media weights by paper path | 60 to 328 g/m² |
| ISO A-series sizes (A0…A9) | A1, A2, A3, A4 |
| Maximum length of sheet media | 1676.4 mm |
| Paper handling standard/input | Roll loading; single-sheet rear tray |
| Paper handling standard/output | Basket |
| Media thickness (by paper path) | Up to 0.8 mm |
| Media sizes supported (imperial) | A; B; C; D |
| Non-printable area roll media (imperial) | 0.2 x 0.2 x 0.2 x 0.2 in (borderless on photo papers) |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
Weight & dimensions
| Weight | 103.6 lbs (47 kg) |
|---|---|
| Size (imperial) | 24" |
| Weight (imperial) | 103.6 lb |
| Dimensions (WxDxH) | 49.7 x 26 x 15.4" (1262 x 661 x 391 mm) |
| Maximum dimensions (W x D x H) | 49.7 x 28.8 x 41.2" (1262 x 732 x 1047 mm) |
| Product dimensions when open (LxWxD) | 49.7" |
Power
| Power requirements | Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A max |
|---|---|
| Power consumption (active) | 200 W |
| Power consumption (standby) | 43 W |
| Power consumption (typical) | 200 W |
| Power consumption (PowerSave) | 27 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 59 – 95 °F |
| Operating altitude (imperial) | 9842 ft |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
| Recommended operating temperature range (T-T) | 15 – 35 °C |
Other features
| Safety | EU (LVD and EN60950-1 compliant), Russia (GOST) |
|---|---|
| Ink drop | 6 pl (C, M, PK, G), 9 pl (Y, MK) |
| Driver LAN | Novell NetWare 5.x/6.x clients |
| Coated paper | Yes |
| Glossy paper | Yes |
| Control panel | 240 x 160 pixel greyscale graphical display with Asian fonts support, 4 direct-access buttons and 7 navigation buttons, 2 bicolor lights (Ready, Processing, Attention, Error) |
| Line accuracy | +/- 0.1% |
| Driver updates | Latest driver upgrade information available on http:// |
| Line width minimum | 0.002 in |
| Printer management | HP Web Jetadmin, HP Printer Utility |
| Roll maximum input | 1 |
| Embedded web server | Yes |
| Acoustic power emissions | 6.9 B(A) (active/printing), 4.4 B(A) (standby) |
| Acoustic pressure emissions | 57 dB |
| Minimum system requirements | Microsoft Windows XP Home, XP Professional: Intel Pentium 4 (1 GHz), 512 MB RAM, 2 GB available hard disk space |
| Electromagnetic compatibility | Compliance for Class A ITE products: EU (EMC Directive) |
| JetDirect Compatible Products | Y |
| Compatible ink types, supplies | Dye-based (C, M, Y, G, PK), pigment-based (MK) |
| Maximum media length (imperial) | 66" |
| Maximum print length (imperial) | 300 ft (operating system and application dependent) |
| Acoustic power emissions (standby) | 44 dB |
| Print quality (black, best quality) | 2400 x 1200 DPI |
| Print quality (color, best quality) | 2400 DPI |
| Print quality (black, draft quality) | 600 DPI |
| Acoustic pressure emissions (standby) | 29 dB(A) |
| Media sizes standard (imperial rolls) | Letter to D-size sheets; 11 to 24-in rolls |
| Print quality (black, normal quality) | 600 DPI |
| Non-printable area (imperial cut-sheet) | 0.2 x 0.67 x 0.2 x 0.2 in |
| Print resolution (color, normal quality) | 600 x 600 DPI |
| Minimum system requirements for Macintosh | Mac OS X v10.4 or higher: PowerPC G3 or Intel Core Processor, 256 MB RAM, 1 GB available hard disk space |
Packaging data
| Package weight | 196.2 lbs (89 kg) |
|---|---|
| Bundled software | HP Instant Printing Utility |
| Package weight (imperial) | 224 lbs |
| Package dimensions (WxDxH) | 56.7 x 30.2 x 24.5" (1440 x 766 x 623 mm) |
| Package dimensions (W x D x H) | 56.69 x 30.16 x 30.4" |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
System requirements
| Browser supported | Internet Explorer (5.0 or higher); Netscape (6.0.1 or higher); Safari for Mac OS (10.3 or higher); Mozilla (1.5 or higher) |
|---|---|
| Compatible operating systems | Windows Vista (32 and 64-bit), Microsoft Windows Server 2008 (32 and 64-bit), XP Home and Professional (32 and 64-bit), Server 2003 (32 and 64-bit), Mac OS X v10.4, Mac v10.5, Novell NetWare 5.x, 6.x, Citrix XenApp, Citrix XenServer |
Input & output capacity
| Total input capacity | 1 sheets |
|---|---|
| Total number of input trays | 1 |
Everything that fits the HP DesignJet T1120
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
4 ink cartridges · 96 paper & media items · 4 accessories
HP DesignJet T1120 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T1120 24-in Printer — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 2
Paper & Media 83
Representative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image350g Vivid Matte Poly/Cotton CanvasRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative image6 Mil Water-Resistant Self-Adhesive PolypropyleneRepresentative image46LB Inkjet Coated Matte Paper (747)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image24LB Inkjet Bond Paper (731)Representative image24LB Inkjet Coated Matte Paper Economy (714)
HP Q1733A printing paper Matte 1 sheets White
HP Two-view Cling Film
HP Two-view Cling Film
HP C6568B large format media 45.7 m
HP Q1408A plotter paper
HP Q1430A photo paper Brown, White
HP C3868A plotter paper 45.7 m 91.4 cm
HP C3869A plotter paper
HP White Matte Polyester Film
HP Q1420A photo paper Brown, White
HP Q1760A large format media 45.7 m Matte
HP Matte Film 610 mm x 38.1 m (24 in x 125 ft)
HP C6570C large format media 30.5 mRepresentative imageHP Bright White Inkjet Paper, 36 in x 300 ft (C6810A)
HP Reverse Print Matte Backlit Film
HP C6035A large format media 45.7 m
HP C6036A printing paper Matte White
HP C6567B plotter paper
HP Universal Semi-gloss Photo Paper
HP Clear Film 174 gsm-610 mm x 22.9 m (24 in x 75 ft)
HP Q1421A photo paper Brown, White
HP Q1757A printing paper Matte Yellow
HP Reverse Print Matte Backlit Film
HP Reverse Print Matte Backlit Film
HP Q1416A large format media 30.5 mRepresentative imageHP Heavyweight Coated Paper, 42 in x 100 ft (C6569C)
HP Q1908A printing film
HP Universal Semi-Gloss Photo Paper
HP Adhesive Vinyl 914 mm x 12.2 m (36 in x 40 ft)
HP Q1956A large format media 67.5 m
HP Heavyweight Coated 1524 mm x 68.5 m (60 in x 225 ft) large format media Matte
HP Q1961A large format media
HP Q1962A large format media
HP Q5486A photo paper Black, Blue, White
HP Q5487A photo paper Black, Blue, White
HP Q5489A photo paper
HP Q5491A photo paper
HP Q6579A photo paper Brown, White
HP Q6580A photo paper Matte
HP Q6581A photo paper
HP Q6583A photo paper Brown, White
HP Q6578A photo paper Brown, White
HP Q6588A large format media Matte
HP Q6596A large format media Matte
HP Q1441A large format media 45.7 m
HP Q1442A large format media 45.7 m
HP Q1444A printing paper Matte
HP Q1445A printing paper Matte
HP Q7897A large format media 45.7 m
HP Universal Bond Paper 841 mm x 91.4 m large format media 3598.4" (91.4 m)
HP Q8004A large format media 91.4 m
HP Q8834A printing film
HP Q8835A printing film
HP CG459A photo paper Matte
HP Premium Matte Photo Paper-914 mm x 30.5 m (36 in x 100 ft) large format media
HP Q1446A plotter paper 45 m 42 cm
HP Vivid White Glossy Polyester Film
HP Vivid White Glossy Polyester Film
HP Cockle-free Heavyweight Coated Paper-914 mm x 30.5 m (36 in x 100 ft)
HP Cockle-free Heavyweight Coated Paper-1067 mm x 30.5 m (42 in x 100 ft)
HP CG884A large format media 45.7 m Matte
HP CG885A large format media 45.7 m Matte
HP Cockle-free Heavyweight Coated Paper-610 mm x 30.5 m (24 in x 100 ft)
HP Cockle-free Coated Paper-610 mm x 45.7 m (24 in x 150 ft)
HP CG892A large format media
HP CG889A large format media 45.7 m
HP CG890A plotter paper
HP CG891A large format media 45 m
HP Self-adhesive Indoor Paper-610 mm x 22.9 m (24 in x 75 ft)
HP Self-adhesive Indoor Paper-1067 mm x 22.9 m (42 in x 75 ft)
HP Premium Satin 610 mm x 15.2 m (24 in x 50 ft) White
Questions
Straight answers
What AEC documents does the HP Designjet T1120 24-in Printer suit?
It is suited to D-size and smaller CAD drawings, coordination plans, survey maps, color-coded engineering documents, construction markups, and selected presentation sheets. It supports HP-GL/2 and HP-RTL, which are relevant to technical drawing workflows.
How fast is it for plan printing?
HP rates draft A1 color line drawings at 35 sec/page and 56 A1 prints per hour on plain paper. Actual set turnaround depends on file processing, media changes, job order, and operator handling.
Can it print both bond plans and coated color graphics?
Yes. It supports bond, coated, technical, film, photographic, backlit, and selected self-adhesive media. It has only one roll input, however, so changing between loaded media requires operator intervention.
Does the T1120 scan drawings or make wide-format copies?
No scanner or MFP capability is listed for this 24-inch model. The HP DesignJet T1120 44-in is the in-family catalog option listed with scanner/MFP capability.
What should IT check before deploying it?
Confirm driver compatibility with the current workstation and print-management environment. The listed supported operating systems include Windows Vista, Windows XP, Windows Server 2003/2008, Mac OS X v10.4/v10.5, Novell NetWare, and Citrix environments, alongside Ethernet, USB, HP Web Jetadmin, and an embedded web server.
Ready to put the HP DesignJet T1120 to work?
Configuration, media and a quote tailored to your workflow — from AEC plotter specialists.
