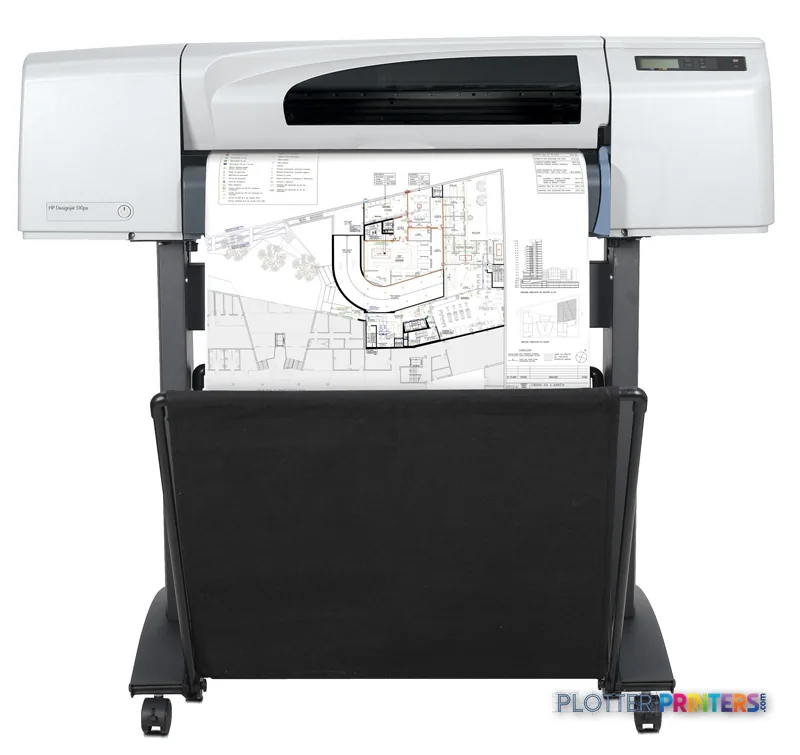

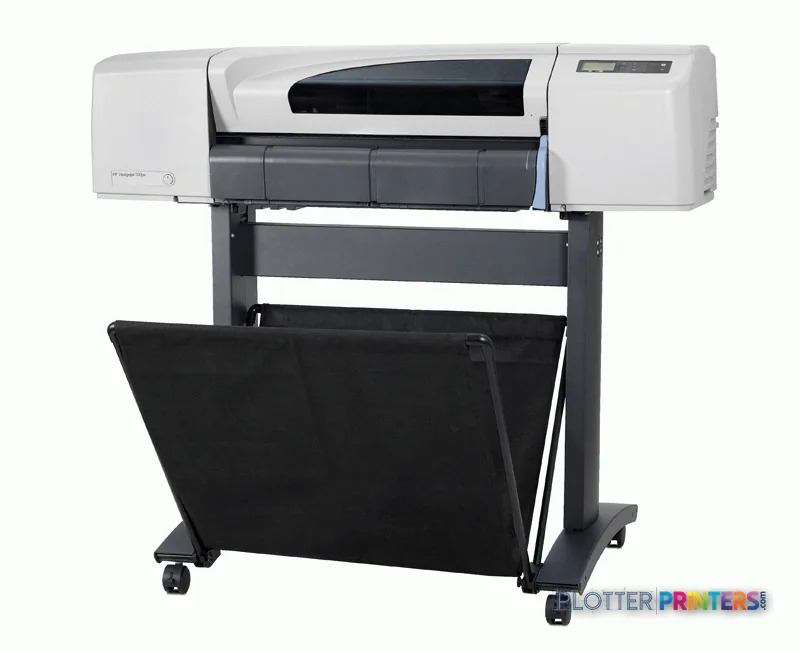

HP DesignJet 510ps
24" technical / CAD plotter
- Model510ps
- Prints24" wide
- Score50/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The 24-inch width suits ANSI A-D and Arch A-D technical output, including sheets and rolls.
- HP rates draft A1 color line drawings at 31 A1 prints per hour and 80 sec/page, but real set output also includes handling time.
- A single roll input requires media changes when jobs alternate between bond, coated stock, film, or photo media.
Not sure if the 510ps is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 24" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Black, Cyan, Magenta, Yellow.
- Analyst score Scores 50/100 in our class-relative rating.
Overview
Built for the work
HP Designjet 510ps 24-in Printer, 2400 x 1200 DPI, HP-GL/2, HP-RTL, Black, Cyan, Magenta, Yellow, 610 x 1897 mm, Bond and coated, technical, film, photographic, proofing, self-adhesive, banner and sign, canvas, 1799.2" (45.7 m)
- 24″Max print width
- 256 ft²/hRated speed
- 4Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Where it performs best
Size / Fit
96
Print Quality
84
Media Handling
52
Class best is 60. How we grade →
Expert analysis
What you should know
Key takeaways
- The 24-inch width suits ANSI A-D and Arch A-D technical output, including sheets and rolls.
- HP rates draft A1 color line drawings at 31 A1 prints per hour and 80 sec/page, but real set output also includes handling time.
- A single roll input requires media changes when jobs alternate between bond, coated stock, film, or photo media.
- Ethernet LAN and an embedded web server are not built in; network use depends on the installed connection and compatible Jetdirect hardware.
- The printer has no duplex option and no integrated scanning, which limits its role in busy plan-set and archival workflows.
At 4:45 p.m., somebody needs an Arch D coordination sheet, a marked-up detail, or a color utility map in hand—not a discussion about printer settings. The HP Designjet 510ps 24-in Printer is built for that compact, desk-side technical-print role: roll or sheet output up to 24 inches wide, HP-GL/2 and HP-RTL support, and an automatic cutter for most supported media.
It fits smaller AEC teams that still produce regular drawings but do not need a dedicated plan-room machine. HP rates draft A1 color line drawings at 31 A1 prints per hour, with an 80 sec/page draft figure. That is useful context for single plots and modest batches. It is not a promise that a mixed set of PDFs, sheet changes, roll reloads, and last-minute redlines will behave like a stopwatch. Nothing in a print room does.
24"Print widthSized for ANSI A through D and Arch A through D media.
31 A1 prints per hourRated draft line outputHP-rated color line-drawing speed on plain paper.
80 sec/pageRated draft plot timeFor an A1 color line drawing.
+/- 0.2 %Line accuracyRelevant when scale-sensitive drawing output is the job.
Where it earns its floor space
This is a sensible fit for an architect’s satellite office, a field engineering group, or a construction office producing occasional plan sheets, permit exhibits, color-coded coordination drawings, and GIS-style maps. The practical minimum line width is 0.003 in, and the maximum resolution is 2400 x 1200 DPI. On ordinary bond, that combination is aimed at readable linework, text, and color callouts rather than high-volume set production.
One roll input means one media choice at a time. Load bond for plans, then change media when a presentation sheet or photo output is needed. The printer supports bond, coated and technical media, film, photographic media, self-adhesive material, banner/sign media, and canvas. The cutter handles supported media except canvas. That flexibility is handy. It also means the operator remains part of the workflow.
Bottom line: It works best when a small team values local 24-inch output more than unattended mixed-media production.
Connectivity and workflow: check the boring parts first
The standard connection is USB Type-A, with one USB 2.0 port and a parallel port; Ethernet LAN is not built in, and there is no embedded web server. Compatible HP Jetdirect accessories are listed, including the HP Jetdirect 620n Fast Ethernet print server and later Jetdirect options. For IT, that changes the conversation from “put it on the network” to “confirm the installed interface, print-server configuration, and support plan.”
The listed operating systems are older Windows releases and Mac OS X versions, while bundled software is EFI Designer Edition 5.1. That does not automatically settle how it will behave in a current CAD, BIM, or PDF environment. It does mean a buyer should validate the exact submission path before moving production work onto it. Send a real PDF with screened fills, small text, and a title block—not a cheerful test page.
Bottom line: The mechanical print task is straightforward; the workstation and network path deserve the pre-purchase test.
Estimate rated plotting time for a batch, then allow real deadline time for file processing, media changes, and collecting the set.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 256 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Capacity limits and family context
The 510ps accepts one roll, up to 24 inches wide, plus single sheets up to 24 x 75 inches. It has no duplex option. Those are reasonable boundaries for proof sheets, bid exhibits, and limited drawing runs. They become a bottleneck when several people are feeding alternating sheet sizes, paper types, and revisions into the queue.
If scanning and copying wide drawings are part of the requirement, the catalog-listed HP DesignJet T918 36-in is the relevant in-family step-up reference: it is a 36-inch scanner/MFP, though it is listed as discontinued. For a current 24-inch cross-brand alternative, compare the workflow needs against the Canon GP-200 24-in rather than assuming matching width means matching fit. Use the side-by-side comparison to keep the discussion tied to the actual configuration.
Bottom line: One roll and no integrated scan path are manageable limits for a small office, not a central reprographics queue.
Useful next checks
HP DesignJet T918 36-inA catalog-listed 36-inch scanner/MFP reference for teams that need wider output and document capture.Canon GP-200 24-inA current 24-inch alternative to review alongside the same office workflow.24-inch technical printer rankingSee where this model sits within its class.How we evaluate technical printersThe criteria behind our workflow-focused comparisons.
The read
The HP Designjet 510ps 24-in Printer is for the office that needs dependable access to occasional 24-inch CAD and PDF output, has somebody nearby to manage media, and can validate its USB or Jetdirect-based workflow. It supports HP 11 and HP 82 inks, with pigment-based black and dye-based color inks. Its 85.3 lb footprint and 49.3 x 18.5 x 13.7 in dimensions make it easier to place than a larger production device, especially with the optional HP Designjet 5xx/8xx 24-inch Stand. For frequent multi-user plan sets, roll switching, scanning, or current-network management expectations, move up in workflow—not just width. Bottom line: A good local plotter when the queue is short; the wrong tool when the print room is the project’s emergency room.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T3475
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 24 in |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Black, Cyan, Magenta, Yellow |
| Page description languages | HP-GL/2, HP-RTL |
| Maximum print size | 610 x 1897 mm |
| Maximum roll diameter | 3.94" (10 cm) |
| Ethernet | No |
Specifications
Full technical detail
Max resolution2400 x 1200 DPI
Max print width24"
ColorColor
ConnectivityUSB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print head | 4 |
| Printing colors | Black, Cyan, Magenta, Yellow |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | HP-GL/2, HP-RTL |
| Print time color line drawing (draft, A1) | 80 sec/page |
| Print speed color line drawing (draft, A1 plain paper) | 31 A1 prints per hour |
| Print time black and white line drawing (draft, metric A1 plain paper) | 80 sec/page |
Performance
| Certification | RoHS, WEEE |
|---|---|
| Memory upgrade | 0.256 GB |
Paper handling
| Roll paper | Yes |
|---|---|
| Media handling | Single sheet feed, roll feed, automatic cutter (cuts all media except canvas) |
| Roll top margin | 0.197" (5 mm) |
| Print margin roll | 0.197" (5 mm) |
| Custom media sizes | 8.3 x 8.3 to 24 x 74.7 in 210 x 210 to 610 x 1897 mm |
| Maximum print size | 610 x 1897 mm |
| Maximum roll length | 1799.2" (45.7 m) |
| Duplex print options | N |
| Standard media sizes | 610 mm models: 140 x 140 to 610 x 1897 mm sheets, 458 to 610 mm rolls 1067 mm models: 140 x 140 to 1067 x 1897 mm sheets, 458 to 1067 mm rolls |
| Maximum roll diameter | 3.94" (10 cm) |
| Media types supported | Bond and coated, technical, film, photographic, proofing, self-adhesive, banner and sign, canvas |
| Print margin cut-sheet | 17 x 17 x 5 x 5 |
| Maximum length of sheet media | 1897 mm |
| Media sizes supported (imperial) | ANSI A, B,C, D; Arch A, B, C, D |
| Non-printable area roll media (imperial) | 0.2 x 0.2 x 0.2 x 0.2 in |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | No |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Parallel ports quantity | 1 |
Weight & dimensions
| Weight | 85.3 lbs (38.7 kg) |
|---|---|
| Size (imperial) | 24" |
| Weight (imperial) | 85.3 lbs |
| Dimensions (WxDxH) | 49.3 x 18.5 x 13.7" (1253 x 470 x 349 mm) |
Power
| Power requirements | Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz, 3 A max |
|---|---|
| Power consumption (off) | 1.5 W |
| Power consumption (PowerSave) | 17 W |
Operational conditions
| Storage temperature (T-T) | -40 – 60 °C |
|---|---|
| Operating temperature (T-T) | 59 – 95 °F |
| Operating altitude (imperial) | 9842 ft |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
| Recommended operating temperature range (T-T) | 15 – 35 °C |
Other features
| Safety | Compliant with the requirements for ITE products: EU Low Voltage Directive, US and Canada CSA certified, Mexico NOM-1-NYCE, Argentina IRAM, China CCIB and CCEE, Singapore PSB, Russia GOST, Poland PCBC |
|---|---|
| Ink drop | 4 pl (colour), 18 pl (black) |
| Photo paper | Yes |
| Air pressure | 0.69 mmH2O |
| Coated paper | Yes |
| Line accuracy | +/- 0.2 % |
| Line width minimum | 0.0008 in (theoretical value); 0.003 in (practical value) |
| Roll maximum input | 1 |
| Embedded web server | No |
| Acoustic power emissions | 6.5 B(A) (active/printing), 4.4 B(A) (standby) |
| Acoustic pressure emissions | 52 dB |
| Minimum system requirements | Microsoft Windows 7, Windows Vista, Windows XP, Windows Server 2008, Windows Server 2003: Pentium 4 (1 GHz), 1 GB RAM, 2 GB available hard disk space Macintosh: Mac OS X (10.3, 10.4, 10.5): PowerPC G4, G5, or Intel Core Processor, 1 GB RAM, 2 GB available hard disk space |
| Electromagnetic compatibility | Compliant with the requirements for class B ITE products: EU (EMC directive), US (FCC rules), Canada (DoC), Australia (ACA), New Zealand (MoC), China (CCIB), class A for Korea (MIC), Taiwan (BSMI) |
| JetDirect Compatible Products | Y |
| Compatible ink types, supplies | Dye-based (colour), pigment-based (black) |
| Maximum media length (imperial) | 74.7" |
| Maximum print length (imperial) | Unlimited (depends on media thickness) |
| Acoustic power emissions (standby) | 44 dB |
| Print quality (black, best quality) | 2400 x 1200 DPI |
| Print quality (color, best quality) | 2400 DPI |
| Acoustic pressure emissions (standby) | 29 dB(A) |
| Media sizes standard (imperial rolls) | 8.3 to 24-in wide sheets; 18 to 24-in rolls |
| Non-printable area (imperial cut-sheet) | 0.7 x 0.7 x 0.2 x 0.2 in |
| Minimum system requirements for Macintosh | Macintosh Mac OS X (10.4, 10.5): PowerPC G4, G5, or Intel Core Processor, 512 MB RAM, 1 GB available hard disk space |
Logistics data
| Quantity per pallet | 1 pc(s) |
|---|
Packaging data
| Package weight | 134.5 lbs (61 kg) |
|---|---|
| Bundled software | EFI Designer Edition 5.1 |
| Package weight (imperial) | 134 lbs |
| Package dimensions (WxDxH) | 60.6 x 25.4 x 29" (1540 x 645 x 737 mm) |
| Package dimensions (W x D x H) | 60.6 x 25.4 x 29" |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
System requirements
| Mac compatibility | Yes |
|---|---|
| Compatible operating systems | Microsoft Windows 7; Windows Vista; Windows XP Home; Windows XP Professional; Windows Server 2008; Windows Server 2003; Mac OS X v 10.4; Mac OS X v 10.5; Mac OS X v 10.6 |
Everything that fits the HP DesignJet 510ps
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
6 ink cartridges · 4 printheads · 99 paper & media items · 5 accessories · 2 coverage plans
HP DesignJet 510ps ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet 510ps 24-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 6
Printheads 4
Paper & Media 92
Representative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative imageHP Universal Gloss Photo Paper
HP Universal Coated PaperRepresentative imageHP Universal Bond Paper, 4-packRepresentative imageHP Bright White Inkjet Paper, 4-packRepresentative imageMagic 36LB Heavyweight Coated Inkjet Paper (JS036)Representative imageMagic 98gsm/26# Coated Matte Paper (DMPG98)Representative imageMagic 4mil Inkjet Clear Film w/ Side Stripe (DMCF4HPS)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)
HP Q1733A printing paper Matte 1 sheets White
HP Two-view Cling Film
HP Two-view Cling Film
HP C6568B large format media 45.7 m
HP Q1408A plotter paper
HP Q1430A photo paper Brown, White
HP White Matte Polyester Film
HP Q1420A photo paper Brown, White
HP Q1760A large format media 45.7 m Matte
HP Matte Film 610 mm x 38.1 m (24 in x 125 ft)
HP C6570C large format media 30.5 m
HP High-gloss White
HP Matte Polypropylene 1372 mm x 22.9 m (54 in x 75 ft)
HP Reverse Print Matte Backlit Film
HP C6035A large format media 45.7 m
HP C6036A printing paper Matte White
HP C6567B plotter paper
HP Universal Semi-gloss Photo Paper

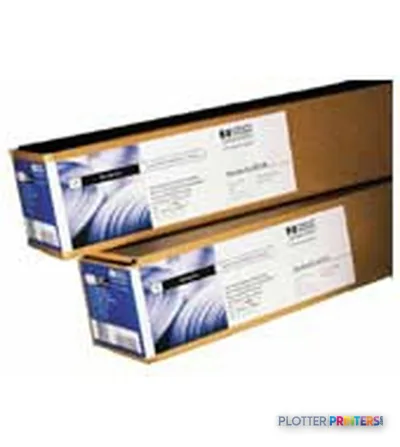

HP C6777A printing film
HP Clear Film 174 gsm-610 mm x 22.9 m (24 in x 75 ft)
HP C7950A large format media 30.5 m Matte
HP Q1904A printing film
HP Matte Polypropylene 1524 mm x 22.9 m (60 in x 75 ft)
HP Q1421A photo paper Brown, White
HP Q1757A printing paper Matte Yellow
HP Reverse Print Matte Backlit Film
HP Reverse Print Matte Backlit Film
HP Q1724A large format media 10.7 m Matt
HP Q1416A large format media 30.5 mRepresentative imageHP Heavyweight Coated Paper, 42 in x 100 ft (C6569C)
HP Q1730A large format media 30.5 m
HP Q1908A printing film
HP Universal Semi-Gloss Photo Paper
HP Adhesive Vinyl 914 mm x 12.2 m (36 in x 40 ft)
HP Q1961A large format media
HP Q1962A large format media
HP Q1967A printing paper A3+ (330×483 mm) Matte 100 sheets White
HP Q1968A large format media 30.5 m Matte
HP C7949A large format media 30.5 m Matte
HP Q1902B large format media
HP Q1898B large format media
HP Q1899B large format media
HP Q6579A photo paper Brown, White
HP Q6580A photo paper Matte
HP Q6581A photo paper
HP Q6583A photo paper Brown, White
HP Q6578A photo paper Brown, White
HP Q6588A large format media Matte
HP Q6596A large format media Matte
HP Durable Display Film
HP Q1441A large format media 45.7 m
HP Q1442A large format media 45.7 m
HP Q1444A printing paper Matte
HP Q1445A printing paper Matte
HP Q7897A large format media 45.7 m
HP Matte Proofing 458 mm x 30.5 m (18 in x 100 ft) printing paper
HP Q7971A printing paper Semi-gloss 1 sheets White
HP Q8664A printing paper High-gloss 1 sheets White
HP Q8662A printing paper A3+ (330×483 mm) High-gloss 50 sheets White
HP Q8663A large format media 30.5 m High-gloss
HP CG490A large format media 30.5 m Semi-gloss
HP Premium Semi-gloss Proofing Paper-50 sht/A3+/330 mm x 483 mm (13 x 19 in)
HP CG463A large format media 30.5 m Semi-gloss
HP CG462A printing paper Semi-gloss White
HP Vivid White Glossy Polyester Film
HP PVC-free Banner-914 mm x 15.2 m (36 in x 50 ft)
HP CG816A large format media 15.2 m Matte
HP Vivid White Glossy Polyester Film
HP Cockle-free Heavyweight Coated Paper-914 mm x 30.5 m (36 in x 100 ft)
HP Cockle-free Heavyweight Coated Paper-1067 mm x 30.5 m (42 in x 100 ft)
HP CG822A large format media 22.9 m
HP CG884A large format media 45.7 m Matte
HP CG885A large format media 45.7 m Matte
HP Durable Banner w/ DuPont Tyvek 914 mm x 22.9 m (36 in x 75 ft) large format media Matte
HP Cockle-free Heavyweight Coated Paper-610 mm x 30.5 m (24 in x 100 ft)
HP Cockle-free Coated Paper-610 mm x 45.7 m (24 in x 150 ft)
HP CG892A large format media
HP CG889A large format media 45.7 m
HP CG890A plotter paper
HP CG891A large format media 45 m
HP Canvas Paper 180 g/m²-610 mm x 10.7 m (24 in x 35 ft)
HP Self-adhesive Indoor Paper-610 mm x 22.9 m (24 in x 75 ft)
HP Self-adhesive Indoor Paper-1067 mm x 22.9 m (42 in x 75 ft)
Questions
Straight answers
Is the HP Designjet 510ps 24-in Printer suitable for CAD drawings?
Yes. It supports HP-GL/2 and HP-RTL and handles ANSI A-D and Arch A-D media sizes. Its practical minimum line width is listed as 0.003 in, with line accuracy of +/- 0.2 %.
How fast is it for a typical technical drawing?
HP rates draft A1 color line drawings on plain paper at 31 A1 prints per hour, or 80 sec/page. Treat that as a rated line-drawing figure, not total turnaround time for a mixed batch of files and media.
Can it print directly from the network?
Ethernet LAN is not built in, and the printer has no embedded web server. Compatible HP Jetdirect print-server accessories are listed, so the exact installed configuration should be confirmed before deployment.
Can it scan redlines or copy existing plans?
No scanner or copy function is listed for this printer. Teams that need integrated wide-format scanning and copying should consider the catalog-listed HP DesignJet T918 36-in, which is a scanner/MFP and is listed as discontinued.
What media can it handle?
It supports bond, coated and technical media, film, photographic and proofing media, self-adhesive media, banner/sign media, and canvas. It accepts roll and single-sheet feed; the automatic cutter does not cut canvas.
Which inks does it use?

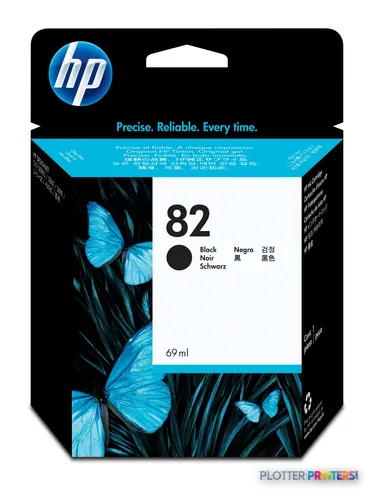

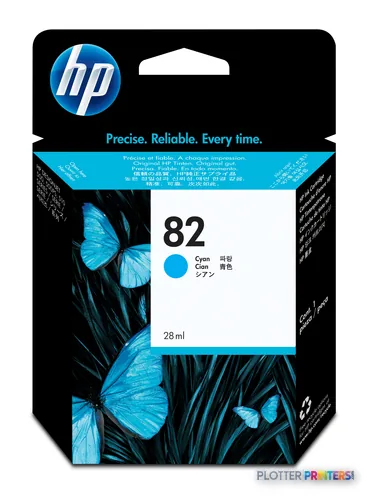

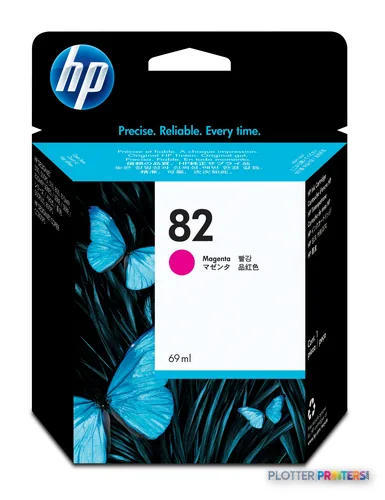

Compatible ink families listed for this model are HP 11 and HP 82. The printer uses pigment-based black ink and dye-based color inks.
Ready to put the HP DesignJet 510ps to work?
Configuration, media and a quote tailored to your workflow — from AEC plotter specialists.
