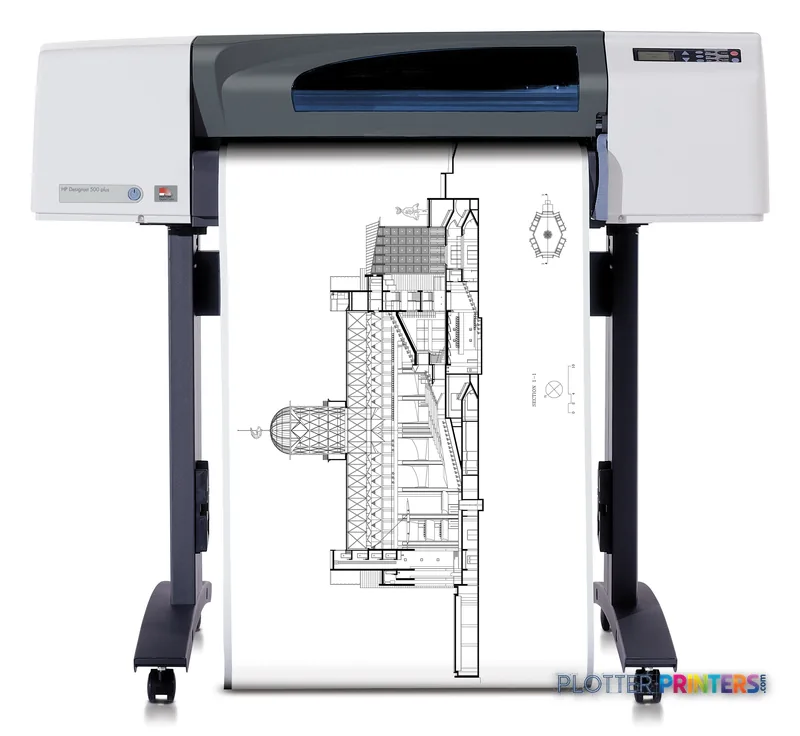

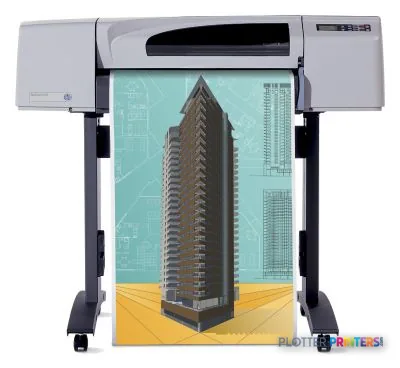

HP DesignJet 500 Plus
24" technical / CAD plotter
- Model500 Plus
- Prints24" wide
- Score45/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The 24-inch maximum width supports ANSI D and Arch D output, but not 36-inch or Arch E drawing workflows.
- Roll feed, single-sheet feed, and an automatic cutter fit everyday technical plotting with occasional specialty media.
- The specified +/- 0.2 % line accuracy and HP-GL/2 support make it relevant to CAD-oriented document work.
Not sure if the 500 Plus is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 24" wide on rolls and sheets.
- Fine detail 1200 x 600 DPI maximum resolution for crisp line work.
- Analyst score Scores 45/100 in our class-relative rating.
Overview
Built for the work
HP Designjet 500 Plus 24-in Roll Printer, 1200 x 600 DPI, HP-GL/2, 3.3 sqm/h., 4 (1 each black, cyan, magenta, yellow), 610 x 1067 mm, Paper (plain, inkjet, coated, heavyweight coated, high-gloss, semi-gloss, natural tracing, photo),…
- 24″Max print width
- 118 ft²/hRated speed
- 4Ink channels
- 1,200 dpiMax resolution
Spec Analysis
overall
overall
Where it performs best
Size / Fit
96
Media Handling
67
Print Quality
64
Class best is 60. How we grade →
Expert analysis
What you should know
Key takeaways
- The 24-inch maximum width supports ANSI D and Arch D output, but not 36-inch or Arch E drawing workflows.
- Roll feed, single-sheet feed, and an automatic cutter fit everyday technical plotting with occasional specialty media.
- The specified +/- 0.2 % line accuracy and HP-GL/2 support make it relevant to CAD-oriented document work.
- USB is standard, while built-in Ethernet LAN and an embedded web server are absent.
- The printer is better suited to a small office or field team than a centralized, unattended production environment.
At 4:45 p.m., the question is not whether a plotter can make a pretty page. It is whether the permit sheet, detail set, or color-marked coordination drawing comes out cleanly before somebody heads to the meeting. The HP Designjet 500 Plus 24-in Roll Printer is a compact 24-inch color printer for teams producing Arch D and smaller technical documents from roll or cut-sheet media.
It suits a small architecture studio, engineering satellite office, survey team, or jobsite trailer that needs dependable everyday plots without turning document production into a separate department. It handles plain, coated, tracing, photo, clear-film, and matte-film media, with an automatic cutter for roll work. The trade-off is an older-style, direct-connect workflow: USB is standard, while Ethernet LAN and an embedded web server are not built in.
24" (610 mm)Maximum print widthFits ANSI D and Arch D output.
+/- 0.2 %Line accuracyRelevant when drawing scale and geometry need to hold together.
3.3 sqm/h.Rated normal-quality speedTreat rated speed as a planning figure, not a bid-deadline promise.
Up to 1.5 min/pageColor line drawingHP’s draft-mode A1 rating.
Where it earns its floor space
The 24-inch width is the practical dividing line here. This machine supports ANSI A through D and Arch A through D sizes, with a maximum print size of 24 by 42 inches. That covers many detail sheets, field markups, civil exhibits, MEP coordination sheets, and compact permit packages. It does not solve the Arch E or 36-inch drawing problem. Paper can arrive by roll or single-sheet feed, so a user can run a routine bond plot and then feed a special sheet without dismantling the whole afternoon.
For CAD output, the HP-GL/2 page-description language matters. That is familiar territory for established technical-print workflows. The specified line accuracy of +/- 0.2 % and minimum black line width of 0.0035 inch give this printer a credible role in line-focused documents, where faint grids and small callouts are more important than glossy presentation color.
Bottom line: This is a focused Arch D technical printer, not a wide-format production hub.
Color drawings, media, and the workflow catch
The four-printhead system uses one each for black, cyan, magenta, and yellow. Black uses pigment ink; cyan, magenta, and yellow use dye-based ink. That combination is useful for everyday CAD linework plus color-coded phasing plans, utility maps, and coordination drawings. Maximum resolution is 1200 x 600 DPI, and HP rates draft A1 color line drawings at up to 1.5 minutes per page. Fine. A real batch still includes file processing, roll loading, trimming, and the inevitable moment when the one sheet you need is the one nobody loaded.
Supported media include plain, inkjet, coated, heavyweight coated, high-gloss, semi-gloss, natural tracing, photo paper, clear film, and matte film. Compatible supply families listed for this model include HP 10, HP 11, and HP 82 inks. Check the actual installed cartridge configuration before ordering supplies; older technical printers reward that small bit of homework.
Bottom line: It can handle practical AEC color and specialty media, but it is built around controlled, hands-on output rather than unattended queues.
Use the estimator to plan a plotting window from the verified rated speed, then leave room for media changes and set handling.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 118 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Network and fleet reality
The main limitation is not print width. It is connectivity. The printer has one USB 2.0 port and no built-in Ethernet LAN or embedded web server. It is JetDirect compatible, and the catalog lists the HP Jetdirect 620n Fast Ethernet print server as an accessory. That can matter in a managed office, but IT should confirm the intended connection method, driver path, authentication expectations, and support boundaries before this becomes a shared departmental device.
The front panel is a front LCD with five buttons. There is no duplex option. At 49.3 by 18.5 by 13.7 inches and about 85 lb, it is easier to place than a larger print-room machine, though it still needs clear access for roll loading and output handling. If scanning, copying, 36-inch work, or a wider MFP workflow is the actual requirement, the catalog’s HP DesignJet T918 36-in is the in-family alternative, though it is listed as discontinued.
Bottom line: A USB-first setup is manageable for a small team; it is a poor fit when centralized network control is non-negotiable.
Compare the practical alternatives
HP DesignJet T918 36-inA listed discontinued in-family 36-inch scanner/MFP alternative for workflows that need wider output and document capture.Canon GP-200 24-inA current 24-inch cross-brand option for teams comparing format and technical-print capability.Compare the two 24-inch printersPut the HP Designjet 500 Plus 24-in Roll Printer beside the Canon GP-200 24-in.View the 24-inch technical-printer rankingSee this printer in its class context.
The read
The HP Designjet 500 Plus 24-in Roll Printer makes sense for a small AEC team that prints Arch D and smaller sheets, values roll-and-sheet flexibility, and can live with a USB-centered workflow. Its strongest use is routine linework with occasional color plans, maps, and presentation sheets—not high-volume set production, network-heavy print management, scanning, or wider drawings. Before committing, run your own PDFs and CAD files, confirm the connection plan, and make sure the local support path understands older technical-print equipment. Bottom line: Buy it for disciplined 24-inch document output, not because someone hopes it will become the print room.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T3475
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 24 in |
|---|---|
| Maximum resolution | 1200 x 600 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2 |
| Internal memory | 32 MB |
| Maximum print size | 610 x 1067 mm |
| Ethernet | No |
| Power consumption | 150 W |
Specifications
Full technical detail
Max resolution1200 x 600 DPI
Max print width24"
ConnectivityUSB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print head | 4 (1 each black, cyan, magenta, yellow) |
| Maximum resolution | 1200 x 600 DPI |
| Color printing technology | HP Color Layering Technology |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2 |
| Print speed (normal quality) | 3.3 sqm/h. |
| Print time color line drawing (draft, A1) | Up to 1.5 min/page |
| Print speed (color image, draft quality, coated paper) | 10.9 m2/hr 117.8 ft2/hr |
Performance
| Internal memory | 32 MB |
|---|---|
| Processor frequency | 2000 MHz |
| Drive device, buffer size | 0.064 MB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| Media handling | Single sheet feed, roll feed, automatic cutter |
| Paper handling | Single sheet feed, roll feed, automatic cutter |
| Roll top margin | 0.197" (5 mm) |
| Print margin roll | 0.197" (5 mm) |
| Bottom copy margin | 17 mm |
| Custom media sizes | 210 x 210 – 610 x 15240 mm |
| Maximum print size | 610 x 1067 mm |
| Maximum media width | 610 mm |
| Maximum paper trays | 2 |
| Maximum roll length | 1799.2" (45.7 m) |
| Duplex print options | None (not supported) |
| Maximum print length | 598.4" (15.2 m) |
| Standard media sizes | 500 Plus, 500ps Plus (24 in): ISO A1, ISO A2, ISO A3, ISO A4; 500 Plus, 500ps Plus (42 in): ISO A0, ISO A1, ISO A2, ISO A3, ISO A4 |
| Media types supported | Paper (plain, inkjet, coated, heavyweight coated, high-gloss, semi-gloss, natural tracing, photo), Clear film, Matte film |
| Print margin cut-sheet | 17 x 17 x 5 x 5 |
| Top metric copy margin | 17 mm |
| Left metric copy margin | 5 mm |
| Recommended media weight | 496 g/m² |
| Right metric copy margin | 5 mm |
| Maximum length of sheet media | 1897 mm |
| Media sizes supported (imperial) | ANSI A, B, C, D; Arch A, B, C, D |
| Non-printable area roll media (imperial) | 0.2 x 0.2 x 0.2 x 0.2 in |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | No |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Parallel ports quantity | 1 |
Weight & dimensions
| Weight | 84.9 lbs (38.5 kg) |
|---|---|
| Size (imperial) | 49" |
| Weight (imperial) | 85.3 lb |
| Dimensions (WxDxH) | 49.3 x 18.5 x 13.7" (1253 x 470 x 349 mm) |
Power
| Power requirements | 100 – 240 V, 50/60 Hz |
|---|---|
| Power consumption (typical) | 150 W |
Operational conditions
| Storage temperature (T-T) | -40 – 60 °C |
|---|---|
| Operating temperature (T-T) | 59 – 95 °F |
| Operating relative humidity (H-H) | 20 – 80% |
| Recommended operating temperature range (T-T) | 5 – 40 °C |
Other features
| Safety | Compliant with the requirements for ITE products: EU Low Voltage Directive, USA and Canada CSACertified for US & Canada, Mexico NOM-1-NYCE, Argentina IRAM, China CCIB & CCEE, Singapore PSB, Russia GOST, Poland PCBC. |
|---|---|
| Ink drop | 18 pl (Black), 4 pl (Color) |
| Opaque film | Yes |
| Photo paper | Yes |
| UNSPSC-code | 43212107 |
| Coated paper | Yes |
| Glossy paper | Yes |
| Control panel | Front LCD, 5 front-panel buttons |
| Line accuracy | +/- 0.2 % |
| Line width minimum | 0.0035 in (black), 0.027 in (color) |
| Minimum line width | 0.00167" (0.0423 mm) |
| Embedded web server | No |
| Maximum internal memory | 160 GB |
| Acoustic power emissions | 65 dB(A) |
| Acoustic pressure emissions | 52 dB |
| Minimum system requirements | Microsoft Windows 2000, XP Home, XP Professional; Mac OS X v 10.2.3 or higher Microsoft Windows 2000, 2003 Server: Pentium II, 733 MHz, 256 MB RAM, 2 GB available hard disk space; Microsoft Windows XP: Pentium IV, 1 GHz, 256 MB RAM, 2 GB available hard disk space |
| Electromagnetic compatibility | Compliant with the requirements for Class B ITE products (Class A when connected to LAN cables): EU EMC Directive, USA FCC rules, Canada DOC, Australia ACA, New Zealand MoC, China CCIB, Class A for Korea MIC, Taiwan BSMI |
| JetDirect Compatible Products | Y |
| Compatible ink types, supplies | Black: HP pigment ink; Cyan, Magenta, Yellow: HP dye-based ink |
| Maximum media length (imperial) | 74.7" |
| Maximum print length (imperial) | 49.2 ft |
| Print quality (black, best quality) | 1200 x 600 DPI |
| Print quality (color, best quality) | 1200 DPI |
| Media sizes standard (imperial rolls) | 8.3- to 24-in wide sheets, 24-in rolls |
| Non-printable area (imperial cut-sheet) | 0.7 x 0.7 x 0.2 x 0.2 in |
| Minimum system requirements for Macintosh | For use with EFI Designer Edition XL RIP on Mac OS X 10.2.1 and higher: Power Mac G3, G4 or G5, iMac, eMac, PowerBook G3 or G4 or iBook, 256 MB RAM, 1 GB free hard drive, CD-ROM or DVD-ROM, 1 free USB port for copy protection |
Logistics data
| Quantity per pallet | 1 pc(s) |
|---|
Packaging data
| Package weight | 134.5 lbs (61 kg) |
|---|---|
| Bundled software | HP Designjet software for Windows and Macintosh, EFI Designer Edition XL RIP for HP Designjet 500ps Plus Printer (available only with 500ps Plus models) |
| Package weight (imperial) | 134 lbs |
| Package dimensions (WxDxH) | 60.6 x 25.4 x 29" (1540 x 645 x 737 mm) |
| Package dimensions (W x D x H) | 60.6 x 25.4 x 29" |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
System requirements
| Mac compatibility | Yes |
|---|---|
| Compatible operating systems | Microsoft Windows 2000, XP Home, XP Professional; Mac OS X 10.2.3 + |
