Home / Wide-Format Printers / Epson SureColor

Epson · Wide-Format Plotter

Epson SureColor T5200D

color graphics & photo printer

ModelSCT5200DPS1YR
Score50/100

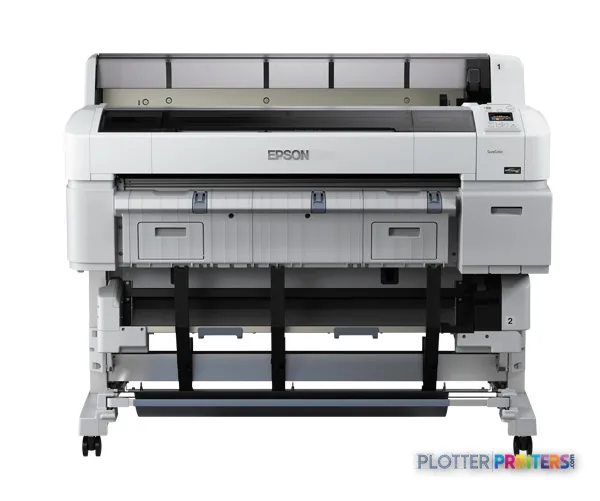

Epson SureColor T5200D large-format printer product image, white printer with open paper feed mechanism

Authorized Epson dealerGenuine hardware & ink

Manufacturer warrantyExtendable to 5 years

Free shippingContinental U.S.

Plotter specialistsAEC experts, not just sellers

Analyst take

Dual-roll design lets bond and coated stock stay loaded together, removing operator media swaps between check prints and presentation sets.
Epson rates dimensional accuracy at 0.2%, the figure surveyors and civil engineers should weigh most.
PrecisionCore TFP with UltraChrome XD pigment ink delivers durable black line work on ordinary bond.

Not sure if the SCT5200DPS1YR is right for you?

Compare key specs and an AI analyst read-out against similar models.

Compare printers →

Fine detail 2880 x 1440 DPI maximum resolution for crisp line work.
Ink platform Black, Cyan, Magenta, Yellow.
Connectivity Ethernet for shared team printing.
Analyst score Scores 50/100 in our class-relative rating.

Overview

Built for the work

Epson SureColor T5200D, 2880 x 1440 DPI, ESC P, HP-GL, HP-GL/2, HP-RTL, PostScript 3, Black, Cyan, Magenta, Yellow, PrecisionCore TFP with VSDT and Auto Head Alignment, 600 x 600 DPI, CIS

Spec Analysis
overall

Where it performs best

Size / Fit 77

Print Quality 72

Connections 67

How we grade →

Expert analysis

What you should know

By Priya VenkatesanColor & Imaging Editor

Key takeaways

Dual-roll design lets bond and coated stock stay loaded together, removing operator media swaps between check prints and presentation sets.
Epson rates dimensional accuracy at 0.2%, the figure surveyors and civil engineers should weigh most.
PrecisionCore TFP with UltraChrome XD pigment ink delivers durable black line work on ordinary bond.
Speaks HP-GL/2, HP-RTL and PostScript 3 with 1024 MB memory, covering legacy AutoCAD and modern PDF workflows without a separate RIP for most firms.
No scanner or copy function — legacy drawing capture remains a separate purchase or the SC-T7200D MFP.
At 50 dB and a self-contained footprint it is tolerable in an office, not just a print room.

Every AEC print operation eventually hits the same wall: someone needs a full-size D or E plot, the file is a 40-layer coordination sheet, and the plotter three desks over is either busy, out of the right roll, or belongs to another department entirely. The Epson SureColor T5200D is Epson’s answer to the second problem — a compact 36-inch dual-roll machine built to sit inside a firm rather than in a dedicated print room.

The “D” is the point. Two rolls mean you can keep bond loaded for check prints and coated stock loaded for the presentation set, and let the printer choose without an operator walking over to swap media. That saves minutes, and minutes are money.

A0 (33" x 47" (841 x 1189 mm))Max print size36-in class

2880 x 1440 DPIResolutionPrecisionCore TFP

0.2%Dimensional accuracyEpson-rated

50 dBNoise (printing)office-tolerable

Line quality and the daily grind

The engine is PrecisionCore TFP with Variable-Sized Droplet Technology and Auto Head Alignment, running Epson UltraChrome XD pigment ink across five cartridges (CMYK plus a second black feed). For AEC work that translates to the two things that actually matter: crisp fine lines on ordinary bond, and pigment black that survives a rolled-up as-built in a job-site trailer.

Epson rates dimensional accuracy at 0.2%, which is the spec surveyors and civil engineers should read twice — a scaled plat or a site plan that prints long is a plan that gets re-plotted. It handles media from 0.003″ to 0.059″ thick and cut sheets as well as roll, so it isn’t limited to bond.

On the plumbing side it speaks HP-GL/2, HP-RTL and PostScript 3, with 1024 MB of memory, Ethernet and a USB Type-A port. That covers legacy AutoCAD driver output and modern PDF-from-Bluebeam workflows without a separate RIP for most firms.

How it sits in the family

Think of the T5200D as the productivity-minded 36-inch option. If your volume is lighter and single-roll suits you, the Epson T5270 covers the same 36-inch width without the second roll. Step down further in width and the Epson T3200 handles 24-inch work for firms whose sheets rarely exceed C-size.

Going the other way, when 36 inches stops being wide enough — large presentation boards, GIS wall maps, or genuine reprographics volume — the family’s dual-roll 44-inch machines are the honest upgrade. The Epson SureColor T7072DR and the Epson T7770DR 44-in give you the extra width and roll capacity. And if scanning and copying belong on the same box, the Epson SC-T7200D MFP folds that in. Compare the T5200D against the single-roll T5270 before you decide the second roll is worth the footprint.

IT, security and the boring costs

This is where firms under-budget. The T5200D lands on the network via a single RJ-45 Gigabit-class port with an onboard LCD for local jobs and USB Type-A for walk-up plotting. There is no scanner and no copy function on this model — if legacy drawing capture matters, that stays a separate line item.

Plan for the recurring items: Epson UltraChrome XD ink across five slots and the Epson C13S042332WB maintenance box, which is a consumable, not an accessory. Draw your dealer into a conversation about ink accounting and firmware management before signing, because a plotter with no user authentication is a plotter every project charges to whoever plotted last.

Keep reading

36-inch AEC plotter rankingsWhere the T5200D sits against its class Epson SC-T7200DThe scanner-equipped MFP sibling Epson SureColor T7072DRThe dual-roll 44-inch step-up

The read

The T5200D is a well-judged in-firm plotter: dual-roll convenience, dependable pigment line work, and enough language support to drop into an existing CAD/PDF workflow without drama. It is not a reprographics department, and it does not scan. Choose the T5200D if you plot D/E sheets regularly and want bond and coated stock live at once without an operator babysitting media. Choose the single-roll T5270 if one media type covers your week. Move up to a 44-inch dual-roll machine like the T7770DR 44-in if width or volume is your real constraint — and add the SC-T7200D instead if scan-to-file has to live on the same box. Buy for the workflow you have, not the brochure’s.

Spec analysis

How the specs grade

Overall performance

within color graphics & photo printers

64% spec coverage

This printer

How it scores

Media Handling43

Print Quality72

Print CostNot enough spec data

Color36

SpeedNot enough spec data

Connections67

Workflow30

Size / Fit77

WarrantyNot enough spec data

Graded on a curve against the best published spec among the wide-format printers we track — 100 = the catalog’s gold standard for that metric (the finest droplet, the longest warranty, the fastest rated speed actually on the market). Every input is a manufacturer-published spec; rated speeds are shown as listed, not timed throughput. Ticks mark the class best. How we grade →

Verified specifications

The specs that decide it

Maximum resolution	2880 x 1440 DPI
Printing colors	Black, Cyan, Magenta, Yellow
Number of print cartridges	5
Page description languages	ESC P, HP-GL, HP-GL/2, HP-RTL, PostScript 3
Internal memory	1024 MB
Maximum print size	A0 (841 x 1189 mm)
Media thickness	0.08 – 1.5 mm
Maximum roll diameter	5.91" (15 cm)
Ethernet	Yes
Sound level (printing)	50 dB

Specifications

Full technical detail

Max resolution2880 x 1440 DPI

ColorColor

ConnectivityEthernet (Gigabit LAN), USB

Use caseCAD / Technical

Printing

Color	Yes
Print head	PrecisionCore TFP with VSDT and Auto Head Alignment
Printing colors	Black, Cyan, Magenta, Yellow
Maximum resolution	2880 x 1440 DPI
Borderless printing	Yes
Number of print cartridges	5
Page description languages	ESC P, HP-GL, HP-GL/2, HP-RTL, PostScript 3

Performance

Display	LCD
Product color	White
Internal memory	1024 MB
Built-in display	Yes
Sound pressure level (printing)	50 dB

Paper handling

Cut sheets	Yes
Roll paper	Yes
Media thickness	0.08 – 1.5 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll diameter	5.91" (15 cm)
ISO A-series sizes (A0…A9)	A0, A1

Ports & interfaces

USB port	Yes
Ethernet LAN	Yes
USB connector	USB Type-A
RJ-45 ports quantity	1
USB 2.0 ports quantity	1

Weight & dimensions

Depth	42.3" (1074 mm)
Width	60.6" (1539 mm)
Height	52" (1321 mm)
Weight	377 lbs (171 kg)

Power

Power supply	116 W

Operational conditions

Operating temperature (T-T)	10 – 35 °C
Operating relative humidity (H-H)	20 – 80%

Copying

Copying	No

Scanning

Accuracy	0.2%
Scan technology	CIS
Optical scanning resolution	600 x 600 DPI

Everything that fits the Epson SureColor SC-T5200D-PS

The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.

26 ink cartridges · 82 paper & media items · 7 accessories · 10 coverage plans

Epson SureColor SC-T5200D-PS ink and paper →

Supplies

Compatible ink, printheads & media

Genuine consumables that fit the Epson SureColor T5200D — only the cartridges, printheads and media compatible with this model.

Questions

Straight answers

What size drawings can the T5200D handle?

It prints up to A0 (33″ x 47″) on 36-inch-class media, covering standard D and E architectural and engineering sheets, plus cut sheets and roll media.

Does it scan or copy?

No. The T5200D is a printer only. If you need integrated scanning and copying on the same device, look at the SC-T7200D MFP in the same family.

Will it work with my existing CAD and PDF workflow?

Yes for most firms — it supports HP-GL/2, HP-RTL and PostScript 3 with 1024 MB of internal memory, which covers legacy AutoCAD driver output and PDF-based submission without a separate RIP in most cases.

How accurate are its plots dimensionally?

Epson rates dimensional accuracy at 0.2%, which is the specification to verify for scaled site plans, plats and survey drawings.

What are the ongoing consumables?

Five Epson UltraChrome XD ink cartridges (CMYK plus a second black) and the Epson C13S042332WB maintenance box, which is a periodic replacement item.

When should I choose a 44-inch model instead?

When 36 inches stops covering your widest sheets or your volume climbs — the dual-roll SureColor T7072DR or T7770DR 44-in add width and roll capacity.
