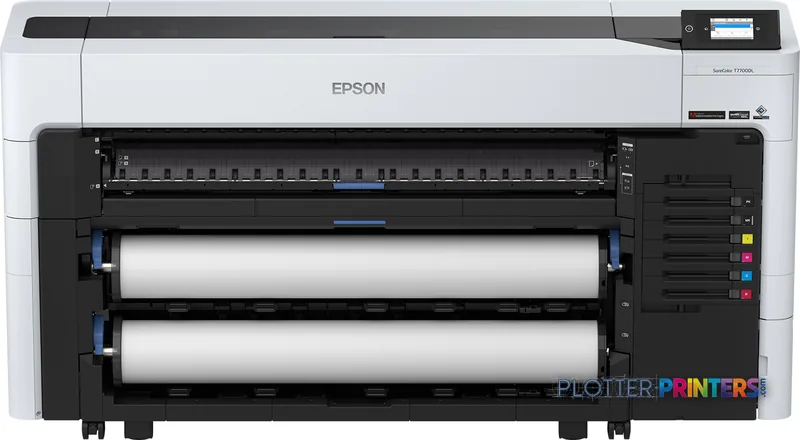

Epson SureColor SC-T7700DL

This model is most convincing for an architecture, engineering, survey, or construction office that needs color wide-format output but does not need to scan legacy plans or copy marked-up sheets at the device. The touch-controlled color LCD and USB port suit local operator use, while direct printing and support for Windows and Mac make it relevant to mixed CAD, PDF, and project-document environments.

Its A0 maximum print size covers many common plan, map, and review-sheet requirements. The specification deserves context: maximum resolution is not, by itself, proof of legibility on every bond stock or PDF. Send representative sheets containing dense details, screened fills, small annotations, and redline colors during evaluation. That is where the cyan edge of a utility layer or a fine structural note either holds together or does not.

For a related same-family option, compare the Epson SC-T7700D 44-in: the catalog lists 1200 x 2400 DPI for that model, versus 2400 x 1200 DPI here. Resolution orientation alone does not establish a winner; test the actual files and media your team uses.

The SC-T7700DL accepts roll media, with a maximum roll diameter of 6.69″ and a rear-roll weight limit of 27.6 lbs. Those limits matter more than a broad “wide-format” label when a print room expects long unattended runs or frequently changes media. Measure the rolls actually used for bond, coated presentation sheets, and maps before committing.

For color work, the listed ink set includes both Matte black and Photo black, plus Red. That is relevant to renderings, exhibit graphics, and discipline-color overlays, but there is no measured ICC gamut data in the supplied record. We therefore cannot responsibly quantify gamut volume or make a measured comparison with another device; ask for output on your chosen media rather than relying on a two-dimensional color claim.

The machine is 72.8″ wide, 19.6″ deep, 38.4″ high, and weighs 341.7 lbs. Confirm delivery path, service clearance, and roll-loading space—not just the footprint on a floor plan.

Do not select the SC-T7700DL when scanning and copying are central to your workflow. Firms regularly converting archived drawings, copying field markups, or routing paper redlines back into digital review need a scanner-equipped process; the catalog lists the Epson SC-T7200 44-in as scanner/MFP equipment, so it is the more relevant family comparison for that requirement.

Likewise, operations that specifically need dual-roll capability should assess the Epson T7770DR 44-in, which the catalog identifies as dual-roll. That advantage matters when teams alternate between media types or sizes and want fewer manual roll interventions. Use the side-by-side comparison to frame the discussion, then have the supplier demonstrate roll changes, file submission, and output handling using a mixed set of your own documents.
