Epson SureColor SC-P5000

This is particularly well suited to architects and engineers who need color output up to A2, but do not need to run large-format plan sets. Think of a design lead checking an elevation with material callouts, an MEP coordinator reviewing colored overlays, or a survey team preparing a compact map sheet. The 250-sheet input capacity can support a shared office queue, provided the work is predominantly sheet-fed and within its A2 maximum.

Windows and Mac operating systems are supported, and the printer offers both USB 2.0 and RJ-45 connectivity. Epson ESC/P2 is the listed page-description language. Those facts establish the basic desktop and network connection options; they do not, by themselves, prove how a particular CAD, PDF, authentication, or chargeback workflow will behave. IT should test its actual PDF and driver path before standardizing deployment.

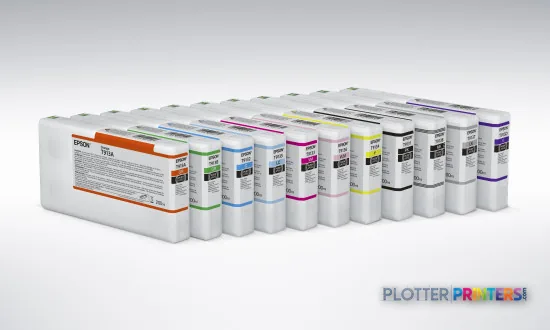

The ink set is the central reason to consider this machine for visual AEC work rather than ordinary monochrome documentation. Orange and green, alongside cyan, magenta, yellow, black, and light ink variants, give the device more tools for rendering graphic content than a basic office printer. The difference matters where photographs, material studies, and saturated wayfinding colors live—not as a blanket promise of color accuracy. No measured ICC gamut data is supplied here, so color-critical teams should evaluate output on their own specified media and profile path.

The supported media-thickness range extends from 0.003″ to 0.059″, which opens the door to a broader selection of sheets than plain bond alone. Confirm the approved media type, feed behavior, and application requirements with the supplier before committing a board or specialty-stock workflow.

The 34″ wide, 30.2″ deep chassis and 114.6 lbs weight make this an office-scale device, but its role should be defined narrowly. It has one input tray, no scanning, and no copying. It may be less appropriate for a construction office that routinely needs full-size bid sets, field copies, or mixed-size document production. Those workflows usually need a wider device and, often, a separate scanning strategy.

Within the same family, the Epson P5300 17-in is the closer alternative for teams staying with a 17-inch-class format but seeking its listed 5760 x 1440 DPI maximum resolution. For teams that need wider drawings, the Epson SureColor P6000 24-in is the more relevant in-family direction because it is a 24-inch printer. Firms needing dual-roll 44-inch capacity should instead examine the Epson P8570DR 44-in.
