A 44-inch, nine-ink UltraChrome HDX pigment printer aimed at graphics-grade output more than plan-set volume.
Maximum resolution is 2880 x 1440 DPI, with Epson-specified dimensional accuracy of 0.2%.
Single-roll design with no built-in scanner and no automatic roll switching limits high-volume mixed-size production.
We did not measure this machine's gamut on our own bench; treat color-volume claims as manufacturer-informed.
Optional Auto Take Up Reel, internal Hard Disk Unit and Adobe PostScript 3 unit extend its workflow reach.
For unattended plan-set work, the dual-roll P8570DR or scanner-equipped SC-P8500DM fit better.
The Epson SureColor P8000 is a 44-inch, nine-ink pigment inkjet that sits in an unusual spot for AEC work: it is fundamentally a photographic and fine-art graphics machine that happens to handle drawings well. For firms that produce competition boards, marketing renderings and client-facing presentation panels alongside the occasional plan set, that distinction is the whole point.
What the eye notices first on a rendered elevation is the shadow work — the deep dusk grays in a dramatic massing study hold their gradation instead of collapsing to black. That comes from the Epson UltraChrome HDX pigment set. But this is a single-roll graphics printer, not a plan-set production tool, and choosing it means choosing image quality over throughput.
2880 x 1440 DPIMaximum resolutionfinest addressable detail on this machine
9Ink channelsUltraChrome HDX pigment
44" (1117.6 mm)Sheet media widthhandles ARCH E and larger rolls
The nine-channel Epson UltraChrome HDX pigment system is the reason to consider this printer over a faster four- or five-ink device. On a saturated presentation board, the difference shows up in the last few percent of a deep red masonry tone and in the way a photographic context shot keeps its skin tones and sky transitions instead of banding. Note that we did not measure this machine’s gamut on our own bench, so treat any color-volume claim as manufacturer-informed rather than desk-verified — the qualitative point stands regardless: this is a graphics-grade ink set, not a line-drawing utility set.
For fine-line CAD work the 2880 x 1440 DPI ceiling and the pigment inks render crisp black linework and small annotation text cleanly on bond, and Epson specifies dimensional accuracy of 0.2%, which matters when a surveyor or structural engineer scales off a print.
The workflow it fits — and the one it doesn't

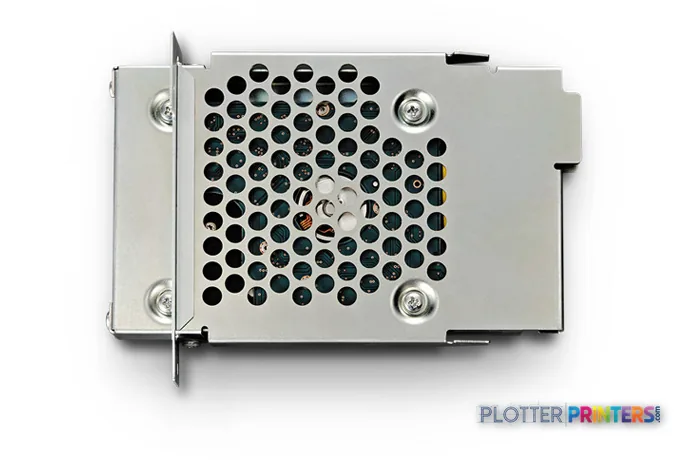

This is a single-roll machine. There is no automatic roll switching and no built-in scanner, so a print room churning out mixed-size bid sets under deadline will feel the friction of manual roll changes and cut-sheet loading. Add the optional Epson Auto Take up Reel Unit for long unattended graphics runs, the Epson Hard Disk Unit T & P series for job spooling, and the Epson Adobe Postscript 3 Expansion Unit if your submission workflow leans on true PostScript rather than the standard ESC P page language.
If your primary need is high-volume monochrome plans with unattended roll switching, look within the family: the dual-roll Epson P8570DR 44-in or the multifunction Epson SC-P8500DM 44-in with an integrated scanner are built for that rhythm. Need only D-size output? The Epson P7570 24-in steps the same idea down to 24 inches. You can compare the P8000 against the P8570DR to see the roll-handling gap directly.
The nine UltraChrome HDX cartridges feed a single 44-inch path — generous for graphics, deliberate for line work.
The SureColor P8000 is best understood as a graphics-first 44-inch printer that AEC firms adopt when presentation quality outranks plan-set speed. Studios producing competition panels, renderings and client boards — with drawings as a secondary duty — will appreciate the nine-ink pigment output and the 0.2% dimensional accuracy. Firms whose daily reality is high-volume, mixed-size construction documents should look to a dual-roll or multifunction model in the same family instead. Confirm your local Epson dealer’s service coverage and UltraChrome HDX consumable availability before committing, since single-roll operation makes uptime and supply logistics matter more than raw specification.
Graded on a curve against the best published spec among the wide-format printers we track — 100 = the catalog’s gold standard for that metric (the finest droplet, the longest warranty, the fastest rated speed actually on the market). Every input is a manufacturer-published spec; rated speeds are shown as listed, not timed throughput. Ticks mark the class best. How we grade →
Verified specifications
The specs that decide it
Print technology
Inkjet
Maximum resolution
2880 x 1440 DPI
Number of print cartridges
9
Page description languages
ESC P
Media thickness
0.8 – 1.5 mm
Power consumption
75 W
Specifications
Full technical detail
Print technologyInkjet
Max resolution2880 x 1440 DPI
ConnectivityUSB
Use casePhoto / Fine Art
Printing
Color
Yes
Print technology
Inkjet
Maximum resolution
2880 x 1440 DPI
Number of print cartridges
9
Page description languages
ESC P
Performance
Product color
Silver, White
Paper handling
Cut sheets
Yes
Media thickness
0.8 – 1.5 mm
Media width (sheets)
1117.6 mm
Ports & interfaces
USB port
Yes
USB connector
USB Type-A
USB 2.0 ports quantity
1
Weight & dimensions
Depth
26" (660.4 mm)
Width
74" (1879.6 mm)
Height
48" (1219.2 mm)
Weight
297.6 lbs (135 kg)
Power
Power consumption (off)
0.5 W
Power consumption (typical)
75 W
Scanning
Accuracy
0.2%
Everything that fits the Epson SureColor SC-P8000 STD Spectro
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
46 ink cartridges · 115 paper & media items · 8 accessories · 3 coverage plans
It can print drawings cleanly at up to 2880 x 1440 DPI, but it is a single-roll machine with no automatic roll switching, so high-volume mixed-size sets involve manual intervention. For that workflow the dual-roll Epson P8570DR 44-in is a better structural fit.
Does it include a scanner for copying and archiving drawings?
No. The P8000 is print-only. If you need integrated scan-to-copy or archive capability, consider the multifunction Epson SC-P8500DM 44-in in the same family.
What ink does it use, and how many channels?
It uses the nine-channel Epson UltraChrome HDX pigment ink set, which is what gives it its graphics-grade color depth on presentation and rendering work.
Can it handle true PostScript for our submission workflow?
The printer’s standard page description language is ESC P. True PostScript requires the optional Epson Adobe PostScript 3 Expansion Unit.
What media widths and thicknesses does it accept?
It handles roll and cut-sheet media up to 44 inches wide, with media thickness from 0.031″ to 0.059″ (0.8–1.5 mm), covering standard bond through heavier presentation stocks.
How does it compare to the 24-inch models in the line?
The 24-inch Epson P7570 24-in offers the same graphics-oriented approach in a smaller footprint for firms that only need D-size output. The P8000 is the choice when you need full 44-inch, ARCH E-and-wider width.
