Epson SureColor P7300

The P7300 is particularly well suited to architecture and design teams that need controlled color on drawings and graphics up to 24 inches wide. It can handle A1, A2, A3+, A3++, A3, and A4 ISO sizes, as well as B2, B3, and B4. That makes it a sensible fit for design reviews, consultant markups, permit exhibits, site logistics graphics, and GIS map output that does not require a wider roll.

The listed media-thickness range of 0.003–0.059 inches supports a broader media conversation than ordinary bond alone. Borderless printing is also available. For a rendering or planning board, that can make the finished sheet feel more intentional—the kind of edge treatment that lets a deep blue aerial image reach the paper boundary rather than stopping short in a white frame.

Networked deployment is straightforward on the facts available: Gigabit Ethernet, USB, a 4.3-inch touch display, 2,000 MB of internal memory, and HDD storage are specified. Epson Cloud Solution PORT is listed as its mobile-printing technology. Firms should still validate their own CAD-to-PDF workflow, authentication requirements, and job-accounting needs before standardizing a queue.

This is not a high-volume construction-document engine disguised as a color printer. Its strengths are better aligned with images and color-dependent documents: concept boards, client-facing plans, visual schedules, finish studies, and maps where adjacent colors must remain distinct. The 1200 x 2400 DPI maximum resolution provides a useful specification for fine output, but it does not by itself establish line accuracy, color consistency, or real-world throughput. Those should be tested on the bond, coated paper, or specialty media the team actually uses.

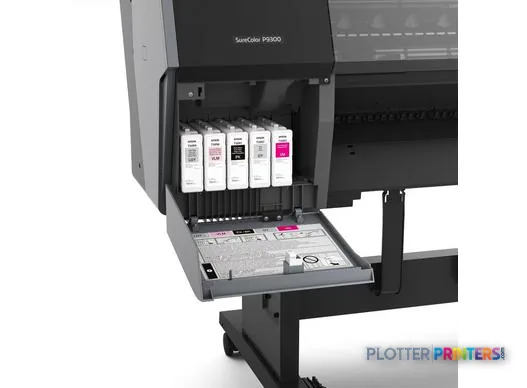

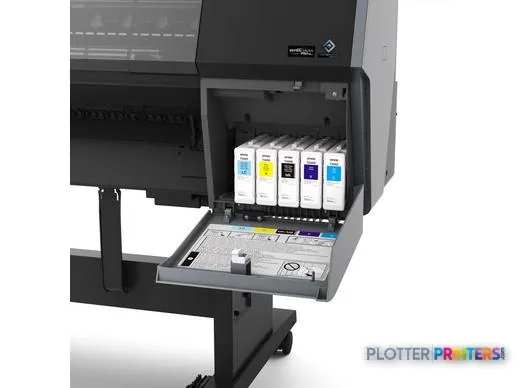

The available ink family includes 350 ml and 700 ml cartridges in photo black, cyan, vivid magenta, yellow, light cyan, gray, matte black, light gray, and violet. There is also an Epson T56P6 ink cartridge in the resolved consumables list. Consumable planning should account for the actual mix of coverage-heavy renderings and lower-coverage technical sheets, rather than relying on a single notional page type.

For organizations comparing alternatives, the Epson SC-P7500 24-in and Epson P7570 24-in are the closest listed 24-inch family references. The choice should turn on the media, color workflow, and operational support your department requires—not simply on maximum-resolution figures.

The defining constraint is width. With a maximum roll width of 24 inches, the P7300 is not the natural choice for teams routinely issuing 30- or 36-inch construction sheets, nor for central reprographics environments that need wide-format plan production and unattended roll flexibility. Its maximum specified print size is A1, at 23 x 33 inches, so buyers should match the printer to their required sheet standards before evaluating color capability.

If wider output is the real requirement, the Epson P8570DR 44-in is the relevant in-family step-up listed here, with a 44-inch format and dual-roll configuration. If the requirement remains 24 inches but another platform is under consideration, compare the P7300 with the Canon GP-2000 24-in using your own PDFs, line-screened drawings, and representative graphics. A test file should include tiny annotation text, solid fills, transparent overlays, and the colors used for discipline coordination.
