Dietzgen · Paper & Media

24 lb Engineering Bond Paper

Model435

Representative product photograph of a roll of wide-format media beside a PlotterPrinters shipping carton. Generic image, not a photograph of this product.

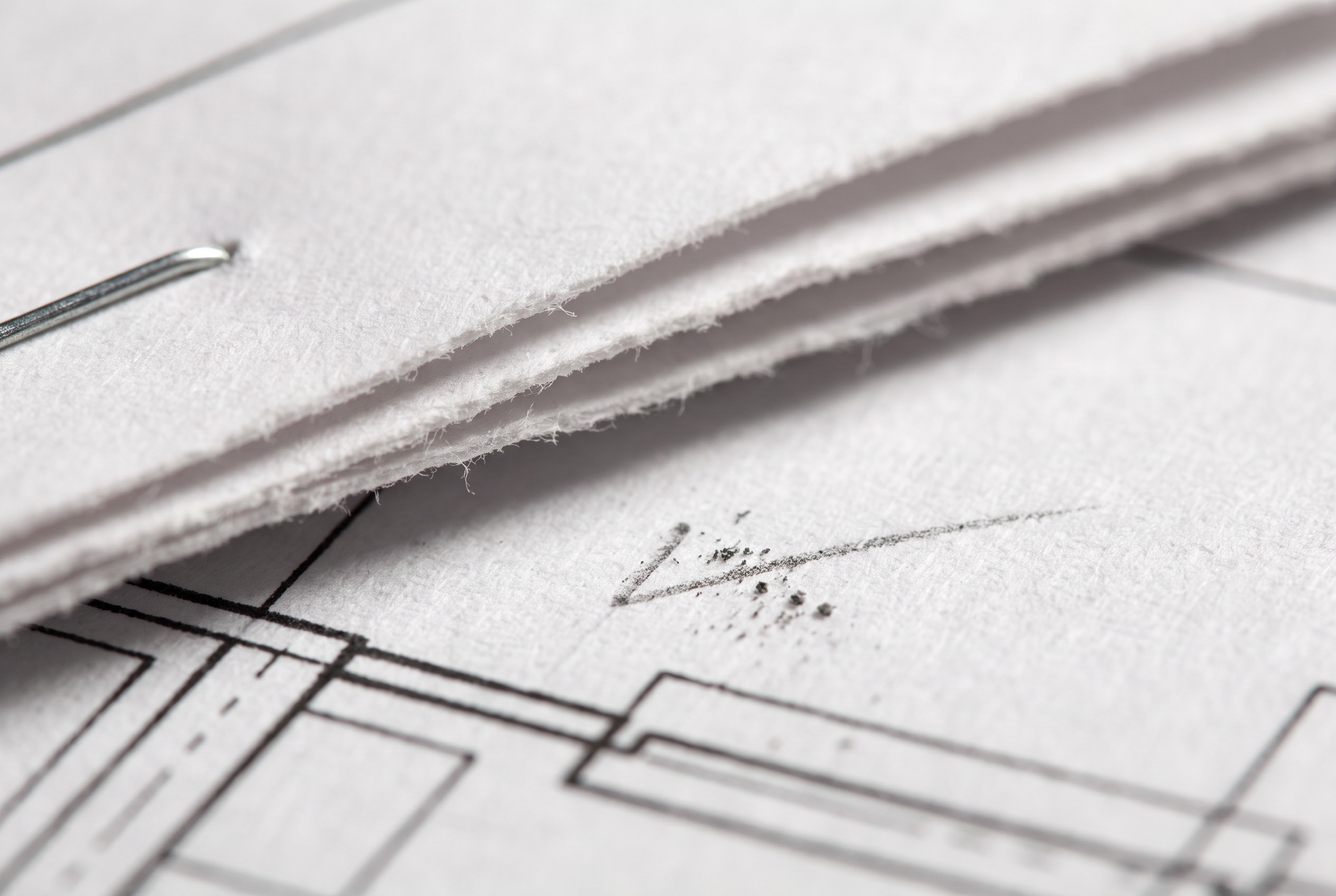

24LB Engineering Bond Paper print closeup

Representative imageA generic photograph of wide-format roll media and our shipping carton. It is not a photograph of this product, and it does not show the pack quantity, roll length, width or colour you are ordering — those are in the title and the size options below.

Genuine OEM hardwareAuthorized U.S. distribution

Manufacturer warrantyExtension plans available

Free shippingContinental U.S.

Plotter specialistsAEC experts, not just sellers

Price range: $46.95 through $6,331.95

In stock

Clear

Request a Quote

Datasheet (PDF)

Specifications

Dye· GOODPigment· GOODLatex· GOODUV· GOODPageWide· BESTToner LED· BEST3″ core

A 4.7-mil, 24 lb (90 gsm) uncoated production bond — a step up in body from the 20 lb sheet — at 91 brightness and 91% opacity. Rated BEST for toner and HP PageWide inks, takes pen and pencil for redlines, and runs through stapling and binding equipment. Rolls 11 to 48 inches.

Media type	Bond & Uncoated › Engineering Bond
Finish	Matte
Thickness	4.7 mil
Weight	90 gsm (24 lb bond)
Core size	3" core

Available sizes

22" x 34" sheets, 100/pack
18" x 24" sheets, 100/pack
24" x 36" sheets, 100/pack
30" x 42" sheets, 100/pack
36" x 48" sheets, 100/pack
8.5" x 11" sheets, 250/pack
11" x 17" sheets, 250/pack
17" x 22" sheets, 250/pack
12" x 18" sheets, 250/pack
18" x 24" sheets, 250/pack
24" x 36" sheets, 250/pack
13" x 19" sheets, 250/pack
+29 more — choose above

Manufacturer datasheet (PDF)

Overview

Built for the work

Expert analysis

What you should know

Dietzgen 435 is a 24 lb (90 gsm) uncoated production bond, 4.7 mil thick and matte. It sits one step above the 20 lb sheet that most CAD plotting runs on, and the extra weight buys two things you can measure: more caliper under the hand, and higher opacity — 91% against 88% on the 20 lb bond.

What Dietzgen 24LB Engineering Bond Paper (435) is used for

Everyday production engineering and CAD plotting
High-volume reprographics runs
Check prints and hand-marked redlines
Stapled or bound plan sets

Opacity is the reason a heavier bond gets specified for a set that will be presented rather than filed. At 91% there is less show-through from the sheet behind, which matters when drawings are flipped through in a bound set. Brightness measures 91. The surface takes pen and pencil, so redlines and field marks go directly onto the print, and the sheet is compatible with common stapling and binding equipment.

Ink compatibility

Dietzgen rates 435 BEST for toner and BEST for HP PageWide. Aqueous dye, aqueous pigment, latex and UV inks are each rated GOOD. It is a line-work paper before it is a colour paper: one stocked roll will serve a mixed fleet, but the surface is tuned for toner adhesion and PageWide output.

Working with it

Overlamination is not required. Pressure-sensitive, heat-assist and thermal overlaminates are all compatible where prints need extra protection from dirt, abrasion and moisture. 435 is stocked in both forms — rolls from 11 to 48 inches wide on 3-inch cores, and cut sheets from 11 to 22 inches. If the drawings are going straight into a flat file, the 20 lb bond does the same job with less weight on the rack; 435 earns its place where the prints get handled.

Specifications

Full technical detail

Printers this media fits

Checked against every wide-format printer we track: 191 can run it — HP 99 · Epson 56 · Canon 36. Compatibility is resolved from the printer’s published media handling (roll width, core size and the roll diameter the spindle holds), not from a marketing list.

The list starts from the maker’s own ink ratings for this media — rated BEST for PageWide, Toner LED; GOOD for Dye, Pigment, Latex, UV ink. A printer only appears here if its ink chemistry is one of those.
