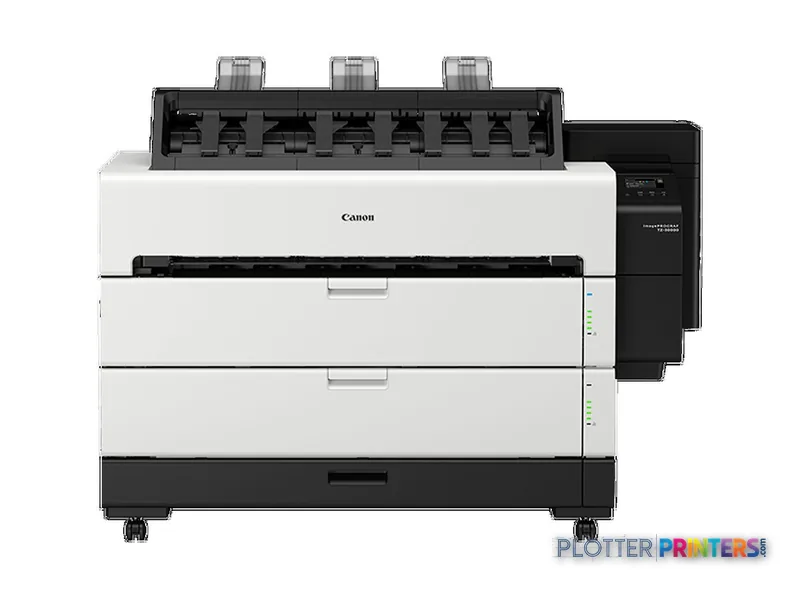

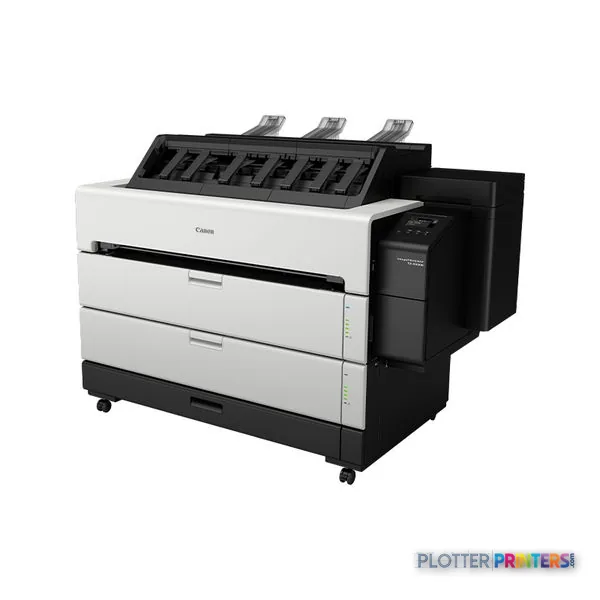

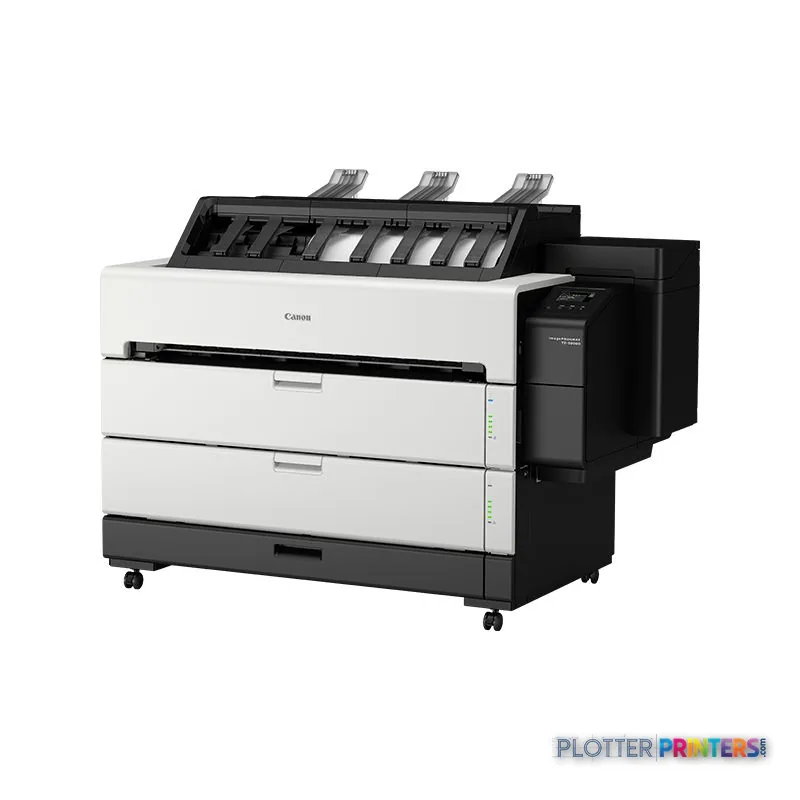

Canon imagePROGRAF TZ-30000

This machine fits naturally in architecture, engineering, surveying, and construction offices that issue drawings in a mix of PDF and CAD-derived formats. HP-GL/2 and HP-RTL support matters where established CAD plotting workflows remain in use; PDF 1.7 matters just as much for consultant sheets, Bluebeam-based review cycles, and construction-document distribution. Gigabit Ethernet, Wi-Fi, and USB provide several practical submission paths, while the 500 GB internal storage can help keep jobs close to the device rather than dependent on a workstation at every moment.

For color work, think less about presentation-print bravado and more about operational clarity: discipline colors, phasing overlays, site plans, utility markups, and GIS layers need separation without turning the page into visual noise. The listed black, cyan, magenta, and yellow printing colors support that role. There is no measured ICC gamut data in the supplied record, so it would be premature to make a broader color-fidelity claim; evaluate critical corporate colors, aerial imagery, and renderings on your intended media.

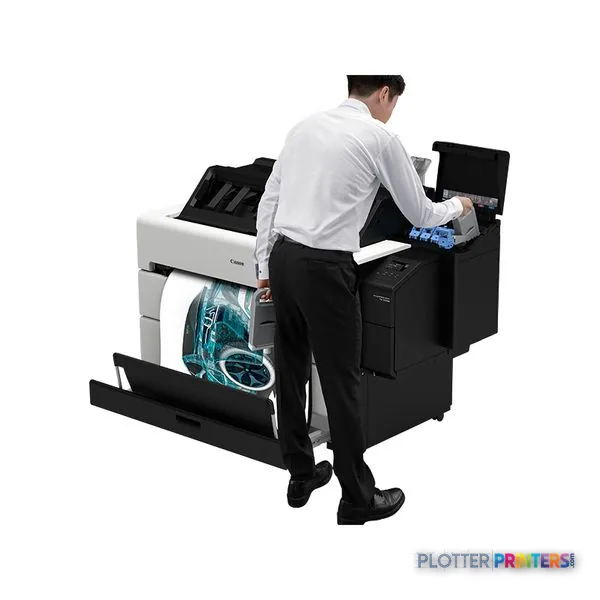

The specified media-thickness range of 0.003"–0.031" (0.07 – 0.8 mm) and support for plain and coated paper make this a practical drawing-room device rather than a one-media plotter. Its maximum roll length is 708.7" (18 m), with a maximum roll diameter of 6.89" (17.5 cm). Those figures should be checked against the stock your team actually buys, especially if long, unattended runs are part of the requirement.

Allow real room around the 60.9" (1548 mm) by 50.9" (1293 mm) footprint, including access for loading media and collecting output. At 52 dB sound pressure while printing, it is better considered an active print-room neighbor than silent background furniture. The 35 dB standby sound-power figure and 0.3 W off-state consumption are useful office considerations, but they do not replace a proper review of placement, network policy, and local service arrangements.

For a closer look at comparable configurations, use the Canon TZ-30000 36-in and Canon TZ-32000 36-in comparison or view the wide-format class ranking.

The Canon TZ-30000 36-in is the sensible conversation for teams that need a 36-inch color inkjet platform and a documented AEC-friendly language set. The adjacent Canon TZ-32000 36-in is the in-family step-up model to examine when your requirements justify moving further within the line. The supplied catalog information does not establish a feature-by-feature distinction between them, so ask for a workflow demonstration using your own mixed PDFs, HP-GL/2 files, typical roll stock, and peak-day job queue.

At the other end of the family conversation, the Canon imagePROGRAF 700 36-in is worth evaluating as an alternative 36-inch Canon option. It should not be treated as interchangeable without confirming its media handling, submission workflow, and support arrangements against the TZ-30000. Consumable planning should use Canon PFI-340 inks, Canon PFI-740 inks, the Canon PF-06 printhead, and the Canon CT-07 accessory where applicable.
