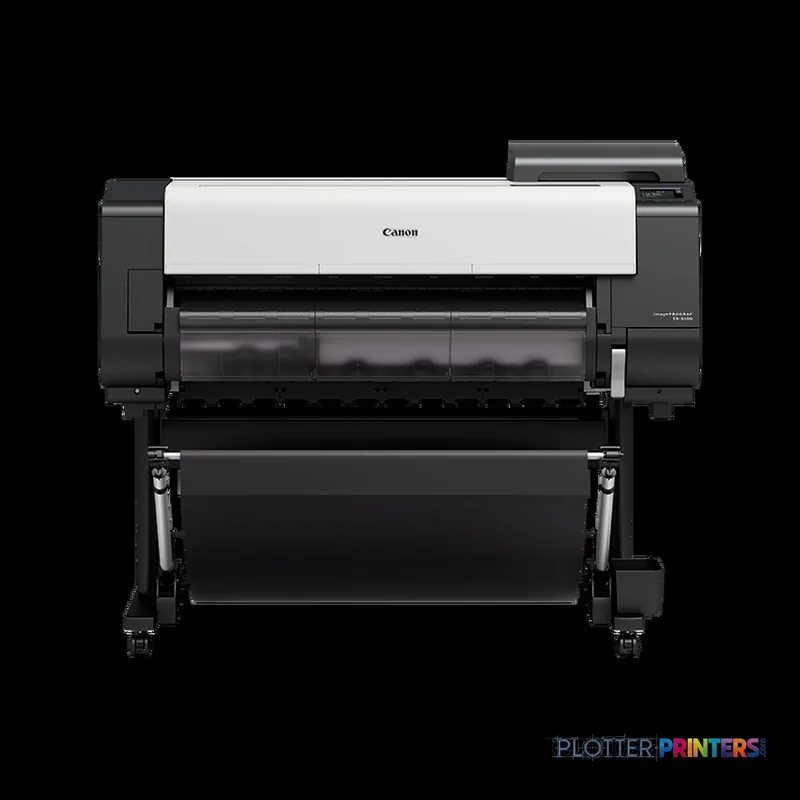

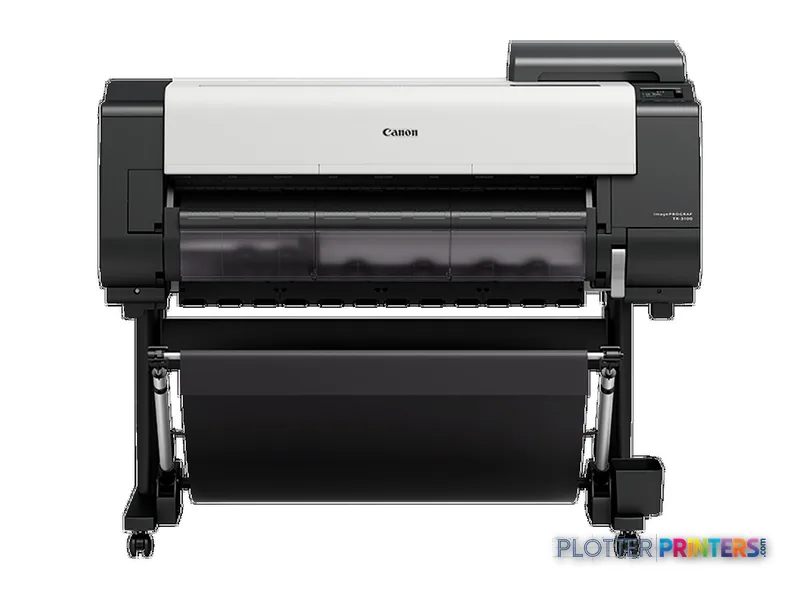

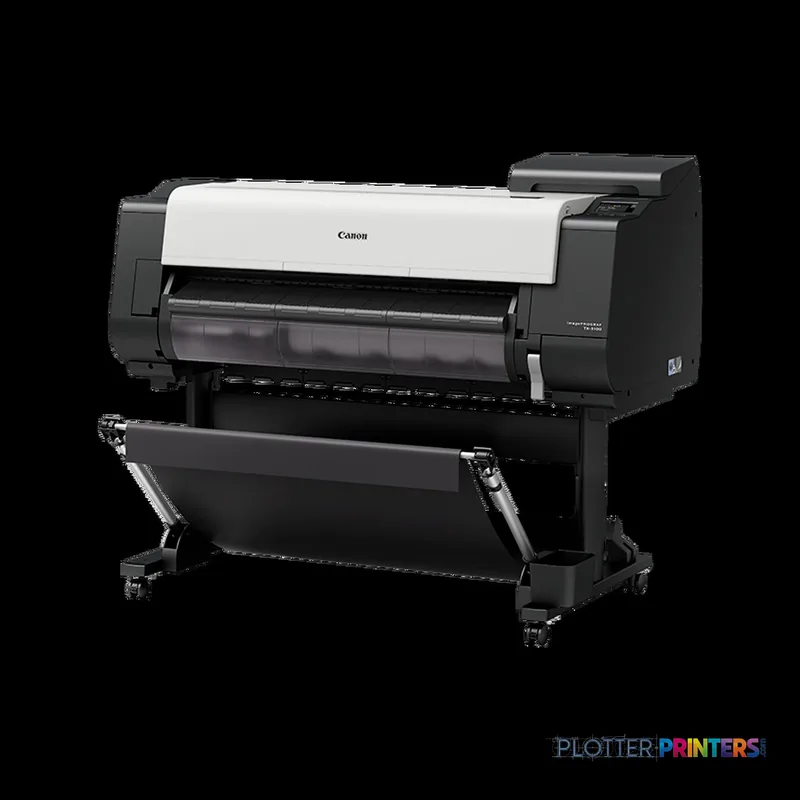

Canon imagePROGRAF TX-3100

This machine is particularly well suited to offices that need up to 36-inch rolls for everyday construction documents but do not need a built-in scan-to-copy workflow. Architects can move from presentation-oriented PDFs to permit sheets; engineers can send HP-GL/2 or HP-RTL drawing files; contractors can keep current field sets and color-marked coordination drawings moving from the same device. The 500 GB internal storage may also be useful where several jobs are queued from different teams.

Media support spans cut sheets and rolls, with a stated thickness range of 0.003″–0.031″ (0.07 – 0.8 mm). That breadth matters when a project alternates between ordinary plan output and heavier sheets, although the supplied information does not establish automatic roll switching, collation or finishing capability. Those details are worth validating against the exact configuration being quoted.

For firms whose work rarely exceeds 24 inches, the Canon TX-2100 24-in is the narrower in-family alternative. If 44-inch output is a regular requirement, examine the Canon TX-4100 44-in rather than forcing oversized sheets into an avoidable tiling workflow. For a same-width family comparison, the Canon TX-3200 36-in is also listed at 2400 x 1200 DPI.

The TX-3100’s 2400 x 1200 DPI maximum resolution and five-color configuration provide the ingredients for crisp technical output and clear color separation. But resolution alone does not tell us how a specific PDF will render: line weights, embedded fonts, driver settings, paper and the source file all matter. No measured ICC gamut data is supplied for this model, so it would be inappropriate to make a measured color-volume claim. Request a sample of your own Revit exports, aerial imagery and redlined PDFs on the media you expect to use.

It has buttons rather than a built-in display, and it does not scan or copy. That trade-off is reasonable for a print-focused departmental device, but it becomes less appropriate for a reprographics counter or project office that routinely converts paper markups into revised digital files. In that setting, the scanner/MFP-equipped Canon TX-3000 44-in is the more relevant in-family direction to investigate.

Network choices include Ethernet LAN at 10, 100 and 1000 Mbit/s, Wi-Fi and USB Type-A / USB Type-B connections. IT teams should still confirm driver deployment, authentication expectations, job-accounting requirements and the organization’s supported operating-system estate before standardizing on it. The listed operating-system support includes Windows 7, Windows 8.1 and Windows 10, plus specified Mac OS X releases through Mac OS X 10.15.3 Catalina.

The specified consumables include Canon PFI-110BK ink cartridge Original Black, Canon PFI-110C ink cartridge Original Cyan, Canon PFI-110M ink cartridge Original Magenta, Canon PFI-110Y ink cartridge Original Yellow, Canon PFI-310BK ink cartridge Original Black, Canon PFI-310C ink cartridge Original Cyan, Canon PFI-310M ink cartridge Original Magenta, Canon PFI-310Y ink cartridge Original Yellow, Canon PFI-710BK ink cartridge Original Black, Canon PF-06 and Canon CT-07. Confirm the approved cartridge family and maintenance arrangement for the precise unit and region offered.

Allow for a footprint of 54.7″ wide by 38.7″ deep by 46″ high and a weight of 231.5 lbs. Its typical power consumption is listed as 115 W, while printing sound pressure level is listed as 51 dB; those figures suggest a location discussion is sensible for an open studio or quiet project room. Compare its fit against the Epson SC-T3700D 33-in if your procurement process requires a cross-brand shortlist.
