Home / Wide-Format Printers / Canon imagePROGRAF
Canon · Wide-Format Plotter

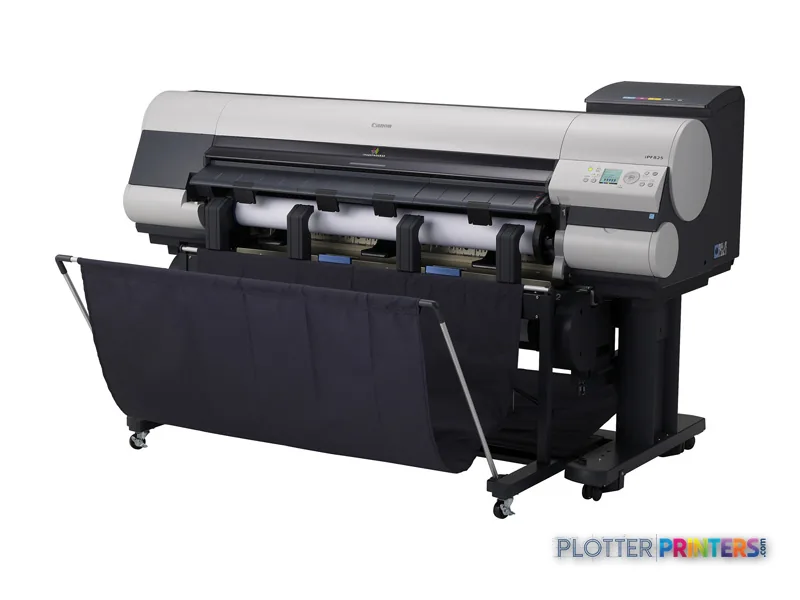

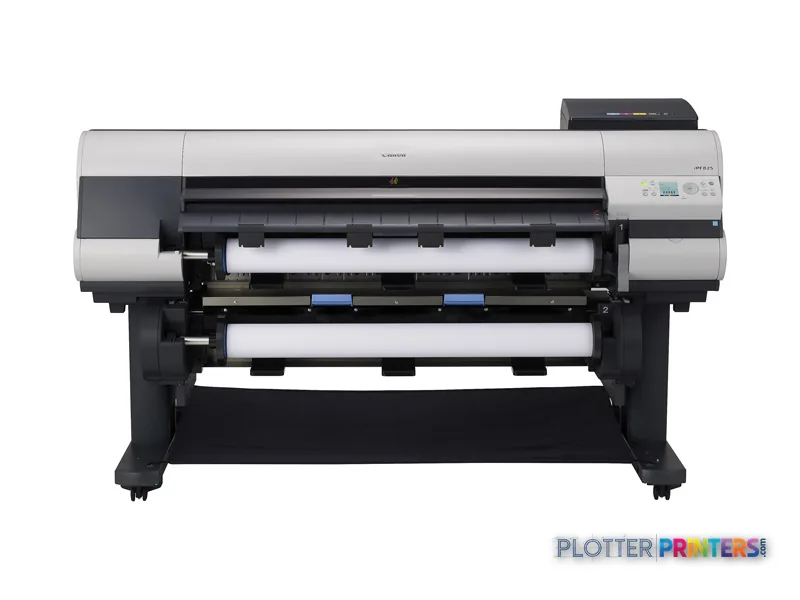

Canon imagePROGRAF iPF825
44" technical / CAD plotter
- ModeliPF825
- Prints44" wide
- Score47/100
Genuine OEM hardwareAuthorized U.S. distribution
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Canon iPF825 prints in color up to 44 inches wide, covering common AEC drawing widths through 44 inches.
- Its stated +/-0.1% line accuracy is relevant to technical drawing output, but correct source-file scaling still matters.
- Roll and cut-sheet support suits mixed AEC workloads, from plan sets to color coordination sheets and boards.
Not sure if the iPF825 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 44" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Black, Cyan, Magenta, Yellow.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 47/100 in our class-relative rating.
Overview
Built for the work
Canon imagePROGRAF iPF825, 2400 x 1200 DPI, GARO, HP-RTL, Black, Cyan, Magenta, Yellow, PF-03, A0 (841 x 1189 mm), Matte paper, Plain paper
- 44″Max print width
- 4Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Where it performs best
Print Quality
80
Media Handling
61
Size / Fit
57
Class best is 71. How we grade →
Expert analysis
What you should know
Key takeaways
- The Canon iPF825 prints in color up to 44 inches wide, covering common AEC drawing widths through 44 inches.
- Its stated +/-0.1% line accuracy is relevant to technical drawing output, but correct source-file scaling still matters.
- Roll and cut-sheet support suits mixed AEC workloads, from plan sets to color coordination sheets and boards.
- At 416.7 lbs and 74.5 x 50.8 x 45 inches, it belongs in a planned print-room location rather than a casual office corner.
- The Canon iPF820 44-in is the closer same-format comparison, while the Canon iPF785 36-in is more relevant for offices that do not need 44-inch sheets.
It is 4:45 p.m., the civil set has grown another sheet, and somebody needs a legible 36-inch plan before the meeting starts. The Canon iPF825 is a 44-inch color wide-format printer for that sort of AEC output: CAD sheets, PDF plan sets, marked-up coordination drawings, maps, and presentation work that cannot be reduced to letter size without becoming a tiny-font crime scene.
Its job is broad-format printing, not a compact office convenience device. It handles roll paper and cut sheets from 10 to 44 inches wide, supports common architectural sizes through 44 inches, and provides Ethernet plus USB connectivity. The 160 GB internal storage and 32768 MB of memory matter when several users send large files instead of taking turns at one workstation.
44"Maximum print widthCovers standard 24-, 30-, 36-, 42-, and 44-inch architectural media.
+/-0.1%Line accuracyRelevant where scaled drawings and repeatable line placement matter.
2400 x 1200 DPIMaximum resolutionUseful headroom for fine CAD lines, small annotation, and detailed color graphics.
160 GBInternal storage capacityHelps the printer hold submitted work rather than relying entirely on a connected workstation.
Where it earns its floor space
The iPF825 fits teams that regularly issue full-size drawing sheets and need both monochrome and color output on ordinary technical media. Plain, matte, coated, opaque, glossy, photo, proofing, and high-resolution papers are listed as supported. That range is useful when one day is permit drawings and the next is a color-coded MEP clash review or an exhibit board.
For CAD and PDF work, GARO and HP-RTL are supported page-description languages. Fast Ethernet supports 10Base-T and 100base-TX networks, with a USB Type-A connector also available. The LCD gives an operator a local point of reference when paper, queued jobs, and the usual deadline weather arrive together.
The physical trade-off is straightforward. This is a substantial machine, not something to tuck beside a project manager’s desk. Printing sound pressure is listed at 52 dB, and the footprint needs planning before delivery day.
Bottom line: It makes sense where full-size plans are a working document, not an occasional exception.
Media, accuracy, and the work around the print
The printer accepts roll media up to 44 inches wide and cut sheets, with listed media thickness from 0.003″–0.031″. Maximum roll length is 708.7″. For a print-room lead, that means fewer interruptions on longer runs than a cut-sheet-only workflow—but roll changes, trimming, sorting, and the last odd-size sheet still belong in the deadline plan.
Its stated line accuracy is +/-0.1%. That is relevant to engineers checking drawing output, but it does not replace disciplined source-file setup, correct page scaling, and a quick check of the first sheet. A plotter can only print the file it receives. I have seen that lesson taught at 4:58 p.m. more than once.
Review how we assess technical printers before treating a maximum resolution figure as a promise about every PDF, CAD driver, paper type, or lineweight combination.
Bottom line: The machine gives AEC teams the media range and width they need, but good sets still depend on good job preparation.
How to position it within the family
Keep comparisons practical. The Canon iPF820 44-in shares the 44-inch width and 2400 x 1200 DPI specification, so it is the closer same-format comparison when width and stated resolution are the starting point. The Canon iPF785 36-in is the sensible comparison for offices whose work stops at 36-inch sheets. If 44-inch output is routine, losing that width can turn a simple plot request into a workaround.
For a different 44-inch family option, compare the Canon iPF830 44-in alongside this machine. Do not make the decision from width alone. Confirm the actual paper mix, job submission path, output handling, support arrangement, and the condition of the unit being evaluated.
Consumables should be checked against the specific machine and supplier inventory. The resolved compatible list includes Canon 2957B001, Canon 2958B001, Canon 2963B001, Canon PF-01, Canon CT-06, and Canon RH2-44. The printer specification identifies a PF-03 print head, so verify the fitted configuration and compatible replacement part before committing to supply stock.
Bottom line: Buy around the sheets you actually issue and the support you can actually get, not the tidy logic of a family chart.
Compare the practical alternatives
The read
The Canon iPF825 is suited to AEC groups that need 44-inch color and monochrome technical output, work across rolls and cut sheets, and have room for a dedicated print-room device. Its 44-inch width, +/-0.1% line accuracy, broad listed media support, Ethernet connection, and internal storage align with plan production and color coordination work. It is less appropriate for a team that only occasionally needs full-size drawings, has no practical space for a 416.7-lb printer, or primarily issues sheets no wider than 36 inches. In those cases, the Canon iPF785 36-in is the more relevant comparison. Bottom line: This is a working plotter for a working drawing workflow—provided the room, media process, and support plan are already in place.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T5270DR
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 44 in |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Black, Cyan, Magenta, Yellow |
| Page description languages | GARO, HP-RTL |
| Internal memory | 32768 MB |
| Maximum print size | A0 (841 x 1189 mm) |
| Media thickness | 0.07 – 0.8 mm |
| Ethernet | Yes |
| Sound level (printing) | 52 dB |
| Power consumption | 190 W |
Specifications
Full technical detail
Max resolution2400 x 1200 DPI
Max print width44"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print head | PF-03 |
| Printing colors | Black, Cyan, Magenta, Yellow |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | GARO, HP-RTL |
Performance
| Display | LCD |
|---|---|
| Storage media | HDD |
| Internal memory | 32768 MB |
| Built-in display | Yes |
| Internal storage capacity | 160 GB |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 52 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| Media thickness | 0.07 – 0.8 mm |
| ANSI paper sizes | 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34", 28 ｘ 40", 34 ｘ 44" |
| Maximum print size | A0 (841 x 1189 mm) |
| Architectural sizes | 24", 30", 36", 10", 14", 16", 17", 42", 44" |
| Maximum media width | 254 – 1118mm |
| Maximum roll length | 708.7" (18 m) |
| Media width (rolls) | 254 – 1118 mm |
| Paper tray media types | Matte paper, Plain paper |
| Print margin cut-sheet | 20 mm |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
| ISO B-series sizes (B0…B9) | B0, B1, B2, B3, B4 |
| ISO C-series sizes (C0…C9) | C0, C1, C2, C3, C4 |
| JIS B-series sizes (B0…B9) | B0, B1, B2, B3, B4 |
| Photo paper sizes (imperial) | 10×12,10×15,12×16,16×20,18×22,20×24 |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10Base-T, 100base-TX |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | IPX/SPX, HTTP, TCP/IP, AppleTalk |
Weight & dimensions
| Weight | 416.7 lbs (189 kg) |
|---|---|
| Size (imperial) | 44" |
| Dimensions (WxDxH) | 74.5 x 50.8 x 45" (1893 x 1291 x 1144 mm) |
Power
| Power requirements | AC 100-240V (50/60 Hz) |
|---|---|
| Power consumption (off) | 1 W |
| Power consumption (standby) | 6 W |
| Power consumption (typical) | 190 W |
Operational conditions
| Storage temperature (T-T) | 15 – 30 °C |
|---|---|
| Operating relative humidity (H-H) | 10 – 80% |
Other features
| Photo paper | Yes |
|---|---|
| Coated paper | Yes |
| Glossy paper | Yes |
| Opaque paper | Yes |
| Line accuracy | +/-0.1% |
| Proofing paper | Yes |
| High resolution paper | Yes |
| Compliance industry standards | IEEE 802.3, 802.3u |
Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Canon imagePROGRAF iPF825 large format printer Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 3
Printheads 1
Questions
Straight answers
What AEC work is the Canon iPF825 suited to?
It suits full-size CAD and PDF drawing output, including plan sets, marked-up sheets, color-coded coordination drawings, maps, and presentation work. It supports roll paper and cut sheets up to 44 inches wide.
Can the iPF825 print standard architectural drawing sizes?
Yes. Listed architectural sizes include 24, 30, 36, 42, and 44 inches, and listed ANSI sizes include 22 x 34 and 34 x 44 inches.
Is the iPF825 appropriate for fine CAD lines and small annotation?
The specification lists +/-0.1% line accuracy and a maximum resolution of 2400 x 1200 DPI. Actual output also depends on the source PDF or CAD file, driver settings, media, and correct page scaling.
How does it compare with the Canon iPF820 44-in?
Both are listed at 44 inches wide with 2400 x 1200 DPI resolution. Evaluate the specific unit, media workflow, job submission process, output handling, and available service support rather than assuming equivalent ownership results.
What should a buyer verify before obtaining consumables?
Confirm the machine’s fitted configuration and compatible supply list with the supplier. The resolved list includes Canon 2957B001, Canon 2958B001, Canon 2963B001, Canon PF-01, Canon CT-06, and Canon RH2-44, while the product specification identifies a PF-03 print head.
What network connections does the iPF825 support?
It has one RJ-45 Fast Ethernet connection supporting 10Base-T and 100base-TX, plus one USB 2.0 port and a USB Type-A connector. Supported network protocols include IPX/SPX, HTTP, TCP/IP, and AppleTalk.
