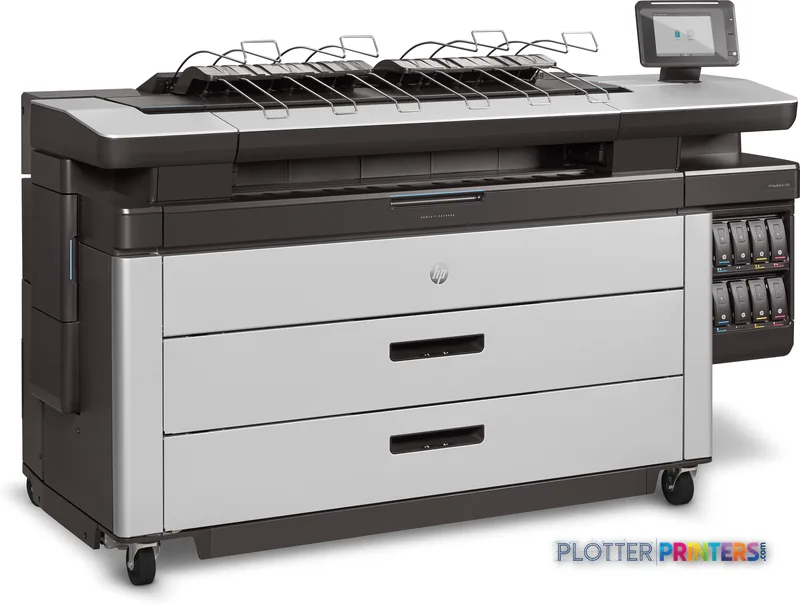

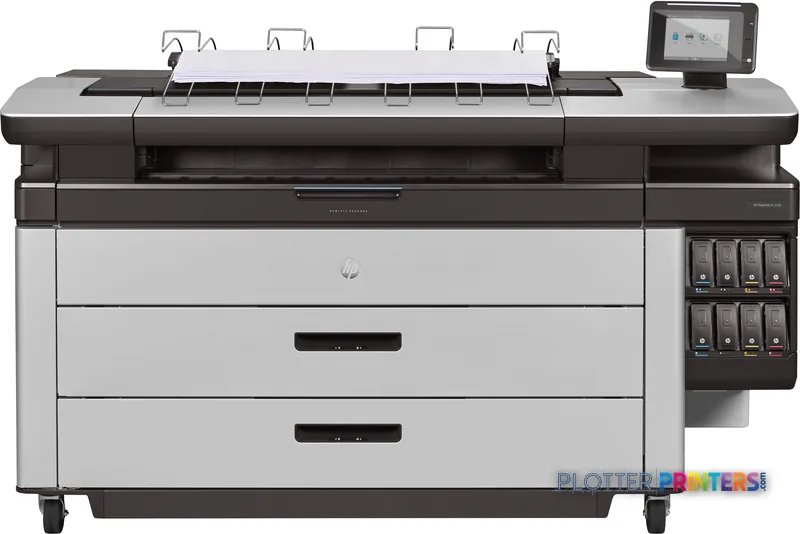

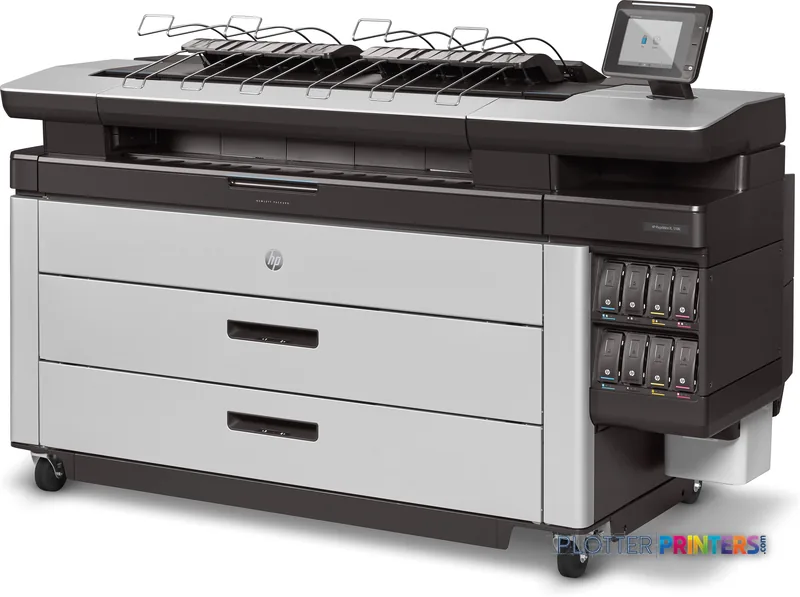

HP PageWide XL 5100

This is a sensible fit for architecture, engineering, surveying, and construction teams that still print working drawings routinely and need color copying or scanning alongside output. Think revised civil sheets, marked-up MEP plans, GIS maps, color-coded coordination drawings, and archived redlines that need to return to the project team as usable files.

The 40-inch maximum roll width is the main boundary. That suits many technical-document workflows, but it is not a substitute for a wider-format requirement. The listed CIS scanning system offers color scanning at 10 ips in black and 3 ips in color. Those figures matter most when a print-room operator is digitizing marked sets between live production jobs; color scanning will take longer. That is normal. Paper does not care about your deadline.

For output handling, the available HP PageWide XL High-capacity Stacker, HP PageWide XL Top Stacker, and HP PageWide XL Folder accessories are worth evaluating where plan sets need to leave the room organized rather than becoming a large-format paper weather event.

Bottom line: The HP 5100 earns its space when printing, copying, and scanning technical documents are all part of the same daily queue.

The HP 5100 is set up for a managed environment. It supports TCP/IP and BootP/DHCP, includes HP Web Jetadmin and HP Embedded Web Server support, and has 16384 MB of internal memory. Those are meaningful details for IT teams managing device access, network configuration, and fleet visibility. USB 2.0 and a USB Type-A connector provide a local submission path when that is appropriate to site policy.

Its listed print colors are black, cyan, magenta, and yellow, using eight cartridges. Consumables include HP 843C 400-ml Black PageWide XL Ink Cartridge, HP 843C 400-ml Cyan PageWide XL Ink Cartridge, HP 843C 400-ml Magenta PageWide XL Ink Cartridge, HP 843C 400-ml Yellow PageWide XL Ink Cartridge, and the HP 841 printhead. Confirm the service agreement’s treatment of printheads, ink supply, and operator-replaceable items before signing anything. That conversation is more useful than a cheerful brochure.

The product data lists both 0.016" media thickness and 0.01" maximum media thickness. Treat that as a dealer-confirmation item for any specialty stock, rather than assuming the thicker figure applies to every supported workflow.

Bottom line: This is wired, managed technical-print equipment, not a casual desktop plotter with a long paper path.

Within the catalog family, the HP F40 is the step-down choice to examine when the workflow calls for a more modest configuration. The HP F60 is the step-up model to consider when finishing and tabbed-set handling become part of the daily job, particularly for construction-document distribution. The catalog lists the HP F70 as discontinued, so it belongs in replacement and installed-base conversations rather than a straightforward current-equipment comparison.

For a cross-brand check, compare the HP 5100 with the Canon iPF825 42-in or Epson SC-T5400M 38-in according to the widths, scanning needs, and local service support that matter to your office. The device spec is only half the purchase. A capable local technician and sensible response terms are the other half when the issue arrives at 4:45.

Bottom line: Move up when finishing drives the workflow; look elsewhere when your media width, service model, or office footprint points in another direction.
