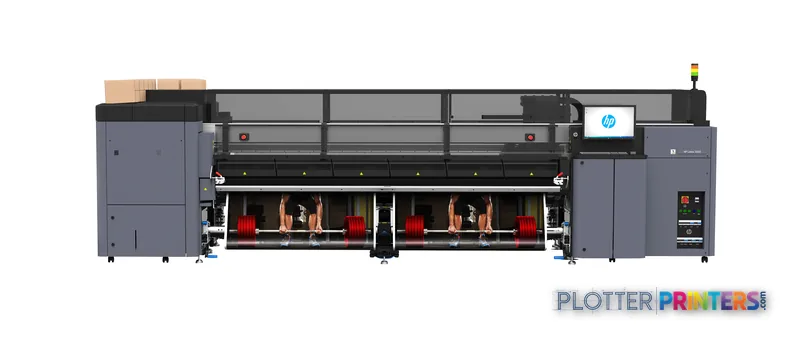

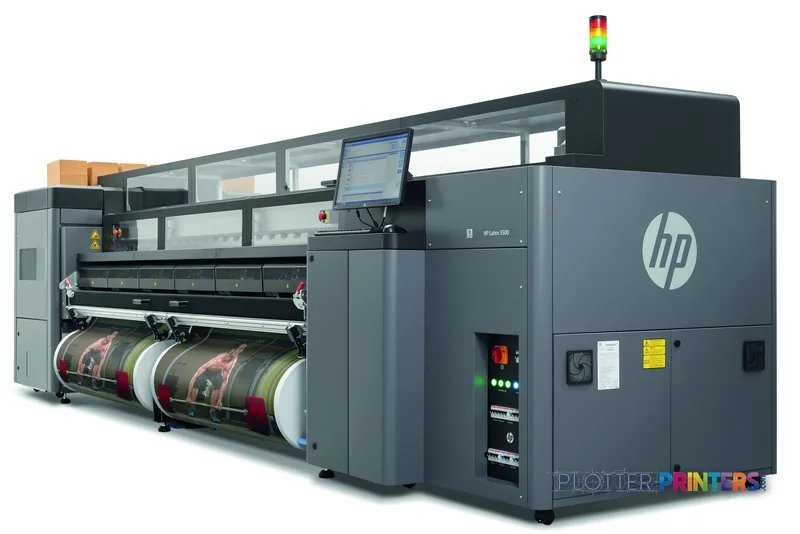

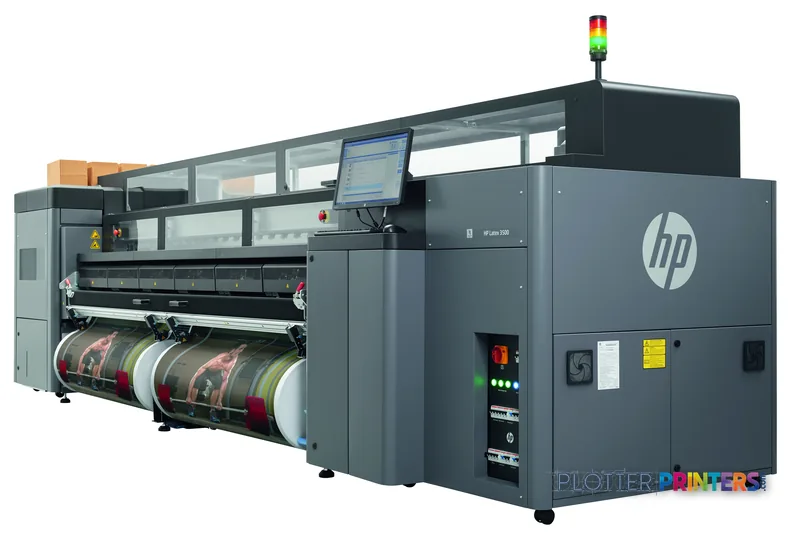

HP Latex 3500

This printer suits AEC teams producing wide visual communication rather than routine drawing issuance. Think perimeter and safety banners for a contractor, large project-identification graphics, color-coded site communication, survey displays, public-meeting graphics, or oversized presentation material. Latex printing, six listed printing colors, and a specified maximum resolution of 1200 x 1200 DPI support color output; the important operational question is whether banner work is regular enough to keep a 126" machine productive.

Media handling is the unsexy part of this decision. The specified maximum media thickness is 0.016", and the listed paper-tray media type is banner. Confirm every intended substrate against that envelope before committing a job. HP Latex Jumbo Dual Roll Split Spindles and HP Latex In-Line Slitters are listed compatible accessories, which may matter where roll loading and output trimming are part of the production routine. For jobs that need controlled PDF processing or queue management, HP Large Format Onyx Thrive RIP Software is also listed as compatible.

Do not buy this machine as a substitute for an AEC plan-room multifunction device. It has no scanning or copying capability, so it will not handle walk-up redlines, legacy drawing conversion, or scan-to-PDF workflows on its own. It also has no Wi-Fi or USB port. Networked deployment is through one RJ-45 Ethernet LAN port, with 10, 100, and 1000 Mbit/s Ethernet LAN data rates listed. That makes IT involvement part of the installation plan, especially where print access, job routing, and project accountability are controlled centrally.

It is also a serious facilities decision. The listed footprint is 235.4" wide by 67.7" deep by 73.6" high, the weight is 4122.6 lbs, and typical power consumption is specified at 10000 W. Operating conditions are 15 – 30 °C and 20 – 70% relative humidity. Small shops should not underestimate this: the printer may fit on paper, while safe delivery, media staging, ventilation planning, and clear operator space do not.

No in-family step-up, step-down, or cross-brand alternative is listed in the available catalog set, so a model-number comparison would be guesswork. Qualitatively, move to a smaller-format device when routine plan printing, scanning, copying, and office placement matter more than very wide banner output. Consider a wider or more automated production configuration when multiple operators, frequent roll changes, or sustained graphics work make unattended media capacity the bottleneck.

Ask three things: what feeds it, what finishes it, who fixes it. First, verify the actual banner stock, roll diameter, and thickness your jobs require. Second, map the handoff after printing—trimming, mounting, laminating, packing, and delivery. Third, have the dealer document installation access, local service coverage, and the workflow for the listed compatible HP 3M 891 10-liter Latex Ink Cartridge family and HP 881 printhead family. Review how we assess wide-format equipment to separate published specifications from day-to-day production fit.
