HP Latex 2700 W

This machine makes the most sense when the AEC organization produces wide visual materials in-house and needs them on a repeatable production workflow. Think contractor site packages with large safety and directional graphics, infrastructure-program communications, developer presentation output, or a central print room supporting several project teams. The catalog identifies Black, Light magenta, Yellow, and White among its printing colors; white is the feature that separates this type of graphics-oriented work from a conventional technical-plan workflow.

Resolution is specified at 1200 x 1200 DPI. That gives a solid starting point for detailed graphics, legends, and color-coded information, but the practical result still rests on the file, selected media, and production setup. For AEC users, test actual artwork: small safety text, dense utility-map labels, fine-line overlays, and the solid color fields used in site signage. Do not approve a device from a generic sample alone.

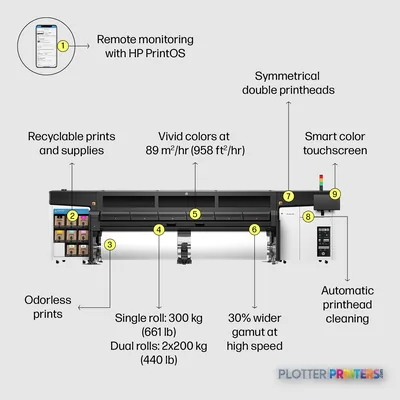

The printer ships with two 126-in spindles, media edge holders, an internal print server, touch monitor, cleaning supplies, and a user maintenance kit. Those details matter on a busy shift. A job that loads cleanly and tracks straight is productive; a job that needs reloading wastes material and ties up an operator.

Ask three things: what feeds it, what finishes it, who fixes it. The supplied spindles and edge holders support a serious media-handling workflow, but AEC buyers should still define where rolls are staged, how finished output is trimmed, and whether graphics move directly to installation, mounting, or lamination. Rated speed gets output moving. Roll changes, inspection, cutting, and takedown decide how many finished jobs leave by Friday.

There is no paper-tray versatility to lean on here: the catalog lists Banner as the paper-tray media type. That is a useful signal for buyers. This is better treated as a dedicated graphics-production resource alongside a plan-printing workflow, not as the one device expected to cover every bond-paper drawing, permit set, and field markup.

Power requirements are 200 – 240 V AC at 50/60 Hz. Confirm the electrical path, delivery route, floor space, and the 15 – 30 °C operating range before committing a location. At 2916.7 lbs, relocating it is not a casual facilities task.

Consumables should be planned as a system, not ordered when a job stops. The resolved list includes HP 883M 3-liter White Latex Ink Cartridge, the other listed HP 883M ink cartridges, HP 883 and HP 886 printheads, and HP 55P22A maintenance. Keep the maintenance routine, approved supply path, and service response process clear before placing this machine into deadline work. HP dynamic security is listed as enabled, which IT and procurement teams should account for in their consumables policy.

The catalog does not provide an in-family step-up or step-down model for comparison. The listed alternatives are much narrower 24-in devices, including the Canon GP-2000 24-in and Canon GP-2600S 24-in. They are useful reference points only if your real requirement is compact technical output rather than oversized graphics production. Use the comparison tool to keep that width and workflow difference visible.
