HP · Wide-Format Plotter

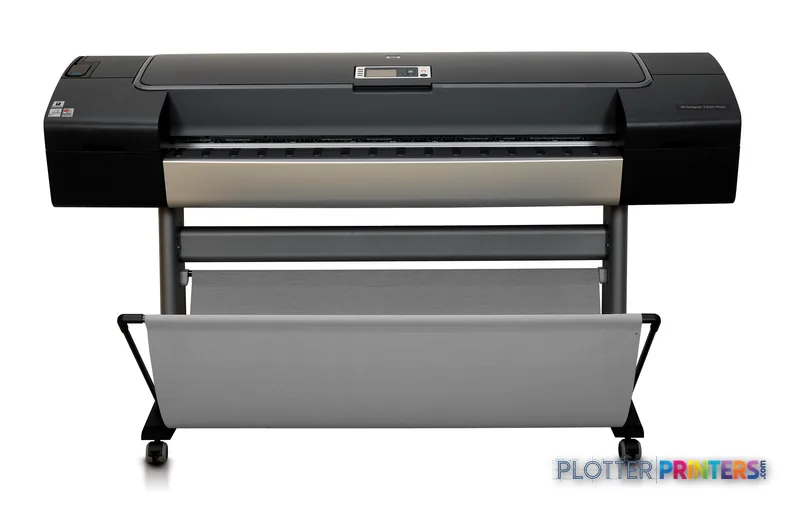

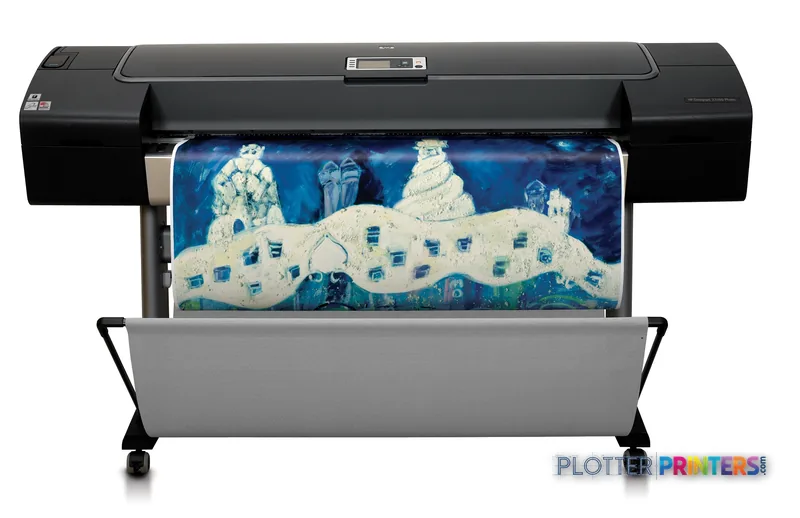

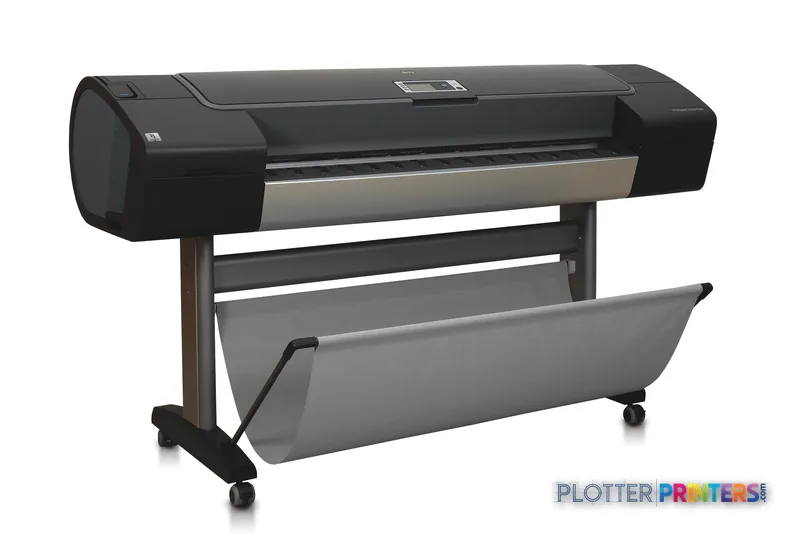

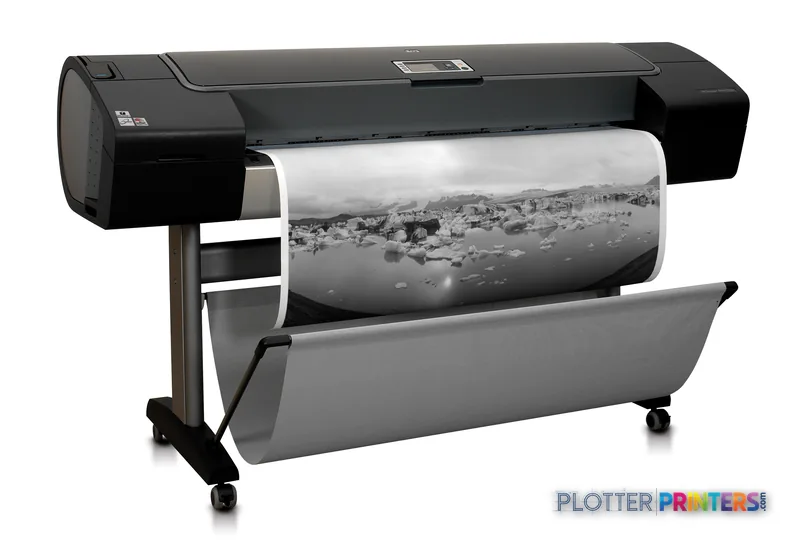

HP DesignJet Z3100
44" color graphics & photo printer
- ModelZ3100
- Prints44" wide
- Score62/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The 44-inch width accommodates E-size output as well as wide presentation boards, maps, and display graphics.
- Its specified 0.00200-inch minimum line width and +/- 0.2 % line accuracy support detail-oriented drawing output.
- HP Color Center and the embedded spectrophotometer provide a color-management path, but no measured gamut data is available here.
Not sure if the Z3100 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 44" wide on rolls and sheets.
- Ink platform Blue, Gloss enhancer, Green, Light Cyan, Light grey, Light magenta, Magenta, Matte black, Photo black, Red, Yellow.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 62/100 in our class-relative rating.
Overview
Built for the work
HP Designjet Z3100 44-in Photo Printer, Blue, Gloss enhancer, Green, Light Cyan, Light grey, Light magenta, Magenta, Matte black, Photo…, 6 (magenta and yellow, light magenta and light cyan, photo black and light gray, matte black and…, Photographic paper (satin, gloss, semi-gloss, matte), proofing paper (high-gloss, semi-gloss,…, > 0.8, 300 ft 91.4 m, 5.35" (13.6 cm)
- 44″Max print width
- 150 ft²/hRated speed
- 11Ink channels
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The 44-inch width accommodates E-size output as well as wide presentation boards, maps, and display graphics.
- Its specified 0.00200-inch minimum line width and +/- 0.2 % line accuracy support detail-oriented drawing output.
- HP Color Center and the embedded spectrophotometer provide a color-management path, but no measured gamut data is available here.
- The single-roll configuration makes this a focused media-run printer rather than an unattended mixed-roll plan-set engine.
- Listed operating-system support is legacy-oriented, so modern driver, security, and PDF workflow validation is essential.
- The HP DesignJet Z3200ps 44-in is the logical same-family step-up to evaluate when broader production capability is needed.
When a proposal board has to carry a rendering, a GIS aerial, and annotation that still reads at arm’s length, the weak point is often not the design file but the output path. The HP DesignJet Z3100 44-in Photo Printer is a 44-inch, pigment-ink wide-format printer built for that more color-sensitive end of AEC output: presentation graphics, competition boards, client displays, material studies, and maps where the cyan edge of a utility layer needs to remain distinct.
For technical work, it also supports bond and coated media, renders minimum lines of 0.002 in, and specifies line accuracy of +/- 0.2 %. It is not a conventional high-volume plan-production device, however. Its single-roll input and image-oriented speed ratings make it a better fit for deliberate, mixed-media output than for an unattended stream of collated permit sets.
44"Maximum media widthSupports sheets and roll media.
+/- 0.2 %Line accuracyRelevant when drawing scale and geometry need careful control.
0.00200" (0.0508 mm)Minimum line widthA useful specification for fine CAD detail.
300 ftMaximum roll lengthOperating system and application dependent.
Where its color system earns its place
This printer’s distinguishing feature is its broad ink set: blue, green, red, gray, light gray, light cyan, light magenta, magenta, yellow, matte black, photo black, and gloss enhancer. HP pairs those inks with HP Color Center and an embedded spectrophotometer, giving a print-room team tools to manage color rather than simply hope that a screen rendering survives the trip to paper.
That matters most for architectural visualizations, color-coded BIM coordination sheets, environmental graphics, planning exhibits, and GIS maps. The difference tends to show up where photographs live—in shaded façades, vegetation, and the last five percent of a saturated red. We do not have measured ICC gamut-volume data for this machine, so no universal color-coverage claim belongs here. Media, profile choice, and file preparation remain decisive. The supported range includes photographic, proofing, fine-art, self-adhesive, vinyl, banner, bond, and coated materials; HP 70 inks are the identified ink family.
AEC fit: controlled output, not a plan-room conveyor
For ordinary drawings, the combination of 44-inch width, sheetfeed and roll feed, an automatic cutter, and support for A through E sizes is practical. The cutter does not cut canvas, a small operational detail that matters when a presentation workflow alternates between coated boards and textured media. Gigabit Ethernet, USB, an embedded web server, HP Web Jetadmin support, and a 40 GB internal drive provide a reasonable foundation for a managed print-room environment.
The trade-off is workflow capacity. There is one maximum roll input, and the supplied specifications do not establish a scanning, copying, collating, or multi-roll unattended plan-set workflow. Teams that routinely move from 24-inch details to full E-size sheets may value the width over the HP DesignJet Z3100 24-in. Those needing a step up within the family should examine the HP DesignJet Z3200ps 44-in and validate its media and queue behavior against their actual files.
Estimate rated image-output time for a typical board or map, then allow separately for file processing, media loading, cutting, inspection, and handoff.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 150 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
What IT and print-room staff should verify
The listed operating-system support is rooted in Windows 2000, Windows XP, Windows Server 2003, Mac OS 10.2 and later, Novell NetWare, Citrix MetaFrame, and Terminal Services. That does not by itself establish compatibility with a modern managed desktop or current security policy. Before deployment, test the available driver path, PDF submission behavior, network segmentation, authentication expectations, and accounting requirements with representative CAD and PDF files.
HP rates normal-quality color images on coated paper at 72 ft2/hr and normal-quality glossy output at 38 ft2/hr. Those are media- and quality-specific ratings, not observed bid-set throughput. For a color-sensitive output room, compare the HP DesignJet Z3100 44-in Photo Printer with the Canon GP-4000 44-in using the papers, PDF standards, and color-critical files that your team actually uses.
Related equipment and evaluation tools
HP DesignJet Z3200ps 44-inA same-family 44-inch step-up option to assess for broader production needs.HP DesignJet Z3100 24-inThe narrower version for teams whose work rarely exceeds 24 inches.Wide-format photo-printer class rankingReview the class context alongside your application requirements.Canon GP-4000 44-inA cross-brand 44-inch comparison candidate.
The read
The HP DesignJet Z3100 44-in Photo Printer is particularly well suited to AEC teams that need wide, color-managed presentation output without abandoning credible fine-line drawing capability. It becomes more compelling when renderings, GIS maps, exhibit graphics, and coated-media output are regular work—not occasional exceptions. Its limits are equally clear: one roll, no stated scan/copy path, and legacy-listed software support make it less appropriate as the sole device for a busy construction-document department. Treat it as a specialist color and presentation printer, validate it against today’s network and PDF workflow, and keep a separate plan-production path where high-volume set work is central.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 10 compared
Class best 79 — Epson SureColor T7770DR
74% spec coverage
- This printer
- Epson SureColor T7770DR
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 44 in |
|---|---|
| Printing colors | Blue, Gloss enhancer, Green, Light Cyan, Light grey, Light magenta, Magenta, Matte black, Photo black, Red, Yellow |
| Internal memory | 128 MB |
| Media thickness | > 0.8 |
| Maximum roll diameter | 5.35" (13.6 cm) |
| Ethernet | Yes |
| Power consumption | 200 W |
Specifications
Full technical detail
Max print width44"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use casePhoto / Fine Art
Printing
| Print head | 6 (magenta and yellow, light magenta and light cyan, photo black and light gray, matte black and red, gloss enhancer and gray, blue and green) |
|---|---|
| Printing colors | Blue, Gloss enhancer, Green, Light Cyan, Light grey, Light magenta, Magenta, Matte black, Photo black, Red, Yellow |
| Color management | HP Color Center, HP Vivera pigment inks, HP embedded spectrophotometer |
| Print head nozzles | 2112 |
| Print speed (color image, best quality, glossy paper) | 1.6 m2/hr 17 ft2/hr |
| Print speed (color image, draft quality, coated paper) | 13.9 m2/hr 150 ft2/hr |
| Print speed (color image, normal quality, coated paper) | 72 ft2/hr 6.9 m2/hr |
| Print speed (color image, normal quality, glossy paper) | 38 ft2/hr 3.5 m2/hr |
Performance
| Certification | SWOP, ISO, GRACOL, 3DAP |
|---|---|
| Storage media | HDD |
| Internal memory | 128 MB |
| Built-in processor | Mobile Intel Centrino |
| Processor frequency | 600 MHz |
| Internal storage capacity | 40 GB |
Paper handling
| Media handling | Sheetfeed, roll feed, automatic cutter (cuts all media except canvas) |
|---|---|
| Media thickness | > 0.8 |
| Roll top margin | 0.197" (5 mm) |
| Print margin roll | 0.197" (5 mm) |
| Bottom copy margin | 14 mm |
| Maximum media width | 1117 mm |
| Maximum paper trays | 2 |
| Maximum roll length | 300 ft 91.4 m |
| Standard media sizes | A4, A3, A2, A1, A0 |
| Maximum roll diameter | 5.35" (13.6 cm) |
| Media types supported | Photographic paper (satin, gloss, semi-gloss, matte), proofing paper (high-gloss, semi-gloss, matte), fine art printing material (canvas, smooth, textured, watercolor), self-adhesive and vinyl (polypropylene, vinyl), sign and banner (display film, banner, scrim, polypropylene, Tyvek, outdoor paper), bond and coated (bond, coated, heavyweight coated, super heavyweight coated) |
| Print margin cut-sheet | 5 x 17 x 5 x 5 |
| Top metric copy margin | 5 mm |
| Left metric copy margin | 5 mm |
| Recommended media weight | 500 g/m² |
| Right metric copy margin | 5 mm |
| Maximum length of sheet media | 1676.4 mm |
| Media thickness (by paper path) | Up to 0.8 mm |
| Media sizes supported (imperial) | A, B, C, D, E |
| Non-printable area roll media (imperial) | 0.2 x 0.2 x 0.2 x 0.2 in (borderless on glossy roll media) |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Parallel ports quantity | 1 |
Weight & dimensions
| Weight | 189.6 lbs (86 kg) |
|---|---|
| Size (imperial) | 69.7" |
| Weight (imperial) | 189 lb |
| Dimensions (WxDxH) | 69.7 x 26 x 41.2" (1770 x 661 x 1047 mm) |
| Dimension note (metric) | printer with stand |
| Pallet weight (imperial) | 271 lbs |
| Dimension note (imperial) | printer with stand |
| Pallet dimensions (W x D x H) | 77.4 x 30.7 x 30.7" (1965 x 780 x 780 mm) |
| Maximum dimensions (W x D x H) | 69.7 x 28.8 x 41.2" (1770 x 732 x 1047 mm) |
| Product dimensions when open (LxWxD) | 69.7" |
| Pallet dimensions (W x D x H) (imperial) | 77.3 x 30.7 x 30.7" |
Power
| Power requirements | Input voltage (autoranging): 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 amps max |
|---|---|
| Power consumption (typical) | 200 W |
Operational conditions
| Storage temperature (T-T) | -13 – 131 °C |
|---|---|
| Operating temperature (T-T) | 59 – 95 °F |
| Operating altitude (imperial) | 9842 ft |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
| Recommended operating temperature range (T-T) | 15 – 35 °C |
Other features
| Safety | IEC 60950-1 compliant, EU LVD and EN 60950-1 compliant, certified by CSA for Canada and US, Argentina IRAM, Singapore PSB, Russia GOST, China CCIB, Taiwan BSMI |
|---|---|
| Ink drop | 4 pl (lc, lm, lg, pK, E, G), 6 pl (M, Y, mK, R, GN, B) |
| Driver LAN | Novell NetWare 3.x/4.x clients |
| Control panel | 240 x 160 pixels grayscale graphical display with Asian fonts support, 4 direct-access buttons and 7 navigation buttons, 2 bicolor lights (Ready, Processing, Attention, Error) |
| Line accuracy | +/- 0.2 % |
| Driver updates | Latest Windows printer drivers information available at http:// and more information on all printer drivers available at http:///country/us/en/support.html?pageDisplay=drivers. |
| Line width minimum | 0.002 in |
| Minimum line width | 0.00200" (0.0508 mm) |
| Printer management | HP Web Jetadmin |
| Roll maximum input | 1 |
| Embedded web server | Yes |
| Acoustic power emissions | 6.5 B(A) |
| Minimum system requirements | Microsoft Windows 2000/XP: Pentium IV, 1 GHz, 512 MB RAM, 2 GB available hard disk space Windows 2000: Pentium III processor, 512 MB RAM, 2 GB available hard disk space, 733 MHz; Windows XP Professional: Pentium IV processor, 512 MB RAM, 2 GB available hard disk space, 1 GHz Microsoft Windows 2000/XP: Pentium IV, 1 GHz, 1 GB RAM, 2 GB available hard disk space Mac OS X v10.2, v10.3, v10.4 and later, PowerPC G4, G5, or Intel Core Processor, 1 GB Ram, 2 GB available hardware disk |
| Electromagnetic compatibility | Compliance for Class B products: EU (EMC Directive), USA (FCC rules), Canada (DoC), Australia (ACA), New Zealand (MoC), China (CCC), Japan (VCCI), Korea (MIC) and Taiwan (BSMI) |
| JetDirect Compatible Products | Y |
| Compatible ink types, supplies | HP Vivera pigment inks |
| Maximum media length (imperial) | 66" |
| Maximum print length (imperial) | 300 ft; Operating system and application dependent |
| Printing material waterfastness | Water-resistant on a range of HP creative and speciaty papers |
| Acoustic power emissions (standby) | 44 dB |
| Print quality (black, best quality) | 2400 x 1200 DPI |
| Print quality (black, draft quality) | 1200 DPI |
| Media sizes standard (imperial rolls) | 8.5 to 44-in wide sheets, 11 to 44-in rolls |
| Print quality (black, normal quality) | 1200 DPI |
| Non-printable area (imperial cut-sheet) | 0.2 x 0.67 x 0.2 x 0.2 in |
| Print resolution (color, normal quality) | 1200 x 1200 DPI |
| Minimum system requirements for Macintosh | Mac OS X v 10.2, v 10.3, v 10.4 and later; PowerPC G3 or Intel Core Processor; 256 MB RAM; 1 GB available hardware disk |
Logistics data
| Pallet weight | 271.2 lbs (123 kg) |
|---|---|
| Quantity per pallet | 1 pc(s) |
Packaging data
| Package weight | 271.2 lbs (123 kg) |
|---|---|
| Bundled software | Printer drivers, HP Printer Utility including HP Color Center |
| Package weight (imperial) | 271 lbs |
| Package dimensions (WxDxH) | 77.4 x 30.7 x 30.7" (1965 x 780 x 780 mm) |
| Package dimensions (W x D x H) | 77.3 x 30.7 x 30.7" |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
System requirements
| Browser supported | Internet Explorer 5.0 and higher, Netscape 6.0.1 and higher, Safari for Mac OS 10.3 and higher, Mozilla 1.5 and higher |
|---|---|
| Compatible operating systems | Windows 2000; Windows XP Home; Windows XP Professional; Windows XP Professional x64; Windows Server 2003; Mac OS 10.2 or higher; Novell NetWare 5.x, 6.x; Citrix MetaFrame; Terminal Services |
