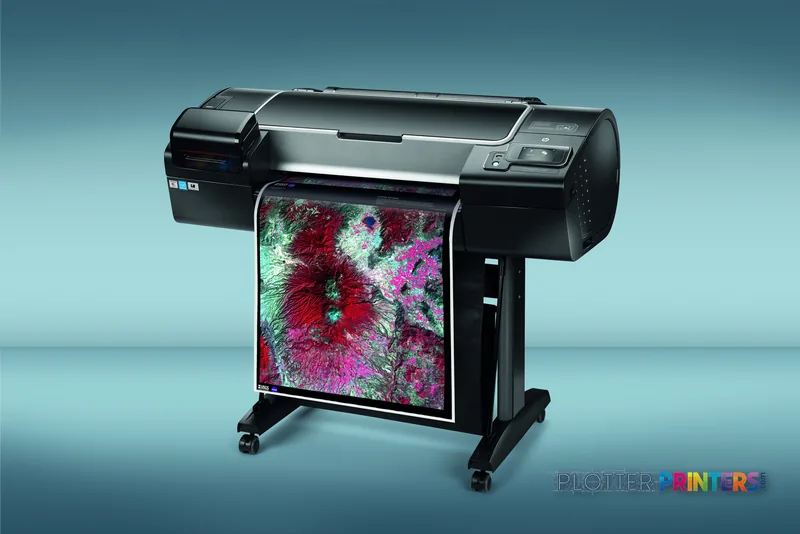

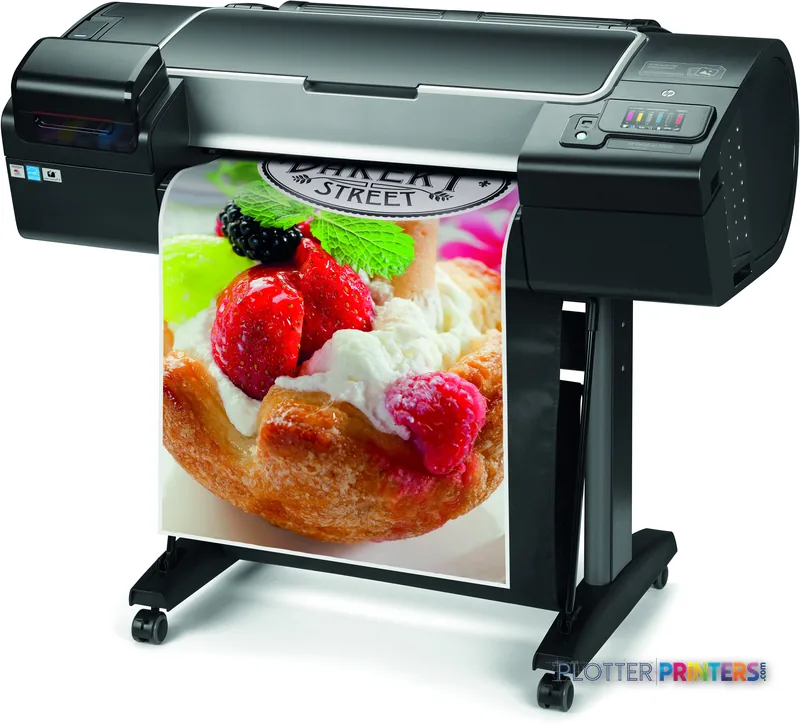

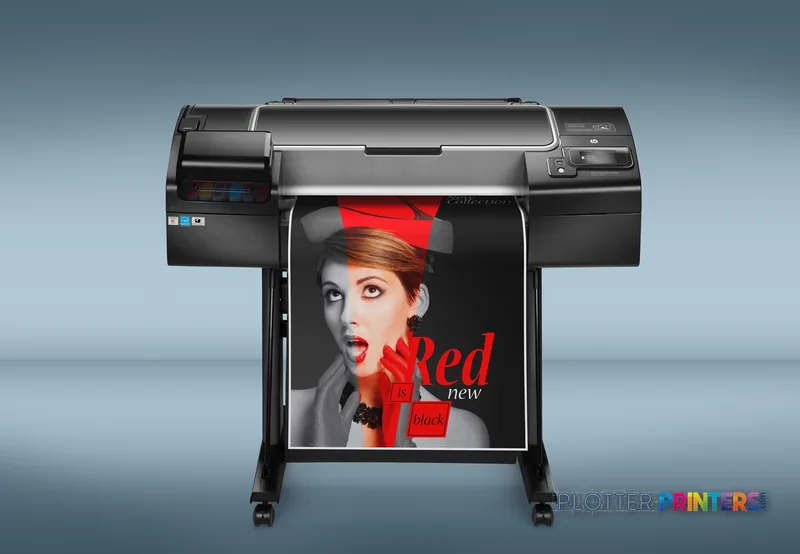

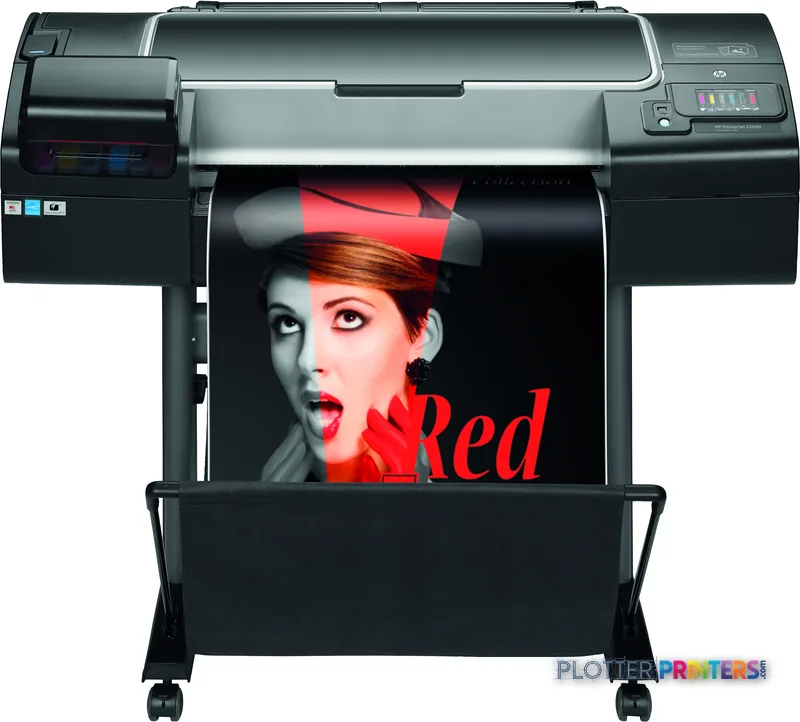

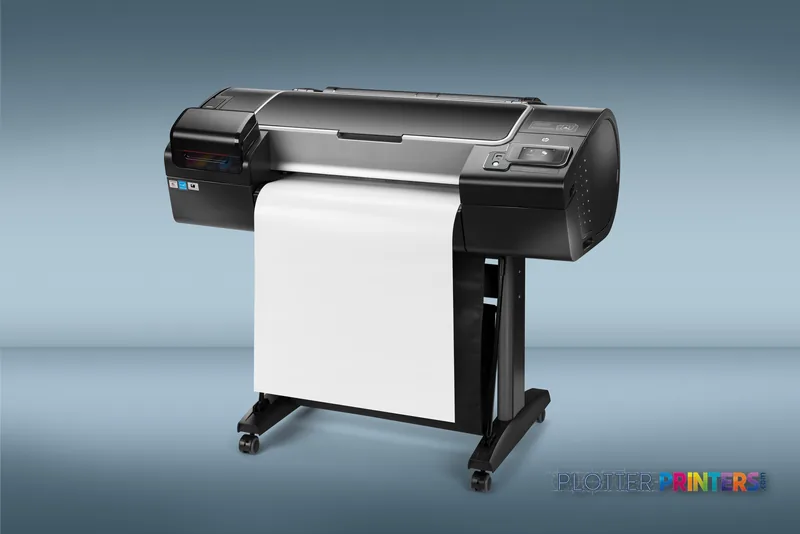

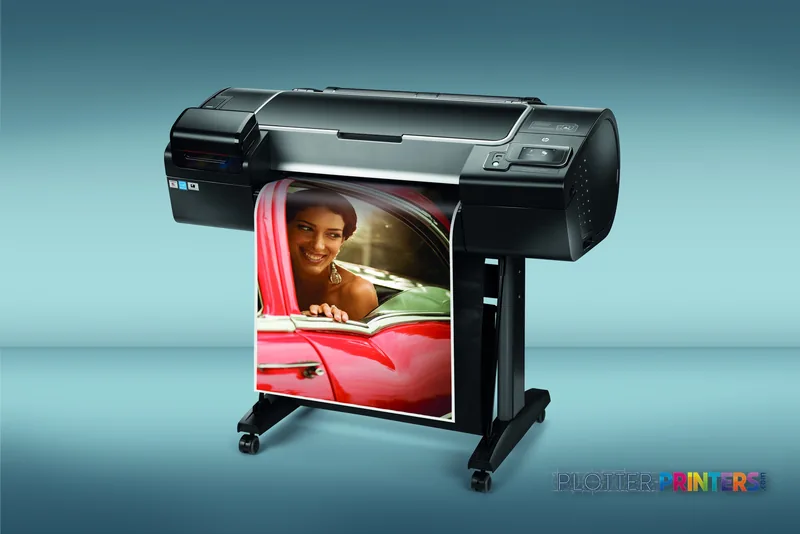

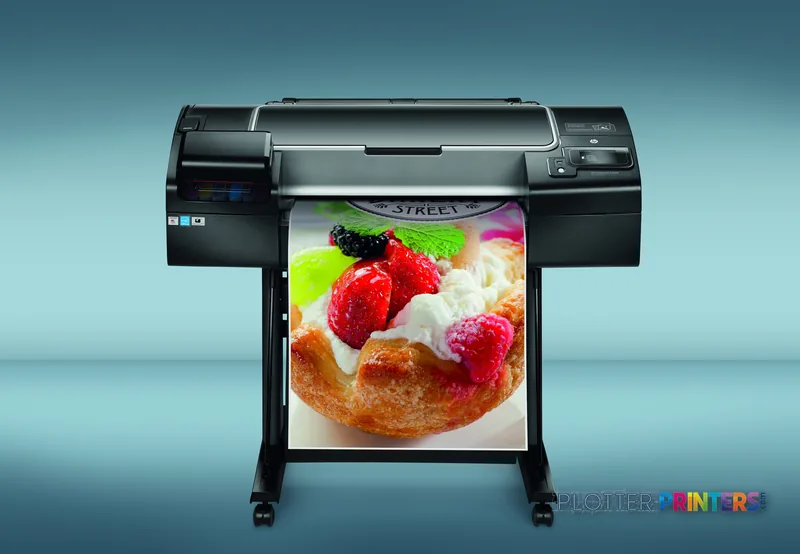

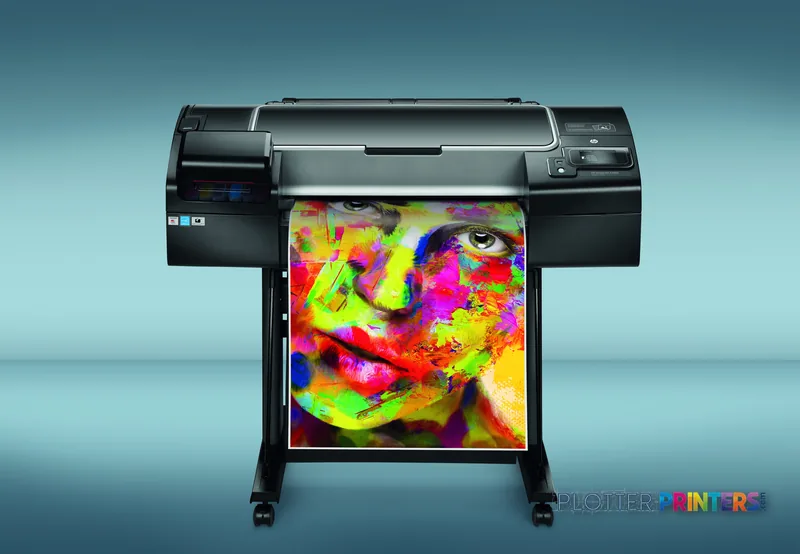

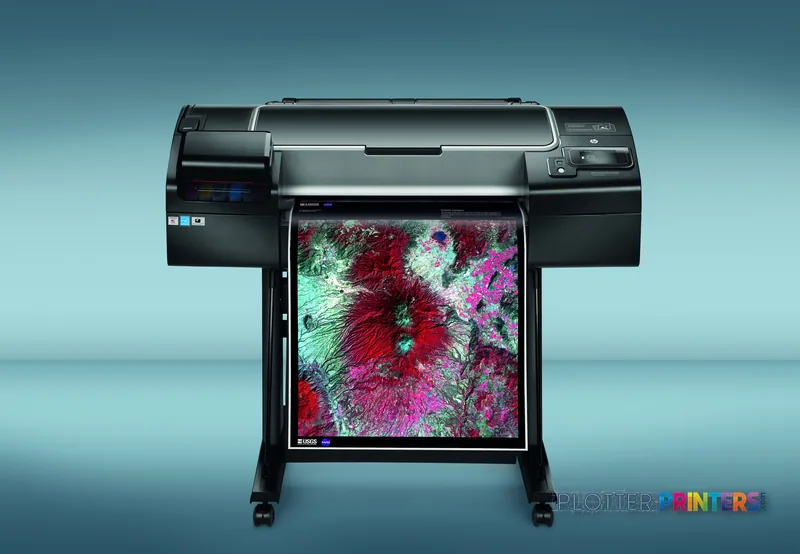

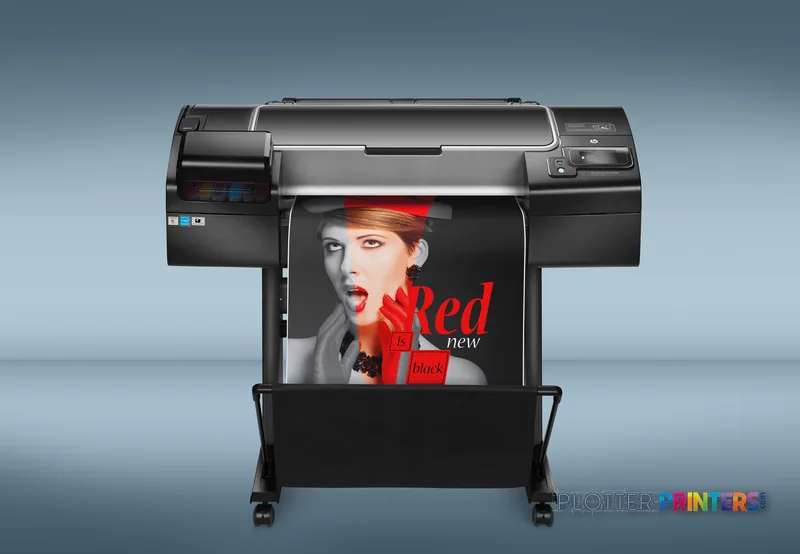

HP DesignJet Z2600

This machine fits architecture studios, engineering teams, survey groups, and construction offices whose regular output stays within 24 inches wide. That includes permit sheets, detail packages, color-coded MEP coordination PDFs, site maps, markups, and smaller presentation boards. The six-color ink set—chromatic red, cyan, magenta, matte black, photo black, and yellow—gives it a more color-conscious role than a monochrome plan printer. The difference matters when adjacent annotation colors need to remain readable rather than collapsing into one visual note.

For everyday file handling, native support for PDF 1.7 and PostScript 3 is particularly relevant where Revit, AutoCAD, Bluebeam-based review, and consultant PDFs converge in the same queue. USB Type-A, USB 2.0, and one RJ-45 port are listed; Wi-Fi is not. That makes a wired placement and a clear IT ownership model the sensible assumption. Review the way we assess wide-format workflow before treating a resolution figure as a complete proxy for drawing quality.

Roll paper is supported, and the listed maximum media thickness is 0.031 inches. The device can render up to 24 by 66 inches, so it is not a substitute for teams routinely issuing full-width 30-, 36-, or 42-inch construction sets. Its listed A-series support covers A1 through A4, while the physical maximum remains the more useful planning figure for U.S. AEC buyers.

There is no measured ICC gamut result in the supplied data for this model, so it would be unhelpful to make broad claims about photographic color range. Resolution and six inks establish capability, not a measured color verdict. Firms reproducing client-facing finishes or carefully branded boards should validate their own paper, PDF settings, and review conditions. Compatible supplies include HP 745 inks and HP 744 printheads; the available accessories also list the HP Designjet 24-in Spindle, HP DesignJet T/Z 24-in Stand, and HP DesignJet 3-in Core Adapter.

The HP Z2600 24-in PostScript is the appropriate starting point when width discipline matters more than wide-set production. If full-width drawing sets are routine, the HP DesignJet Z3100 44-in changes the conversation simply by moving to a 44-inch format. The trade-off is a larger physical footprint and a different fit for office space. At 49.6 inches wide, 27.2 inches deep, and 41.3 inches high, the Z2600 itself is already a deliberate equipment placement, not a desk-side device.

For a same-width adjacent option, compare the HP Z3200 24-in carefully against the actual files, papers, and support arrangement your team uses; both are catalogued as 24-inch thermal-inkjet devices with 2400 x 1200 DPI maximum resolution. For broader context, use the side-by-side comparison. The deciding factors should be workflow fit, service coverage, and the practical handling of your most troublesome PDFs—not model familiarity alone.
