HP DesignJet XL 3600 MFP
36" wide-format MFPs
- ModelXL 3600 MFP
- Prints36" wide
- Score64/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The HP DesignJet XL 3600 combines 36-inch color printing, copying and CIS scanning for shared AEC document workflows.
- HP rates normal-quality output at 19.3 sec/A1; real set turnaround also depends on file handling and operator steps.
- It supports HP-GL/2, HP-RTL, TIFF, JPEG and CALS G4 for technical-document submission paths.
Not sure if the XL 3600 MFP is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Scan & copy Integrated scanner for digitizing and sharing sets.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 64/100 in our class-relative rating.
Overview
Built for the work
HP DesignJet XL 3600 36-in Multifunction Printer, Thermal inkjet, 2400 x 1200 DPI, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, Cyan, Photo black, Matte black, Magenta, Yellow, 2400 x 1200 DPI, 19.3 sec/A1; 3 A1/min
- 36″Max print width
- 1,211 ft²/hRated speed
- 6Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Features
What sets it apart
Swipe to explore →
Expert analysis
What you should know
Key takeaways
- The HP DesignJet XL 3600 combines 36-inch color printing, copying and CIS scanning for shared AEC document workflows.
- HP rates normal-quality output at 19.3 sec/A1; real set turnaround also depends on file handling and operator steps.
- It supports HP-GL/2, HP-RTL, TIFF, JPEG and CALS G4 for technical-document submission paths.
- Scan-to-e-mail, network-folder and USB workflows make permissions and destination governance an IT responsibility.
- The device uses HP 766 inks and the HP 727 printhead.
- The discontinued HP DesignJet T918 36-in is relevant mainly as an installed-base reference, not an assumed replacement route.
A permit revision lands at 4:40, the superintendent needs marked-up sheets before the coordination call, and someone also wants last year’s utility plan scanned to the project folder. That is the sort of ordinary AEC deadline the HP DesignJet XL 3600 36-in Multifunction Printer is built to keep moving: print, copy, scan and submit files without treating each function as a separate little expedition.
This is a 36-inch color thermal-inkjet MFP for business environments that need plan output alongside color-coded coordination drawings, GIS mapping, redlines and archive scanning. HP rates normal-quality output at 19.3 sec/A1, or 3 A1/min. That figure is useful for judging the engine, but productive plot-room time still includes file processing, roll handling, pickup and the person deciding which revision was actually approved. Money is minutes.
36" x 48" (914 x 1219 mm)Maximum print size
19.3 sec/A1; 3 A1/minRated normal-quality speed
600 x 600 DPIMaximum scan resolution
8 mMaximum scan length
Where it fits in an AEC document workflow
The XL 3600 fits architecture, engineering and construction teams that routinely produce up to 36 × 48-inch sheets and need color scanning and copying in the same location as print output. Its supported page-description languages include HP-GL/2, HP-RTL, TIFF, JPEG and CALS G4, which keeps it relevant to mixed CAD, PDF and technical-document workflows. Direct printing, HP Click App, HP Click Driver for Windows 11 and mobile/ePrint support provide several submission paths; the important operational question is which one IT will support consistently.
- Architectural and engineering teams issuing drawing revisions and color coordination sets.
- Construction offices copying marked-up plans and scanning them to e-mail or network folders.
- Survey and infrastructure groups handling long scanned originals, within the 8 m scan limit.
- Shared print rooms that need concurrent all-in-one multitasking rather than a print-only endpoint.

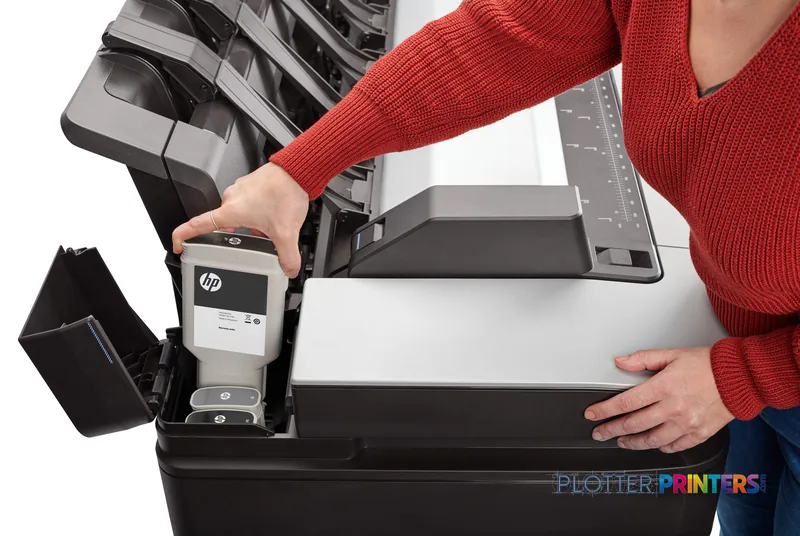

The five-color system uses Cyan, Photo black, Matte black, Magenta and Yellow, with six cartridges and the HP 766 ink family plus the HP 727 printhead. Its stated 2400 x 1200 DPI maximum resolution is relevant to fine detail, but line readability also depends on the originating PDF, driver settings and ordinary bond media—not just the number on the specification sheet.
Estimate rated print-engine time for a typical plot batch, then add the real workflow allowances: release, processing, loading, collection and revision checking.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 1,211 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
IT, scan routing and shared-device discipline
For a shared AEC device, network administration matters as much as output. The XL 3600 provides Gigabit Ethernet, Wi-Fi Direct, HP Web Jetadmin and HP JetAdvantage Security Manager in the listed software set, with scan destinations to e-mail, a network folder or USB. It also includes an HDD and HP Dynamic security. Those facts make it suitable for a managed environment, but they do not substitute for a sensible deployment: define who can scan externally, validate network-folder permissions, and decide whether Wi-Fi Direct belongs on the site network.
Optional HP SmartStream and HP SmartTracker can be relevant where preflight and tracking are established practices. They are not a cure for an ungoverned print queue. A plotter that saves thirty seconds a plot buys you nothing if the file spends four minutes finding it.
Capacity, footprint and the sensible comparison
At 59 inches wide, 26 inches deep, 52 inches high and 339.5 lbs, this is a shared production device rather than something to tuck beside a project manager’s desk. It accepts rolls up to 36 inches wide and up to 200 m long, while custom media sizes run from 210 x 279 to 36 × 48 inches. It can handle a broad list of bond, coated, glossy, matte, photo, banner, heavy and satin media types, with media thickness stated at 0.031 inches.
The catalog’s in-family reference is the discontinued HP DesignJet T918 36-in. Treat that as an installed-base comparison rather than an assumed upgrade path: verify service, workflow needs and available options before framing a replacement decision. For a cross-brand comparison, the HP DesignJet XL 3600 and Canon GP-300 36-in comparison is a useful starting point, but local support capability and driver validation should decide the final shortlist.
Compare and evaluate
HP DesignJet T918 36-inA discontinued in-family model that may still appear in installed-base replacement conversations.Canon GP-300 36-inA catalog-listed 36-inch cross-brand comparison point.36-inch class rankingReview this machine in the broader class context.How we rate wide-format devicesUnderstand the workflow criteria behind our evaluations.
The read
Choose the HP DesignJet XL 3600 36-in Multifunction Printer if your team needs a managed 36-inch color print-and-scan hub for recurring AEC documents, long-original scanning and network-folder workflows. Choose a different approach if your work routinely exceeds 36 inches, your bottleneck is finishing rather than output, or your organization lacks the support discipline to manage shared scan destinations, drivers and file release. Buy the machine for the workflow you have, not the one the brochure imagines.
Spec analysis
How the specs grade
Overall performance
- This printer
- HP DesignJet T2600dr MFP
Verified specifications
The specs that decide it
| Maximum print width | 36 in |
|---|---|
| Print technology | Thermal inkjet |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4 |
| Maximum print size | 914 x 1219 mm |
| Media thickness | 0.8 mm |
| Scanning | Colour scanning |
| Ethernet | Yes |
| Power consumption | 120 W |
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
Max print width36"
ConnectivityEthernet (Gigabit LAN)
Use caseCAD / Technical
Printing
| Colour | Yes |
|---|---|
| Print head | 1 |
| Print technology | Thermal inkjet |
| Printing colours | Cyan, Photo black, Matte black, Magenta, Yellow |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4 |
| Print speed (normal quality) | 19.3 sec/A1; 3 A1/min |
| Print speed (normal quality, A1) | 180 pph |
Performance
| HP segment | Business |
|---|---|
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC) |
| Storage media | HDD |
| Product colour | Black, Grey |
| Built-in display | Yes |
| Country of origin | China |
Paper handling
| Media thickness | 0.8 mm |
|---|---|
| Custom media sizes | 210 x 279 to 914 x 1219 mm |
| Maximum print size | 914 x 1219 mm |
| Maximum roll width | 91.4 cm |
| Maximum roll length | 200 m |
| Paper tray media types | Coated paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Banner, Heavy paper, Satin paper |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
Ports & interfaces
| USB port | No |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| Direct printing | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Mobile printing technologies | HP ePrint |
Technical details
| Box contents | HP DesignJet XL 3600 Multifunction Printer, printhead, introductory ink cartridges, scanner calibration sheet, 2-in hub right adapter kit, quick reference guide, setup poster, power cord |
|---|
Weight & dimensions
| Depth | 660 mm |
|---|---|
| Width | 1500 mm |
| Height | 1310 mm |
| Weight | 154 kg |
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (off) | 0.3 W |
| Power consumption (sleep) | 14 W |
| Power consumption (typical) | 120 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 35 °C |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| Safety | USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Argentina (IRAM); Mexico (NYCE); India (BIS) |
|---|---|
| UNSPSC-code | 43212107 |
| All-In-One-multitasking | Yes |
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC) |
Copying
| Copying | Colour copying |
|---|---|
| Copier resize | 25 – 400% |
Scanning
| Scan to | E-mail, Network folder, USB |
|---|---|
| Scanning | Colour scanning |
| Scan technology | CIS |
| Maximum scan length | 8 m |
| Maximum media thickness | 94.1 cm |
| Maximum scan resolution | 600 x 600 DPI |
| Optical scanning resolution | 600 x 600 DPI |
Packaging data
| Package depth | 770 mm |
|---|---|
| Package width | 1625 mm |
| Package height | 1260 mm |
| Package weight | 203 kg |
| Bundled software | HP Click App , HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartStream (optional), HP SmartTracker(optional), HP Click Driver for Windows 11 |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR |
Carbon footprint
| Total carbon footprint (kg of CO2e) | 3570 |
|---|---|
| Carbon emissions, logistics (kg of CO2e) | 693 |
| Carbon emissions, end-of-life (kg of CO2e) | 14 |
| Carbon emissions, manufacturing (kg of CO2e) | 2855 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 6 |
Brand-specific features
| HP ePrint | Yes |
|---|---|
| HP Web Jetadmin | Yes |
| HP GTIN (EAN/UPC) | 193808566080 |
| HP Dynamic security | Yes |
Everything that fits the HP DesignJet XL 3600 MFP
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
6 ink cartridges · 13 paper & media items · 1 accessory
HP DesignJet XL 3600 MFP ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet XL 3600 36-in Multifunction Printer — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 6
Paper & Media 13
Representative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image350g Vivid Matte Poly/Cotton CanvasRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative image6 Mil Water-Resistant Self-Adhesive PolypropyleneRepresentative image36LB Inkjet Coated Matte Paper (746)Representative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)
HP F40 Folder paper cutterAccessories 1
Questions
Straight answers
What AEC work is the HP DesignJet XL 3600 36-in Multifunction Printer suited to?
It suits teams producing up to 36 × 48-inch technical sheets, color coordination drawings, marked-up plans and scanned project records. Print, color copy and color scan functions are combined in one device.
How fast is it?
HP rates normal-quality printing at 19.3 sec/A1, or 3 A1/min. That is an engine rating; actual plot-set completion also includes file processing, media handling and collection.
Can it scan long plans and where can scans go?
The stated maximum scan length is 8 m, with a maximum scan resolution of 600 x 600 DPI. Scan destinations are e-mail, network folder and USB.
What should IT review before deployment?
Review Gigabit Ethernet, Wi-Fi Direct, HDD use, HP Dynamic security, scan-destination permissions and the administration workflow through HP Web Jetadmin and HP JetAdvantage Security Manager. The printer can be manageable; it still needs a defined policy.
Which consumables does this model use?
The resolved compatible consumables are the HP 766 ink family and HP 727 printhead. The printer is specified with six print cartridges.
How does it relate to the HP DesignJet T918 36-in?
The HP DesignJet T918 36-in is the catalog-listed in-family model and is marked discontinued. For replacement planning, compare actual paper sizes, scan needs, submission methods and local service arrangements rather than assuming like-for-like workflow equivalence.
