HP · Wide-Format Plotter

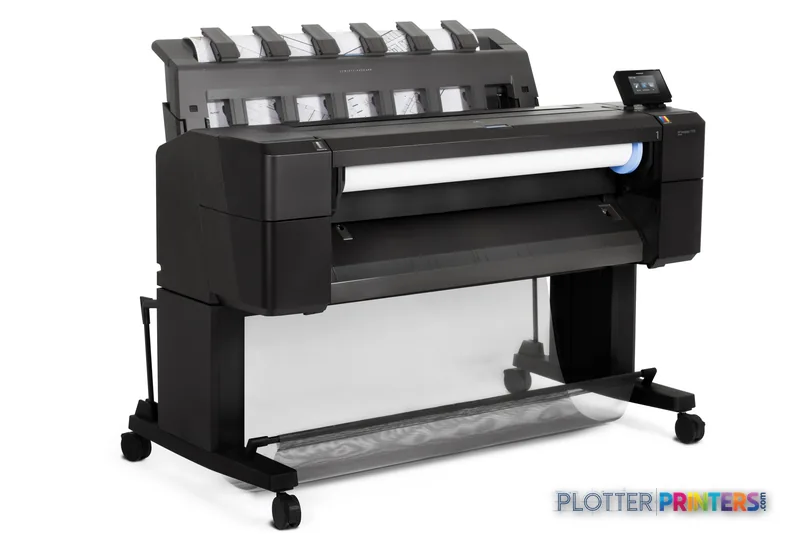

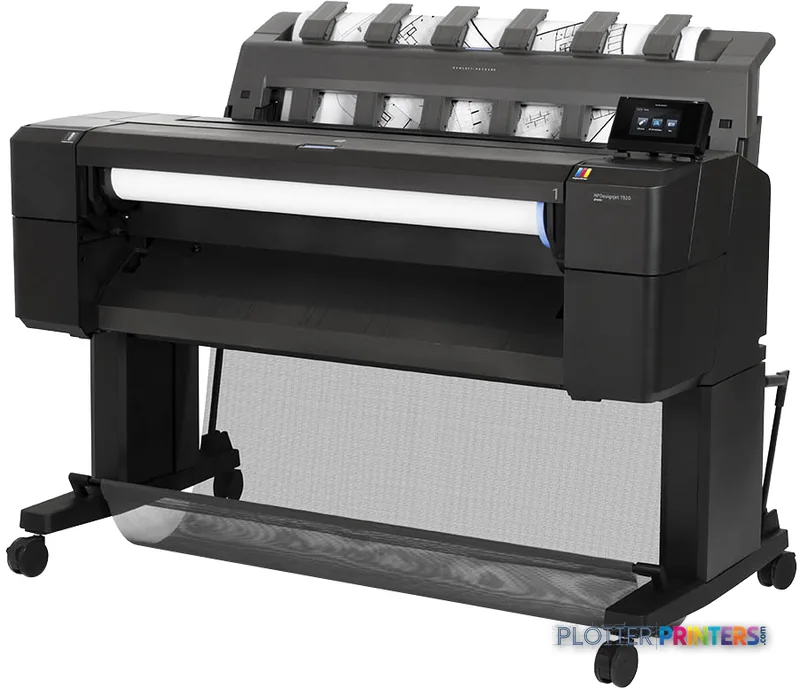

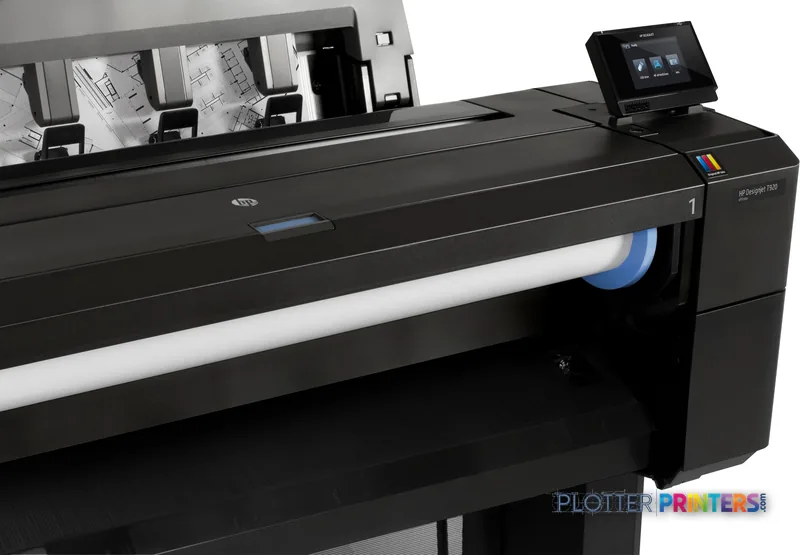

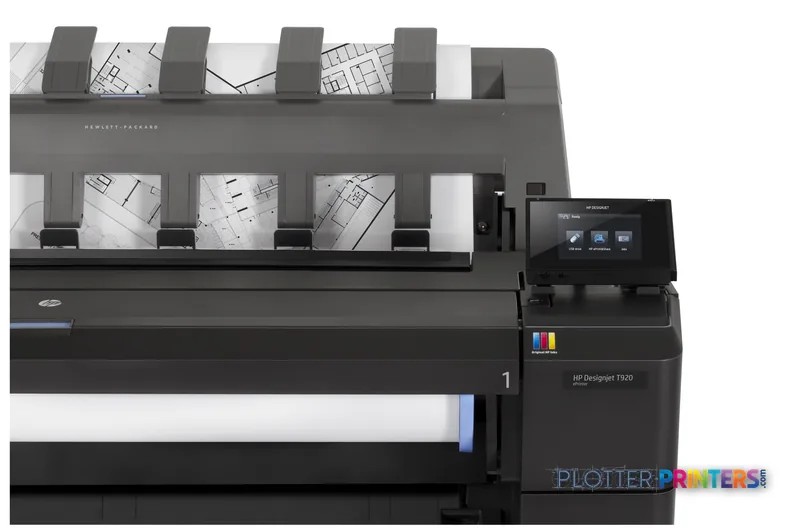

HP DesignJet T920
36" color graphics & photo printer
- ModelT920
- Prints36" wide
- Score72/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The HP T920 36-in is a color, print-only thermal-inkjet device with a maximum 36-inch print width.
- HP rates draft A1/D color line drawings on plain paper at 120 A1 prints per hour, equivalent to 21 seconds per page.
- A single roll, sheet feed, automatic cutter, and tray specified for up to 50 A1/D sheets suit straightforward departmental plotting.
Not sure if the T920 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Cyan, Gray, Magenta, Matte black, Photo black, Yellow.
- Analyst score Scores 72/100 in our class-relative rating.
Overview
Built for the work
HP Designjet T920 36-in PostScript Printer with Encrypted Hard Disk, Thermal inkjet, 2400 x 1200 DPI, HP-GL/2, HP-RTL, PCL 3, PDF 1.7, PostScript 3, TIFF, URF, Cyan, Gray, Magenta, Matte black, Photo black, Yellow, HP 727 Ink Cartridge: matte black (300 ml); cyan, gray, magenta, matte black, photo black, yellow…, 1 (cyan, gray, magenta, matte black, photo black, yellow)
- 808 ft²/hRated speed
- 6Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The HP T920 36-in is a color, print-only thermal-inkjet device with a maximum 36-inch print width.
- HP rates draft A1/D color line drawings on plain paper at 120 A1 prints per hour, equivalent to 21 seconds per page.
- A single roll, sheet feed, automatic cutter, and tray specified for up to 50 A1/D sheets suit straightforward departmental plotting.
- Its listed HP-GL/2, HP-RTL, PDF 1.7, PostScript 3, TIFF, PCL 3, and URF support aligns with varied AEC file sources.
- The machine is less suited to frequent media switching, scan/copy workflows, or operations that require two rolls ready at once.
A permit set at 4:30 p.m. is not the moment to discover that a plotter cannot keep the sheet stack orderly or interpret the PDF the way the designer intended. The HP T920 36-in is a color, print-only thermal-inkjet machine for the familiar AEC mix: CAD linework, marked-up PDFs, coordination drawings, GIS sheets, presentation graphics, and full-size D- and E-size output. Its six-ink system includes gray and both matte and photo black, a useful arrangement when fine black linework shares a page with shaded diagrams.
HP rates draft A1/D color line drawings on plain paper at 120 A1 prints per hour, or 21 seconds per page. That is a rated draft figure, not a promise of end-to-end set turnaround: file processing, media changes, roll loading, and collection still shape the real print-room rhythm. What matters operationally is that the T920 combines that rated pace with a single 36-inch roll, sheet feed, automatic cutter, and an integrated stacking tray specified for up to 50 A1/D-size sheets.
36" (914 mm)Maximum print widthSupports A through E media sizes.
120 A1 prints per hourRated draft line-drawing speedColor line drawing on A1 plain paper.
+/- 0.1%Line accuracyRelevant to scaled technical drawings.
2400 x 1200 DPIMaximum resolutionThermal inkjet output.
Where it fits in an AEC workflow
The T920 is particularly well suited to a studio, discipline team, field-office support room, or departmental print area that needs dependable full-size output without scanning or copying at the device. It accepts 11- to 36-inch rolls and sheets from 8.3 to 36 inches wide, with custom media up to 36 × 48 inches. Bond, coated papers, tracing and vellum, films, photographic papers, backlit media, and selected self-adhesive materials are listed among supported stocks.
For technical documents, the specifications are encouraging: a minimum line width of 0.0028 inch, stated line accuracy of +/- 0.1%, and HP-GL/2, HP-RTL, PDF 1.7, PostScript 3, TIFF, PCL 3, and URF support. Those languages matter because AEC output rarely arrives in one format. A native PDF or a complex CAD plot can look deceptively simple on screen; the cyan edge of a coordination overlay is where line separation and file handling become visible. The machine also provides USB Type-A and RJ-45 connectivity, with bundled HP Designjet ePrint & Share, HP Instant Printing, and HP Utility software.
The single-roll trade-off

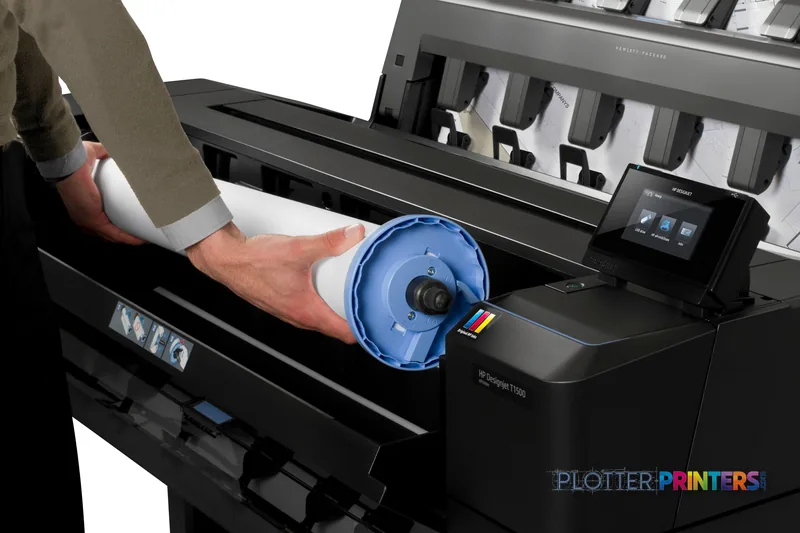

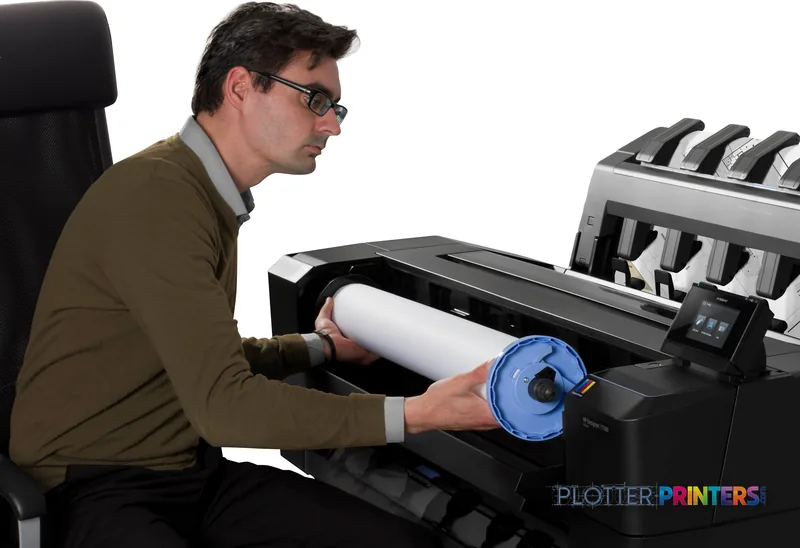

One roll is the T920’s central operational boundary. It is sensible when most work stays on one bond stock and size, or when an operator can readily intervene between jobs. It is less compelling where teams repeatedly alternate between 24-inch and 36-inch plans, plain bond and coated presentation sheets, or several project formats. In those environments, the HP DesignJet T1600dr 36-in is the more natural in-family direction because it is listed as a dual-roll model.
The integrated tray is a practical advantage for short plan runs and loose-sheet collection, but it should not be mistaken for a finishing system. The supplied specification identifies up to 50 A1/D-size capacity; it does not establish unattended collated-set capability. Firms producing frequent, mixed-size bid sets should walk a real sequence through the device: first sheet, roll selection, cutter behavior, stack quality, and the operator steps needed to separate projects. The 32,768 MB internal memory is substantial on paper, yet complex PDFs should still be tested from the submission method the firm actually uses.
Estimate rated plot time for A1/D draft line drawings, then allow separately for job preparation, media handling, and collecting completed sheets.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 808 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
How it sits beside nearby HP options
The HP DesignJet T870 24-in is the narrower in-family option for teams whose work genuinely remains within 24-inch output. The HP DesignJet T930 is the newer same-format sibling if you want the current 36-inch generation. Neither choice is automatically better: width should follow drawing formats and media practice, not a desire to buy capacity that sits idle.
If scanning marked-up drawings or copying existing plans belongs in the daily process, the print-only T920 may be the wrong tool. The HP DesignJet T950 36-in and HP DesignJet T850 36-in are listed as scanner/MFP alternatives. For a direct side-by-side view of the print-only and MFP paths, use the comparison tool. The T920 remains a focused choice when output is the requirement and scan/copy work is handled elsewhere.
Compare related AEC devices
HP DesignJet T1600dr 36-inConsider this route when two-roll handling is central to the workflow.HP DesignJet T950 36-inA related 36-inch scanner/MFP option for scan-and-copy workflows.HP DesignJet T870 24-inA narrower option for teams that do not require 36-inch output.Wide-format class rankingReview the T920 within its class.
The read
The HP T920 36-in fits AEC teams that need color technical and presentation output up to 36 inches wide, a straightforward single-roll workflow, and a device that can accept common CAD and PDF-oriented file languages. Its stated accuracy, fine-line specification, cutter, and stacking tray make it credible for everyday drawings rather than merely occasional plots. The trade-off is clear: it is print-only and single-roll. Choose it when those limits match the actual workflow; move toward the HP DesignJet T1600dr 36-in when roll changes interrupt production, or toward an MFP when scanning and copying are part of the job.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 12 compared
Class best 82 — Epson SureColor T5770DR
70% spec coverage
- This printer
- Epson SureColor T5770DR
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Print technology | Thermal inkjet |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Cyan, Gray, Magenta, Matte black, Photo black, Yellow |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, HP-RTL, PCL 3, PDF 1.7, PostScript 3, TIFF, URF |
| Internal memory | 32768 MB |
| Maximum print size | 914 x 1219 mm |
| Sound level (printing) | 47 dB |
| Power consumption | 120 W |
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
Max print width36"
ColorColor
ConnectivityUSB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print head | 1 (cyan, gray, magenta, matte black, photo black, yellow) |
| Printing colors | Cyan, Gray, Magenta, Matte black, Photo black, Yellow |
| Print technology | Thermal inkjet |
| Maximum resolution | 2400 x 1200 DPI |
| Print head nozzles | 9632 |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, HP-RTL, PCL 3, PDF 1.7, PostScript 3, TIFF, URF |
| Print cartridge volume (metric) | HP 727 Ink Cartridge: matte black (300 ml); cyan, gray, magenta, matte black, photo black, yellow (130 ml); matte black (69 ml); cyan, gray, magenta, photo black, yellow (40 ml) |
| Print speed (normal quality, A1) | 120 pph |
| Print time color line drawing (draft, A1) | 21 sec/page |
| Print speed color line drawing (draft, A1 plain paper) | 120 A1 prints per hour |
| Print time black and white line drawing (draft, metric A1 plain paper) | 21 sec/page |
Performance
| Certification | ENERGY STAR; WEEE; EU RoHS; China RoHS; REACH; EuP; FEMP; EPEAT Bronze |
|---|---|
| Product color | Black |
| Internal memory | 32768 MB |
| Sound pressure level (printing) | 47 dB |
Paper handling
| Media handling | Input: automatic front-loading roll feed; sheet feed; Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity); media bin; automatic cutter |
|---|---|
| Custom media sizes | 210 x 279 to 914 x 1219 mm |
| Maximum print size | 914 x 1219 mm |
| Maximum media width | 914 mm |
| Standard media sizes | A4; A3; A2; A1; A0 |
| Media types supported | Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl) |
| Maximum length of sheet media | 1676 mm |
| Media thickness (by paper path) | Up to 19.7 mil |
| Media sizes supported (imperial) | A, B, C, D, E |
| Non-printable area roll media (imperial) | 0.2 x 0.2 x 0.2 x 0.2 in |
Ports & interfaces
| USB port | Yes |
|---|---|
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
Weight & dimensions
| Depth | 36.1" (916 mm) |
|---|---|
| Width | 55.1" (1399 mm) |
| Height | 43.7" (1110 mm) |
| Weight | 191.8 lbs (87 kg) |
Power
| Power requirements | Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 4.2 A max (peak current) |
|---|---|
| Power consumption (off) | 0.1 W |
| Power consumption (typical) | 120 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| Safety | USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia (GOST); Singapore (PSB); China (CCC); Argentina (IRAM); Mexico (NYCE); Korea (KATS) |
|---|---|
| Ink drop | 6 pl (C, M, Y, G, pK); 9 pl (mK) |
| Functions | |
| Line accuracy | +/- 0.1% |
| Line width minimum | 0.0028 in (ISO/IEC 13660:2001(E)) |
| Roll maximum input | 1 |
| Acoustic power emissions | 6.5 B(A) |
| Minimum system requirements | Windows XP Professional/Home (SP2 or higher): Intel Pentium family or AMD K6/Athlon/Duron family (1 GHz); 512 MB RAM; 2 GB available hard disk space |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
| Compatible ink types, supplies | Dye-based (C, G, M, pK, Y); pigment-based (mK) |
| Acoustic pressure emissions (standby) | 39 dB(A) |
| Media sizes standard (imperial rolls) | 8.3 to 36-in wide sheets; 11 to 36-in rolls |
| Non-printable area (imperial cut-sheet) | 0.2 x 0.87 x 0.2 x 0.2 in |
| Minimum system requirements for Macintosh | Mac OS X v 10.6: Intel processor; 1 GB RAM; 5 GB available hard disk space; Mac OS X v 10.7: Intel Core 2 Duo, Core i3, Core i5, Core i7, or Xeon processor; 2 GB RAM; 7 GB available hard disk space; Mac OS X v 10.8: only supported in specific Mac models, OS X v 10.6.8 or later installed, 2 GB RAM; 8 GB available hard disk space |
Packaging data
| Package depth | 29.9" (759 mm) |
|---|---|
| Package width | 59.1" (1502 mm) |
| Package height | 30.5" (775 mm) |
| Package weight | 248 lbs (112.5 kg) |
| Bundled software | HP Designjet ePrint & Share for Windows, HP Instant Printing for Windows, HP Utility for Mac and Windows |
System requirements
| Compatible operating systems | Windows 8 Professional/Home (32-bit, 64-bit); Windows Server 2012; Windows 7 Ultimate/Professional/Home Premium (32-bit, 64-bit); Windows Vista Ultimate/Business/Home Premium (32-bit, 64-bit); Windows XP Professional/Home (32-bit, 64-bit); Windows Server 2008 (32-bit, 64-bit), Windows Server 2008 R2, Windows Server 2003 (32-bit, 64-bit); Mac OS X v 10.6, v 10.7, v 10.8; Linux (see ) |
|---|
Everything that fits the HP DesignJet T920
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
21 ink cartridges · 1 printhead · 44 paper & media items · 3 accessories
HP DesignJet T920 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T920 36-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 21
HP Premium Gloss 610 mm x 15.2 m (24 in x 50 ft)
HP Premium Gloss 914 mm x 22.9 m (36 in x 75 ft)
HP Premium Matte White
HP 727 Cyan Ink Cartridge, 40 ml (B3P13A)
HP 727 Photo Black Ink Cartridge, 40 ml (B3P17A)
HP 727 Yellow Ink Cartridge, 40 ml (B3P15A)
HP 727 Gray Ink Cartridge, 40 ml (B3P18A)
HP 727 Magenta Ink Cartridge, 40 ml (B3P14A)
HP 727 300-ml Matte Black Ink Cartridge
HP 727 130-ml Cyan Ink Cartridge
HP 727 130-ml Gray Ink Cartridge
HP 727 130-ml Yellow Ink Cartridge
HP 727 130-ml Photo Black Ink Cartridge
HP 727 130-ml Magenta Ink Cartridge
HP 727 300-ml Photo Black Ink Cartridge
HP 727 300-ml Yellow Ink Cartridge
HP 727 300-ml Magenta Ink Cartridge
HP 727 300-ml Gray Ink Cartridge
HP 727 300-ml Cyan Ink Cartridge
HP 727 130-ml Matte Black Ink Cartridge
HP 727 Matte Black Ink Cartridge, 69 ml (C1Q11A)Printheads 1
Paper & Media 44
Representative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image230gsm Special Matte Photo PaperRepresentative image200gsm Special Matte Photo PaperRepresentative image350g Vivid Matte Poly/Cotton CanvasRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative image6 Mil Water-Resistant Self-Adhesive PolypropyleneRepresentative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Representative image20LB Engineering Vellum (471)Representative imageWSL 28LB Simple Inkjet Coated Matte Paper (C2S) (448)
HP Q1420A photo paper Brown, White
HP Matte Film 610 mm x 38.1 m (24 in x 125 ft)Representative imageHP Bright White Inkjet Paper, 36 in x 300 ft (C6810A)
HP C6035A large format media 45.7 m
HP C6036A printing paper Matte White
HP Clear Film 174 gsm-610 mm x 22.9 m (24 in x 75 ft)
HP Q1421A photo paper Brown, White
HP Q6579A photo paper Brown, White
HP Q6580A photo paper Matte
HP Q1441A large format media 45.7 m
HP Q1442A large format media 45.7 m
HP Q1444A printing paper Matte
HP Q1445A printing paper Matte
HP Universal Bond Paper 841 mm x 91.4 m large format media 3598.4" (91.4 m)
HP Q8004A large format media 91.4 m
HP Q7991A photo paper
HP Q1446A plotter paper 45 m 42 cm
HP CH022A printing film
HP CH024A printing film
HP CH023A printing film Polypropylene (PP)
HP Premium Satin 610 mm x 15.2 m (24 in x 50 ft) White
HP Premium Satin 914 mm x 22.9 m (36 in x 75 ft) White
HP CG459B photo paper White Matte
HP Q6626B large format media 30.5 m Matte
HP Q6627B large format media 30.5 m Matte
HP C0F08A printing film
HP C0F12A large format media 22.9 m Matte
HP 2-pack Everyday Adhesive Matte Polypropylene-610 mm x 22.9 m (24 in x 75 ft)
HP C0F19A printing film
HP C0F28A printing film
HP C2T51A printing film
HP C2T53A printing film
Questions
Straight answers
What AEC documents is the HP T920 36-in suited to?
It is suited to color CAD linework, PDF drawing sets, coordination drawings, GIS sheets, and presentation-oriented output up to 36 inches wide. It supports A through E media sizes and lists bond, coated, technical, film, photographic, backlit, and selected self-adhesive media.
How fast is it for D-size/A1 drawings?
HP rates draft color line drawings on A1 plain paper at 120 A1 prints per hour, or 21 seconds per page. Actual completed-set timing also depends on file processing, media handling, and operator workflow.
Can the HP T920 scan and copy drawings?
No. Its listed function is print only. A firm that needs routine scan/copy capability should evaluate a listed scanner/MFP alternative such as the HP DesignJet T950 36-in or HP DesignJet T850 36-in.
Does it handle more than one roll at a time?
No. The maximum roll input is one. That is appropriate for a stable media routine, but less attractive when jobs frequently switch between roll widths or media types.
What inks does the HP T920 use?

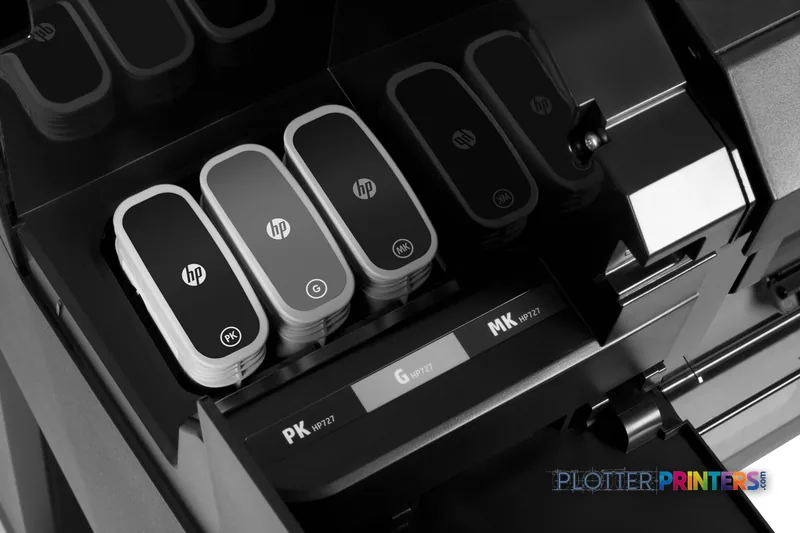

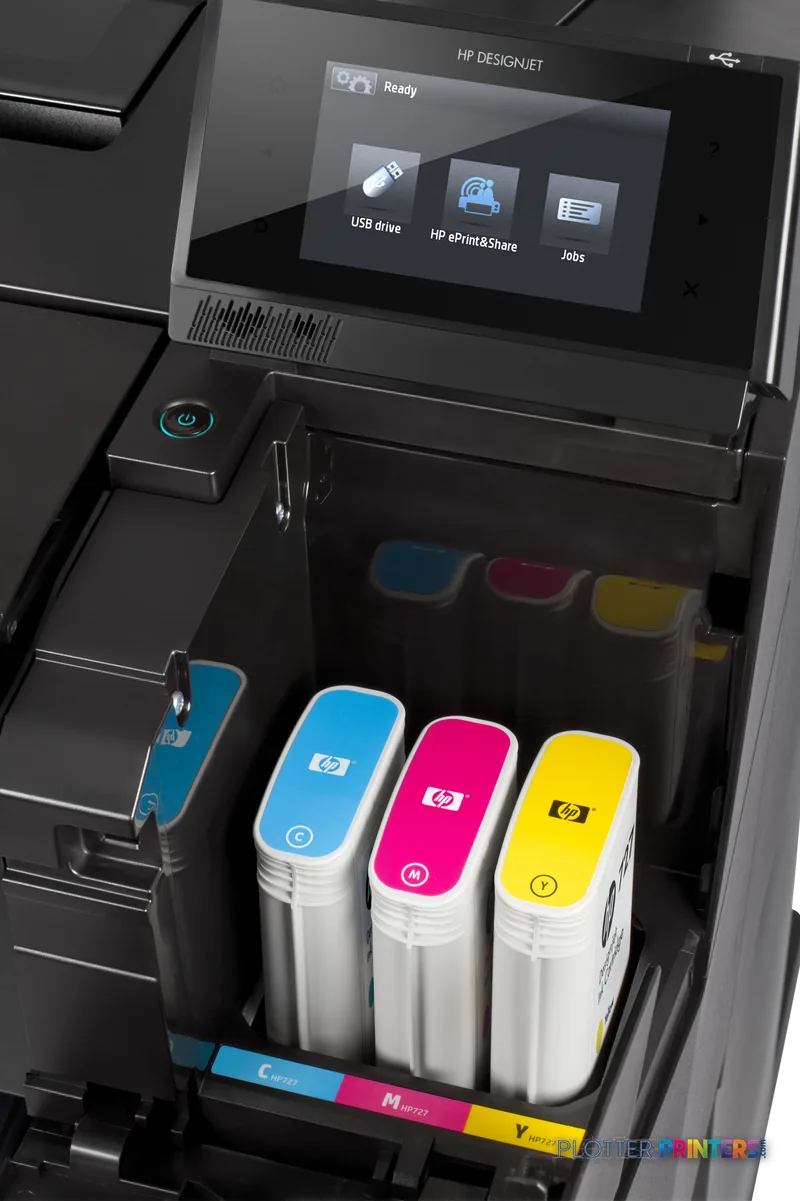

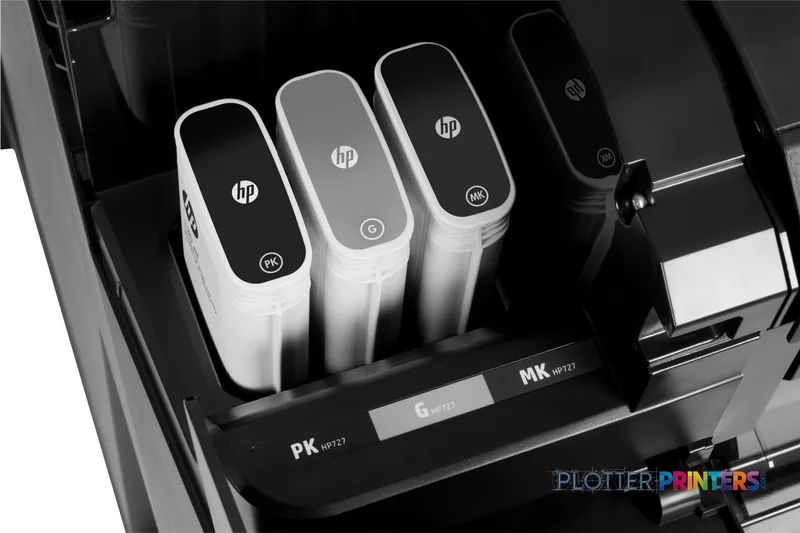

It uses six HP 727 ink cartridges: cyan, gray, magenta, matte black, photo black, and yellow. The supplied data identifies dye-based cyan, gray, magenta, photo black, and yellow inks, with pigment-based matte black.
What should IT test before deployment?
Test representative HP-GL/2, HP-RTL, PDF, PostScript, and TIFF files through the firm’s intended submission path. Confirm Ethernet or USB use, driver/software compatibility, and how complex drawing files behave before standardizing the workflow.
