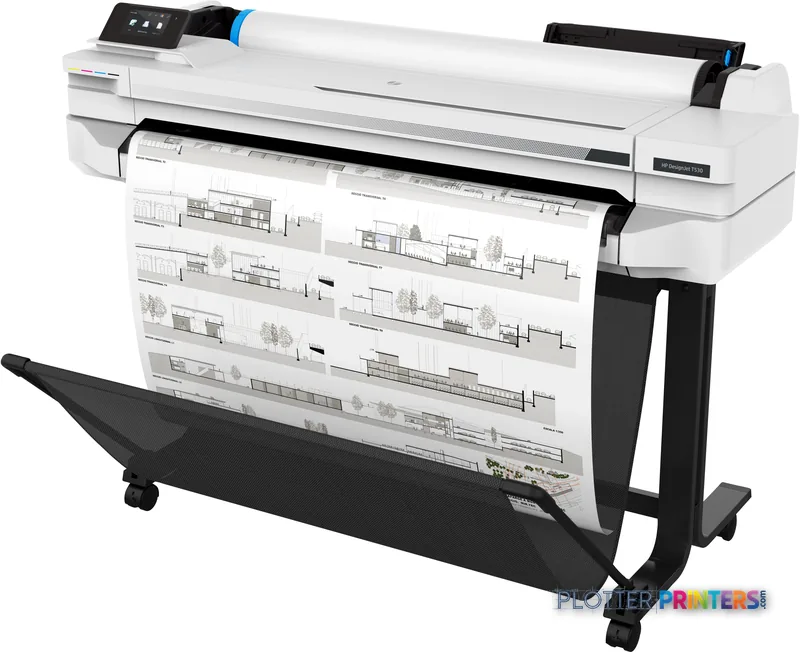

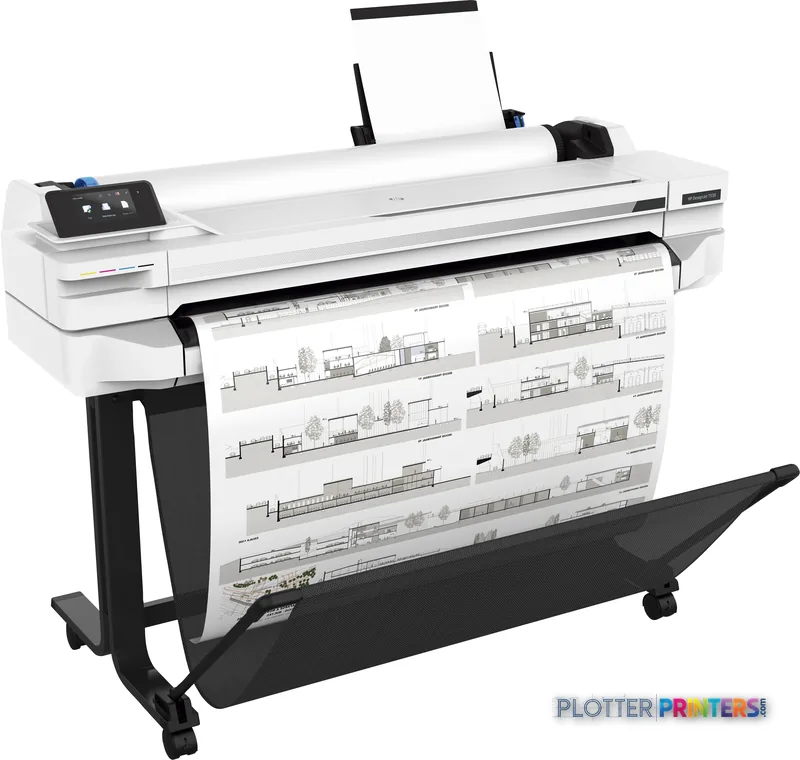

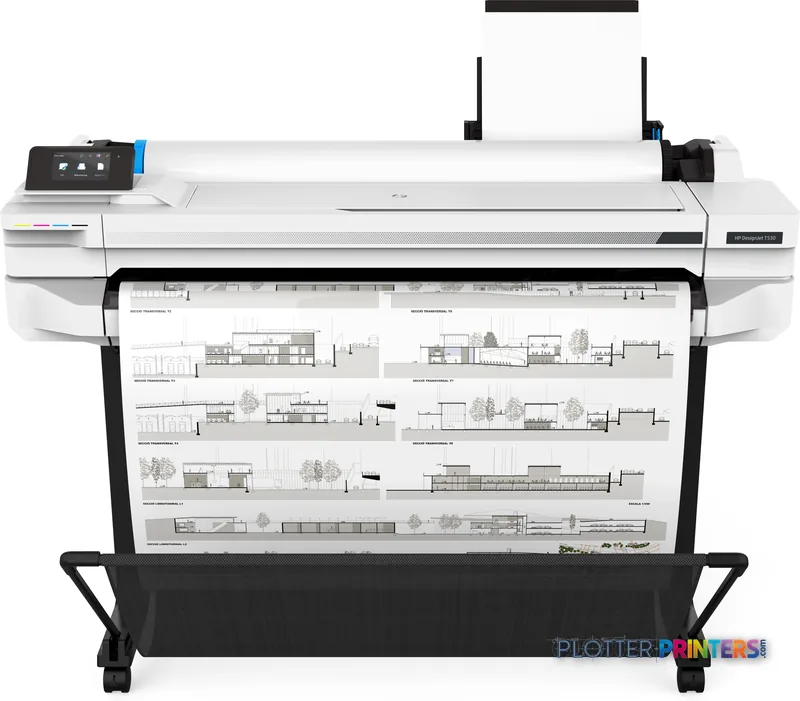

HP DesignJet T530
36" technical / CAD plotter
- ModelT530
- Prints36" wide
- Score42/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The T530 provides 36-in color thermal-inkjet output with a 2400 x 1200 DPI maximum resolution.
- Ethernet, Wi-Fi, Wi-Fi Direct, USB Type-A, and direct printing support several office connection methods.
- It supports HP-GL/2, HP-RTL, JPEG, and CALS G4 page-description languages for technical-document environments.
Not sure if the T530 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Black, Cyan, Magenta, Yellow.
- Connectivity Wi-Fi + Ethernet for shared team printing.
- Verified specs 10 specs checked against the manufacturer datasheet.
- Analyst score Scores 42/100 in our class-relative rating.
Overview
Built for the work
HP Designjet T530 36-in Printer, Thermal inkjet, 2400 x 1200 DPI, HP-GL/2, HP-RTL, JPEG, CALS G4, Black, Cyan, Magenta, Yellow, 2400 x 1200 DPI, Bond paper, Coated paper, Glossy paper, Heavy paper, Matte paper, Photo paper, Plain paper,…
- 36″Max print width
- 4Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Where it performs best
Connections
100
Size / Fit
98
Print Quality
66
Class best is 63. How we grade →
Expert analysis
What you should know
Key takeaways
- The T530 provides 36-in color thermal-inkjet output with a 2400 x 1200 DPI maximum resolution.
- Ethernet, Wi-Fi, Wi-Fi Direct, USB Type-A, and direct printing support several office connection methods.
- It supports HP-GL/2, HP-RTL, JPEG, and CALS G4 page-description languages for technical-document environments.
- There is no scanning or copying, so marked-up-plan capture requires a separate device or an MFP workflow.
- The HP DesignJet T1600dr 36-in is the listed in-family step-up when dual-roll capability is required.
- Use HP 712 inks and the HP 713 printhead family when planning compatible supplies.
Someone needs a full-size plan at the tray before the afternoon coordination call. The HP DesignJet T530 36-in Printer is built for that sort of office task: color technical output, ordinary plan work, and occasional presentation sheets without turning a small studio into a print room.
It is a 36-in thermal-inkjet DesignJet with 2400 x 1200 DPI maximum resolution, HP-GL/2 and HP-RTL support, plus JPEG and CALS G4 page-description languages. That matters when CAD drawings, marked-up files, and color-coded engineering sheets need to leave the same device. It also has Ethernet, Wi-Fi, Wi-Fi Direct, USB Type-A, and direct printing. Bottom line: this is an office plotter for getting drawings out, not a production department in a white box.
2400 x 1200 DPIMaximum resolutionFor detailed color technical output.
36 inFootprint widthUseful to check before promising it a spot beside the project table.
67.2 lbsWeightA manageable office-scale machine, but still plan its location.
35 WTypical power consumptionENERGY STAR certified.
Where it fits in an AEC office
The T530 fits a small architecture practice, engineering satellite office, survey team, or construction office that needs color plans and graphics in-house. Its listed media support includes bond, plain, recycled, coated, heavy, matte, glossy, satin, semi-glossy, and photo paper. The maximum supported media thickness is 0.012 in, so keep expectations anchored to paper-based output rather than specialty board work.
HP Click, HP DesignJet Utility for Windows, HP Smart app, and HP Poster Web app are bundled. Those tools give different users practical submission paths, while Fast Ethernet, Wi-Fi, and Wi-Fi Direct offer choices for an office network or a local device connection. The 1 GB internal memory is worth noting for routine submission, but it is not a license to treat every complex drawing package as a stress test. Bottom line: it makes the most sense when plotting is useful every week, not when the machine must carry every deadline alone.
What it does not replace
There is no scanning or copying here. If the workflow includes field redlines, legacy plan capture, or walk-up copy jobs, look instead at the HP DesignJet T830 24-in, which is listed as a scanner/MFP. That is a workflow decision, not a checkbox contest.
The T530 also uses four cartridges—black, cyan, magenta, and yellow—and compatible supplies are the HP 712 inks. The HP 713 printhead is the relevant printhead family. HP dynamic security is included, so procurement and IT should confirm their approved-supply policy before deployment. Bottom line: it prints; it does not scan its way out of a pile of marked-up plans.
Family position and buying call
If 24-in output covers the work, the HP DesignJet T530 24-in is the nearer step-down choice. If the operation needs a 36-in device with dual-roll capability, the HP DesignJet T1600dr 36-in is the meaningful step-up within the listed family. The second comparison matters most when teams regularly change between media types or sizes; otherwise, extra capability can just become extra furniture.
For a same-width alternative, use the T530 and Canon GP-300 36-in comparison to keep the decision tied to the actual models under consideration. Also check the 36-in technical-printer ranking alongside local support and service terms. Bottom line: choose the T530 when 36-in color printing is the job; move up when roll handling or higher operational capacity becomes the job.
Related tools and comparisons
The read
The HP DesignJet T530 36-in Printer is a sensible fit for AEC teams that need occasional-to-regular full-size color output, straightforward network access, and a modest office footprint. Its limits are equally plain: no scan or copy function, and no listed dual-roll capability. Buy it for dependable access to 36-in technical printing. Do not buy it hoping it will become a centralized reprographics operation by Tuesday. Bottom line: right-sized for the office plot queue, not the all-hands bid-room queue.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T5475
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 36 in (914 mm)manufacturer-verified |
|---|---|
| Maximum resolution | 2400 x 1200 dpi |
| Print speed (HP-rated) | 27 s/sheet A1, 79 A1 prints per hourmanufacturer-verified |
| Internal memory | 1 GB |
| Ink platform / cartridges | HP Bright Office, 4 cartridges (Black, Cyan, Magenta, Yellow)manufacturer-verified |
| Roll width range | 11 in (279 mm) to 36 in (914 mm)manufacturer-verified |
| Media thickness | 0.12 in (3 mm) |
| Connectivity | Fast Ethernet (100Base-T), Hi-Speed USB 2.0, Wi-Fi, Wi-Fi Directmanufacturer-verified |
| Page description languages | HP-GL/2, HP-RTL, JPEG, CALS G4manufacturer-verified |
| Warranty | Two-year limited hardware warrantymanufacturer-verified |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
Max print width36"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print head | 1376 |
| Printing colors | Black, Cyan, Magenta, Yellow |
| Print technology | Thermal inkjet |
| Resolution color | 2400 x 1200 DPI |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, HP-RTL, JPEG, CALS G4 |
Performance
| RAM capacity | 1 GB |
|---|---|
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
| Product color | White |
| Internal memory | 1024 MB |
| Sound power level (standby) | 16 dB |
Paper handling
| Media thickness | 0.3 mm |
|---|---|
| Maximum roll diameter | 3.94" (10 cm) |
| Paper tray media types | Bond paper, Coated paper, Glossy paper, Heavy paper, Matte paper, Photo paper, Plain paper, Recycled paper, Satin paper, Semi-glossy paper |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| USB connector | USB Type-A |
| Direct printing | Yes |
| USB 2.0 ports quantity | 1 |
| Ethernet interface type | Fast Ethernet |
Weight & dimensions
| Depth | 20.9" (530 mm) |
|---|---|
| Width | 50.9" (1292 mm) |
| Height | 36.7" (932 mm) |
| Weight | 67.2 lbs (30.5 kg) |
Power
| Power supply | 3 W |
|---|---|
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (sleep) | 4.5 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 35 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Packaging data
| Package depth | 22.4" (570 mm) |
|---|---|
| Package width | 54.9" (1395 mm) |
| Package height | 18.9" (480 mm) |
| Package weight | 127.9 lbs (58 kg) |
| Bundled software | HP Click, HP DesignJet Utility for Windows, HP Smart app, HP Poster Web app |
| Quick start guide | Yes |
| Cartridge(s) included | Yes |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR |
Brand-specific features
| HP dynamic security | Yes |
|---|
Everything that fits the HP DesignJet T530
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
13 ink cartridges · 1 printhead · 9 paper & media items · 1 accessory
HP DesignJet T530 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T530 36-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 13
HP 711 2-pack 80-ml Black Ink Cartridges
HP 711 3-pack 29-ml Cyan/Magenta/Yellow Ink Cartridges
HP 711 29-ml Yellow Ink Cartridge
HP 711 3-pack 29-ml Cyan Ink Cartridges
HP 711 29-ml Magenta Ink Cartridge
HP 711 3-pack 29-ml Yellow Ink Cartridges
HP 711 3-pack 29-ml Magenta Ink Cartridges
HP 711 29-ml Cyan Ink Cartridge
HP 711 80-ml Black Ink Cartridge
HP 711 38-ml Black Ink Cartridge
HP 711B 38-ml Black Ink Cartridge
HP 711B 2-Pack 80-ml Black Ink Cartridges
HP 711B 80-ml Black Ink CartridgePrintheads 1
Paper & Media 7
Representative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative imageHP Universal Gloss Photo Paper
HP Universal Coated PaperRepresentative imageHP Universal Bond Paper, 4-packRepresentative imageHP Bright White Inkjet Paper, 4-packRepresentative imageMagic 36LB Heavyweight Coated Inkjet Paper (JS036)Representative imageMagic 4mil Inkjet Clear Film w/ Side Stripe (DMCF4HPS)Questions
Straight answers
Is the HP DesignJet T530 36-in Printer suitable for CAD drawings?
It supports HP-GL/2 and HP-RTL, along with JPEG and CALS G4. Its maximum resolution is 2400 x 1200 DPI, making it a practical candidate for color technical output.
Can this printer scan field markups or copy existing plans?
No. The product data lists no scanning and no copying. Teams that need those functions should consider a separate scanner or the listed HP DesignJet T830 24-in MFP.
How can users connect to the printer?
The T530 includes Fast Ethernet, Wi-Fi, Wi-Fi Direct, one USB 2.0 port, USB Type-A, and direct printing. The appropriate connection depends on the office network and IT policy.
What media can it handle?
Listed media types include bond, plain, recycled, coated, heavy, matte, glossy, satin, semi-glossy, and photo paper. Listed maximum media thickness is 0.012 in.
Which inks does this printer use?
Compatible consumables include HP 712 inks. The compatible printhead family is the HP 713 printhead.
When should a buyer move up to the HP DesignJet T1600dr 36-in?
Move up when the workflow requires the listed dual-roll capability. That becomes more relevant when media changes interrupt the workday or multiple drawing formats are routinely needed.
