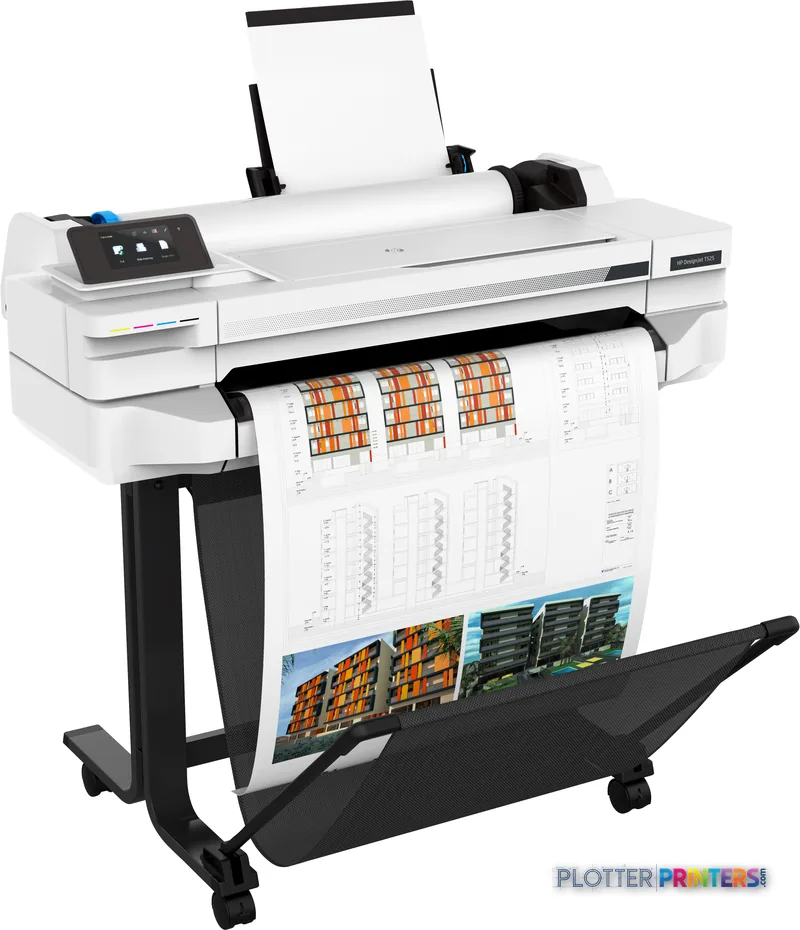

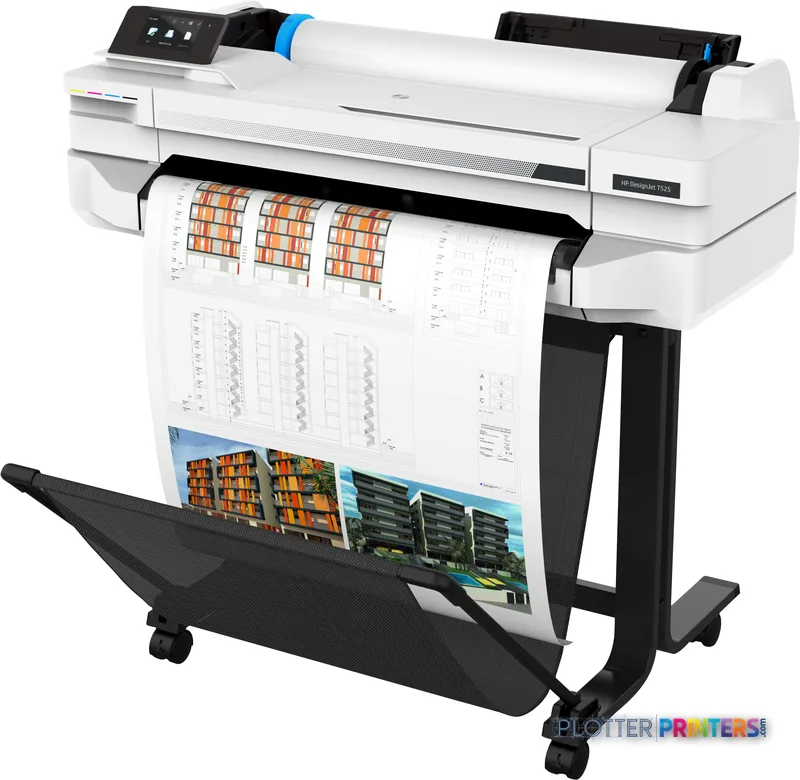

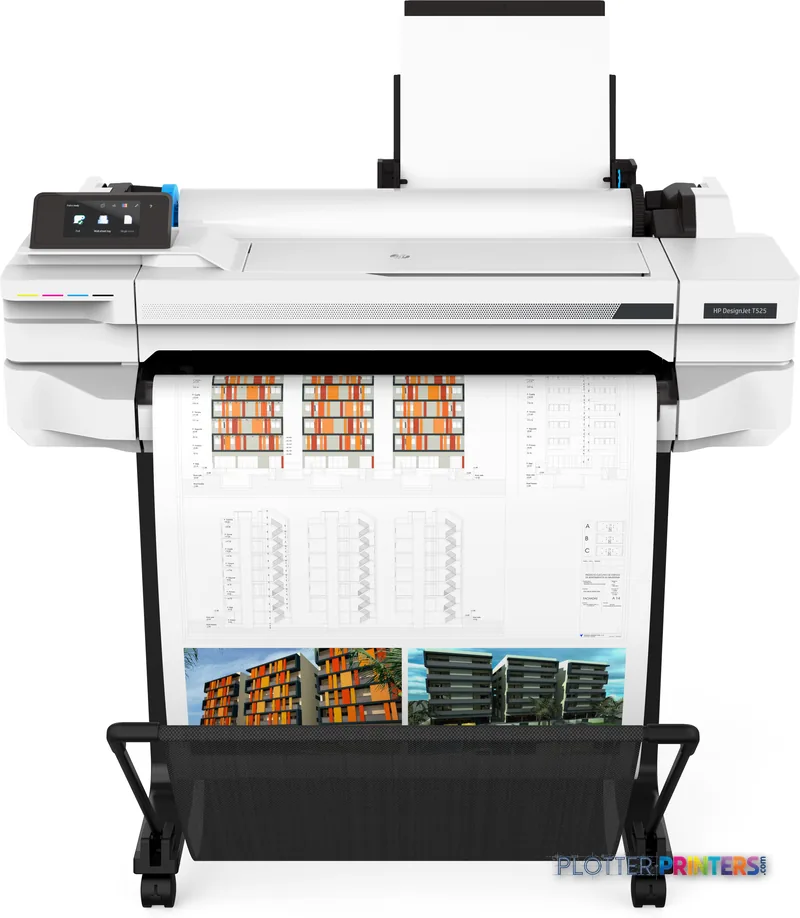

HP DesignJet T525

The T525’s thermal-inkjet system uses four colors: black, cyan, magenta, and yellow. Its listed 2400 x 1200 DPI resolution is appropriate for linework, dimensions, color-coded MEP coordination sheets, GIS maps, and client-facing boards where ordinary technical printing needs to look orderly. The practical advantage is that one machine can cover black line drawings and routine color without creating a separate workflow for each.

The listed normal-quality A1 rate is 70 pph. That is useful context for a steady stream of sheets, but it is not a promise that a mixed PDF set will emerge at that pace. File processing, media changes, and the person who sent the wrong revision still exist. They always do.

Wi-Fi, Wi-Fi Direct, Fast Ethernet, and a USB Type-A port give a small team several ways to submit work. Direct printing can help on active jobsites or project rooms where the network is not the star of the show. The 1 GB of internal memory also supports technical-document processing without turning the device into a production department.

Bottom line: This is a sensible 24-inch color plan printer when the work is frequent, varied, and not relentless.

The printer accepts a range of paper types, including bond, plain, recycled, coated, matte, glossy, and photo papers. Its specified media thickness limit is 0.012 inches, so this is not the place to improvise with unusually heavy board stock. The maximum roll diameter is 3.9 inches. That is workable for modest office demand, but a team burning through plans all week should treat roll changes as part of the labor calculation.

Compatible supplies include HP 711 inks and the HP 711 printhead. Keep the right supplies on hand before a deadline, not after a black cartridge decides to become a project manager.

The T525 has no scanning or copying capability. Firms regularly revising paper redlines, converting legacy plans, or copying field markups should look instead at the HP DesignJet T830 24-in, which is listed as a scanner/MFP. That distinction matters far more than a brochure checkbox when the superintendent arrives with a folded, coffee-adjacent sketch.

Bottom line: The T525 prints technical work well within its media limits, but it does not replace a wide-format document-capture workflow.

Choose this 24-inch model when your normal output is detail sheets, smaller plan formats, maps, and presentation work that fits its width. If 36-inch plans are routine rather than occasional, the HP DesignJet T525 36-in is the direct width step-up in the same family. Buying too narrow forces awkward scaling or outside printing; buying too wide can consume floor space for no operational gain.

For another 24-inch in-family option, compare the HP DesignJet T530 24-in against the T525 using our side-by-side comparison. If higher unattended volume and roll flexibility are central requirements, the HP DesignJet T1600dr 36-in is listed as a dual-roll alternative. That is a different operating model, not merely a wider tray.

Ask the dealer to demonstrate your own multi-page PDFs, HP-GL/2 files, and typical paper stock. Confirm network setup, authentication expectations, service response terms, and who changes consumables. A printer is usually fine until the deadline finds the one part of the workflow nobody owns.

Bottom line: Match width, roll handling, and document-capture needs to the work arriving every week, not the occasional oversized sheet.
