HP · Wide-Format Plotter

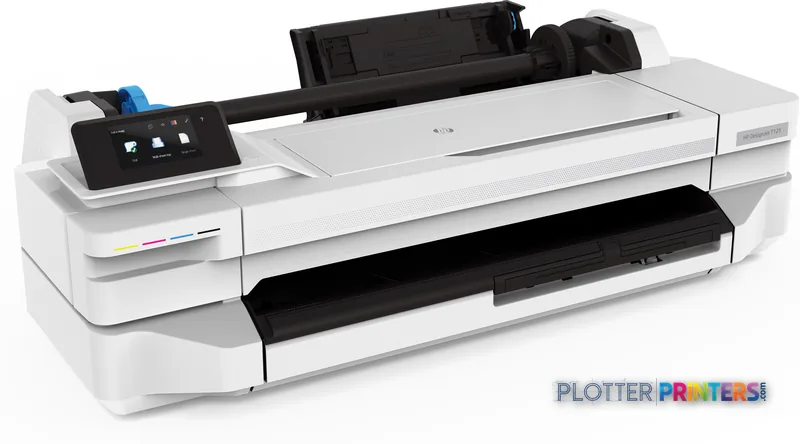

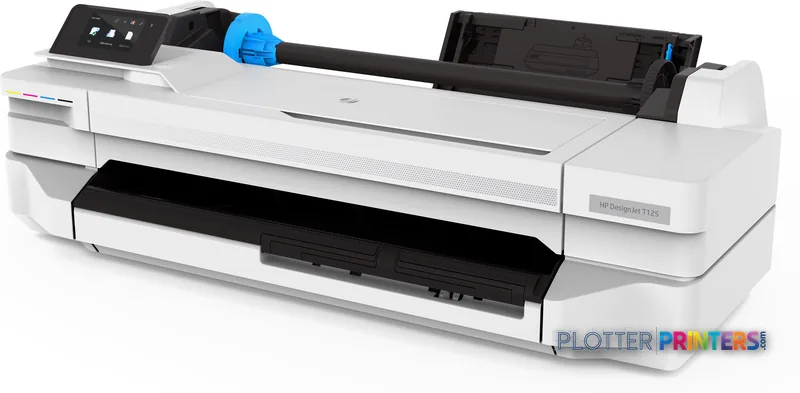

HP DesignJet T125
24" technical / CAD plotter
- ModelT125
- Prints24" wide
- Score43/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The HP DesignJet T125 24-in is a compact thermal-inkjet printer for 24-inch technical drawings, maps, and presentation output.
- HP rates normal-quality A1 printing at 60 pph, but file preparation and operator handling still affect deadline throughput.
- Ethernet, Wi-Fi, Wi-Fi Direct, USB, and direct printing support several small-office submission methods.
Not sure if the T125 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 24" wide on rolls and sheets.
- Fine detail 1200 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Dye-based (C, M, Y); pigment-based (K).
- Connectivity Wi-Fi + Ethernet for shared team printing.
- Verified specs 8 specs checked against the manufacturer datasheet.
- Analyst score Scores 43/100 in our class-relative rating.
Overview
Built for the work
HP Designjet T125 24-in Printer, Thermal inkjet, 1200 x 1200 DPI, JPEG, Black, Cyan, Magenta, Yellow, 1200 x 1200 DPI, 60 pph
- 24″Max print width
- 404 ft²/hRated speed
- 4Ink channels
- 1,200 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The HP DesignJet T125 24-in is a compact thermal-inkjet printer for 24-inch technical drawings, maps, and presentation output.
- HP rates normal-quality A1 printing at 60 pph, but file preparation and operator handling still affect deadline throughput.
- Ethernet, Wi-Fi, Wi-Fi Direct, USB, and direct printing support several small-office submission methods.
- The machine has no scanning or copying capability, so it does not replace a wide-format MFP.
- Its single media path makes it better suited to short runs than repeated mixed-media or high-volume set production.
- Test real CAD-exported PDFs and raster-heavy sheets before committing to a workflow.
It is 4:45 p.m. A project manager needs a revised plan, not a lesson in printer administration. The HP DesignJet T125 24-in is a compact thermal-inkjet printer for teams that need to put 24-inch technical drawings, marked-up PDFs, maps, and presentation sheets on paper without giving a full print room another machine to babysit.
It handles rolls and cut sheets, connects by Ethernet, Wi-Fi, Wi-Fi Direct, or USB, and supports direct printing. HP rates normal-quality A1 output at 60 pph. That is useful for intermittent plan output and deadline bursts, but it is not the same thing as a high-volume, collated bid-set workflow. The T125 is happiest when one person needs a drawing now, not when six people need mixed-size sets at once. Bottom line: this is an office plotter, not a reprographics department in a black-and-white box.
24-inMaximum print widthSized for common desktop and small-office technical output.
60 pphRated A1 speedHP’s normal-quality A1 rating; real jobs also include file processing and media handling.
1200 x 1200 DPIMaximum resolutionApplied to both monochrome technical work and four-color output.
39"FootprintPrinter width; depth is 21".
Where it earns its desk space
The practical fit is a small architecture studio, engineering satellite office, survey team, construction trailer, or department that prints drawings in short runs. The four-color thermal-inkjet system uses black, cyan, magenta, and yellow inks. It supports bond, plain, recycled, coated, matte, glossy, photo, and heavier papers listed for the tray, with media thickness up to 0.012 inches.
HP Click, HP DesignJet Utility for Windows, HP Smart app, and HP Poster Web app are bundled. Those tools matter because a plotter that is easy to submit to tends to get used; one that requires a small ritual and a driver séance tends to become furniture. Ethernet LAN runs at 100 Mbit/s, while Wi-Fi and Wi-Fi Direct give smaller teams placement options where a network drop is not handy.
For consumables, use compatible HP 711 inks and the HP 711 printhead. A 24-inch spindle is also available for the machine. Bottom line: it suits distributed technical printing where convenience and a modest footprint matter more than unattended set production.
Estimate rated print time for an A1 drawing run, then leave room for file processing, roll changes, and the inevitable last-minute PDF revision.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 404 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
The limits are plain, and they matter
The T125 has no scanner and no copying function. That rules it out for teams that routinely copy redlines, scan as-builts, or archive legacy drawings at the device. It also has a single 24-inch media path rather than a dual-roll arrangement, so changing between paper types or sizes remains an operator task. At deadline time, that is where a tidy plan turns into a small queue.
The printer’s page-description language is JPEG. For CAD and PDF-heavy environments, test the actual files your team sends, along with the submission method your users will rely on. Fine linework, small notes, raster-heavy GIS sheets, and embedded transparency deserve a real proof, not a hopeful nod across the showroom.
If scanning and copying are part of the assignment, the HP DesignJet T830 24-in is the relevant in-family direction. If higher listed resolution is the priority in another compact 24-inch printer, review the HP DesignJet T210 24-in or HP DesignJet T230 24-in. Bottom line: the T125 prints; it does not replace a wide-format MFP or a production set workflow.
How it sits in the family
The HP T120 24-in is the closest step-down conversation because it shares the listed 24-inch width, thermal-inkjet technology, and 1200 x 1200 DPI resolution. The HP DesignJet T130 24-in is the adjacent in-family alternative to examine when comparing configurations. Neither comparison should be settled from a model number alone; confirm the connection, media, support, and workflow requirements that apply to your site.
For a bigger operational change, the HP DesignJet T1600dr 36-in brings a listed 36-inch width and dual-roll capability. That matters when teams repeatedly switch media or need wider sheets. It also changes the footprint and the conversation with facilities and IT. The T125 measures 39 inches wide, 21 inches deep, 11 inches high, and weighs 55.1 pounds, making it easier to place where space is tight.
Bottom line: choose the T125 for occasional-to-regular 24-inch output, not because the next deadline has quietly become a production run.
Related technical-printer comparisons
HP T120 24-inReview the nearby 24-inch model with the same listed print technology and resolution.HP DesignJet T130 24-inCompare the adjacent T-series option for your connection and workflow needs.HP DesignJet T830 24-inConsider this route when wide-format scanning and copying are required.24-inch technical-printer rankingSee this machine’s class placement alongside comparable devices.
The read
The HP DesignJet T125 24-in is a sensible fit for AEC teams that need dependable 24-inch color and monochrome output from rolls or cut sheets, with straightforward local, network, and wireless connections. It is less appropriate for scan-copy work, frequent media switching, high-volume bid sets, or departments that need wider output and dual-roll operation. Ask the dealer to print your actual CAD-exported PDFs, GIS maps, and small-text sheets before signing anything. A clean demo file proves very little. Bottom line: buy this machine for accessible technical printing near the people doing the work, not for the jobs that should already be headed to a central print room.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T3475
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Maximum roll width | 24 in (610 mm)manufacturer-verified |
|---|---|
| Maximum resolution | 1200 x 1200 optimized dpi |
| Print speed (normal, A1) | 60 pph |
| Print technology | HP thermal inkjet, 4 cartridges (CMYK) |
| Ink platform | Dye-based (C, M, Y); pigment-based (K)manufacturer-verified |
| Internal memory | 256 MB |
| Connectivity | Fast Ethernet (100Base-T), Hi-Speed USB 2.0, Wi-Fi, Wi-Fi Direct |
| Scanning / copying | No |
| Dimensions (W x D x H) | 38.9 x 20.9 x 11.2 in (987 x 530 x 285 mm) |
| Power (typical / sleep) | 35 W / 4.5 W |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution1200 x 1200 DPI
Max print width24"
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use caseCAD / Technical
Printing
| Print technology | Thermal inkjet |
|---|---|
| Printing colours | Black, Cyan, Magenta, Yellow |
| Maximum resolution | 1200 x 1200 DPI |
| Print resolution colour | 1200 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | JPEG |
| Print speed (normal quality, A1) | 60 pph |
Performance
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
|---|---|
| Product colour | Black, White |
| Internal memory | 256 MB |
| Sound power level (standby) | 16 dB |
| Sound pressure level (printing) | 45 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Media thickness | 0.3 mm |
| Maximum roll diameter | 10 cm |
| Paper tray media types | Bond paper, Coated paper, Glossy paper, Heavy paper, Matte paper, Photo paper, Plain paper, Recycled paper, Satin paper, Semi-glossy paper |
| ISO A-series sizes (A0…A9) | A1, A2, A3, A4 |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| USB connector | USB Type-A |
| Direct printing | Yes |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
Weight & dimensions
| Depth | 530 mm |
|---|---|
| Width | 987 mm |
| Height | 285 mm |
| Weight | 25 kg |
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (sleep) | 4.5 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 35 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Packaging data
| Package depth | 610 mm |
|---|---|
| Package width | 1130 mm |
| Package height | 405 mm |
| Package weight | 28.5 kg |
| Bundled software | HP Click, HP DesignJet Utility for Windows, HP Smart app, HP Poster Web app |
| Quick start guide | Yes |
| Cartridge(s) included | Yes |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR |
Brand-specific features
| HP Dynamic security | Yes |
|---|
Everything that fits the HP DesignJet T125
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
13 ink cartridges · 1 printhead · 9 paper & media items · 2 accessories
HP DesignJet T125 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T125 24-in Printer — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 13
HP 711 2-pack 80-ml Black Ink Cartridges
HP 711 3-pack 29-ml Cyan/Magenta/Yellow Ink Cartridges
HP 711 29-ml Yellow Ink Cartridge
HP 711 3-pack 29-ml Cyan Ink Cartridges
HP 711 29-ml Magenta Ink Cartridge
HP 711 3-pack 29-ml Yellow Ink Cartridges
HP 711 3-pack 29-ml Magenta Ink Cartridges
HP 711 29-ml Cyan Ink Cartridge
HP 711 80-ml Black Ink Cartridge
HP 711 38-ml Black Ink Cartridge
HP 711B 38-ml Black Ink Cartridge
HP 711B 2-Pack 80-ml Black Ink Cartridges
HP 711B 80-ml Black Ink CartridgePrintheads 1
Paper & Media 9
Representative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative imageHP Universal Gloss Photo Paper
HP Universal Coated PaperRepresentative imageHP Universal Bond Paper, 4-packRepresentative imageHP Bright White Inkjet Paper, 4-packRepresentative imageMagic 36LB Heavyweight Coated Inkjet Paper (JS036)Representative imageMagic 98gsm/26# Coated Matte Paper (DMPG98)Representative imageMagic 4mil Inkjet Clear Film w/ Side Stripe (DMCF4HPS)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Accessories 2
Questions
Straight answers
Can the HP DesignJet T125 24-in scan or copy marked-up plans?
No. The product data lists no scanning and no copying. Teams that need to scan redlines, copy plans, or archive drawings should evaluate a wide-format MFP such as the HP DesignJet T830 24-in.
What connections does the T125 support?
It supports Ethernet LAN, Wi-Fi, Wi-Fi Direct, USB, and direct printing. Its Ethernet interface is Fast Ethernet with listed data rates of 100 Mbit/s.
Is this printer suitable for CAD and PDF-based AEC work?
It is intended for technical printing, but buyers should test their own CAD-exported PDFs and raster-heavy files. The listed page-description language is JPEG, so the actual submission workflow deserves proofing before deployment.
What media can it handle?
The listed tray media includes bond, plain, recycled, coated, matte, glossy, photo, satin, semi-glossy, and heavy paper. Maximum listed media thickness is 0.012 inches, and maximum roll diameter is 3.9 inches.
Which consumables are compatible with the T125?
Compatible supplies listed for this model include HP 711 inks and the HP 711 printhead. A HP Designjet 24-in Spindle is also listed as a compatible media accessory.
